Measuring principle

This instrument has an in-built probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates(steel/iron).

Applications

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and able to work steadily in the laboratory, workshop and outdoors.

Features

  • Large Display for better readability.
  • Zero-point calibration and multi-point calibration.
  • Two measure modes: single and continuous.
  • Selectable um/mil measuring units.

Technical Specifications

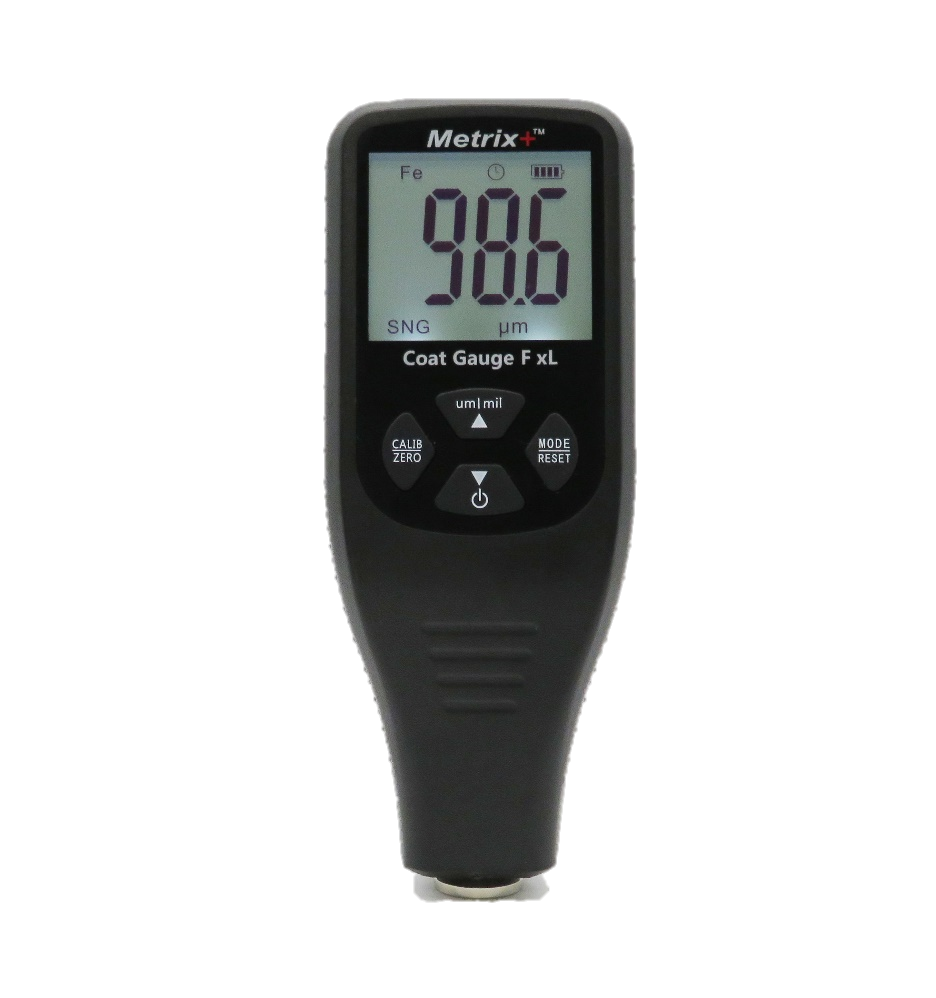

Model Metrix+ Coat Gauge F xL
Measuring principle Magnetic induction(F)
Measuring range 0 to 1500um (0 to 59mils)
Accuracy

±(2.5%+2um)

±(2.5%+0.08mil)

Resolution 0.1um/0.01mil
Calibration Zero Calibration, Multi-Points Calibration
Units um , mils
Minimum curvature radius

1.5mm(convex)

25mm(concave)

Minimum measuring area Diameter 6mm
Minimum thickness of substrate 0.5mm(0.02”)(F)
Power supply 4 x 1.5V AAA battery
Operation environment Temperature: 0 to 40℃(32 to 104℉); Humidity: 20% to 90%rh
Size 155mm×62mm×35mm(6.10″×2.44″×1.38″)
Weight 125g(4.14 oz)
Standard Accessories Coating Thickness Gauge, ‘0’ calibration block, standard foils, batteries, Technical manual.
