AUTHOR RATEUSERS RATE (0)
COATING THICKNESS GAGE CODE ISO-3500FN

Integrated with magnetic-induction probe (Fe) and eddy current probe (Nfe), switch to the suitable probe automatically according to the material to be measured Magnetic induction probe (Fe) is to measure the thickness of non-magnetic coating on magnetic substrate Substrate: iron, steel, magnetic stainless steel (does not include non-magnetic stainless steel) Coating: zinc, copper, chrome-tin, plastic […]

AUTHOR RATE
MARCAL 16 EWR-AR DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
BENCH VICE (COMMERCIAL DUTY)

CODE NO. 841 Fitted With SG Iron Nut SIZE IN NUMBER 0 1 2 3 4 5 6 8 10 12 SIZE IN INCHES 21/2 3 31/2 4 41/2 5 6 8 10 12 Width of Jaws 65 80 90 100 115 125 150 200 250 300 Opening of Jaws 70 85 110 120 140 […]

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION DIAL INDICATOR CODE – 2882

Eliminate the possibility of reading errors due to miscounting Shockproof Free stroke: 7mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2882-08* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 lug back 2882-08F* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 flat back *Supplied with […]

AUTHOR RATE
MARCAL 18 ESA DIGITAL WORKSHOP CALIPER

High contrast analog display Locking screw above Rounded measuring blades for inside measurements Prisma guide ways for a more smooth and even movement Measuring surfaces made of steel Measuring blades for outside measurements To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating […]

AUTHOR RATEUSERS RATE (0)
CAST IRON RIGHT ANGLE

Cast Iron Right Angle are widely used in various industries as a vertical reference for inspection purposes of components and for checking squareness. Cast iron right angles has bottom and the adjacent square face finished flat and square to each other as well as the two adjacent narrow sides finished flat and square to other […]

Tohnichi CEM3-P Programmable Digital Torque Wrench Dealer
AUTHOR RATEUSERS RATE (0)
CEM3-P PROGRAMMABLE DIGITAL TORQUE WRENCH

Specialized Version of CEM3 Data Tork for Quality Inspection Torque Routes Main Features 1. Allows to enter data relating to the tightening or measuring process: Product Name Location of Fastener Number of Fasteners Torque Limits for each Fastener Sequence of Testing 2. Creates a “Task List” that is uploaded to the wrench. Display on the […]

AUTHOR RATE
MARAMETER 26P – PORTABLE THICKNESS GAGES

MARAMETER 26P-7M PORTABLE THICKNESS GAGES Push down movement Molded body fits shape of hand Built-in indicator Gage is normally open for easy part entry Push down button to close the contacts Rugged and compact for portable use 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range mm Throat […]

AUTHOR RATEUSERS RATE (0)
Baker Air Electronic Converter Module (AECM)

Air Electronic Converter Module (AECM) FEATURES: Combined advantages of non-contact air sensing and high precision electronics RS232 data output available for further processing like machine control through relay output or for SPC Can be supplied with analogue, column or digital readout units For diameter 6 mm and above AECM1 is to be used For diameter […]

AUTHOR RATE
MARCAL 16 EWR-SM DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Point Caliper

• Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain. • Allows step measurement. • Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) • SPC output models allow integration into statistical process […]

AUTHOR RATE
MARAMETER 844 NB SELF-CENTERING DIAL BORE GAGE

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball Transmission lever system transfers movement of movable anvil to indicating instrument The broad centering bridge ensures automatic centering in the bore Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel Highly resistant […]

M.A.Ford Diamond Grind Routers 230 CE Dealer
AUTHOR RATE
DIAMOND GRIND ROUTERS

Diamond Grind • Designed for routing of glass-reinforced printed circuit boards, phenolic-epoxy, composites and other highly abrasive materials. • Ultra fine micrograin carbide. Series Tool Illustration Series 230CE Down Cut Safe End Series 231CE Down Cut End Mill Type Point Series 231BCE Down Cut Bur End Point Series 231DCE Down Cut Drill Point   To […]

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR UNIVERSAL HOLDER CODE – 6297

Set the indicators at the desired attitude to the workpiece   Check the PDF

AUTHOR RATE
Mitutoyo-SERIES 571-ABSOLUTE Digimatic Depth Gage

Coolant proof models achieve IP67 protection level. Enables stable depth measurement with a  resolution of 0.01mm. ABSOLUTE Digital Caliper (Refer to page D-8 for ABSOLUTE function.) Sliding operation of models with the measuring ranges 150mm (6″), 200mm (8″) and 300mm (12″) is smooth and comfortable. Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory) Optional […]

AUTHOR RATE
MARAMETER 840 FS INDICATING SNAP GAGE

Rugged, forged steel frame with heat insulators Both spindles are made of hardened stainless steel and mounted in long guideways Carbide tipped measuring faces slightly chamfered at the front to facilitate positioning Projects over width of frame for measurement of narrow registers or when measuring directly at shoulders Adjustable centering stop for surface centering Straight […]

AUTHOR RATEUSERS RATE (0)
DIAL SNAP GAGE CODE – 3334

Go/No-Go judgement for mass production Dial indicator: range ±0.04mm, graduation 0.001mm, accuracy 0.001mm IP54 dust/waterproof Measuring force: 5-10N Carbide measuring faces Supplied with setting standards (except 0-25mm)   Code Range L D 3334-25 0-25mm 28.5 25 3334-50 25-50mm 53.5 35 3334-75 50-75mm 78.5 47.5 3334-100 75-100mm 103.5 60 Check the PDF

Imada Amplifier dealer
AUTHOR RATE
AMPLIFIER

ZTA/ZTS Sensor Separate Type Measured value by high speed sampling (Maximum 2000Hz) is displayed. The value is clear to see by an organic EL display. ※It is not possible to connect an amplifier to plural load cells. FA Plus Desktop Type Load Cell Amplifier Size:W210×D160×H99mm Weight:Approx.1.5kg ※It is not possible to connect an amplifier to plural load […]

AUTHOR RATE
Mitutoyo-SERIES 518 – High Performance 2D Measurement System-Linear Height

Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.4μm resolution/repeatability. High-accuracy Height Gage incorporating a wide range of measurement functions. To achieve best-in-class accuracy, a highaccuracy reflective-type linear encoder and high-accuracy guide are used. Measurement can be implemented by icon based commands that also support easy one key operation. Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed. The TFT LCD […]

Unoair Industrial Grinder Sander & Polisher Dealer
AUTHOR RATEUSERS RATE (0)
INDUSTRIAL GRINDER SANDER & POLISHER

RY-4S Angle Grinder AG-44G / AG-45 (G) Heavy Duty Angle Grinder AG-47 (G) Heavy Duty Angle Grinder S-70 Verticle Air PolisherS-70 S Verticle Air Sander S-73 Angle Air Sander S-74 Angle Air Polisher BS-09 Belt Sander BS-10 Belt Sander S-25 Professional Orbital Sander S-45 RY-0316 Air Self Vacuuming Disc Sander RY – 0316 Air Palm […]

AUTHOR RATEUSERS RATE (0)
BORESCOPE WITH MIRROR (RIGID) CODE – ISV-HM4023

Front view, side view with mirror Dust/waterproof level : IP67 Lens can be uses in the liquid with temperature – 10°C – 80°C LED light source is needed Check the PDF

AUTHOR RATE
Digital Inside Groove Caliper Code 1120

Small twoo liner content about Inside Groove Caliper

AUTHOR RATE
MARCATOR – LARGE DIAL INDICATOR

MARCATOR 810 AG LARGE DIAL INDICATOR Large, high contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in mm Error limit measuring range µm […]

Balaji Step Block Dealer
AUTHOR RATEUSERS RATE (0)
STEP BLOCK

FEATURES : Used to obtain required supporting heights. Any combination keeps the accurate parallelism APPLICATION : Used as a supporting block on any machine. MATERIAL : S. G. Iron with high tensile strength. FINISH : Powder coated     Adjustable Height  Product  Min  Max  C  A  B  BESB 50  22  50  30  33  24  BESB […]

AUTHOR RATE
Digital Caliper With Round Depth Bar Code 1119

Resolution : 0.01mm/0.0005* Buttons : zero, mm/inch, on/off After power off, move the digital unit to turn on power Battery CR2032 Data Output Meet DIN862 Made of stainless steel Optional accesory: data output system Code Range Accuracy Thumb Roller L a b c d 1109-150* 0-150mm/0-6* 0.03mm with 236 21 16 16 40 1109-150W* 0-150mm/0-6* […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL GAUGE ACCESSORIES

DIAL GAUGE ACCESSORIES DIAL GAUGE CONTACT POINTS DIAL GAUGE CONTACT POINTS (AGD) DIAL GAUGE BACK LEVER TYPE DIAL GAUGE ACCESSORIES Check the PDF

Unoair Carbon Bushless Electric Screwdriver Dealer
AUTHOR RATE
CARBON BUSHLESS ELECTRIC SCREWDRIVER

Carbon Bushless Electric Screwdriver IIIrd Generation Technology High Quality Patented The Appearance M&L Electric Screwdriver has following features Accuracy: M&L Provide patent clutch with 3% deviation of torque, assure the best quality Economy: With many patent and longer life cycl of motor Delicacy: Combination of art ergonomics and mechanical design Technology: Special mechanical structure and New Brushless motor give […]

AUTHOR RATE
LIGHT DUTY ø2.6mm

MAGIC BURR 2 NG2002 Will do almost all of your deburring jobs. Includes: NG-2 handle, N1 and N2 blades. MAGIC BURR 4 NG2004 Same as NG2002 with two extra blades for cross holes in difficult to reach places Includes: NG-2 handle, N1, N2, N3 and N6 blades.   TELE BURR NG3002 Holds 2.6mm N blades. […]

AUTHOR RATE
HARDENED & GROUND MAGNETIC V BLOCK

All Sides are hardened & ground. Used for grinding, light Milling, Drillling & inspection of round & square jobs. Accuracy for Flatness, squareness & paralleslism within 0.005mm upto 159L & 0.010mm for 200L Hardness above 60 Rc. Suppilied in matched Pair. Uniform and Strong magnetic pull to all three magnetic surfaces, Top, Bottom and V […]

AUTHOR RATE
MARCAL 16 ER DIGITAL CALIPER

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Dirt wipers are integrated in the slide USB Opto RS232C Digimatic none Instruction manual Battery […]

AUTHOR RATE
MILLIMESS 1003 MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide for minimal hysteresis Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are […]

AUTHOR RATE
Mitutoyo-SERIES 105 — with Anvil Extension Collars-Outside micrometers

Wide measuring range with anvil extension collars 50mm/2” spindle stroke Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Extension Collars Setting Standard (pcs) (every 100mm) 105-408 1000 – 1100mm           0.01mm           1 pc (50mm)       […]

Kristeel Bore Gauge Dealer
AUTHOR RATEUSERS RATE (0)
BORE GAUGE

MODEL 1511 A / B / C / ACF For the measuring of cylindrical bores. Reading : 0.1 mm Model No. Length 1511 A 1-15 mm 1511 B 15-30 mm 1511 C 30-45 mm 1511 ACF 1-15 mm

AUTHOR RATEUSERS RATE (0)
DIGITAL HORIZONTAL SCALE CODE – 7101

type A Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power Battery CR2032 USB data output Made of stainless steel Supplied with bracket to be mounted on the back Optional accessory: data output system type B Resolution: 0.01mm/0.0005″ Button function: on/off, zero, mm/inch, ABS, data preset Absolute […]

AUTHOR RATE
MICROMAR 40 AB – MICROMETERFOR MEASURING GROOVES, SPLINE SHAFTS, RECESSES, ETC.

MICROMAR 40 AB MICROMETER Reduced measuring surfaces Ø 3 mm Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring […]

AUTHOR RATE
Mitutoyo-SERIES 536-Hook Type Vernier Caliper

Can measure width of grooves and lands inside bores and recesses. SPECIFICATIONS Metric Order No. Range* Accuracy Remarks 536-171 0 – 200mm (10.1 – 200mm) ±0.03mm — 536-172 0 – 200mm (2.1 – 200mm) ±0.03mm with fine adjustment * ( ): Dimension in inside measurement DIMENSIONS Range D F L N P S t W […]

Tohnichi CDB-S Interchangeble Head Dial Indicating Torque Wrench Dealer
AUTHOR RATEUSERS RATE (0)
CDB-S INTERCHANGEBLE HEAD DIAL INDICATING TORQUE WRENCH

Interchangeable Head Version of DB-S Memory Pointer for Easy Torque Reading Ideal for Torque Measuring and Quality Inspections. Permanently Attached Adapter Allows for Use of Different Styles of Tohnichi Heads (Sold Separately)   Model CDB14N4X8D-S with smaller handle for low torque applications Scale plate with black main and red memory pointers   Select proper model […]

Imada Twister XD 2XDSS Dealer
AUTHOR RATEUSERS RATE (0)
TWISTER XD®

Designed for high performance drilling in a broad range of materials. Series Tool Illustration 2XDSS 2XDSR 2XDCS 2XDCR 2XDCL 2XDCE   To know specifications,Check the PDF.

AUTHOR RATE
MARAMETER 65P – INDICATING DEPTH GAGE WITH NEEDLE CONTACT AND V-SHAPED BASE

MARAMETER 65P-40 INDICATING DEPTH GAGE WITH NEEDLE CONTACT AND V-SHAPED BASE V-shaped base and needle contact Movement is Push-Down style Technical Data Order no. Product type Measuring range inches Graduation value inch 2051075 65P-40 0 – .075″ .0005″   MARAMETER 65P-40M INDICATING DEPTH GAGE WITH NEEDLE CONTACT AND V-SHAPED BASE V-shaped base and needle contact […]

AUTHOR RATE
Mitutoyo-SERIES 516-Metric/Inch Rectangular Gauge Block Sets

Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Selecting the best set, or sets, to acquire usually depends on the accuracy required by the target applications, the level of convenience desired (larger sets offer more combination possibilities) and the environmental conditions in which they will be used. […]

AUTHOR RATE
MARCATOR 803 SW PRECISION DIAL INDICATOR

High contrast dial face Adjustable tolerance markers Chrome plated housing Precision gears and pinions Hermetically sealed upper protective measuring spindle cap, bezel and transparent dial cover; sealed with O-rings Measuring spindle sealed with rubber sleeve, thus preventing contamination by liquids and impurities Technical data Order no. Product type Measuring span in mm Graduation value mm […]

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION PRECISION DIAL INDICATOR CODE – 2885

Eliminate the possibility of reading errors due to miscounting Shockproof Jeweled bearing Free stroke: 4.5mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131), lifting lever(code 6289-150)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2885-008* 0.08mm 0.001mm 3µm 1.5µm 1mm 40-0-40 lug back 2885-008F* 0.08mm 00.001mm 3µm 1.5µm 1mm […]

M.A.Ford Tuff CUT XR 177-177W Dealer
AUTHOR RATEUSERS RATE (0)
TUFF-CUT® XR

Series Tool Illustration 177 177W 177L 177S 178 178W 178N 179 179L   To know specifications,Check the PDF.

AUTHOR RATE
Mitutoyo-SERIES 543 — Standard Type-ABLOLUTE Digimatic Indicator ID-CX

The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on. Note: Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. Thanks to Mitutoyo’s ABSOLUTE Linear Encoder, reliability has been increased due to elimination of over-speed errors. Tolerance-judging measurement is available by setting upper and lower […]

AUTHOR RATE
MARCATOR 1075 R DIGITAL INDICATOR

High contrast LCD Hermetically sealed protective measuring spindle cap Mounting shank and measuring spindle are both made of hardened stainless steel             Technical Data Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Standard Measuring force (N) IP protection category Height of […]

AUTHOR RATE
Ridburr RBH1000 Handle

Holds all 3.2mm blades. Large storage space for space blades. Safety button for quick change of blades. RB10 Blade Works best on Steel, Aluminum and Plastic. For right hand user. Made of HSS M2     RB20 Blade Works best on Brass and Cast iron. For left and right hand user. Made of HSS M2     RB30 […]

AUTHOR RATEUSERS RATE (0)
ANGLE GAGE

ANGLE GAGE  CODE – 4806   Code Range Angle of leaves included Quantity of leaves Accuracy 4806-20 1° – 45° 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 12 , 14 , 16°, 18°, 20°, 25°, 30°, 35°, 40°, 45° 20 ±30′ Check […]

AUTHOR RATEUSERS RATE (0)
 Wifi DIGITAL MEASURING MICROSCOPE CODE ISM-WF200

Maximum working distance in 5m under WiFi Can be connected to multiple iPads,Android devices or computers at the same time under Wifi mode Take pictures and videos Supplied with software Check the PDF

AUTHOR RATE

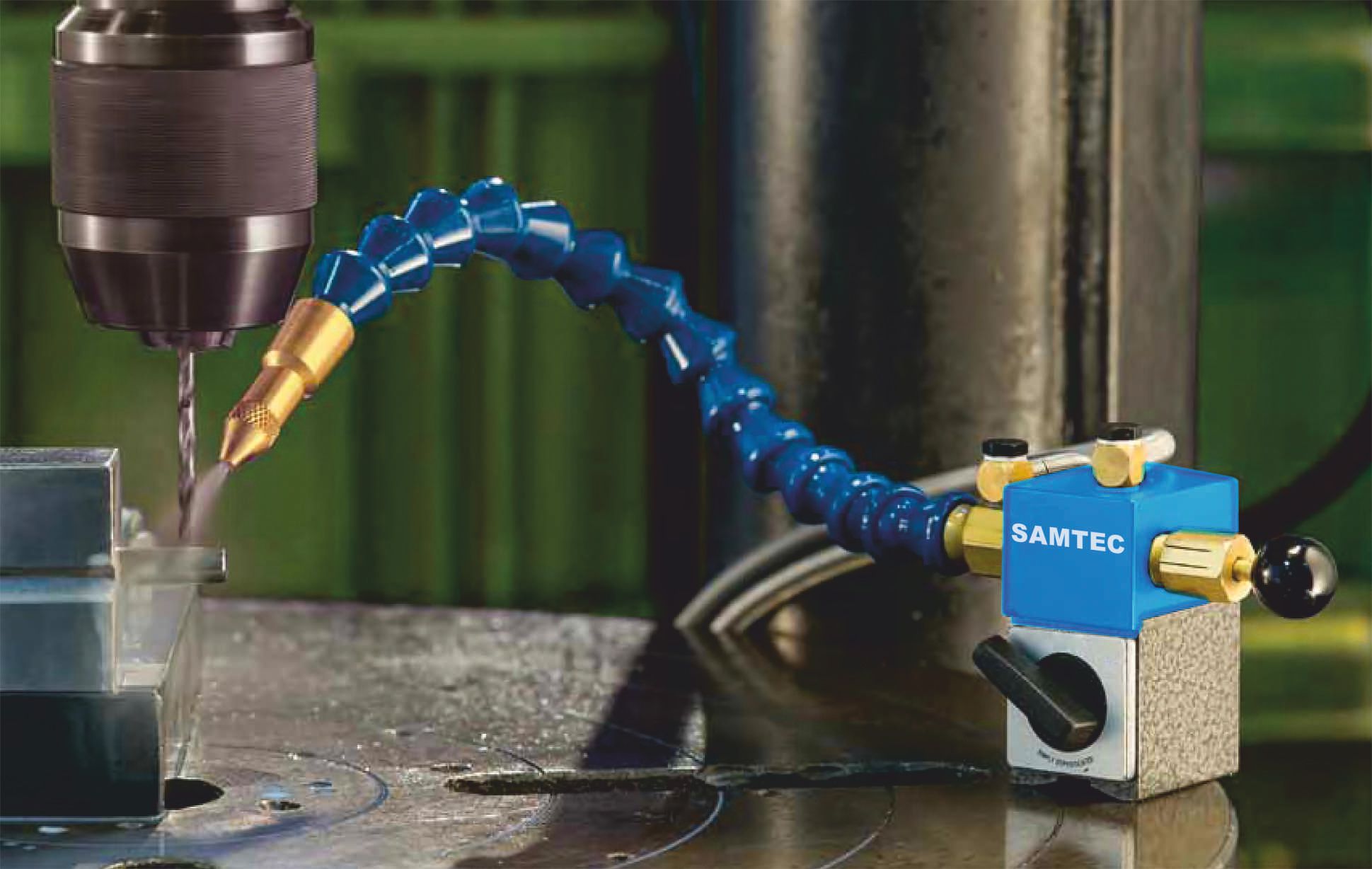

Noga Cooling System – Nogacool

TOOLS Check the PDF   ACCESSORIES   Check the PDF   Noga Cooling System – Nogacool Watch Video

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading, Lightweight Type-Dial Indicators

Excellent water- and drip-proof characteristics (IP43). Smooth movement thanks to the improved design of bush and stem. Application of a hard coating on the surface of the crystal makes the gage scratch- and oil-resistant. Lightweight type (70g). DIMENSIONS * When installing an optional back (refer to page F-55 for details) please separately prepare 4 fixing […]

AUTHOR RATE
MARCATOR – LONG-RANGE INDICATORS

MARCATOR 28IQN DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Universal Type-Dial Test Indicator

Universal application to all directions. (Not only the direction of the measuring point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.) SPECIFICATIONS DIMENSIONS Set Configuration: Metric Set Configuration: Inch Optional Accessories ––––––: Swivel clamps (See page F-63.) ––––––: Holding bars (See page F-63.) ––––––: Stems (See page F-63.) 102824: Stylus, […]

AUTHOR RATEUSERS RATE (0)
Baker NPT

NPT Gauge dimensions are as per ASME B1.20.1. Gauges are supplied as Basic Step & Min/Max Step. – GAUGING EXTERNAL THREADS GAUGING INTERNAL THREADS With basic step Ring gauge With basic step Plug gauge The Basic Step gauge when screwed onto the threads of the component by hand, should be flush with the endof the […]

AUTHOR RATE
Mitutoyo-SERIES 182-Steel Rules

Clear graduations on satin-chrome finish. Stainless tempered. SPECIFICATIONS Metric Wide Rigid Rules Order No. Graduations Range Width 182-111   1mm, 0.5mm (on both faces) 150mm 19mm 182-131 300mm 25mm 182-151 450mm 30mm 182-171 600mm 30mm Metric Fully-Flexible Rules Order No. Graduations Range Width 182-211   1mm, 0.5mm (on both faces) 150mm 12mm 182-231 300mm 12mm […]

AUTHOR RATE
DRILL VICE SUPER DELUXE

CODE NO. 812   SIZE IN INCHES 4 6 8 Width of Jaws 100 150 200 Opening of Jaws 140 220 280 Depth of Jaws 40 55 60 Height overall in mm 80 110 130 Length overall in mm 360 460 590 Width overall in mm 200 255 320 Approx. Weight in kgs 11 25 […]

AUTHOR RATE
Knurling Wheels

Rapid Form Knurls Knurl Profile Knurl Size: 10x04x04, 15x04x04, 10x06x04, 15x06x04, 20x08x06, 20x10x06, 20x12x06*, 20x15x06* Knurl Pitch: 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 1.6, 1.8, 2.0, 2.5 Rapid Knurls Features:  HSS knurls with Bore and Face Ground Milled sharp Edge Profile better Form Profile Highest Productivity on Ferrous & non Ferrous material […]

AUTHOR RATE
Mitutoyo-SERIES 313-3-Wire Units

• Enables measurement of the pitch diameter of screw threads with a standard micrometer. • Determination of the pitch diameter: refer to “Quick Guide to Precision Measuring Instruments”. SPECIFICATIONS 3-Wire Units set Order No. Set Wire dia. (mm) Support spindle dia. (mm) 313-101 18 0.170 – 3.200 06.35 Order No. (One pair) (Support spindle dia.) 06.35mm […]

AUTHOR RATEUSERS RATE (0)
Baker Thread Gauge: ACME & STUB ACME

Thread Gauge: ACME & STUB ACME Gauge dimensions for Acme threads are as per ASME B1.5 and Stub Acme as per ANSI/ASME B1.8 Most commonly used class is 2G. If less backlash is desired in acme threads, 3G & 4G class are used The height of Acme threads is 0.5p, whereas the height of Stub […]

AUTHOR RATEUSERS RATE (0)
BEVELED EDGE SQUARE CODE – 4790

Satin chrome plating Beveled edges for inside and outside measurement Made of hardened stainless steel   DIN875 grade 00 Squareness Code Size (LxW) Inside(α) Outside(β) C D H(mm) 4790-050 50x40mm 2.4µm 2.5µm 13 13 4 4790-075 75x50mm 2.6µm 2.8µm 15 15 4 4790-0100 100x70mm 2.8µm 3.0µm 20 20 5 4790-0150 150x100mm 3.2µm 3.5µm 30 30 […]

AUTHOR RATE
Mitutoyo-Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Neck Caliper-Tube Thickness Caliper

The beam-mounted jaw is a round bar that facilitates measurements of tube wall thickness. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. […]

AUTHOR RATEUSERS RATE (0)
OBLIQUE VIEW BORESCOPE (RIGID) CODE – ISV-HP2811

Small diameter, used to observe small space Dust/waterproof level: IP67 Lens can be used in the liquid with temperature -10° C~100°C Supplied with protection sleeve LED light source is needed Check the PDF

Balaji Self Aligning Pad Dealer
AUTHOR RATEUSERS RATE (0)
SELF ALIGNING PAD

FEATURES : Useful for clamping the job from top to bottom. The ball swivels and provides contact with no damage to surface. APPLICATION : Used as stops, supports and trust element in j9igs and fixtures. MATERIAL : Steel Body. Ball hardened bearing quality. FINISH : Body blackodised, ball hardened. Specification in mm Male Thread type C Flat of F […]

Balaji Mould Clamp With Heavy Support Bolt Dealer
AUTHOR RATE
MOULD CLAMP WITH HEAVY SUPPORT BOLT

Features: Ideally suited to hold mould on injection Moulding machines & die plates on press platen. Counter height adjustment provided by heavy duty support bolt with hex and round base and lock-nut. Application : Presses, plastic moulding machines, Milling/ Drilling machines and in the design of jigs and fixtures. Material : Medium carbon steel, heat treated to 8.B Grade. Supply: Clamp […]

AUTHOR RATEUSERS RATE (0)
PORTABLE MEASURING MICROSCOPE CODE – ISM-PM40

  Check the PDF

AUTHOR RATEUSERS RATE (0)
Baker Microprocessor based column gauge

Microprocessor Electronic Piezo based Column Gauge FEATURES: Air electronic Units are a combination of two highly reliable Systems to give combined advantages of non-contact, self-cleaning and advantage of high precision electronics Accommodates all BAKER jet diameter of Air Plug Gauges, Air Ring Gauges & Air Calipers Improved linearity Faster response Easy to calibrate The slim […]

AUTHOR RATE
Mitutoyo-Series 505-Dial Caliper

Newly designed dial movement for ultra smooth sliding and high shock protection. Easy-to-read yellow dial. Large finger-rest aids ease-of-use. Jaw tips are relieved for easy measurement of thin parts. Allows step measurement. SPECIFICATIONS Metric Order No. Range Accuracy Graduation Remarks 505-730   0 – 150mm   ±0.03mm   0.02mm, 2mm/rev   505-734 Carbide-tipped jaws for outside […]

AUTHOR RATEUSERS RATE (0)
PRECISION GRINDING VICE

Used for holding the jobs, spark erosion operation, right angle grinding & Light machining. Made from high quality alloy steel. Accuracy for Square ness, Flatness & Parallelism within ±0.005mm. Jaw pressure on work piece is forward & downward for repeatable positioning & maximum holding power. All sides can be used as reference. Hardness – 60 […]

AUTHOR RATE
MARCAL 16 EWR-RW DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 battery instruction manual […]

AUTHOR RATE
MODULAR HOLDERS

All measurements are in mm unless otherwise mentioned. Order no. Weight Int. Thread Arms Length [Kg] D1 D2 L1 L2 NF60003 0.210 M6 M6 56 51 DG60003 0.250 M6 M6 110 101 MG60003 0.750 M8 M6 133 113 MG70003 0.800 M8 M6 163 113 MA60003 3.000 M10 x 1.25 M6 326 242

Unoair Air Rivetors / Nutsest Tools Hydraulic Riveter Dealer
AUTHOR RATEUSERS RATE (0)
AIR RIVETORS / NUTSEST TOOLS – HYDRAULIC RIVETER

R-15 Hydraulic Riveter RY-221 Hydraulic Riveter (Vacuum Pump) R13-BV Oil Less Riveter (Vacuum Type) R6100-V Hydraulic Riveter (Vacuum Type) (For SS & Al, Alloy Rivet) R6103-V Heavy Duty Hydraulic Riveter RH-204 Riveter Hammer H-30R 250mm Air Hammer H-20R 190mm Air Hammer H-10R 150mm Air Hammer OPPS 12-01 Hydraulic Riveting Nut Tool Capacity 3-12 mm OP-PS-06 […]

M.A.Ford Tuff CUT DM 156 Dealer
AUTHOR RATEUSERS RATE (0)
TUFF-CUT® DM

Series Tool Illustration 156 158 157   To know specifications,Check the PDF.

AUTHOR RATE
Special Bore Measurement – Spherical

2 Point Spherical Measurement of ovality in bore. Measurement of bores with irregularities. 3 Point Spherical Gives good repeatability even when out of line with bore centre. Available from 6-300mm diameter on digital systems.   Spherical Radius Can be supplied as a 2 point (for ovality) or 3 point contact. Available from 6-300mm.

AUTHOR RATE
HEAVY DUTY ø3.2mm

NOGA BURR 3 NG1003 Will do almost all of your deburring jobs. Includes: NG-1 handle, S10, S20 and S35 blades. NOGA BURR 5 NG1005 Same as NG1003 but with 2 extra blades. Suitable for coarse to extra fine deburring operations. Includes: NG-1 handle, S10, S20, S35, S101 and S202 blades.   NG-1 Handle NG1000 NogaGrip-1 […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INTERNAL CALIPER GAGE CODE -2151

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system   Code Range Resolution Accuracy L A D 2151-35 15-35mm/0.6-1.4″ 0.01mm/0.0005″ ±0.04mm 50 3 […]

AUTHOR RATEUSERS RATE (0)
FRAME LEVEL CODE – 4906

No need to set zero before use Three V-grooves for shafts (shafts dia. 19.3~115.9mm) With longitudinal vial     Code Size (LxL) Sensitivity 4906-150 150x150mm 0.02mm/m(=0.001°) 4906-200 200x200mm 0.02mm/m(=0.001°) 4906-300 300x300mm 0.02mm/m(=0.001°) Check the PDF

Imada Torque Calibrators Dealer
AUTHOR RATE
TORQUE CALIBRATORS

Torque calibrators offer the ability to check torque on a manual torque wrenches, electric and impact driven torque tools. Manual Torque Wrench Calibrator Manual torque wrench calibrators allows users to check torque on click type wrenches. Select remote or integrated sensor models. DIS-IP Digital Torque Tester for Manual Wrenches Model: DIS-IP with Remote Sensor Model: […]

AUTHOR RATE
Mitutoyo-SERIES 148 — Small/Ultra-small Type-Micrometer Heads

Miniature micrometer heads for ease of incorporating into machines.   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation 148-215 0 – 5mm ±5µm 3.5mm Plain W/ clamp nut Spherical (SR1.5) Standard 148-216 148-201 0 – 6.5mm 6mm Plain W/ clamp nut Flat 148-203 148-205 Plain W/ clamp nut Spherical (SR3) 148-207 […]

Imada Manual Test Stand Series
AUTHOR RATE
TEST STAND

MANUAL TEST STAND KV-50N Low Capacity or Small Type Ideal for 50N or less measurements. Small travelling is possible with screw feed. Desktop type. The handle supports small travellings. Option Length Scale Specification  Lists  KV-50N  Capacity  50N  Maximum Sample Height(※1)  Approx.63mm  Feed Amount  1.0mm/1turn  Weight   Approx.2kg  Size  Approx.W140xD180xH220mm   MSF-50N Various measurements are possible by […]

AUTHOR RATE
Mitutoyo-SERIES 169 – Non-Rotating Spindle Type-Paper Thickness Micrometers

• For paper thickness measurement. • Non-rotating spindle. • Equipped with Ratchet Stop for constant measuring force. (8.02±0.8N) SPECIFICATIONS Order No. Range Graduation Accuracy Flatness Parallelism 169-101 0 – 25mm 0.01mm ±4µm 1µm 3µm   Order No. Range Graduation Accuracy Flatness Parallelism 169-103 0 – 1″ .001″ ±.0002″ .00004″ .00015″ DIMENSIONS Anvil dimensions Technical Data Standard […]

AUTHOR RATEUSERS RATE (0)
CLAMPS

C-CLAMPS Body hot drop forged from high grade steel.All parts fully heat treated and black phosphated for long trouble free service.Ideal for heavy duty application. PROD. NO. A B C D WT. GMS 1259-2 200 55 49 22 360 1260-3 260 80 62 22 570 1261-4 330 105 75 25 1060 1263-6 440 155 93 […]

AUTHOR RATE
ELONGATED V” BLOCKS

Used by Griding, Light Milling, Drilling & Inspection of Round & Square Jobs. Hardness 60±2 Rc. Supplied with clamps Supplied in perfect matched pair.   Sr. No. Art No. Size (MM) 1 213.01 160 L X 50 W X 35 H 2 213.02 200 L X 63 W X 50 H 3 213.03 300 L […]

AUTHOR RATE
MARCAL 30 EWR DIGITAL DEPTH GAGE

High contrast analog display Locking screw above Lapped guideway Measuring surfaces made of steel Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic […]

AUTHOR RATE
Mitutoyo-SERIES 101-Outside Micrometers

Satin-chrome-finished frame, tapered (on the anvil side) for hard-to-reach places. Supplied with a setting standard (except for 0-1” models). Measuring faces: Carbide SPECIFICATIONS Inch With ratchet stop Order No. Range Graduation Accuracy 101-113 0 – 1″     .0001″   ±.0001″ 101-114 1″ – 2″ 101-119 2″ – 3″ 101-120 3″ – 4″ ±.00015″ Inch With friction […]

AUTHOR RATEUSERS RATE (0)
HAMMERS

TAPARIA Hammers are:- • Available in ball pein and claw version. • Head drop forged made from high grade steel. • Head differentially heat treated to ensure safe use. HAMMERS WITH HANDLE Partially Hardened up to 55 – 58 HRC on Striking surfaces needed as functional requirements for all types of hammers. Drop forged from […]

Balaji Flange Nut Dealer
AUTHOR RATEUSERS RATE (0)
FLANGE NUT

IS:7795-1975/DIN:6331-1991 FEATURES/ USES Toughened En8, 22 to 28 HRC Finish-Blackodized Widely used in most of the clamping system. Process to be economical in comparison of hex nut & washer.      MODEL No.  D1   D2  M  A  S  BEFHN 812  M 8  18  3.5  12  13  BEFHN 1015  M 10  22  4  15  17  BEFHN […]


Most Viewed Products

These products are top rated by our users

We in Gokul Traders have the vision to maintain the standard set by Laddha Group since ages of Quality, Trust, Precision and walk with the changing times and tides still maintaining what has been our strength, Customer Relations. Our hearts are filled with a burning desire and passion to provide top most precision, quality and most importantly, in time. We do not just sell, we even are passionate about making people, industries and students aware about different tools and equipment which can make their life easy. We are part of the Prestigious Laddha Group, which for so many years with our Dedication and our Ethics have been showered with Customer Goodwill. We follow the commitment, we talk the talk and walk the walk.



Our Esteemed Clients






Gokul Traders Copyright © 2010-18 Developed by Shades Of Web. All rights reserved.
