VERSA CONTROLS 1 CHANNEL LVDT TRICOLOUR BARGRAPH COLUMN

Name: VERSA CONTROLS 1 CHANNEL LVDT TRICOLOUR BARGRAPH COLUMN
Brand: Versa Controls

Specifications: Input Channels 1 Resolution 0.1, 0.5, 1, 5 µm Units mm / Inch Display 6 digit 7 segment Measurement Modes Curr , Max , Min , Diff Functions A Indications Reject, OK , Rework Calibration Single/Double Scaling Auto / Manual Communication port RS-232. Wireless modules-optional Footswitch Available Output 1 CO relay contact Measuring Ranges 0.1um

f in

Click to Expand

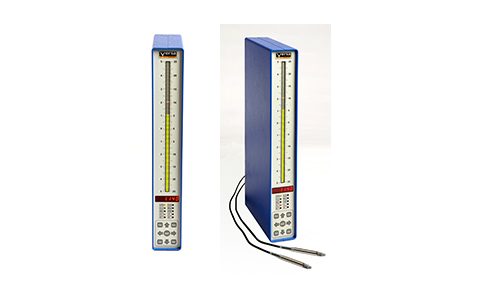

VERSA CONTROLS 1 CHANNEL LVDT TRICOLOUR BARGRAPH COLUMN

Product Overview

The Versa Controls 1 Channel LVDT Tricolour Bargraph Column is a high-precision electronic gauging instrument designed for industrial dimensional inspection. Featuring a single input channel, this column gauge provides clear visual feedback via a tricolour bargraph and a high-resolution digital display, facilitating rapid and accurate part assessment.

Key Features & Capabilities

Dual Display Interface: Equipped with a 6-digit, 7-segment digital display for precise numerical readings, alongside a multi-segment tricolour bargraph for instant visual status indication.
Status Indications: Clear visual categorization of measurement results with dedicated Reject, OK, and Rework status indicators.
Versatile Measurement Modes: Supports Current (Curr), Maximum (Max), Minimum (Min), and Difference (Diff) measurement modes to accommodate diverse inspection requirements.
Flexible Calibration & Scaling: Features single or double calibration options alongside auto or manual scaling configurations.
Connectivity & Control: Includes an RS-232 communication port with optional wireless modules, a footswitch input, and a 1 CO relay contact output.

Technical Specifications

Parameter	Specification
Input Channels	1
Resolution	0.1, 0.5, 1, 5 µm
Units	mm / Inch
Display	6-digit, 7-segment
Measurement Modes	Curr, Max, Min, Diff
Functions	A
Indications	Reject, OK, Rework
Calibration	Single / Double
Scaling	Auto / Manual
Communication Port	RS-232 (Wireless modules optional)
Footswitch	Available
Output	1 CO relay contact
Measuring Ranges	• 0.1 µm: -9.9999 to 99.9999<br>• 1 µm: -99.999 to 999.999
Bar Ranges	• 0.1 µm – 10 µm<br>• 0.5 µm – 50 µm<br>• 1 µm – 100 µm<br>• 5 µm – 500 µm
