BAKER AIR CALIPER: RANGE 10 – 225 MM

Air Caliper: Range 10 – 225 mm FEATURES: Air caliper are ideal for measuring diameters of jobs held between the centers on machine or interrupted shafts like crankshafts “V” support for perfect centering and stability ‘’V” support with tungsten carbide pads for diameter above 16 mm Ideal for collared diameters i.e. crankshaft pin and journal

FEATURES:

Air caliper are ideal for measuring diameters of jobs held between the centers on machine or interrupted shafts like crankshafts
“V” support for perfect centering and stability
‘’V” support with tungsten carbide pads for diameter above 16 mm
Ideal for collared diameters i.e. crankshaft pin and journal
Multi-jet air calipers available for multi-point measurement i.e. to check crowning of crank pins and journal diameters
Can be supplied bench mounted for checking small diameters or against specific needs

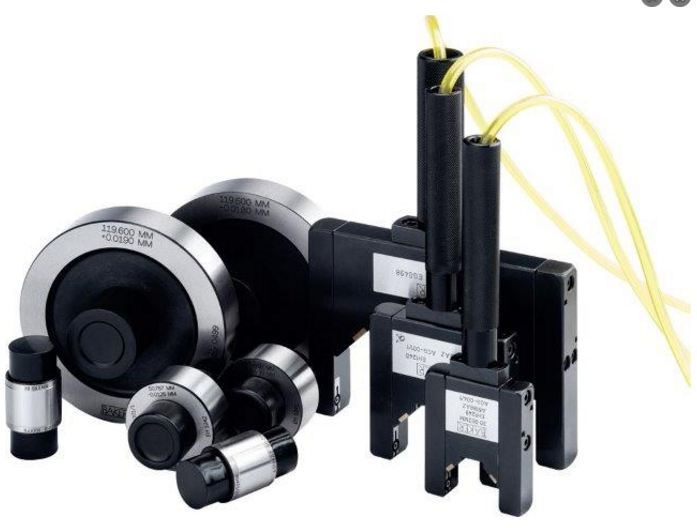

air-caliper-range-10-225-mm_01

Application

Air Caliper Data Sheet

range-10-225-mm_07

Ø D mm	A	B	C	J		H	Ø G	E (OFFSET) MOD 1A/ CL	F (CENTRAL) MOD 1A/ CL	MIN RANGE	MAX RANGE
				CENTRAL	OFFSET
10.0-16.0	D+34	54	12	6.0	4.0	100	18.0	6.5/5.5	4.5/3.5	±0.005	80% OF SCALE
16.0-26.0	D+24	54	12	6.0	4.0	100	18.0	6.5/5.5	4.5/3.5	±0.005	80% OF SCALE
26.0-50.0	D+24	60	16	8.0	4.0	100	18.0	6.5/5.5	4.5/3.5	±0.005	80% OF SCALE
50.0-75.0	D+28	75	18	9.0	4.0	100	18.0	6.5/5.5	4.5/3.5	±0.005	80% OF SCALE
75.0-100.0	D+32	80	20	10.0	4.0	150	25.5	6.5/5.5	4.5/3.5	±0.005	80% OF SCALE
#100.0-125.0	D+32	100	20	10.0	4.0	150	25.5	6.5/5.5	4.5/3.5	±0.010	80% OF SCALE
#125.0-150.0	D+40	105	20	10.0	4.0	150	25.5	6.5/5.5	4.5/3.5	±0.010	80% OF SCALE
#150.0-225.0	D+40	155	20	10.0	4.0	150	25.5	6.5/5.5	4.5/3.5	±0.010	80% OF SCALE

Air calipers are supplied hand held as standard
# not supplied for use on ± 0.025 mm ClearLine unit

General Notes

range-10-225-mm_08

Air calipers for 0.0005 mm least count are given up to Ø 50 mm only
Each air caliper requires two setting masters to set the air caliper on the read-out unit. The difference between the high and low setting masters supplied, covers the component tolerance or the maximum range mentioned in the above table, whichever is lower
The minimum gauging land “E” and “F” mentioned above is excluding chamfer distance and fillet radius
For special blind shafts (super blind- ‘E’ less than mentioned in the above chart) or any other special requirement (multi jet design air caliper), please send the component drawing and ask for a quote
