AUTHOR RATEUSERS RATE (0)
DATA TRANSFER SYSTEM

Data Acquisition & SPC Software INTRODUCTION The world today is moving toward Statistical process control techniques at a lightning pace. It is likely that in the near future, the use of statistical process control is mandated in the automobile industry. In order to keep its customers at par to international requirements, Baker Gauges has developed […]

AUTHOR RATEUSERS RATE (0)
Electronic Probe

Electronic Probe: 2900   Specifications 2900 Measuring travel ± 0.4 mm Total travel 1 mm Linearity ± 0.5% (of total measuring range) Repeatability 0.15 μm Measuring force 0.8 N Pre-travel Fixed Application Universal Environmental Protection (IEC 529) IP 64 Plunger guide Preloaded, caged linear ball bearing Cable 2 m., Polyurethane. Cable support spring N.A. Connecting […]

AUTHOR RATEUSERS RATE (0)
Microprocessor based Twin Channel: 2041 Analogue

Microprocessor based Twin Channel: 2041 Analogue Digitally driven, Analogue Galvanometer type measurement display Five metric and five inch measuring ranges FEATURES: State-of-the-art technology with host of features, a must for today’s shop process quality engineering Two level password, prevents unauthorized alteration Multiple-level display intensity for operators comfort Inch & metric measuring ranges Static & dynamic […]

AUTHOR RATEUSERS RATE (0)
Microprocessor based Twin Channel: 2043 Digital

Microprocessor based Twin Channel: 2043 Digital 8 character, LED type, 7 segment digital display shows measurements either in absolute or comparative form Exclusive 8-character alphanumeric dot-matrix type digital display for menu setting Two metric & two inch measuring ranges FEATURES: State-of-the-art technology with host of features, a must for today’s shop process quality engineering Two […]

AUTHOR RATEUSERS RATE (0)

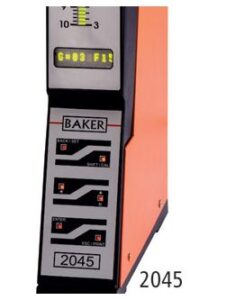

Microprocessor based Twin Channel: 2045 Column

Microprocessor based Twin Channel: 2045 Column 101 segment, 3 colour LED bar-graph column type measurement display Column can be configured to originate from the centre or one end of scale 8-character alphanumeric dot-matrix digital type display shows measurements either in absolute or comparative form Exclusive 8 character alphanumeric dot-matrix digital type display for menu setting […]

AUTHOR RATEUSERS RATE (0)
Electronic Gauge: Twin Channel: 941 Analogue

Electronic Gauge: Twin Channel: 941 Analogue Dual scale 3-0-3 and 10-0-10 galvanometer with enclosed tolerance pointers 5 Metric and 5 Inch ranges FEATURES: Twin channel gauge units with selectable probe combinations of +A, -A, +B, -B, +A +B, +A -B, -A +B, -A -B Inch and Metric measuring ranges RED, GREEN and YELLOW tolerance lamps […]

AUTHOR RATEUSERS RATE (0)

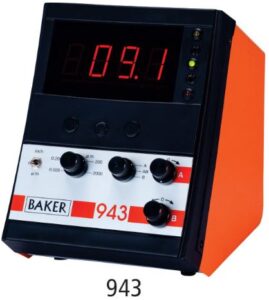

Electronic Gauge: Twin Channel: 943 Digital

Electronic Gauge: Twin Channel: 943 Digital Large 1”, 3½” digits bright red LED display 2 Metric and 2 Inch ranges FEATURES: Twin channel gauge units with selectable probe combinations of +A, -A, +B, -B, +A +B, +A -B, -A +B, -A -B Inch and Metric measuring ranges RED, GREEN and YELLOW tolerance lamps for REJECT, […]

AUTHOR RATEUSERS RATE (0)
Electronic Gauge: Twin Channel: 945 Column

Electronic Gauge: Twin Channel: 945 Column 254 mm tall analogue red LED bar graph display with 100 segments Variable bar graph intensity selection 5 Metric and 5 Inch ranges FEATURES: Twin channel gauge units with selectable probe combinations of +A, -A, +B, -B, +A +B, +A -B, -A +B, -A -B Inch and Metric measuring […]

AUTHOR RATEUSERS RATE (0)
Setting Disc for Air Caliper

Setting Disc for Air Caliper ØD A C R S ABOVE UPTO & INCLUDING 2.4 3.81 9.52 17.46 11.1 2.4 3.81 5.84 11.11 19.05 11.1 3.2 5.84 9.27 12.7 20.64 11.1 5.6 ØD A C R S ABOVE UPTO & INCLUDING 9.27 12.95 14.29 22.22 12.7 8.7 12.95 20.96 15.88 23.81 12.7 12.7 20.96 28.83 […]

AUTHOR RATEUSERS RATE (0)
Air Caliper: Range 10 – 225 mm

Air Caliper: Range 10 – 225 mm FEATURES: Air calipers are ideal for measuring diameters of jobs held between the centers on machine or interrupted shafts like crankshafts “V” support for perfect centering and stability ‘’V” support with tungsten carbide pads for diameter above 16 mm Ideal for collared diameters i.e. crankshaft pin and journal […]

AUTHOR RATEUSERS RATE (0)

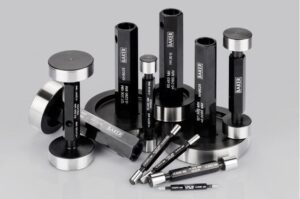

Setting Plug Air Ring Gauge

Setting Plug Air Ring Gauge   DIA RANGE L L1 3.0-6.0 75.0 8.0 6.0-10.0 110.0 20.0 10.0-14.0 119.0 20.0 14.0-18.0 130.0 20.0 18.0-24.0 144.0 20.0 24.0-30.0 128.0 20.0 30.0-40.0 160.0 20.0 40.0-65.0 160.0 20.0 65.0-68.0 160.0 20.0 DIA RANGE L L1 68.0-150.0 175.0 25.0     Check the PDF

AUTHOR RATEUSERS RATE (0)
Air Ring Gauge Range 1.5 – 150 mm

Air Ring Gauge Range 1.5 – 150 mm FEATURES: Two Jet Air Ring gauge to check outside diameter, taper & ovality Three jet Air Ring gauge for detecting tri-lobed effect for diameter above 6 mm only Can be supplied with tungsten carbide sleeve on request for checking hardened job Can be supplied with multiple jets […]

AUTHOR RATEUSERS RATE (0)
Setting Rings for Air Plug Gauge Range 1.5 – 315 mm

Setting Rings for Air Plug Gauge Range 1.5 – 315 mm FEATURES: Used for setting of pneumatic length measuring instruments Made from oil hardening non shrinking gauge steel, hardened and tempered to 60-62 HRC Subzero treated at -80°C for long term dimensional stability Actual dimensions duly etched Calibrated at 20°C under Standards Room conditions against […]

AUTHOR RATEUSERS RATE (0)
Air Plug Gauge: Range 1.5 – 250 mm

Air Plug Gauge: Range 1.5 – 250 mm FEATURES: Quick and easy checking of bore Standard 2 jets for checking size, taper, ovality 3 jets at 120 degree for average size & tri-lobed effect (for diameter 6 mm & above) With extensions to check deeper bores Can be supplied to check through or blind bores […]

AUTHOR RATEUSERS RATE (0)

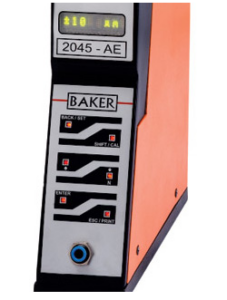

Microprocessor based column gauge

Microprocessor Electronic Piezo based Column Gauge FEATURES: Air electronic Units are a combination of two highly reliable Systems to give combined advantages of non-contact, self-cleaning and advantage of high precision electronics Accommodates all BAKER jet diameter of Air Plug Gauges, Air Ring Gauges & Air Calipers Improved linearity Faster response Easy to calibrate The slim […]

AUTHOR RATEUSERS RATE (0)
Microprocessor Based Digital Gauge

Microprocessor Based Digital Gauge FEATURES: Seven segment, 6 character, 3 colour LED display, ½ inch tall Air-Electronic input from BAKER Air Plug and Ring Gauges (APG & ARG) Two metric measuring ranges: 200µm (resolution 0.1µm), 2000µm (resolution 1µm), and two Inch measuring ranges: 20.0 thou (resolution 0.01 thou) & 200 thou (resolution 0.1 thou) Measurement […]

AUTHOR RATEUSERS RATE (0)
Air Electronic Converter Module (AECM)

Air Electronic Converter Module (AECM) FEATURES: Combined advantages of non-contact air sensing and high precision electronics RS232 data output available for further processing like machine control through relay output or for SPC Can be supplied with analogue, column or digital readout units For diameter 6 mm and above AECM1 is to be used For diameter […]

AUTHOR RATEUSERS RATE (0)
Air Gauge Unit – Universal

Air Gauge Unit – Universal FEATURES: Every gauge carries a calibration certificate giving actual values Accommodates all jet diameters of Air Plug Gauges, Air Ring Gauges & Air Calipers Facilitates quick & easy setting through Mag & Zero knobs Supplied with a fixed adaptor which fits all types of connectors Foldable feet for better Readability […]

AUTHOR RATEUSERS RATE (0)

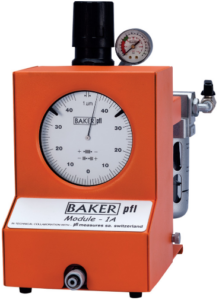

Air Gauge Unit – PFL

Air Gauge Unit – PFL FEATURES: Every gauge carries a calibration certificate giving actual values Module 1A, Module 2A giving the most economical solution to your inspection needs on shop floor High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time […]

AUTHOR RATEUSERS RATE (0)
Thread Gauge Customized Gauges

Thread Gauge Customized Gauges Note: Odd pitch and diameter combination, extra fine pitch gauges also manufactured.   Check the PDF

AUTHOR RATEUSERS RATE (0)
Thread Gauge: Hole Location

Thread Gauge: Hole Location Baker manufactures hole location plugs as shown. These are used to measure & check the location of small tapped holes. This is a perfect gauge to inspect features for run-out to the pitch diameter of the threads. These give a firm locating grip without pulling the shoulder of the plug up […]

AUTHOR RATEUSERS RATE (0)
API (Oil) Thread Gauges

API (Oil) Thread Gauges FEATURES: Light construction Longer operating life Manufacturing to the highest Japanese quality standards Best Raw materials from Japan used Easy to use: The handle is standard-equipped on all products Upon request, a Hook Ring can be mounted on larger diameter ring gauges for better work ability API SPEC.5B (Cashing & Tubing) […]

AUTHOR RATEUSERS RATE (0)
NPT

NPT Gauge dimensions are as per ASME B1.20.1. Gauges are supplied as Basic Step & Min/Max Step. – GAUGING EXTERNAL THREADS GAUGING INTERNAL THREADS With basic step Ring gauge With basic step Plug gauge The Basic Step gauge when screwed onto the threads of the component by hand, should be flush with the endof the […]

AUTHOR RATEUSERS RATE (0)
NPTF, ANPT

NPTF, ANPT NPTF Threads are also known as Dryseal threads as they do not require a sealant to form a leak-proof joint. Type Standard Plug gauges Ring gauges NPFT ANSI/ASME B 1.20.5 Thread plug gauges L1 & L3 (Basic Step or Min/Max Step) 6 Step Crest Check Plug Thread ring gauges L1 & L2 (Basic […]

AUTHOR RATEUSERS RATE (0)
Taper Pipe Threads ISO 7-R, BSPT, PT

Taper Pipe Threads ISO 7-R, BSPT, PT These are taper pipe threads where pressure tight joints are made on threads. The thread angle is 55° Gauges are manufactured as per ISO 7-2, EN 10226, BS 21, JIS B0253 Check the PDF

AUTHOR RATEUSERS RATE (0)
Trapezoidal

Trapezoidal Gauge dimensions are as per DIN 103-9 Recommended Tolerance classes are 7H/7e for medium tolerance quality and 8H/8c for coarse tolerance quality. Check the PDF

AUTHOR RATEUSERS RATE (0)
Thread Gauge: ACME & STUB ACME

Thread Gauge: ACME & STUB ACME Gauge dimensions for Acme threads are as per ASME B1.5 and Stub Acme as per ANSI/ASME B1.8 Most commonly used class is 2G. If less backlash is desired in acme threads, 3G & 4G class are used The height of Acme threads is 0.5p, whereas the height of Stub […]

AUTHOR RATEUSERS RATE (0)
Thread Gauge: ‘G’ Pipe BSP

Thread Gauge: ‘G’ Pipe BSP These are pipe threads where pressure-tight joints are not made on threads. Gauge dimensions are as per ISO 228-2 Tolerance class Therad Ring gauge A’ & ‘B’ Therad Plug gauge – Acceptance criteria for components: The GO gauge when screwed by hand without using excessive force, should enter and pass […]

AUTHOR RATEUSERS RATE (0)
Thread Gauge: Unified

Thread Gauge: Unified Acceptance criteria for components The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread. The NOT GO gauge when screwed by hand without being forced, should not enter the component by more than three complete turns. Check the PDF

AUTHOR RATE
Thread Gauge: Metric

Thread Gauge: Metric Acceptance criteria for components The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread. The NOT GO gauge when screwed by hand without being forced, should not enter the component by more than three complete turns. Check the PDF

AUTHOR RATEUSERS RATE (0)
Thread Gauge: Miniature

Thread Gauge: Miniature Nominal Diameter Metric Pitch Tolerance class Thread plug Tolerance class Thread ring M1 0.25 mm 5H 6h M1.1 0.25 mm 5H 6h M1.2 0.25 mm 5H 6h M1.4 0.25 mm 5H 6h UNIFIED 1.00 UNM 0.25 mm – – 1.20 UNM 0.25 mm – – No.0 (0.060″)UNF 80 TPI 2B 2A Check […]

AUTHOR RATEUSERS RATE (0)
Thread Gauge Profile

Range: THREAD PLUG GAUGES : 0.5 mm to 350 mm TAPER THREAD PLUG GAUGES : 1/6″ to 10″ (Taper 1 :16) THREAD RING GAUGES : 0.5 mm to 300 mm TAPER THREAD RING GAUGES : 1/6″ to 8″ (Taper 1 :16) Thread Gauge Profile Type of gauge (Thread plug or Thread ring) Thread series (i.e. […]

AUTHOR RATEUSERS RATE (0)
Thread Gauge: Multi Start

Thread Gauge: Multi Start Multi-start threads Multi start threads are used where quick axial travel is desired with less rotation. These are also used for threads which cannot have coarse pitches due to metallurgical constraints. In comparison to single start threads, multi start threads can accept higher axial thrusts for restricted angles of rotation, the […]

AUTHOR RATEUSERS RATE (0)
MASTER SETTING DISC

Master Setting Disc : Range 3 -200 mm FEATURES: Used for setting of measuring instruments like horizontal comparators, length measuring machines for OD checking. Made from oil hardened non shrinking gauge steel, hardened and tempered to 60-62 HRC Sub-zero treated at -80 °C for long term dimensional stability Actual dimensions duly etched Calibrated at 20 […]

AUTHOR RATEUSERS RATE (0)
MASTER SETTING RING

Master Setting Ring: Range 1.5 – 315 mm FEATURES: Used for setting of measuring instruments like horizontal comparators, length measuring machines for ID checking, dial bore gauges etc. Made from oil hardening non shrinking gauge steel, hardened and tempered to 60-62 HRC Sub-zero treated at -80 °C for long term dimensional stability Actual dimensions duly […]

AUTHOR RATEUSERS RATE (0)

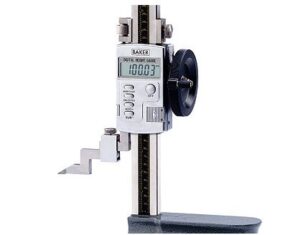

DIGITAL HEIGHT GAUGE

FEATURES: Robustly constructed, stainless steel column with clearly marked scale graduation A clear multifunction digital LCD display runs smoothly on an analogue vertical scale Fine adjustment with lock provided for ease of setting For easy and precise maneuverability, the base has a specially designed thumb grip Carbide tipped scriber Inch / Metric capability Functions consist […]

AUTHOR RATEUSERS RATE (0)
MICROMETER HEAD

Micrometer Head – Plain Holding Diameter FEATURES: Spindle made from stainless steel for rust prevention Measuring face: carbide tipped, precision ground & micro lapped An in-built ratchet in the thimble Sharp laser marking for better visibility & durability     Measuring Range mm Reading mm Type Measuring Range inch Reading inch Type 0-25 0.01 MMA25-HP […]

AUTHOR RATEUSERS RATE (0)
DEPTH MICROMETER

Depth Micrometer – 0-25mm FEATURES: Base – hardened, ground & lapped Spindle made from stainless steel for rust prevention Measuring face: spindle, carbide tipped An in-built in ratchet in the thimble Zero setting once done cannot be easily tampered Sharp laser marking for better visibility & durability Robust design withstands toughest workshop conditions     […]

AUTHOR RATEUSERS RATE (0)
SETTING GAUGE FOR EXTERNAL MICROMETER

FEATURES: Hardened, ground & lapped measuring faces Flat type measuring faces Measuring faces flatness 0.3 µm     Metric Length (L) mm Tolerence µm I mm Diameter ( Ød) mm Diameter ( ØD) mm 25 ± 1.5 20 7 11 50 ± 2.0 40 7 11 75 ± 2.5 40 7 11 100 ± 3.0 […]

AUTHOR RATEUSERS RATE (0)
DISC MICROMETER – ROTATING TYPE

Disc Micrometer Rotating Type FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust design […]

AUTHOR RATEUSERS RATE (0)
POINT MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring Faces – 15° & 30° hardened steel points having radius 0.3 mm approximately An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion […]

AUTHOR RATEUSERS RATE (0)
SPLINE MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: carbide tipped available in two types Ø2 x 5 mm & Ø3 x 8 mm Zero setting once done cannot be easily tampered with An in-built ratchet in the thimble Sharp laser marking for better visibility & durability Heat insulating grip plates cover the […]

AUTHOR RATEUSERS RATE (0)
TUBE TYPE MICROMETER

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel available in two types: T1 – one end spherical T2 – both ends spherical An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover […]

AUTHOR RATEUSERS RATE (0)
BLADE MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust design withstands toughest workshop conditions […]

AUTHOR RATEUSERS RATE (0)
DIGITAL MICROMETERS

FEATURES: Protection level IP65 against dust & water (coolant proof) Stainless steel spindle to avoid rust Carbide measuring faces mm / inch conversion Auto power off SR44/LR44 battery Ball attachment free of cost Absolute & incremental measuring mode Easy operations with 2 buttons Each micrometer is supplied with calibration certificate stating actual values Supplied in […]

AUTHOR RATEUSERS RATE (0)

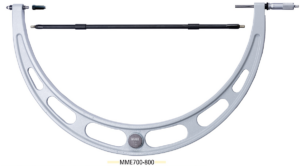

MICROMETERS

Mechanical External Micrometer: Range 0-200 mm / 0-8″ FEATURES: Specifications : IS, DIN, ANSI & JIS Spindle made from stainless steel for rust prevention Measuring faces: carbide tipped, precision ground & micro lapped An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & […]

AUTHOR RATEUSERS RATE (0)

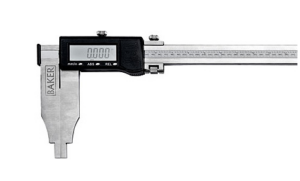

DIGITAL VERNIER CALIPER

SDN Series FEATURES: Every gauge carries a calibration certificate giving actual values Robust, Hardened and Ground stainless steel jaws and beam Accuracy as per DIN 862 Attractive shape and elegant design complimented by uncompromising performance 9.6 mm tall, high contrast Liquid Crystal Display significantly augments visibility and minimizes user fatigue All three ranges of calipers […]

AUTHOR RATEUSERS RATE (0)
DIAL VERNIER CALIPER

Dial Vernier Caliper – DC Series FEATURES: Every gauge carries a calibration certificate giving actual values Checks OD, ID, step and depth Robust, hardened and ground stainless steel jaws and beam With 0.02 mm Least Count Accuracy as per DIN 862 Clear, easy to read graduated dial with adjustable bezel Shock Proof movement Supplied in […]

AUTHOR RATEUSERS RATE (0)
MECHANICAL VERNIER CALIPER

Vernier Calipers VCF (with fine adjustment) FEATURES: Every gauge carries a calibration certificate giving actual values With 0.02 mm / 0.001” Least Count Measures OD, ID, Step and Depth Accuracy as per DIN 862 Robust, Hardened and Ground stainless steel jaws and beam Supplied in a sleek plastic box     Type Reading Range VCF10 […]

AUTHOR RATEUSERS RATE (0)

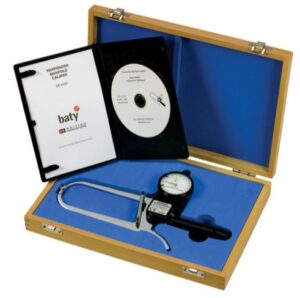

SKINFOLD CALIPER

Human Body Fat Measurement FEATURES: The Harpenden Skinfold Caliper is a precision instrument designed for use in the performance of Skinfold thickness measurements (from which estimates of body fat are derived) The use of this instrument has been well established and documented over the past 40 years Designed in 1958 in collaboration with D. J. […]

AUTHOR RATEUSERS RATE (0)
UNIVERSAL GAUGE

The Bowers Universal Gauge’s ingenious modular design enables it to be quickly configured to suit almost any measuring challenge, both internal and external. The Universal’s clever constant measuring pressure device ensures accuracy and consistency of reading. A large variety of measuring contacts and adaptors are available for the Universal Gauge enabling countless measuring tasks to […]

AUTHOR RATEUSERS RATE (0)
TYRE TREAD DEPTH GAUGE

A Gauge developed specifically to monitor compliance with safety requirements for minimum trade depth of automobile tyres. Additionally, it is useful for gauging general tyre wear in the range of 0-8 mm. FEATURES: Every gauge carries a calibration certificate giving actual values The gauge gives accurate readings to 0.1mm / 0.004Inch A ‘telltale’ maximum reading […]

AUTHOR RATEUSERS RATE (0)
CRANKSHAFT WEB DEFLECTION GAUGE

Excessive web deflection is dangerous for the engine. The cause may be faulty or damaged crankshaft, damaged bearing, poor bearing alignment, excessive bearing clearance or slackness, faulty flanging to transmission, flywheel or Vee Belt pulley, etc. FEATURES: Every gauge carries a calibration certificate giving actual values Crankshaft Gauge measures the Web deflection of a crankshaft […]

AUTHOR RATEUSERS RATE (0)
BALL DIAMETER GAUGE

FEATURES: Every gauge carries a calibration certificate giving actual values Gauge measures ball diameter quickly Minimum skill required Inspector needs to just place the ball over the circular cup & the direct reading of ball diameter is shown Available in variety of sizes     Type Range (mm) Reading (mm) BD01 1-10 0.01 BD02 10-12 […]

AUTHOR RATEUSERS RATE (0)
OUTER DIAMETER GAUGE

FEATURES: Every gauge carries a calibration certificate giving actual values Gauge measures OD of circular parts quickly Inspector needs to just place the gauge over circular periphery and the direct reading of OD is shown on circular scale OD of stacked pipes can be easily measured at site in as is condition It is the […]

AUTHOR RATEUSERS RATE (0)

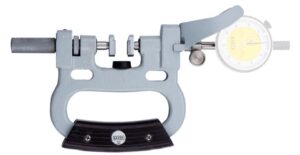

DIAL SNAP GAUGE

FEATURES: Designed for quick GO/NOT-GO gauging of diameters of cylindrical parts either inprocess or post process Measuring spindle and anvil spindle are manufactured out of graded steel Spindles are hardened and ground including screw threads Carbide ground and lapped tip of measuring faces ensures maximum wear resistance For quick entry, chamfer provided on front edges […]

AUTHOR RATEUSERS RATE (0)
DIAL BORE GAUGE

Dial Bore Gauge Range: 10 – 18mm FEATURES: Every gauge carries a calibration certificate giving actual values Measures small bores from 10 mm to 18 mm High wear resistance due to carbide-tipped fixed and moving anvils Wide bridge ensures automatic centering in the bore Self-centralizing feature of this bore gauge ensures that measurement can be […]

AUTHOR RATEUSERS RATE (0)

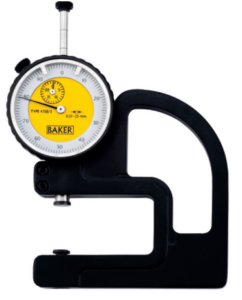

DIAL THICKNESS GAUGES

Throat Depth: 30 – 200 mm FEATURES: Every gauge carries a calibration certificate giving actual values For quick measurement of thickness of sheets, paper, leather etc In series K130, K138/L and K142, K145, K150 measurement pressure is independent of the user, resulting in accurate readings of thickness K138 ‘Push Down Type’ thickness gauge is particularly […]

AUTHOR RATEUSERS RATE (0)
UNIVERSAL TEST SET

FEATURES: Every gauge carries a calibration certificate giving actual values Consists of back Plunger dial Gauge, ‘G’ clamp, universal clamp, swinging arm assembly, tool post holder, holding rod, tommy bar and anvil Swinging arm assembly enables the back plunger dial gauge to be used for internal work up to a depth of 40 mm similar […]

AUTHOR RATEUSERS RATE (0)
DIAL DEPTH GAUGE

FEATURES: Every gauge carries a calibration certificate giving actual values Suitable for quick and easy measurements of depths. Base with 80 mm length: hardened and ground to a high degree of flatness Supplied with a set of extension rods Supplied with Tungsten Carbide contact point for longer life     Metric Bezel Dia. Type Reading […]

AUTHOR RATEUSERS RATE (0)
DIAL GAUGE ACCESSORIES

DIAL GAUGE ACCESSORIES DIAL GAUGE CONTACT POINTS DIAL GAUGE CONTACT POINTS (AGD) DIAL GAUGE BACK LEVER TYPE DIAL GAUGE ACCESSORIES Check the PDF

AUTHOR RATEUSERS RATE (0)
BACK PLUNGER DIAL GAUGE

MODEL 38 BACK PLUNGER DIAL GAUGE FEATURES: An unique face reading dial gauge with sensing plunger at right angles to the dial Every gauge carries a calibration certificate giving actual values Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Suitable for mounting […]

AUTHOR RATEUSERS RATE (0)
LEVER DIALS

MODEL 29/38 LEVER DIAL GAUGES FEATURES: Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certificate giving actual values Auto reversal mechanism Fitted with jewels and Swiss miniature ball bearings for smoother operation Robust and highly sensitive gauge suitable for workshop use Metric Gauges conform to IS 11498 and for the European market to […]

AUTHOR RATEUSERS RATE (0)
DIGITAL PLUNGER DIAL GAUGE

VALUE LINE SERIES FEATURES: Strong construction Large Digits for better viewing Display Resolution 0.01 mm & 0.0005 Inch Zero setting With Calibration certificate Useful functions : mm / Inch Preset Reference Manual / Auto power off     CODE V1 V2 V3 Reading 0.001 mm 0.001 mm 0.001 mm Reading 0.0005 Inch 0.0005 Inch 0.0005 […]

AUTHOR RATEUSERS RATE (0)
MECHANICAL DIAL GAUGES

MODEL 56 MECHANICAL DIAL GAUGES Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certification giving actual values Hardened stem for trouble free clamping Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Supplied with tolerance pointers Aesthetically appealing protective top […]
