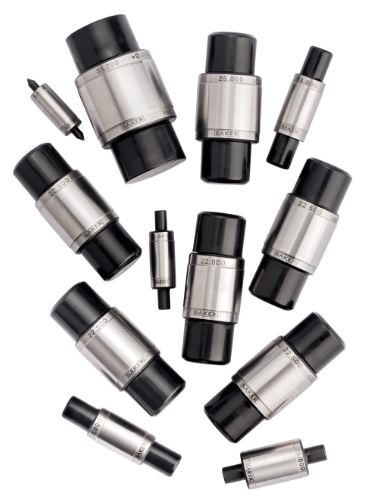

Setting Disc for Air Caliper

setting-disc-for-air-caliper_01

setting-disc-for-air-caliper_02

prod_aircali_datasheet3
ØD A C R S
ABOVE UPTO & INCLUDING
2.4 3.81 9.52 17.46 11.1 2.4
3.81 5.84 11.11 19.05 11.1 3.2
5.84 9.27 12.7 20.64 11.1 5.6

setting-disc-for-air-caliper_03

ØD A C R S
ABOVE UPTO & INCLUDING
9.27 12.95 14.29 22.22 12.7 8.7
12.95 20.96 15.88 23.81 12.7 12.7
20.96 28.83 17.46 25.4 15.9 19
28.83 38.35 20.64 28.58 15.9 25.4

setting-disc-for-air-caliper_04

ØD B ØA L
ABOVE UPTO & INCLUDING
38.35 51.05 22.2 31.8 15.8
51.05 63.75 22.2 31.8 15.8
63.75 76.45 25.4 38.1 39.8
76.45 89.15 25.4 38.1 39.8
89.15 101.85 25.4 38.1 39.8
101.85 114.55 25.4 38.1 39.8
114.55 127.25 25.4 38.1 39.8
127.25 139.95 25.4 38.1 39.8
139.95 152.65 25.4 38.1 39.8
152.65 165.35 25.4 38.1 39.8
165.35 178.05 25.4 38.1 39.8
178.05 190.75 25.4 38.1 39.8
190.75 225.00 25.4 38.1 39.8



Check the PDF
