Digital torque wrenches capture peak torque or display torque measurement in real time mode. High and low setpoints with LED indicator and audible alarm facilitate Go/No Go testing.
GEK series torque wrenches are accurate to 1.5% F.S., ±1 LSD and are powered by a coin battery. DIW torque wrench/testers are accurate to 0.5% F.S., ±1 LSD, output peak or continuous data and have a rechargeable NiCad battery. (torque = force x distance)
Splashproof Digital Torque Wrenches
GEK-A Series
Standard Features
- Splashproof protective covers* allow operation and comply with IPX4
- Rugged, precision forged construction
- Five programmable Go/No Go torque presets ideal for frequent operations.
- Selectable Units: lbf-in, lbf-ft, kgf-cm, N-m
- Peak, peak with auto zero reset and Real Time modes
- High accuracy ±1.5% F.S. both CW and CCW directions
- Battery-Operated (Panasonic CR2354)
- ISO-6789 Compliant
- Calibration certificate traceable to NIST and carrying case included
Ranges
Splashproof Digital Ratchet Torque Wrench Ranges
Accuracy: ±1.5% F.S. ±1 LSD
| Model | Capacity | ||||
| lbf-in | lbf-ft | kgf-m | N-m | Drive | |
| GEK030-R2E-A | 13.4~265.4 | 1.12~22.12 | 0.160~3.060 | 1.50~30.00 | 1/4″ |
| GEK030-C3E-A | 13.4~265.4 | 1.12~22.12 | 0.160~3.060 | 1.50~30.00 | 3/8″ |
| GEK060-R3E-A | 13.5~531.0 | 1.15~44.25 | 0.160~6.120 | 1.50~60.00 | 3/8″ |
| GEK085-R3E-A | 19.0~752.0 | 1.60~62.70 | 0.21~8.66 | 2.0~85.0 | 3/8″ |
| GEK135-R4E-A | 28~1195 | 2.3~99.5 | 0.32~13.76 | 3.1~135.0 | 1/2″ |
| GEK200-R4E-A | 46~1770 | 3.8~147.4 | 0.55~20.40 | 5.2~200.0 | 1/2″ |
Splashproof Digital Adjustable Torque Wrench Ranges
Accuracy: ±1.5% F.S. ±1 LSD
| Model | Capacity | |||
| lbf-in | lbf-ft | kgf-m | N-m | |
| GEK085-W36E-A | 19.0~752.0 | 1.60~62.70 | 0.21~8.66 | 2.0~85.0 |
| GEK135-W36E-A | 28~1195 | 2.3~99.5 | 0.32~13.76 | 3.1~135.0 |
| GEK200-W36E-A | 46~1770 | 3.8~147.4 | 0.55~20.40 | 5.2~200.0 |

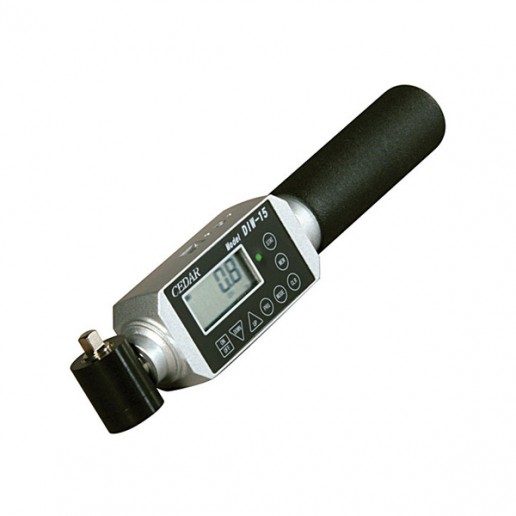

DIW Digital Torque Wrench
Lightweight Digital Torque Tester / Wrench DIW Series
Ranges
DIW Digital Torque Wrench Ranges
Accuracy ± 0.5% F.S., ±1 LSD
| Model | Capacity | Drive Size | ||||
| lbf-in | lbf-ft | kgf-cm | N-cm | N-m | ||
| DIW-15 | 2.0~130.0 | – | 2.0~150.0 | 20~1500 | 0.20~15.00 | 1/4″ |
| DIW-20 | 2.0~174.0 | – | 2.0~200.0 | 20~2000 | 0.20~20.00 | 3/8″ |
| DIW-75 | 2.0~651.0 | – | 2.0~750.0 | 20~7500 | 0.20~75.00 | 3/8″ |
| DIW-120 | 20~1040 | 2.0~87.0 | 20~1200 | – | 2.0~120.0 | 1/2″ |
Standard Features of digital torque wrenches
DIW Standard Features
- Drive-Centered Torque Sensor apply load anywhere on the tester,
not just the load point, and achieve consistent results - Rechargeable internal NiMH batteries (8 hour use) and AC Adapter
- Ultra Accurate ± 0.5% F.S., ±1 LSD
- 300° Rotating Head adjusts viewing angle
- 800 Data Memory recall data on the display or download
- Output Data USB virtual COM port sends peak
(1 data) or continuous data (12 or 180 data/second) - Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
- Peak, Real Time, Peak Down and Continuous Output modes (selectable)
- Selectable units lbf-in, kgf-cm, N-cm and N-m
- USB Virtual COM port
- Statistics: number of data, Max, Min, Avg
- Programmable screw tightening counter
- Programmable Auto Zero function resets unit to zero for easy operation
- Ergonomic and light weight, yet ruggedly constructed
- CW and CCW operation
- CW stepless one-way clutch adapter, AC charger and carrying case included.
Optional Quick Spinners and Adapters
Quick Spinners and Spinner/Converters allow users to quickly rundown the bolt or nut using their fingers before applying torque.
BE2-Q 1/4″ to 1/4″ Quick Spinner
BE3-Q 3/8″ to 3/8″ Quick Spinner
BE4-Q 1/2″ to 1/2″ Quick Spinner
Spinner/Converters have a lower profile than conventional adapters.
BAE23 converts 1/4″ to 3/8″ drive
BAE34 converts 3/8″ to 1/2″ drive
GEK Digital Adjustable Torque Wrench
Ranges
GEK Digital Adjustable Torque Wrench Ranges
Accuracy: ±1.5% F.S. ±1 LSD
| Model | Capacity | |||
| lbf-in | lbf-ft | kgf-m | N-m | |
| GEK085-W36E | 19.0~752.0 | 1.60~62.70 | 0.21~8.66 | 2.0~85.0 |
| GEK135-W36E | 28~1195 | 2.3~99.5 | 0.32~13.76 | 3.1~135.0 |
| GEK200-W36E | 46~1770 | 3.8~147.4 | 0.55~20.40 | 5.2~200.0 |
Specifications
| Accuracy | ±1.5% F.S. |
| Measuring direction | CW with display facing you, CCW with display facing away from you |
| Measuring unit | Selectable lbf-in, lbf-ft, kgf-m, N-m |
| Data Memory | 5 (storable Target torque values), 1 (Pass/Fail Mode) |
| Auto Shut OFF | Power automatically turns off after 2 minutes of non-use |
| Battery | Lithium coin battery CR2354 |
| Battery Life | Approx. 2 months (100 usages per day) |
Standard Features
GEK Series Standard Features
- High accuracy ±1.5% F.S. (clockwise with display facing you, counterclockwise with display facing away from you)
- The best known, rugged, high quality tools for over 60 years!
- Peak, peak with auto zero reset and Real Time modes
- Five programmable torque presets ideal for frequent operations.
- Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
- Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
- ISO-6789 Compliant
- Calibration cert traceable to NIST and carrying case included
Optional Protective Cover
Model GEK-A, complies with IPX4, allows operation and protects the wrench from splashes in production environments.
GEK Digital Ratchet Torque Wrench
Ranges
| Model No. | lbf-in | lbf-ft | kgf-m | N-m | Drive |
| GEK030-R2E | 13.4~265.4 | 1.12~22.12 | 0.160~3.060 | 1.50~30.00 | 1/4″ |
| GEK030-C3E | 13.4~265.4 | 1.12~22.12 | 0.160~3.060 | 1.50~30.00 | 3/8″ |
| GEK060-R3E | 13.5~531.0 | 1.15~44.25 | 0.160~6.120 | 1.50~60.00 | 3/8″ |
| GEK085-R3E | 19.0~752.0 | 1.60~62.70 | 0.21~8.66 | 2.0~85.0 | 3/8″ |
| GEK135-R4E | 28~1195 | 2.3~99.5 | 0.32~13.76 | 3.1~135.0 | 1/2″ |
| GEK200-R4E | 46~1770 | 3.8~147.4 | 0.55~20.40 | 5.2~200.0 | 1/2″ |
Specifications
| Accuracy | ±1.5% F.S. |
| Measuring direction | CW and CCW |
| Measuring unit | Selectable lbf-in, lbf-ft, kgf-m, N-m |
| Data Memory | 5 (storable Target torque values), 1 (Pass/Fail Mode) |
| Auto Shut OFF | Power automatically turns off after 2 minutes of non-use |
| Battery | Lithium coin battery CR2354 |
| Battery Life | Approx. 2 months (100 usages per day) |
Standard Features
GEK Series Standard Features
- High accuracy ±1.5% F.S. both CW and CCW directions
- The best known, rugged, high quality tools for over 60 years!
- Peak, peak with auto zero reset and Real Time modes
- Five programmable torque presets ideal for frequent operations.
- Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
- Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
- ISO-6789 Compliant
- Calibration certificate traceable to NIST and carrying case included
Optional Quick Spinners, Adapters & Protective Cover
Optional Quick Spinner and Spinner/Converters
Quick Spinners and Spinner/Converters allow users to quickly rundown the bolt or nut using their fingers before applying torque.
BE2-Q 1/4″ to 1/4″ Quick Spinner
BE3-Q 3/8″ to 3/8″ Quick Spinner
BE4-Q 1/2″ to 1/2″ Quick Spinner
Spinner/Converters have a lower profile than conventional adapters.
BAE23 converts 1/4″ to 3/8″ drive
BAE34 converts 3/8″ to 1/2″ drive
Optional Protective Cover
Model GEK-A, complies with IPX4, allows operation and protects the wrench from splashes in production environments.
