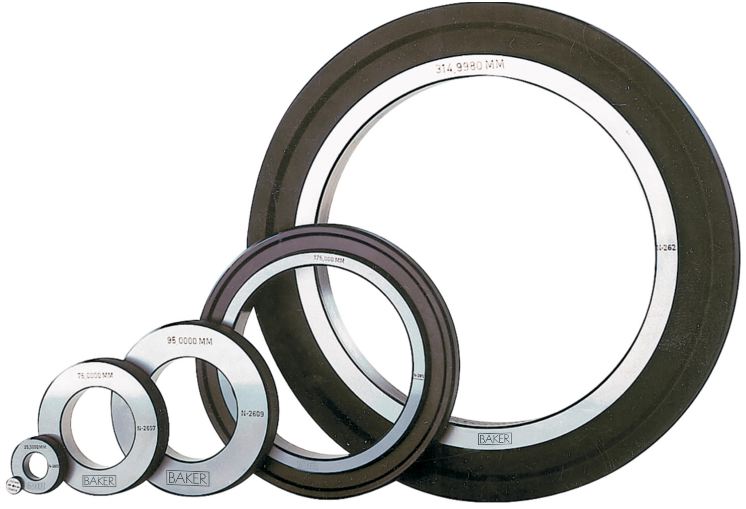

BAKER MASTER SETTING RING

Master Setting Ring: Range 1.5 – 315 mm FEATURES: Master setting ring used for setting of measuring instruments like horizontal comparators, length measuring machines for ID checking, dial bore gauges etc. Made from oil hardening non shrinking gauge steel, hardened and tempered to 60-62 HRC Sub-zero treated at -80 °C for long term dimensional stability

Download PDF

Master Setting Ring: Range 1.5 – 315 mm

FEATURES:

Master setting ring used for setting of measuring instruments like horizontal comparators, length measuring machines for ID checking, dial bore gauges etc.
Made from oil hardening non shrinking gauge steel, hardened and tempered to 60-62 HRC
Sub-zero treated at -80 °C for long term dimensional stability
Actual dimensions duly etched
Calibrated at 20 °C under Standards room condition against national/international traceable standards
Certificate of calibration is provided along with each master traceable to national/international standards, certificate under NABL (as per ISO 17025) as per request
Manufactured as per DIN2250-1 Type C
Master Setting Rings also supplied in standard set consisting of sizes:
- Set 1: Ø4.0, Ø5.0, Ø6.0 & Ø8.0 mm
- Set 2: Ø10.0, Ø12.0, Ø16.0 , Ø20.0 & Ø25.0 mm
Set also supplied as per customer’s requirement

master-setting-ring_range-1-5-315-mm_03

Ød1 ABOVE	UPTO & INC.	Ød2	b1
1.5	2.5	22	4
2.5	5.0	22	5
5.0	10.0	32	8
10.0	15.0	38	10
15.0	20.0	45	12
20.0	25.0	53	14
25.0	32.0	63	16
32.0	40.0	71	18
40.0	50.0	82	20
50.0	60.0	100	20
60.0	70.0	112	24
70.0	80.0	125	24
80.0	90.0	140	24
90.0	100.0	160	24

master-setting-ring_range-1-5-315-mm_04

Ød1 ABOVE	UPTO & INC.	Ød2	b1
1.5	2.5	22	4
2.5	5.0	22	5
5.0	10.0	32	8
10.0	15.0	38	10
15.0	20.0	45	12
20.0	25.0	53	14
25.0	32.0	63	16
32.0	40.0	71	18
40.0	50.0	82	20
50.0	60.0	100	20
60.0	70.0	112	24
70.0	80.0	125	24
80.0	90.0	140	24
90.0	100.0	160	24

Nominal Diameter Range (mm)	Size Tolerance (mm)	Roundess & Parallelism
1-3	± 0.0015	0.0003
3-6	± 0.002	0.0004
6-10	± 0.002	0.0004
10-18	± 0.0025	0.0005
18-30	± 0.003	0.0006
30-50	± 0.0035	0.0007
50-80	± 0.004	0.0008
80-120	± 0.005	0.001
120-180	± 0.006	0.0012
180-250	± 0.007	0.0014
250-315	± 0.008	0.0016
