Mitutoyo Magnetic Stands SERIES 7

MITUTOYO-SERIES 7 – MAGNETIC STANDS

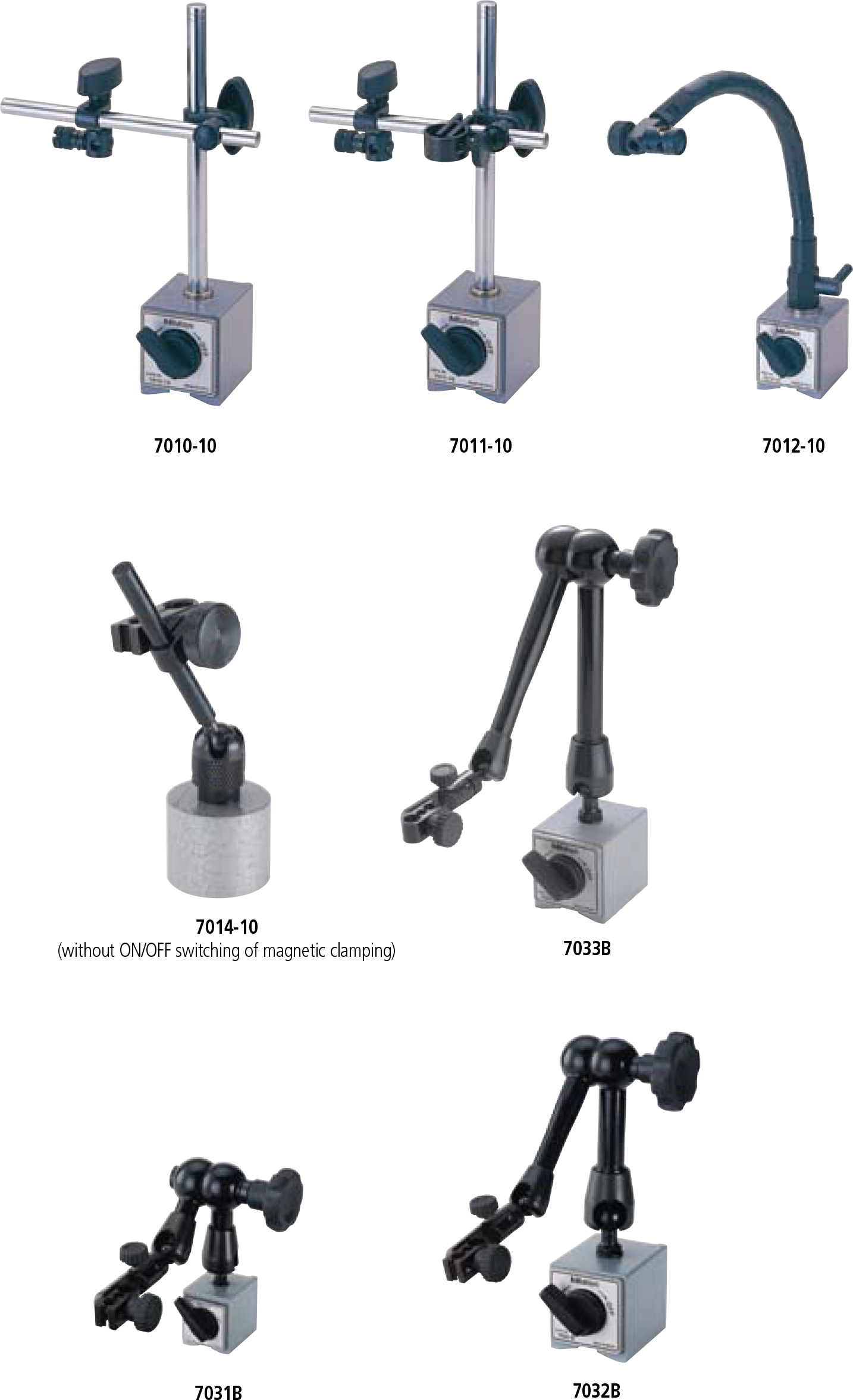

Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators (with stem ø6 or ø8) and clamp to iron or steel surfaces with a strong magnetic force. 7014-10, 7031, 7032 and 7033B have a dovetail groove. DIMENSIONS SPECIFICATIONS Order No. Description Applicable holding stem dia. Magnetic force Remarks 7010-10 Magnetic stand ø6mm, ø8mm Approx.

SPECIFICATIONS

Order No.	Description	Applicable holding stem dia.	Magnetic force	Remarks
7010-10	Magnetic stand	ø6mm, ø8mm	Approx. 600N	—
7010S-10	Magnetic stand	ø4mm, ø8mm, ø9.53mm (3/8”)	Approx. 600N	—
7011-10	Magnetic stand	ø6mm, ø8mm	Approx. 600N	With fine adjustment
7011S-10	Magnetic stand	ø4mm, ø8mm, ø9.53mm (3/8”)	Approx. 600N	With fine adjustment
7012-10	Magnetic stand	ø6mm, ø8mm, ø9.53mm (3/8”)	Approx. 600N	—
7014-10	Mini magnetic stand	ø6mm, ø8mm	Approx. 150N	Without magnet ON/OFF
7014E-10	Mini magnetic stand	ø4mm, ø9.53mm (3/8”)	Approx. 150N	Without magnet ON/OFF
7033B	Universal magnetic stand	ø6, ø8mm, ø9.53mm (3/8”)	Approx. 600N	With mechanical locking system
7031B	Universal magnetic stand	ø6, ø8mm, ø9.53mm (3/8”)	Approx. 300N	With mechanical locking system
7032B	Universal magnetic stand	ø6, ø8mm, ø9.53mm (3/8”)	Approx. 600N	With mechanical locking system

DIMENSIONS

Magnetic Stands

Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators (with stem ø6 or ø8) and clamp to iron or steel surfaces with a strong magnetic force.
7014-10, 7031, 7032 and 7033B have a dovetail groove.

Magnetic Stands
