DIGITAL DISK BREAK AND PAD CALIPER CODE 1167

Name: DIGITAL DISK BREAK AND PAD CALIPER CODE 1167
Brand: INSIZE
SKU: 1167-150A

Code:

Measure thickness of disk brakes and pad wear Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power Battery CR2032 Data output Made of stainless steel Optional accessory: data output system Code Range Accuracy 1167-150A 0-150mm/0-6″ 0.07mm

f in

Click to Expand

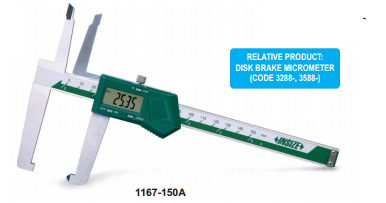

DIGITAL DISK BREAK AND PAD CALIPER CODE 1167

Product Overview

The INSIZE 1167-150A is a precision digital caliper specifically engineered for the measurement of disk brake thickness and brake pad wear. Constructed from stainless steel, this instrument provides reliable digital readings with high resolution for automotive maintenance and quality control applications.

Key Features & Capabilities

Application-Specific Design: Optimized for measuring disk brake thickness and pad wear.
Digital Interface: Features a clear LCD display with a resolution of 0.01mm/0.0005″.
User-Friendly Controls: Equipped with On/Off, Zero, and mm/inch conversion buttons.
Power Management: Includes an automatic power-off function; the unit automatically powers on when the digital slider is moved.
Data Connectivity: Integrated data output capability for digital record-keeping (optional data output system available as an accessory).
Durable Construction: Manufactured from stainless steel for long-term durability in workshop environments.
Battery: Powered by a CR2032 battery.

Technical Specifications

Parameter	Specification
Model Code	1167-150A
Measuring Range	0-150mm / 0-6″
Resolution	0.01mm / 0.0005″
Accuracy	0.07mm
Material	Stainless Steel
Battery Type	CR2032
Data Output	Yes
