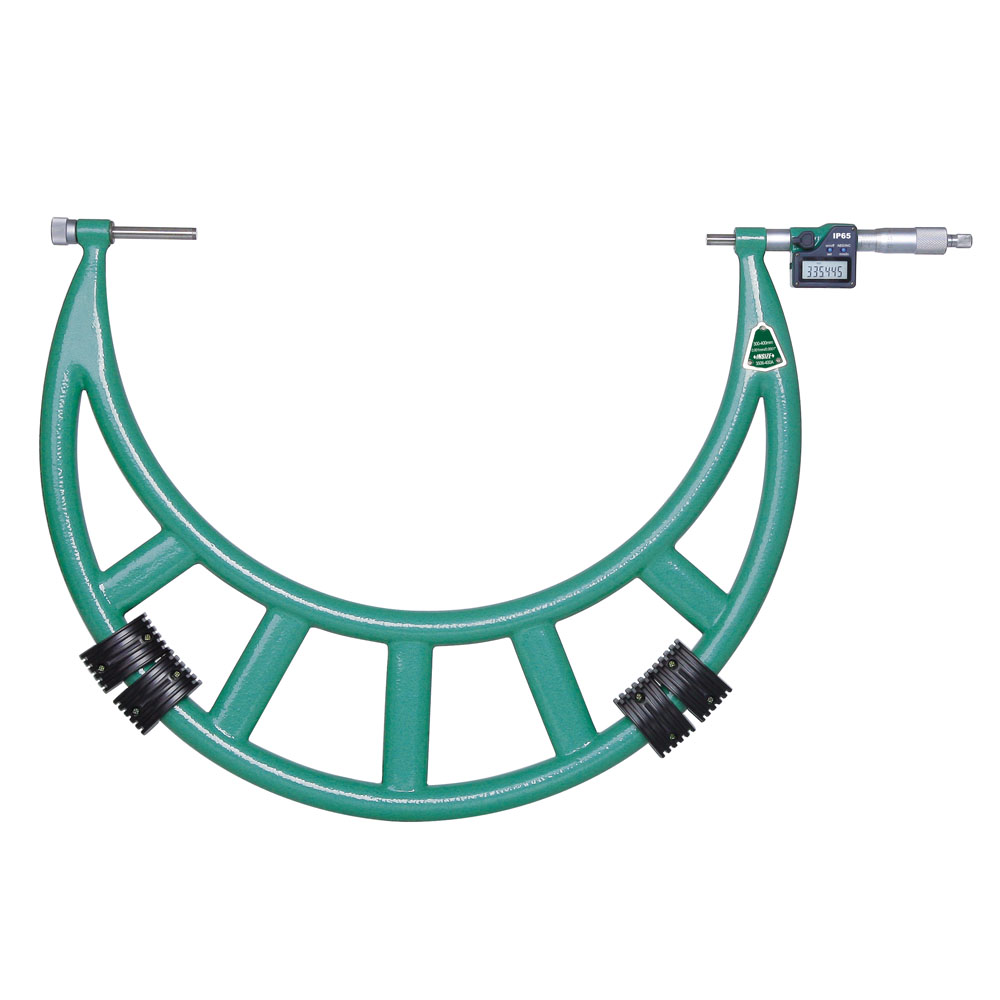

INSIZE DIGITAL OUTSIDE MICROMETER WITH INTERCHANGEBALE ANVILS (CODE – 3506)

Resolution 0.001mm/0.0001" (resolution of 3506-100A and 3506-150A is 0.001mm/0.00005") IP54 dust/waterproof Button function: on/off, set, mm/inch, data transmit Data output Automatic power off Ratchet stop Carbide measuring faces Supplied with setting standards Optional accessory: data output cable
Download Catalog
 Code Range Type Accuracy L b Setting Standard (Included)
3506-100A  0-100mm/0-4″  A ±5μm 105 57 25
3506-150A   0-150mm/0-6″ A ±6μm 155 82 25, 50, 75, 100, 125
3506-300A  150-300mm/6-12″ A ±8μm 305 165 150, 175, 200, 225, 250, 275
3506-301A  200-300mm/8-12″ A ±8μm 305 165 200, 225, 250, 275
3506-400A  300-400mm/12-16″ B ±9μm 405 224 325, 375
3506-500A  400-500mm/16-20″ B ±11μm 505 275 425, 475
3506-600A  500-600mm/20-24″ B ±12μm 605 321 525, 575
3506-700A  600-700mm/24-28″ B ±13μm 705 371 625, 675
3506-800A  700-800mm/28-32″ B ±15μm 805 426 725 , 775
3506-900A  800-900mm/32-36″ B ±16μm 905 476 825 ,875
 3506-1000A  900-1000mm/36-40″ B ±17μm  1005 576 925 , 975

digital outside micrometer-3506_1











digital outside micrometer-3506_2



  • Resolution 0.001mm/0.0001″ (resolution of 3506-100A and 3506-150A is 0.001mm/0.00005″)
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, data transmit
  • Data output
  • Automatic power off
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards
  • Optional accessory: data output cable
