AUTHOR RATE

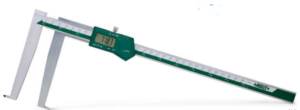

Insize Digital Double Hook Depth Gages

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off,  move the digital unit to turn on power Meet DIN862 battery CR2032 Data output Made of stainless steel Optional accessory: data output cable (code 7306-20, 7302-SPC5A/SPC5B,7305-SPC2A2) Code Range Accuracy L d 1144-150A 0-150mm/0-6″ ±0.03mm 233 100 1144-200A 0-200mm/0-8″ ±0.03mm 283 100 1144-300A 0-300mm/0-12″ ±0.03mm 383 150

AUTHOR RATE

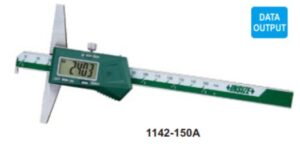

Insize Digital Hook Depth Gages

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off,  move the digital unit to turn on power battery CR2032 Data output Made of stainless steel Optional accessory: data output cable (code 7306-20, 7302-SPC5A/SPC5B,7305-SPC2A2) Code Range Accuracy L d 1142-150A 0-150mm/0-6″ ±0.03mm 230 100 1142-200A 0-200mm/0-8″ ±0.03mm 280 100 1142-300A 0-300mm/0-12″ ±0.04mm 380 150

AUTHOR RATE
Baker Dial Bore Gauge – Split Ball

L C : 0.01mm Accuracy As per BGIPL standard Split Ball type Design Supplied with 4 interchangeable Measuring heads. (4‐4.6 ,4.5‐5.1,5‐5.6,5.5‐6.1mm ) TYPE READING RANGE K439 0.01 mm 4‐6 mm

AUTHOR RATE
Baker Dial Bore Gauge 2 Point

L C : 0.01mm Accuracy As per BGIPL standard. 2 point type Design Supplied with 9 interchangeable anvils (extension)  in step of 0.5 mm from 6‐10 mm TYPE READING RANGE K539 0.01 mm 6‐10 mm

AUTHOR RATE

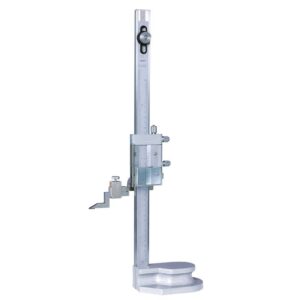

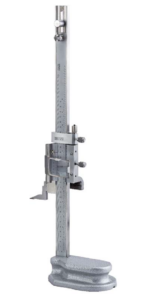

Baker Vernier Height Gauge

Rigid STAINLESS STEEL Construction Dual Scale (MM & INCH) Main scale Zero adjustment range 10 mm approx. & vernier scale fine adjustment range 8 mm approx. L C: 0.02mm/0.001” Accuracy As per DIN 862 Standard. Magnifying glass for Better readability TYPE READING RANGE   VH 300   0.02 mm/0.001”   0-300 mm/0 -12” VH 600 […]

AUTHOR RATE
Baker Digital Depth Caliper (DDC)

Rigid STAINLESS STEEL Construction MM/INCH conversion LC: 0.01mm/0.0005 IN Ingress Protection: IP 54 Large Liquid Crystal Display for good visibility. Accuracy As per DIN 862 STANDARD Powerful & Original lithium battery. type CR2032 Working temp. 5–40 °C TYPE READING RANGE   DDC 10   0.01 mm/0.0005”   0‐150 mm/0 ‐6” DDC 20 0.01 mm/0.0005” 0‐200mm/0 […]

AUTHOR RATE
Baker Digital Depth Caliper (DCC)

Rigid STAINLESS STEEL Construction MM/INCH conversion LC : 0.01mm/0.0005 IN Ingress Protection : IP 54 Large Liquid Crystal Display for good visibility. Accuracy As per DIN 862 STANDARD Powerful & Original lithium battery. type CR2032 Working temp.5–40°C TYPE READING RANGE   DDC 10   0.01 mm/0.0005”   0‐150 mm/0 ‐6” DDC 20 0.01 mm/0.0005” 0‐200mm/0 […]

AUTHOR RATE
DIGIMAR 814 SR HEIGHT MEASURING AND SCRIBING INSTRUMENT

Battery life up to 3 years Max. measuring speed 1,5 m/s (60”/s) MarConnect Data output: choose either    – USB    – OPTO RS232C    – Digimatic High contrast liquid crystal display with 12 mm sized digits Sturdy heavy-duty base, easy to handle Hardened and lapped contact surface which produce both a smooth and even […]

AUTHOR RATE
DIGIMAR 814 N / 814 G – HEIGHT MEASURING AND SCRIBING INSTRUMENT

DIGIMAR 814 N HEIGHT MEASURING AND SCRIBING INSTRUMENT High accuracy The incremental inductive measuring system Measuring head with a ball bush guide Resistance-free measuring system Large, easy to read digital display Measuring and display unit is incorporated in the measuring head Data transmission via Opto RS232 C interface Digital preset Zero setting in any position […]

AUTHOR RATE
DIGIMAR 816 CL HEIGHT MEASURING INSTRUMENT

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head A dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Temperature compensation with an integrated temperature sensor Probe constant remains after […]

AUTHOR RATE
DIGIMAR 817 CLM HEIGHT MEASURING INSTRUMENT

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head Dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Probe constant remains after the instrument is switched off Integrated rechargeable battery […]

AUTHOR RATE
Universal Gauge Sets

Universal Gauge (extension compatible version) standard features: Range 30-250mm internal / 0-215mm external 15mm anvil travel Constant measuring pressure Digital or mechanical readout 150mm and 500mm extensions available. Can be screwed together in multiples (up to maximum 3m recommended) Measuring table and supports available for conversion to bench gauge for the measurement of small components […]

AUTHOR RATE
Special Bore Measurement – Miscellaneous

Irregular Spacing Available between 16-300mm diameter to measure between odd spaced lobes. Gun Barrel Head Measurement of smooth bore and rifled bore gun barrels. Major and minor diameters measured deep in to bores. Right Angled Adaptor Blind Bore Standard between 2-6mm and 12.5-300mm. Between 6-12.5mm on request. Slot Width (Large)Slot widths from 6-100mm.   Slot […]

AUTHOR RATE
Special Bore Measurement – Deep Hole Pneumatic

Operated by a pneumatic actuator powered by a 3 bar compressed air supply – either from a compressor or a workshop air-line. The measurement data is collected by a capacities probe fitted just behind, and in constant contact with the measuring head. This direct contact ensures high-quality transducer-type accuracy, even at great depths. Measurements are […]

AUTHOR RATE
Special Bore Measurement – Spherical

2 Point Spherical Measurement of ovality in bore. Measurement of bores with irregularities. 3 Point Spherical Gives good repeatability even when out of line with bore centre. Available from 6-300mm diameter on digital systems.   Spherical Radius Can be supplied as a 2 point (for ovality) or 3 point contact. Available from 6-300mm.

AUTHOR RATE

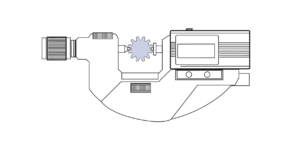

Special Bore Measurement – External Spline

Frames fitted with 1 x ball and 1 x pin.

AUTHOR RATE
Special Bore Measurement – Internal Spline

2 and 3 point heads available. Anvils manufactured from tool steel.  Between pin, major and minor diameter heads available.  Diameters from 8-300mm diameter (5/16″-12″).

AUTHOR RATE
Three Point Special application Bore Gauges

For sizes from 2-300mm diameter. Interchangeable with standard heads Suits Bowers XTD, XTH and Ultima Special forms, radius, ball contacts Depth stops available for quick location Annular grooves possible Grooves For Size from 2-300 diameter

AUTHOR RATE
Special Bore Measurement – Screw Threads

To measure effective (functional) diameter, pitch diameter, major diameter, between M4 – 300mm. / No. 8 UN – 12″ diameter. Ball Screw Threads External Threads

AUTHOR RATE
XT500 Large Diameter Three Point Bore Gauge

The Bowers XT500 large diameter 3-point bore-gauge has been designed specifically for the measurement of internal diameters between 300 and 500mm. The newly designed constant-force digital readout ensures that the measuring pressure remains constant throughout the measurement whilst radiussed measuring anvils provide optimum centralisation in the part. Anvil sets are supplied in 25mm steps (300-325, […]

AUTHOR RATE
MicroGauge Two Point Bore Gauge

The new MicroGauge 2-point bore gauging system has been designed specifically for the measurement of small bores between 1.0-10.0mm. Featuring a completely new digital readout and extremely compact overall dimensions, the MicroGauge is truly a pocket-sized instrument. Digital readout and measuring head together are about the same size and format as a ballpoint pen which […]

AUTHOR RATE

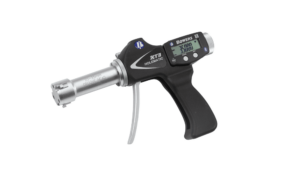

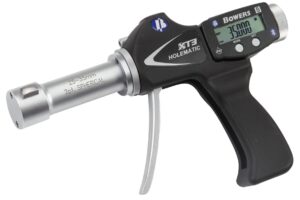

Baker XT3 Three Point Pistol Grip Digital Bore Gauge

Bowers’ XT3 Holematic offers a new ergonomic design – including a larger and clearer LCD display – along with IP67 electronics protection, proximity output with built-in Bluetooth; allowing bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to […]

AUTHOR RATE

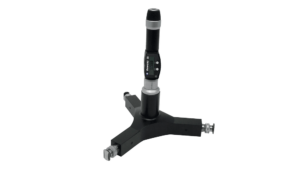

XT3 Three Point Digital Bore Gauge

Bowers’ Bluetooth digital internal micrometers offer a new ergonomic design – including a larger and clearer LCD display – along with IP67 electronics protection, proximity output; allowing bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate […]

AUTHOR RATE
XT Analogue Three Point Mechanical Bore Gauge

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads […]

AUTHOR RATE
Mitutoyo-SERIES 148 – Fine Spindle Feed of 0.25mm/rev-Micrometer Heads

Miniature micrometer heads for ease of incorporating into machines. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 148-132 0 – 13mm   0.01mm   ±2µm   9.5mm Plain   Spherical (SR4)   0.25mm 148-133 w/ clamp nut 148-322 0 – 6.5mm Plain 148-323 w/ clamp nut

AUTHOR RATE
Mitutoyo-SERIES 148 – Fine Spindle Feed of 0.1mm/rev-Micrometer Heads

Highly accurate 0.1mm pitch thread is only one-fifth of that used for a standard-pitch head (0.5mm). External dimensions are compatible with standard 0.5mm pitch heads. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch Special features 148-142     0 – 6.5mm     0.002mm   ±2µm   9.5mm Plain […]

AUTHOR RATE
Mitutoyo-SERIES 152 – Quick Spindle Feed of 1mm/rev-Micrometer Heads

Quick spindle feed of 1mm/rev. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 152-101 0 – 15mm   0.01mm ±2µm   12mm   Plain   Flat (carbide tip)   1mm 152-102 0 – 25mm 152-103 0 – 50mm ±4µm

AUTHOR RATE
Mitutoyo-SERIES 153 – Non-rotating Spindle Type – Micrometer Heads

The spindle translates without rotation. Torsion-free feed reduces workpiece deformation and wear. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch Graduation features 153-101 0 – 15mm 0.01mm   ±3µm 9.5mm   Plain   Flat (carbide tip)   0.5mm Standard 153-201*   0 – 25mm   12mm 153-202* 0.001mm […]

AUTHOR RATE
Mitutoyo-SERIES 148 – Locking-screw Type – Micrometer Heads

Locking screw provides secure locking at any position of the spindle. Position of the locking screw is the same as the sleeve index line. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Graduation features 148-220   0 – 6.5mm           0.01mm   ±5µm   6mm Plain […]

AUTHOR RATE
Mitutoyo-SERIES 151 – Medium-sized Standard Type with 8mm diameter spindle-Micrometer Heads

Larger spindle for heavy-duty applications (normally ø6.35mm). DIMENSIONS SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Special features 151-224           0 – 25mm           ±2µm             12mm Plain             Flat (carbide tip)   — […]

AUTHOR RATE
Mitutoyo-SERIES 150 – Medium-sized Standard Type-Micrometer Heads

Measuring range of 25mm. DIMENSIONS SPECIFICATIONS Metric Inch Order No. Range Accuracy Stem dia. Stem Spindle end Special features 150-208               0 – 1″               ±.0001″               .375″ Plain   Flat (carbide tip)     Standard 150-207 […]

AUTHOR RATE
Mitutoyo-SERIES 149 – Small Standard Type with Carbide-Tipped Spindle-Micrometer Heads

Carbide-tipped spindle provides high abrasion resistance. DIMENSIONS SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation features 149-132           0 – 15mm           ±2µm           9.5mm Plain   Flat (carbide tip)     Standard 149-131 W/ clamp nut 149-183 Plain* […]

AUTHOR RATE
Mitutoyo-SERIES 148 – Small Thimble Diameter Standard Type-Micrometer Heads

Measuring range of 13mm. The thimble can be set to zero at any position by loosening the setscrew. Stainless steel throughout: 148-513, 518, 511 DIMENSIONS   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Special features 148-503           0 – 13mm           ±2µm   […]

AUTHOR RATE

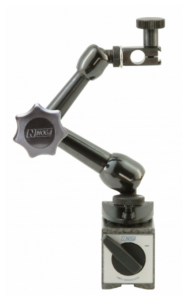

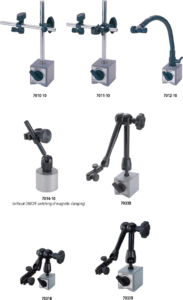

Mitutoyo-SERIES 7 – Magnetic Stands

Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators (with stem ø6 or ø8) and clamp to iron or steel surfaces with a strong magnetic force. 7014-10, 7031, 7032 and 7033B have a dovetail groove. DIMENSIONS SPECIFICATIONS Order No. Description Applicable holding stem dia. Magnetic force Remarks 7010-10 Magnetic stand ø6mm, ø8mm Approx. […]

AUTHOR RATE
Mitutoyo-Dial Snap Gage

Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes. Wide (13.5 x 12mm/ 1.53 x 47”), flat carbide anvils. Anvil retracting stroke: 2mm/.080” Anvil positioning range: 25mm/ 1” Adjustment nut: adjusts the measuring range. Clamp: adjustment nut Flatness of measuring face: 1μm Stability of indication: 2μm or less (stability of […]

AUTHOR RATE
Mitutoyo-SERIES 209 – Internal Measurement Type-Dial Caliper gage

Dial caliper gages are inside diameter measurement tools, which have a broader range of applications including the measurement of hole diameter and internal measurement of special shapes (grooves). Internal measurement SPECIFICATIONS Metric Order No. Range Graduation Range of opening*1 Dial face Accuracy Measuring force 209-125 6 – 18mm 0.01mm 5.8 – 18.2mm 0-100-100 ±40µm 2.0N […]

AUTHOR RATE
Mitutoyo-SERIES 547, 7-Thickness Gages

Dial thickness gages can quickly measure the thickness of thin products such as paper and felt. Contact point and anvil are both made of ceramic: rust-free (547-401 is excluded.) Integrated molding of the bezel and crystal ensures protection against water and oil penetration via the front face. Standard Type High Accuracy Type Standard Type Lightweight […]

AUTHOR RATE
Mitutoyo-Optional Accessories for Dial Test Indicators-Styli, Stems and Holders

Styli (for Metric Models Only*) * Except for universal type dial test indicator (513-304G). Stylus length affects the scale factor of an indicator. The styli provided as standard give a scale factor of unity. ø0.5mm ball-point 190547 (L=14.7mm) 190549 (L=20.9mm) 190654 (L=22.3mm) 190656 (L=44.5mm) ø0.7mm ball-point 190548 (L=14.7mm) 190550 (L=20.9mm) 190653 (L=22.3mm) 190655 (L=44.5mm) ø1mm […]

AUTHOR RATE
Mitutoyo-SERIES 513-Pocket Type Dial Test Indicator

Jeweled bearings assure higher sensitivity and accuracy. Indicator can be mounted by clamping the stem or the body (except for 513-517WE and 513-517WT). Reversible measuring direction (Clutch type). Two holding bars are supplied. (Full sets only.) Fully adjustable bezel/dial face. Stylus is adjustable within 220°. Bezel is sealed with on O-ring to keep out water […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Universal Type-Dial Test Indicator

Universal application to all directions. (Not only the direction of the measuring point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.) SPECIFICATIONS DIMENSIONS Set Configuration: Metric Set Configuration: Inch Optional Accessories ––––––: Swivel clamps (See page F-63.) ––––––: Holding bars (See page F-63.) ––––––: Stems (See page F-63.) 102824: Stylus, […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Horizontal (20° Tilted Face), Vertical, and Parallel Types-Dial Test Indicator

Specially designed for easy viewing of dial. The dial face obliquely faces upward, allowing users to read the graduations from the user’s side. It is convenient when probing on the side of a large workpiece and the workbench is high. Using the universal holder allows easy hole centering. The dial face always faces upward when […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Lever-Type Dial Indicators-Dial Test Indicators

Designed to probe surfaces that cannot be reached with a normal dial gauge. Useful both for alignment and for measurement purposes. Mitutoyo’s proprietary new design permits smooth pointer operation. Strong frame provides excellent rigidity and durability. Non-magnetic pointer and contact point permit reliable operation even in magnetic environments. Clear and concise wide dial face allows […]

AUTHOR RATE
Mitutoyo-SERIES 1-Back Plunger Type Dial Indicator

Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in situations where standard dial gauges are difficult to read. Model 1960T and 1961T, which uses Mitutoyo’s proprietary shock-proofing mechanism, has excellent durability and shock resistance. DIMENSIONS Order No. A B C E F G […]

AUTHOR RATE
Mitutoyo-SERIES 2-Back Plunger Type Dial Indicator

Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see. Models 2960T, 2961T, 2990T-10 and 2991T-10, which use Mitutoyo’s proprietary shock-proofing mechanism, have excellent durability and shock resistance. Model 2990T-10 provides […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Special Dial Indicators

Peak hold type dial gauge A mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value. * Clearance of peak hold: push the nut in the direction of the arrow indicated in the dimensional drawing below. DIMENSIONS SPECIFICATIONS Metric Order No. Graduation Range (range/rev) Accuracy Repeat- […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Special Dial Indicators-Dial Indicators

Adjustable hand dial gauge The hand position can be adjusted independently of the position of the spindle by rotating the top knob. DIMENSIONS * Contact points, other than dedicated types, cannot be installed. * The shoulder on a contact point (standard accessory) acts as a stop to prevent spindle overrun that may otherwise damage the […]

AUTHOR RATE
Mitutoyo-SERIES 3, 4 – Long StrokeType, Large Diameter-Dial Indicators

Dial indicators with a large-diameter dial face for easy reading. Models with longer measuring ranges are also available. All types are supplied with limit markers and a bezel clamp as standard. Both the stem and the spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp and lifting lever (optional)*1 […]

AUTHOR RATE
Mitutoyo-SERIES 1 – Compact One Revolution Type for Error-free Reading-Dial Indicators

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed” . One revolution type Back plunger dial gages are also […]

AUTHOR RATE
Mitutoyo-SERIES 1 – Compact Type, Small Diameter-Dial Indicators

Compact dial indicators with bezel diameters of ø40mm for restricted-space applications in gaging jigs. SPECIFICATIONS Metric * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. Inch * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. […]

AUTHOR RATE
Mitutoyo-SERIES 1 – Compact Type, Small Diameter-Dial Indicators

Compact dial indicators with bezel diameters of ø31 or ø36mm for restricted-space applications in gaging jigs. DIMENSIONS Order No. A B C D E F G H I 1911T-10 15.5 42 31 12.9 19.2 15 11.5 30 5.9 1913T-10 15.5 39.5 31 12.9 19.2 15 9 30 5.9 1003T 18 40.3 36 13 15 9.5 […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Long Stroke Type-Dial Indicators

Long stroke dial indicators with a ø57mm outer frame. All the models are equipped with limit markers and a bezel clamp as standard. An O-ring is employed to ensure air-tightness between the outer frame and the crystal case to prevent water or oil penetration. Both the stem and the spindle are made of high-strength quench-hardened […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading, Lightweight Type-Dial Indicators

Excellent water- and drip-proof characteristics (IP43). Smooth movement thanks to the improved design of bush and stem. Application of a hard coating on the surface of the crystal makes the gage scratch- and oil-resistant. Lightweight type (70g). DIMENSIONS * When installing an optional back (refer to page F-55 for details) please separately prepare 4 fixing […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading, Waterproof Type-Dial Indicators

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed”. One revolution type Back plunger dial gages are also available. […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading-Dial Indicators

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed”. DIMENSIONS Note 1: Dimensions of the inch (ANSI/AGD Type) dial […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Waterproof Type, 0.01mm & 0.001mm Graduation-Dial Indicators

Waterproof type dial gages having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard. The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools. The stem and spindle are made of […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard Type, 0.001mm & 0.005mm Graduation-Dial Indicators

Standard 0.001mm and 0.005mm graduation dial indicators having a bezel with an outside diameter of ø57mm. All types come with limit markers and a bezel clamp. The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Secure adhesion […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard Type, 0.01mm Graduation-Dial Indicators

Standard 0.01mm graduation dial gages having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard. The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Secure adhesion […]

AUTHOR RATE
Mitutoyo-SERIES 543 – with Back-light LCD Screen-ABSOLUTE Digimatic Indicator ID-F

GO/±NG judgment function: If a judgment result shows an out of tolerance condition, the display backlighting changes from green to red. An analog bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable. With Mitutoyo’s ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not […]

AUTHOR RATE
Mitutoyo-SERIES 543 – High Accuracy and High Functionality Type-Digimatic Indicator ID-H

This new-generation digital indicator offers the excellent accuracy and functionality expected from the top class of indicator. Take advantage of its high accuracy backed up by 0.5μm/.00002” resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display. Functionality meets the needs of diverse […]

AUTHOR RATE
Mitutoyo-SERIES 575 – Slim and Economical Design-ABSOLUTE Digimatic Indicator ID-U

General purpose indicator with the measuring range of 25.4mm/ 1”. Cost-effective and user-friendly type which is equipped with the basic functions necessary. The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.  Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Signal Output Function Type-ABSOLUTE Digimatic Indicator ID-C

Enables a tolerance judgment to be output to external equipment for a measurement result against user-defined limits. Solid-state switching provides high reliability by avoiding metallic switch contacts. Output is enabled by directly connecting to external devices (sequencers, etc., for which a logical invert is available if required). The measurement and judgment results are displayed on the LCD. The […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Calculation Type-ABSOLUTE Digimatic Indicator ID-C

Calculation function operates on spindle displacement. Entering the appropriate formula factors for a fixture dedicated to the application enables direct measurement readout, thereby eliminating any need for the conversion tables previously needed for those applications where fixtures are typically used. Peak-Value Run-out/MAX/MIN Hold enables GO/±NG judgement for peak value. Simple operation of many functions with five buttons and […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Bore Gage Type-ABSOLUTE Digimatic Indicator ID-C

Dedicated to inside measurement with minimum-value Hold and tolerance judgement functions. Measurement data memory function (9 measurement results can be stored) Simple operation of many functions with five buttons and status icons. Wide LCD and new analog bar graph are now standard on all models. Sampling is performed fifty times per second for accurate detection of maximum and […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Peak-Value Hold Type-ABSOLUTE Digimatic Indicator ID-C

Run-out/MAX/MIN Hold function enables GO/±NG judgement for peak or difference values. Simple operation of many functions with five buttons and status icons. Wide LCD and new analog bar graph are now standard on all models. Sampling is performed fifty times per second for accurate detection of maximum and minimum values. SPECIFICATIONS Metric Order No.(w/lug, flat-back) Range Resolution Accuracy*1 Hysteresis*1 […]

AUTHOR RATE
Mitutoyo-SERIES 543 – with Dust/ Water Protection Conforming to IP66-ABSOLUTE Digimatic Indicator ID-N/B

Our unique ABS sensor restores the last origin position automatically when the indicator is turned on. The chance of overspeed errors has been eliminated thanks to the ABS sensor. Rated to IP66: can be used satisfactorily even in adverse environments where the indicator is subject to splashing by cutting fluid or coolant. Slim body design […]

AUTHOR RATE
Mitutoyo-SERIES 543 — Standard Type-ABLOLUTE Digimatic Indicator ID-CX

The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on. Note: Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. Thanks to Mitutoyo’s ABSOLUTE Linear Encoder, reliability has been increased due to elimination of over-speed errors. Tolerance-judging measurement is available by setting upper and lower […]

AUTHOR RATE
Mitutoyo-SERIES 543-ABSOLUTE Solar-Powered Digimatic Indicator ID-SS

Solar powered An environmentally friendly measuring instrument that does not require batteries, eliminating the hassle and cost of battery replacement. Can operate under minimum light conditions of 40 lux—lower than the level in a warehouse. Built-in recharger The large-capacity built-in reservoir capacitor allows you to use the indicator for long periods of time under light conditions below the […]

AUTHOR RATE

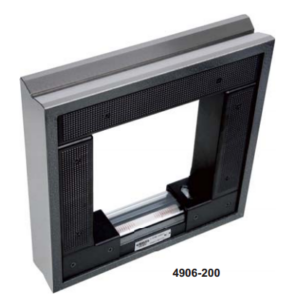

Mitutoyo-SERIES 960-Precision Levels

High-precision longitudinal and transverse vials make it possible to check or level surfaces. SPECIFICATIONS Order No. Sensitivity Dimensions (W x D x H) 960-603 0.02mm/m 200 x 44 x 38.2mm 960-703 0.02mm/m 200 x 44 x 200mm Technical Data Accuracy of graduations: ±0.7 DIV (960-603), ±0.3 DIV (960-703)

AUTHOR RATE
Mitutoyo-SERIES 187-Digital Universal Protractor

Data output function makes it easy to gather statistical data. Can be attached to height gages using a gage holder (950750, metric) Setting preset value. Removable blade. SPECIFICATIONS Order No. Blade length Remarks (standard accessory) 187-501 150mm Height gage holder (950750) 187-502 300mm Height gage holder (950750) 187-551 6” Height gage holder (950749) 187-552 12” Height gage […]

AUTHOR RATE
Mitutoyo-SERIES 188-Thread Pitch Gages

Thread pitch is stamped on each gage. Metric, Unified, and Whitworth screw pitch gages.   SPECIFICATIONS Metric Screw Pitch Gages Order No. Range Composition of leaves 188-130 0.35 – 6mm 22 leaves: 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm and 60° angle […]

AUTHOR RATE
Mitutoyo-SERIES 186-Radius Gages

Radius size is stamped on each gage leaf. Each leaf comprises an internal and an external radius gage of the same size. With locking clamp. SPECIFICATIONS Metric Order No. Range Composition of leaves Remarks 186-110 0.4 – 6mm 18 leaves: 0.4, 0.8, 1, 1.2, 1.5, 1.6mm, 1.75 – 3mm by 0.25mm, 3.5 – 6mm by 0.5mm […]

AUTHOR RATE
Mitutoyo-SERIES 184-Thickness Gages

Metric thickness gages are available with tapered leaves. Each leaf is marked with its Each leaf is detachable if SPECIFICATIONS Metric Order No. Range Composition of leaves Remarks 184-313S 0.05 – 1mm 28 leaves: 0.05 – 0.15mm by 0.01mm, 0.2 – 1mm by 0.05mm — 184-303S 28 leaves: 0.05 – 0.15mm by 0.01mm, 0.2 – […]

AUTHOR RATE
Mitutoyo-SERIES 182-Steel Rules

Clear graduations on satin-chrome finish. Stainless tempered. SPECIFICATIONS Metric Wide Rigid Rules Order No. Graduations Range Width 182-111   1mm, 0.5mm (on both faces) 150mm 19mm 182-131 300mm 25mm 182-151 450mm 30mm 182-171 600mm 30mm Metric Fully-Flexible Rules Order No. Graduations Range Width 182-211   1mm, 0.5mm (on both faces) 150mm 12mm 182-231 300mm 12mm […]

AUTHOR RATE
Mitutoyo-SERIES 516-Accessories for Rectangular Gauge Blocks over 100mm

Specially designed for standard size gauge blocks over 125mm which have two coupling holes on the body: coupling of two long gauge blocks and attachment of jaws is possible. These accessories can also be used for CERA blocks. SPECIFICATIONS Set Order No. Individual Item Order No. Item Description Quantity Supplied         516-605 […]

AUTHOR RATE
Mitutoyo-SERIES 547-ABSOLUTE Digimatic Depth Gage

Easy-to-read dial effectively prevents misreading. Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Order No. Range Graduation Stroke Accuracy*4 Measuring force Base Contact point*1 Extension rod*2 Indicator*3 W T flatness 547-211   0 – 200mm 0.01mm   12.7mm ±20μm   1.5N […]

AUTHOR RATE
Mitutoyo-SERIES 7-Dial Depth Gage

Optimal for hole, narrow groove and step measurement. Metric Order No. Range Graduation Accuracy Stroke Measuring force   Contact point*1 Extension rod*2 Indicator*3 (dial indicator) W T Flatness Mounting position of a dial indicator 7210 0 – 10mm               0.01mm   ±15μm   10mm   1.4N 40mm     16mm […]

AUTHOR RATE

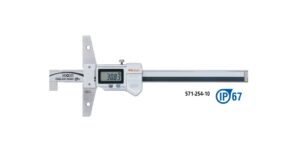

Mitutoyo-SERIES 527, 571 – Hook End Type-Depth Gage

The end of the main beam is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurement. Coolant proof models achieve IP67 protection level. Enables stable depth measurement with a resolution of 0.01mm. ABSOLUTE Digital Caliper (Refer to page D-8 for ABSOLUTE function.) Digital […]

AUTHOR RATE
Mitutoyo-SERIES 527-Vernier Depth Gage

Standard gage for depth measurement. Optional longer extension bases are available. (Except for models with measuring ranges of 600 and 1000mm) SPECIFICATIONS Metric Order No. Range Vernier reading Accuracy Base (W x T) Remarks 527-201 0 – 150mm     0.05mm ±0.05mm   100 x 6.5mm — 527-202 0 – 200mm — 527-203 0 – […]

AUTHOR RATE

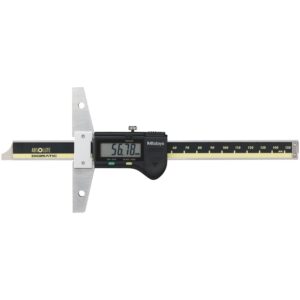

Mitutoyo-SERIES 571-ABSOLUTE Digimatic Depth Gage

Coolant proof models achieve IP67 protection level. Enables stable depth measurement with a  resolution of 0.01mm. ABSOLUTE Digital Caliper (Refer to page D-8 for ABSOLUTE function.) Sliding operation of models with the measuring ranges 150mm (6″), 200mm (8″) and 300mm (12″) is smooth and comfortable. Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory) Optional […]

AUTHOR RATE
Mitutoyo-SERIES 128-Depth Micrometer

Measuring rod diameter: ø4mm Measuring rod lock is attached. *Measuring rod is attached on the rear side of the micrometer. Carbide-tipped measuring rod model is available. Ratchet stop provides constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Base 128-101   0 – 25mm   0.01mm 63.5 x 16mm 128-103*1 128-102 101.6 x 16mm 128-104*1 *1  with […]

AUTHOR RATE
Mitutoyo-SERIES 329, 129 – Interchangeable Rod Type-Depth Micrometer

This type uses interchangeable rods to enable wide-range measurement. Order Nos. 329-250-30, 329-251-30, 329-350-30, and 329-351-30 allow integration into statistical process control and measurement systems. Measuring rod diameter: ø4mm Measuring rod lock. Ratchet stop provides constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Base No. of rods Digimatic (LCD) 329-250-30 0 – 150mm 0.001mm 101.6 x 16mm 6 […]

AUTHOR RATE
Mitutoyo-SERIES 518 — High Precision ABSOLUTE Digital Height Gage-QM-Height

Best-in-class accuracy ±(2.4+2.1L/600)μm Newly developed high accuracy and high resolution ABSOLUTE linear encoder for position detection. Once origin is set, origin setting is not required each time you turn the power ON (except in the case of a large environmental temperature change). GO/±NG judgment is performed by setting upper and lower tolerances. If a judgment […]

AUTHOR RATE
Mitutoyo-SERIES 518 – High Performance 2D Measurement System-Linear Height

Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.4μm resolution/repeatability. High-accuracy Height Gage incorporating a wide range of measurement functions. To achieve best-in-class accuracy, a highaccuracy reflective-type linear encoder and high-accuracy guide are used. Measurement can be implemented by icon based commands that also support easy one key operation. Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed. The TFT LCD […]

AUTHOR RATE
Mitutoyo-SERIES 192 – With digital counter-Dial Height Gage

Easy and error-free reading with both up and down digital counters as well as a dial. Can be zero-set at any arbitrary position. Provided with a large adjustment wheel for easy height adjustment. Clamp can be operated easily and securely. Fits comfortably in the hand and moves easily on the surface plate. Carbide tipped scriber (No. 07GZA000) is […]

AUTHOR RATE
Mitutoyo-SERIES 514, 506 — Standard Height Gage with Adjustable Main Scale-Vernier Height Gage

Fits comfortably in the hand and moves easily on the surface The main scale slides and clamps within the column for quick and convenient zero-setting. Large locking knobs are used both for the slider and fine adjustment clamps to make clamping easy and secure. Operability of slider has been Improved. Large main- scale engraving for […]

AUTHOR RATE
Mitutoyo-SERIES 570 – with ABSOLUTE Linear Encoder-ABSOLUTE Digimatic Height Gage

ABS and INC measurement modes allow efficient operation. Rigid structure makes instrument suitable for use in severe work environments. The +/- measurement function widens the application range. Allows integration into statistical process control and measurement systems. Refer to page A-3. Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory) Battery life is 5,000 […]

AUTHOR RATE
Mitutoyo-SERIES 570 – with ABSOLUTE Linear Encoder-ABSOLUTE Digimatic Height Gage

Allows smooth elevation by the slider adjustment wheel, which is the same as the well-established double-column structure height gage. Large slider-clamp lever ensures positive and accurate clamping action. High durability and high accuracy are ensured by an improved column design (35x15mm). Character height of the LCD display is 10mm. Ergonomic and stylish base fits comfortably  […]

AUTHOR RATE
Mitutoyo-SERIES 192 – Standard Type with SPC Data Output-Digimatic Height Gage

Easy-to-use standard type. Double-column structure ensures high measuring accuracy. Ergonomic base fits comfortably in the hand. Character height of the LCD display has been increased (10mm to 11mm) and a highcontrast LCD display unit adopted, so that readability is improved. Allows integration into statistical process control and measurement systems. Refer to page A-3. Battery: SR44 (1 […]

AUTHOR RATE
Mitutoyo-SERIES 573-Absolute Snap Caliper

ABSOLUTE electromagnetic induction linear encoder system is introduced. Snap mechanism allows continuous and easy measurement without moving the slider by using the lever. The ABSOLUTE Digimatic snap caliper features a spring-loaded mechanism to allow quick and efficient GO/NO-GO inspection for mass production parts. Allows step measurement Displacement of snap part is 2 mm. Measuring force: 7N to […]

AUTHOR RATE
Mitutoyo-SERIES 573-Absolute Low Force Caliper

ABSOLUTE electromagnetic induction linear encoder system is introduced. Due to the low measuring force, these calipers are ideal for measuring elastic workpieces such as plastic parts and rubber parts that standard calipers cannot measure accurately. Allows fine feeding easily by using thumb roller. Displacement of main scale jaw is 0.3mm. Measuring force: 0.49N to 0.98N […]

AUTHOR RATE
Mitutoyo-SERIES 536-Hook Type Vernier Caliper

Can measure width of grooves and lands inside bores and recesses. SPECIFICATIONS Metric Order No. Range* Accuracy Remarks 536-171 0 – 200mm (10.1 – 200mm) ±0.03mm — 536-172 0 – 200mm (2.1 – 200mm) ±0.03mm with fine adjustment * ( ): Dimension in inside measurement DIMENSIONS Range D F L N P S t W […]

AUTHOR RATE
Mitutoyo-Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Neck Caliper-Tube Thickness Caliper

The beam-mounted jaw is a round bar that facilitates measurements of tube wall thickness. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Neck Caliper

Can measure wall thickness inside bores and recesses. Digital models are an IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for modwith measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Digital model […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 — Knife-edge/Inside Groove/Point Jaw Type-ABSOLUTE Inside Caliper

Specially designed for inside measurements in hard-to-reach places. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Digital model […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Blade Type Caliper

The thin blade-type jaws fit into very small grooves and make previously difficult outside measurements far easier to obtain. The outside measuring faces are carbide tipped. Allows step measurement. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Point Caliper

• Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain. • Allows step measurement. • Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) • SPC output models allow integration into statistical process […]

AUTHOR RATE
Mitutoyo-SERIES 573 – Center-to-Center & Edge-to-Center Types-ABSOLUTE Back-Jaw Centerline Caliper

Specially designed to measure hole Centerto-Center and Edge-to-Center distances. Provided with jaws on the back of the slider, measurements can be read easily from above. A digital model is IP67 Absolute type. (Refer to page D-8 for Absolute function.) Direct reading of pitch measurements is available due to the offset value setting function. Allows integration into […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 — ABSOLUTE Digimatic and vernier type-Offset Centerline Caliper

Specially designed for hole Center-to-Center measurements on the same, or offset, planes. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Direct reading of pitch measurements is available due to the offset-value setting function. Allows integration into statistical process control […]

AUTHOR RATE
Mitutoyo-SERIES 534-Long Jaw Vernier Caliper

Long jaws for measuring hard-to-reach workpiece features. Inside and outside measurements can be read directly from the upper and lower vernier scales. SPECIFICATIONS Metric with inside measurement vernier scale Order No. Range* Accuracy Graduation Remarks 534-113 0 (10.1) – 300mm ±0.04mm   0.02mm   with fine adjustment 534-114 0 (20.1) – 500mm ±0.06mm 534-115 0 (20.1) – […]

AUTHOR RATE
Mitutoyo-SERIES 573, 536 – ABSOLUTE Digimatic and vernier type-Offset Caliper

The beam-mounted jaw can be adjusted to facilitate measurement of stepped sections and hard-to-get-at workpiece features. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to […]

AUTHOR RATE
Mitutoyo-SERIES 534-Long Jaw Vernier Caliper

Long jaws for measuring hard-to-reach workpiece features. Inside and outside measurements can be read directly from the upper and lower vernier scales. SPECIFICATIONS Metric with inside measurement vernier scale Order No. Range* Accuracy Graduation Remarks 534-109 0 (10.1) – 300mm ±0.07mm 0.05mm without fine adjustment 534-110 0 (20.1) – 500mm ±0.13mm * ( ): Minimum dimension […]

AUTHOR RATE
Mitutoyo-SERIES 160 – with Nib Style Jaws and Fine Adjustment-Vernier Caliper

Inside and outside measurements can be read directly from the upper and lower vernier scales. The jaws have radiused measuring faces for accurate inside diameter (ID) measurement. With fine adjustment (except for 160-130/131/132/133/134). SPECIFICATIONS Metric with inside measurement vernier scale Order No. Range* Accuracy Graduations Remarks 160-130 0 (20.1) – 450mm ±0.10mm     0.05mm   […]

AUTHOR RATE
Mitutoyo-SERIES 552 – with Interchangeable Jaws-ABSOLUTE Coolant Proof Carbon Fiber Caliper

IP66 Absolute Digital Caliper (Refer to page D-8 for a description of Absolute measurement.) The range of applications can be expanded by using interchangeable jaws (optional). Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. Provided with preset function for setting a desired starting point, which allows […]

AUTHOR RATE
Mitutoyo-SERIES 552 – with Long Jaws-ABSOLUTE Coolant Proof Carbon Fiber Caliper

IP66 Absolute Digital Caliper (Refer to page D-8 for a description of Absolute measurement.) Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics) in the beam and jaws. Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Order No. Range* Accuracy […]

AUTHOR RATE
Mitutoyo-SERIES 552 – with Standard jaws-ABSOLUTE Coolant Proof Carbon Fiber Caliper

IP66 Absolute Digital Caliper (Refer to page D-8 for Absolute function.) Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics) in the beam and jaws. Allows integration into statistical process control and measurement systems for models with measurement data output connector.Refer to page A-3. SPECIFICATIONS Metric Order No. Range* Accuracy 552-302-10 0 – 450mm […]

AUTHOR RATE
Mitutoyo-Series 505-Dial Caliper

Newly designed dial movement for ultra smooth sliding and high shock protection. Easy-to-read yellow dial. Large finger-rest aids ease-of-use. Jaw tips are relieved for easy measurement of thin parts. Allows step measurement. SPECIFICATIONS Metric Order No. Range Accuracy Graduation Remarks 505-730   0 – 150mm   ±0.03mm   0.02mm, 2mm/rev   505-734 Carbide-tipped jaws for outside […]

AUTHOR RATE
Mitutoyo-551 Series – with Nib Style and Standard Jaws-ABSOLUTE Digimatic Caliper

Offers a resolution of 0.01mm with corresponding accuracy. Incorporates an Absolute measurement system. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector.Refer to page A-3. ID measurement value: displayed value […]

AUTHOR RATE
Mitutoyo-550 Series – with Nib Style Jaws-ABSOLUTE Digimatic Caliper

Offers a resolution of 0.01mm with corresponding accuracy. Incorporates an Absolute measurement system. No need to reset the origin after switching (Refer to page D-8 for a description of Absolute measurement.) Code 550-301-10, 550-331-10, 550-311-10 and 550-341-10: IP67 (These models are not a waterproof type. Therefore a rustproofing shall be applied after use.) Allows integration […]

AUTHOR RATE
Mitutoyo-532 Series – with fine adjustment-Vernier Caliper

Fine-adjustment aids slider positioning. Allows step measurement. SPECIFICATIONS Metric Order No. Range Depth bar Remarks 532-101 0 – 130mm   Blade   with fine adjustment 532-102 0 – 180mm 532-103 0 – 280mm Metric/Inch with metric/inch double scale Order No. Range Depth bar Inch graduation Remarks 532-119 0 – 130mm   Blade   .001″   […]

AUTHOR RATE
Mitutoyo-530 Series – Standard model-Vernier Caliper

Plain and basic design. Stepped graduation face prevents dust ingress between the main scale and slider. The small vernier face angle (14°) provides easy reading. Can measure outside and inside dimensions, depth, and steps. Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc. Decimal and fractional graduated scales (metric/inch and inch models only). […]

AUTHOR RATE
Mitutoyo-SERIES 500 – No battery or origin reset needed-ABSOLUTE Solar Caliper

Mitutoyo’s Absolute Solar Digimatic Caliper retains its origin point indefinitely. At 60 Lux and above the ABSOLUTE solar caliper is ready to start measurement. No more repeated zero setting caused by a shortage of light. An ABSOLUTE scale is incorporated so that zero setting is not required at each power ON. No danger of overspeed errors. Slider operation […]

AUTHOR RATE
Mitutoyo-500 Series – with Exclusive ABSOLUTE Encoder Technology-Long ABSOLUTE Digimatic Caliper

Long Digital caliper incorporating an ABSOLUTE scale and available with a measuring range from 450mm to 1000mm. Allows step measurement Allows integration into statistical process  control and measurement systems for models with measurement data output connector. Refer to page A-3. For the details of the Absolute scale and its function, refer to page D-8. SPECIFICATIONS Metric Order No. […]

AUTHOR RATE
Mitutoyo-500 Series – with exclusive ABSOLUTE Encoder Technology-ABSOLUTE Digimatic Caliper

ABSOLUTE electromagnetic induction linear encoder system is introduced (except for 0 – 300mm/0 – 12″ models). New ergonomic design with finger rest. The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true […]

AUTHOR RATE
Mitutoyo-SERIES 500 – with Dust/Water Protection Conforming to IP67 Level-ABSOLUTE Coolant Proof Caliper

ABS Coolant Proof Caliper with Dust/Water Protection conforming to IP67 Level. Can be used in workshop conditions exposed to coolant, water, dust or oil. 100% air-leak test ensures every caliper conforms to IP67. Font height is 9mm (increased by 22%) and visibility is improved (except for 0 – 300mm/0 – 12″ models). Battery cap does not require a screw […]

AUTHOR RATE
Mitutoyo-SERIES 500 – No battery or origin reset needed for IP67 digital caliper-Super Caliper

Top-of-the-line digital caliper. Solar type caliper with no battery and IP67 protection assures waterproof reliability. With no annoying origin restoration necessary, a measurement can be started any time and there is no restriction on operating speed. The impact resistance of the display unit has been increased for improved usability in workshop conditions. Waterproof function makes this Super Caliper suitable for […]

AUTHOR RATE
Mitutoyo-SERIES 511 – ABSOLUTE Digimatic Bore Gages-Bore Gages

These ABSOLUTE Digimatic bore gages are exclusively designed for inside diameter measurement. Up to four extension rods (250mm or 500mm) can be used for measuring at the bottom of a hole 2m deep. ABS (ABSOLUTE) type bore gages are not subject to overspeed error. The display and grip can be rotated up to 320 degrees and […]

AUTHOR RATE
Mitutoyo-SERIES 511 – for Blind Holes-Bore Gages

Capable of ID (inside diameter) measurement close to the bottom of a hole. Carbide contact point ensuring high durability and wear resistance. Grip is large and hollow to reduce effect of body heat on high-accuracy measurements. Alternative indicators may be used in place of those recommended*. * Some indicators and protection covers cannot be used with these […]

AUTHOR RATE
Mitutoyo-SERIES 511 – with Micrometer Head-Bore Gages

Micrometer head is attached to the anvil for accurate dimensional setting. Longer plunger stroke with no affect on accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. This model reduces the influence of heat from  the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby […]

AUTHOR RATE
Mitutoyo-SERIES 511 – Short Leg Type-Bore Gages

Compact and lightweight due to the short length below the grip. Longer plunger stroke with no affect on accuracy. Carbide contact point ensuring high durability and wear resistance. This model reduces the influence of heat from the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby retaining high-accuracy measurement. Alternative indicators […]

AUTHOR RATE
Mitutoyo-SERIES 511-Bore Gages

Longer plunger stroke with no affect on accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. This model reduces the  influence  of heat  from the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby retaining high-accuracy measurement. Alternative indicators may be used in place […]

AUTHOR RATE
Mitutoyo-SERIES 511 – for Small Holes-Bore Gages

Alternative indicators may be used in place of those recommended*. Some indicators and protection covers cannot be used with these bore gages. Contact a Mitutoyo sales office if considering the use of dial or digimatic  indicators other than the recommended models. Setting Rings are available to aid in accurately setting a gage before making a measurement. (For details, […]

AUTHOR RATE
Mitutoyo-SERIES 141 – Interchangeable Rod Type-Inside Micrometers

Wide range of inside diameter measurements possible by combining one or more interchangeable rods. Each interchangeable rod is marked with its measuring range. For models supplied with more than one interchangeable rod, the full measuring range is achieved by combining spacing collars with the rods. Both micrometer head and rods are satinchrome finished throughout. The sleeve is rotated […]

AUTHOR RATE
Mitutoyo-SERIES 345, 145 – Caliper Type-Inside Micrometers

Carbide measuring faces. Equipped with a constant measuring-force device. Setting ring (nominal size below 300mm), CERA Inside Micro Checker (more than 50mm), and Gauge Block accessory set are provided as a reference gage for datum adjustment (refer to page C-47, C-26, and E-17 – E20 for details). SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Mass Digimatic (LCD) […]

AUTHOR RATE
Mitutoyo-SERIES 139, 339, 140 – Extension Pipe Type-Tubular Inside Micrometers

Wide range of inside diameter measurements possible by combining extension pipes and anvils with the micrometer head. Carbide measuring faces are available. The sleeve is rotated to adjust the index line position when setting to a length An inside length standard is required for accurately setting the micrometer. Order No. 339-101/301/302/102/303/304 features: IP65 (water-proof) protection […]

AUTHOR RATE
Mitutoyo-SERIES 137, 337 – Extension Rod Type-Tubular Inside Micrometers

Wide range of inside measurements possible by combining extension rods and anvils with the micrometer head. Two types of measuring faces are available; with or without carbide tip. (No. 337- 101/301/302/102/303/304 only available with carbide ) The sleeve is rotated to adjust the index line position when setting to a length standard. An inside length […]

AUTHOR RATE
Mitutoyo-SERIES 133 – Single Rod Type-Tubular Inside Micrometers

Standard single rod type inside Carbide measuring The sleeve is rotated to adjust the index line position when setting to a length Setting ring (nominal size below 300mm), CERA Inside Micro Checker, and Gauge Block accessory set are provided as a reference gage for datum adjustment (refer to page C-47, C-26, and E-17 – E20 […]

AUTHOR RATE
Mitutoyo-SERIES 568 – ABSOLUTE Digimatic Snap-Open Bore Gages-ABSOLUTE Borematic

A snap-type digital display, inside-diameter measuring instrument allows quick and easy measurement with lever operation. Titanium-coated measuring pins provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole. Three-Point contact measuring head enables highly repeatable measurement data to be obtained. The ABSOLUTE linear encoder eliminates overspeed errors. GO/NO-GO […]

AUTHOR RATE
Mitutoyo-SERIES 368 – Three-point Internal Micrometers-Holtest (Type II)

Hardened tool-steel anvils (instead of titanium-coated carbide) for a more economically priced tool. Same accuracy as the titanium-coated Holtest models. For details of setting rings, refer to page C-47 Constant-force device allows repeatable measurement. Can measure deep holes using an Extension Rod (optional). Range (mm) L3 (mm) L5 (mm) 12 – 20 2.6 or below […]

AUTHOR RATE
Mitutoyo-SERIES 368 – Three-point/Two-point Internal Micrometers-Holtest

Titanium-coated measuring pins on the three- point type (over 6mm range models) provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind Three-point bore micrometer with measuring range 6mm or longer allows stable measurement through automatic Can measure deep holes using an Extension rod (optional) which […]

AUTHOR RATE
Mitutoyo-SERIES 468 – Three-point Internal Micrometers-Digimatic Holtest

v Three-point internal micrometer with large LCD readout. (Character height 7.4mm) Titanium-coated measuring pins provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind One SR44 battery is required and battery life is 1.2 years under normal use. ABSolute and INCremental measurement modes allow highly efficient […]

AUTHOR RATE
Mitutoyo-SERIES 148 – Small Standard Type-Micrometer Heads

Measuring range of 13mm. SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation features 148-104           0 – 13mm           ±2µm           9.5mm Plain   Flat       Standard 148-103 W/ clamp nut 148-121 Plain* 148-120 W/ clamp nut* […]

AUTHOR RATE
Mitutoyo-SERIES 148 — Short Thimble with Choice of Diameter-Micrometer Heads

Short body design maintains measuring range for limited space applications. Available in three thimble diameters to provide ease-of-reading options. DIMENSIONS Technical Data Graduation: 0.01mm or .001” Spindle pitch: 0.5mm or .025”

AUTHOR RATE
Mitutoyo-SERIES 148 — Small/Ultra-small Type-Micrometer Heads

Miniature micrometer heads for ease of incorporating into machines.   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation 148-215 0 – 5mm ±5µm 3.5mm Plain W/ clamp nut Spherical (SR1.5) Standard 148-216 148-201 0 – 6.5mm 6mm Plain W/ clamp nut Flat 148-203 148-205 Plain W/ clamp nut Spherical (SR3) 148-207 […]

AUTHOR RATE
Mitutoyo-Series 164, 350-Digimatic Micrometer Heads

Equipped with digital display and output. Series 350 IP65 models: the Digimatic output port enables inclusion in a statistical process control or networked measurement system. (Refer to page A-3 for details). SPECIFICATIONS Metric Order No. Range Resolution Accuracy** Stem Stem dia Spindle end Graduation features 164-163 0 – 50mm 0.001mm ±3µm ±2µm Plain 18mm Flat (carbide […]

AUTHOR RATE
Mitutoyo-SERIES 156-Micrometer Stands

Designed to allow benchtop use of hand micrometers or other gages which have frames suitable for gripping by the clamp. SPECIFICATIONS Order No. Micrometer ranges Remarks 156-101-10 Up to 100mm (4″)* Adjustable angle type 156-105-10 0-25mm (0-1″), 25-50mm (1″-2″) Fixed angle type 156-102 125-300mm (5″-12″) Vertical type 156-103 300-1000mm (12″-40″) Vertical type * Items that cannot […]

AUTHOR RATE
Mitutoyo-SERIES 157-Optical Parallels

Designed to inspect parallelism and flatness of measuring faces of micrometers. For details, refer to “Quick Guide to Precision Measuring Instruments”. Each set consists of 4 sizes to aid in testing parallelism at various angular positions of the micrometer spindle.   SPECIFICATIONS Metric Order No. Range of micrometer to be checked Sizes of parallels included in set Diameter […]

AUTHOR RATE
Mitutoyo-SERIES 167-Setting Standards for Screw Thread Micrometers

Used for accurately setting screw thread micrometers at the start or end of the measuring range. Metric Order No. Length Accuracy Metric (unified) 8 = 60° 167-261 25mm ±4µm 167-262 50mm ±5µm 167-263 75mm ±6µm 167-264 100mm ±7µm 167-265 125mm ±8µm 167-266 150mm ±9µm 167-267 175mm ±10µm 167-268 200mm ±11µm 167-269 225mm ±12µm 167-270 250mm […]

AUTHOR RATE
Mitutoyo-SERIES 167-Setting Standards for Outside Micrometers

Used for adjusting the reference point of the outside micrometer. SPECIFICATIONS and DIMENSIONS Metric Order No. Length  (L) Tolerance   Diameter  (D) 167-101 25mm ±1.5µm 18   6.35mm 167-102 50mm ±2.0µm 40 167-103 75mm ±2.5µm Inch Order No. Length  (L) Tolerance   Diameter  (D) 167-141 1″ ±.00005″ 18   .25″ 167-142 2″ ±.0001″ 40 167-143 […]

AUTHOR RATE
Mitutoyo-SERIES 155-Telescoping Gage Set

A spring-loaded plunger expands within a bore (or groove) and is locked in place, allowing measurement of diameter (or width) with an outside micrometer after extraction. SPECIFICATIONS Metric Order No. Range 6-gage Set 155-905 8 – 150mm Gages included 155-127 8 – 12.7mm 155-128 12.7 – 19mm 155-129 19 – 32mm 155-130 32 – 54mm […]

AUTHOR RATE
Mitutoyo-SERIES 154-Small Hole Gage Set

Extra long for gaging deep and shallow holes, slots, and similar workpiece features. Two sprung leaves are fully expanded inside a feature so that its size can be measured with an outside micrometer after extraction. SPECIFICATIONS Metric Order No. Range 4-gage Set 154-902   3 – 13mm Gages included   154-101 3 – 5mm 154-102 5 […]

AUTHOR RATE
Mitutoyo-SERIES 700-Quick-Mini

Lightweight and palm-sized. Highly suitable for quick dimensional inspection of small, thin and delicate objects. Functions: origin setting and zero-setting. Application examples Measurement of small objects: pearls, jewels, shims for engine tappets  and screws. Measurement of thin objects: printing paper, polyethylene bags,  sheet materials, foods including noodles, lenses for glasses, media substrates, foils, thin plates and medical products including filter […]

AUTHOR RATE
Mitutoyo-SERIES 146-Groove Micrometers

Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Two-directional ratchet stop. For ID and OD (except for 0 – 25mm) measurement, a master gage is required for adjusting the reference point. SPECIFICATIONS Metric Order No. Range Outside Range Inside Graduation Accuracy Flange Rotating spindle 146-121 0 – 25mm […]

AUTHOR RATE
Mitutoyo-SERIES 523-Snap Meters

Suited to the measurement of massproduced parts. Various types of indicator can be selected according to the measurement application. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Anvil movement Measuring force* Mass 523-141 0 – 25mm   2mm   5 – 10N 710g 523-142 25 – 50mm 810g 523-143 50 – 75mm 920g 523-144 75 – […]

AUTHOR RATE
Mitutoyo-SERIES 523-Dial Snap Meters

Suited to the measurement of massproduced parts. Designed for measurement using a stand: realizes stable measurement. Greatly improved accuracy: indication error and graduation of 1μm. Water-proof to protection level IP54. Hard-coated crystal: enhanced oil and scratch resistance. Indicator scale is large and easy-to-read. Easily settable adjustable limit markers for GO/±NG testing. Equipped with an elevating workpiece […]

AUTHOR RATE
Mitutoyo-SERIES 510-Indicating Micrometers

Suited to the measurement of low-volume manufactured parts. Easy to use when operating one-handed due to retractable anvil. In the 25mm measuring range, the model lineup offers a choice of left or right positioning of the anvil-retraction button. Greatly improved accuracy: indication error and graduation of 1μm. Water-proof to protection level IP54. Hard-coated crystal: enhanced oil and […]

AUTHOR RATE
Mitutoyo-SERIES 113-Limit Micrometers

Dual-spindle design enables use as a GO/±NG gage by setting upper and lower limits. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Graduation Accuracy Flatness Parallelism 113-102 0 – 25mm 0.01mm ±3µm 0.6µm 3µm 113-103 25 – 50mm Technical Data Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models) Spanner (200877), 1 […]

AUTHOR RATE
Mitutoyo-Series 317, 117 — Interchangeable Anvil Type-”Uni-Mike”

Measures tubing thickness, shoulderedge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil). IP65 water/dust protection (series 317). Equipped with Ratchet Stop for constant  measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 317-251-30 0 – 25mm 0.001mm ±4µm 317-252-30 25 – 50mm * Excluding quantizing error Inch/Metric Order No. […]

AUTHOR RATE
Mitutoyo-Series 342,112,142-Crimp Height Micrometers

Measures the height of crimp contacts. Equipped with Ratchet Stop for constant measuring force. IP65 water/dust protection (digital model). Model 342-451 is the Quickmike type, which provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 342-271-30 0 […]

AUTHOR RATE
Mitutoyo-Series 147-Wire Micrometers

Designed for measuring wire thickness. Measurable wire dia.: 10mm or less Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Accuracy 147-401 0 – 10mm 0.01mm ±3µm Inch Order No. Range Graduation Accuracy 147-402 0 – .4″ .0001″ ±.00015″ DIMENSIONS Technical Data Flatness: 0.6μm/.000024” Parallelism: 1.3μm/.00005” Standard […]

AUTHOR RATE
Mitutoyo-SERIES 147-Hub Micrometers

Measures hub thickness and shoulders inside a bore. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Accuracy 147-301 0 – 25mm   0.01mm   ±2µm 147-302 25 – 50mm 147-303 50 – 75mm 147-304 75 – 100mm ±3µm Inch Order No. Range Graduation Accuracy 147-351 0 – […]

AUTHOR RATE
Mitutoyo-SERIES 147-Can Seam Micrometers

 Measures the width, height, and depth of can seams. SPECIFICATIONS Metric Order No. Range Graduation Accuracy Remarks 147-103   0 – 13mm   0.01mm   ±3µm for steel cans 147-105 for aluminum cans 147-202 for spray cans Inch Order No. Range Graduation Accuracy Remarks 147-104   0 – .5″   .001″   ±.00015″ for steel […]

AUTHOR RATE
Mitutoyo-SERIES 422, 122 – Non-Rotating Spindle Type-Blade Micrometers

The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features. Carbide-tipped measuring faces are also available Non-rotating spindle type. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remark Digimatic  (LCD) 422-230-30 0 – 25mm       0.001mm   ±3µm   […]

AUTHOR RATE
Mitutoyo-SERIES 314, 114-3 Flutes and 5 Flutes-V-Anvil Micrometers

Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes. Measures pitch diameter: refer to “Quick Guide to Precision Measuring Instruments” on page B-73. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric For 3-flute cutting tools Order No. Range Resolution Accuracy* […]

AUTHOR RATE
Mitutoyo-SERIES 342, 142, 112-Point Micrometers

Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features. The measuring points (carbide tipped) have approximately 0.3mm radius. series 342: IP65 Digimatic micrometers Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Point Digimatic (LCD) (With carbide tip) 342-251-30 0 […]

AUTHOR RATE
Mitutoyo-SERIES 331, 111, 131-Spline Micrometers

The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways. IP65 water/dust protection (series 331). Measuring faces: Carbide. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remarks Digimatic  (LCD) 331-251-30 0 – 25mm       0.001mm   ±2µm   Type A 331-252-30 25 […]

AUTHOR RATE
Mitutoyo-SERIES 395, 115, 295 — Spherical and Cylindrical Anvil Type-Tube Micrometers

Spindle face: Carbide series 395: IP65 spherical and cylindrical anvil type digital micrometers Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remarks Digimatic  (LCD) 395-261-30   0 – 25mm   0.001mm   ±3µm Type A 395-262-30 Type B 395-263-30 Type C 395-264-30 Type D * Excluding quantizing error […]

AUTHOR RATE
Mitutoyo-SERIES 395, 115, 295 — Spherical Anvil and Spindle Type-Tube Micrometers

Measuring faces: Carbide (115-201: only the spindle is carbide tipped.) Series 395: IP65 spherical anvil and spindle type digital micrometer. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* 0D Digimatic  (LCD) 395-271-30 0 – 25mm   0.001mm   ±2µm 015 395-272-30 25 – 50mm 395-273-30 50 – 75mm 019 […]

AUTHOR RATE
Mitutoyo-SERIES 395, 115, 295-Tube Micrometers

Measuring faces: Carbide (115-101: only the spindle is carbide tipped.) series 395: IP65 digital spherical-flat anvil  type micrometer. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* 0D Digimatic  (LCD) 395-251-30 0 – 25mm   0.001mm   ±2µm 015 395-252-30 25 – 50mm 395-253-30 50 – 75mm 019 395-254-30 75 […]

AUTHOR RATE
Mitutoyo-SERIES 119-Sheet Metal Micrometer

Large diameter dial model enables easy and quick measurement of sheet metal thickness. Adjustable anvil. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Order No. Range Graduation Accuracy Throat depth 119-202 0 – 25mm 0.01mm ±4µm 50mm DIMENSIONS Technical Data Standard accessories: Spanner (200168), 1 pc

AUTHOR RATE
Mitutoyo-SERIES 389, 118-Sheet Metal Micrometers

Measures thickness of sheet metal. IP65 water/dust protection (series 389). Measuring faces: Carbide Profile of measuring faces: Flat-Flat, Spherical-Flat and Spherical-Spherical. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Throat depth Measuring surfaces Digimatic  (LCD) 389-251-30   0 – 25mm       0.001mm   ±4µm   150mm […]

AUTHOR RATE
Mitutoyo-SERIES 369, 227, 169 — Non-Rotating Spindle Type-Disk Micrometers

Measures “root tangent length” of spur gears and helical gears. Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”. Non-rotating spindle type. Measurable range of gear pitch: 0.5 to 6 module (series 227: 0.4 to 3 module). Equipped with Ratchet Stop for constant measuring force. Supplied with a setting standard […]

AUTHOR RATE
Mitutoyo-SERIES 324, 124 — Interchangeable Ball Anvil / Spindle Tip Type-Gear Tooth Micrometers

Measures over-pin diameter of gears using precision steel (or carbide) ball anvils / spindle tips. Series 324: IP65 Digimatic gear tooth micrometers. Determination of the over-pin diameter: refer to “Quick Guide to Precision Measuring Instruments”. Interchangeable ball anvils / spindle tips for various gear modules (0.5-5.25) are optional. Equipped with Ratchet Stop for constant measuring […]

AUTHOR RATE
Mitutoyo-SERIES 323, 223, 123-Disk Micrometers

Measures “root tangent length” of spur gears and helical gears. Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”. Equipped with Ratchet Stop for constant measuring force. Supplied with a setting standard (except for 0-25mm/0-1” measuring range).   SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Anvil dia. Measurable module Digimatic […]

AUTHOR RATE
Mitutoyo-SERIES 169 – Non-Rotating Spindle Type-Paper Thickness Micrometers

• For paper thickness measurement. • Non-rotating spindle. • Equipped with Ratchet Stop for constant measuring force. (8.02±0.8N) SPECIFICATIONS Order No. Range Graduation Accuracy Flatness Parallelism 169-101 0 – 25mm 0.01mm ±4µm 1µm 3µm   Order No. Range Graduation Accuracy Flatness Parallelism 169-103 0 – 1″ .001″ ±.0002″ .00004″ .00015″ DIMENSIONS Anvil dimensions Technical Data Standard […]

AUTHOR RATE
Mitutoyo-SERIES 313-3-Wire Units

• Enables measurement of the pitch diameter of screw threads with a standard micrometer. • Determination of the pitch diameter: refer to “Quick Guide to Precision Measuring Instruments”. SPECIFICATIONS 3-Wire Units set Order No. Set Wire dia. (mm) Support spindle dia. (mm) 313-101 18 0.170 – 3.200 06.35 Order No. (One pair) (Support spindle dia.) 06.35mm […]

AUTHOR RATE
Mitutoyo-SERIES 116 – Interchangeable Anvil Type-Universal Micrometer

Non-rotating spindle type which accepts seven forms of optional interchangeable anvil / spindle tip (flat, spline, spherical, point, knife-edge, disk, and blade) for a wide range of applications. Equipped with Ratchet Stop for constant measuring force. Optional anvils / spindle tips for screw thread measurement (matching V and cone) are also available. SPECIFICATIONS Metric Order No. Range […]

AUTHOR RATE
Mitutoyo-SERIES 326, 126 – Interchangeable Anvil / Spindle Tip Type-Screw Thread Micrometers

Anvils and spindle tips are interchangeable in matching pairs to enable measurement of Metric/Unified or Whitworth threads. Direct reading of screw pitch diameter (no need for calculation) Equipped with Ratchet Stop for constant measuring force. Interchangeable anvils / spindle tips are optional. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 326-251-30 0 – 25mm   […]

AUTHOR RATE
Mitutoyo-SERIES 125-Screw Thread Micrometers

Fixed anvil type to suit 60º threads Directly indicates screw pitch diameter (no need for calculation) Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Thread to be measured (Metric/nnified) Range Graduation 125-101 0.4 – 0.5mm/64  – 48TPI     0 – 25mm           0.01mm 125-102 0.6 – […]

AUTHOR RATE
Mitutoyo-SERIES 343, 143-Caliper Type Micrometers

Effective for measuring workpiece features where access is difficult. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 343-250-30 0 – 25mm   0.001mm ±5µm 343-251-30 25 – 50mm ±6µm 343-252-30 50 – 75mm ±7µm 343-253-30 75 – 100mm ±8µm * Excluding quantizing error […]

AUTHOR RATE
Mitutoyo-SERIES 105 — with Anvil Extension Collars-Outside micrometers

Wide measuring range with anvil extension collars 50mm/2” spindle stroke Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Extension Collars Setting Standard (pcs) (every 100mm) 105-408 1000 – 1100mm           0.01mm           1 pc (50mm)       […]

AUTHOR RATE
Mitutoyo-SERIES 105 — with Anvil Extension Collars-Outside micrometers

Adjustable measuring range with extension collars. 50mm/2” spindle stroke Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Order No. Range Graduation Extension Collars Setting Standard 105-103 500 – 600mm     0.01mm     1 pc (50mm)     2 pcs. 105-104 600 – 700mm 105-105 700 – 800mm 105-106 800 – 900mm […]

AUTHOR RATE
Mitutoyo-SERIES 340, 104 — with Interchangeable Anvils-Outside Micrometers

Wide measuring range with interchangeable anvils. Measuring face of the spindle is carbide tipped (standard model). IP 65 water/dust protection (series 340). * Models with a measuring range up to 300mm. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No.   Range   Resolution   Interchangeable anvils Setting Standard   Micrometer head stroke Qty […]

AUTHOR RATE
Mitutoyo-SERIES 107-Indicator Type Micrometers

Designed to mount a dial indicator for direct GO/±NG judgment on mass-produced parts. Anvil retracting trigger for quick measurement. Various kinds of indicators*1 are selectable depending on the measurement type (accuracy required, measuring range, etc.). Measuring faces: Carbide Anvil stroke: 3mm SPECIFICATIONS Metric Order No. Range Accuracy 107-201 0 – 25mm   ±2µm 107-202 25 – 50mm 107-203 […]

AUTHOR RATE
Mitutoyo-SERIES 406-Digimatic straight line micrometer outside micrometer

Non-rotating spindle. Equipped with Ratchet Stop for constant measuring force. Metric Order No. Range Resolution Accuracy* Flatness Parallelism 406-250-30 0 – 25mm     0.001mm   ±3µm     0.3µm   3µm 406-251-30 25 – 50mm 406-252-30 50 – 75mm 406-253-30 75 – 100mm ±4µm 4µm   * Excluding quantizing error Inch/Metric Order No. Range […]

AUTHOR RATE
Mitutoyo-SERIES 193-Digit Outside Micrometers

Mechanical digit counter with 0.01mm or .001” resolution for quick and error-free reading. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric With ratchet stop Order No. Range Graduation Accuracy 193-101 0 – 25mm 0.01mm     ±2µm 193-111 0.001mm 193-102   25 – 50mm 0.01mm 193-112 0.001mm 193-103   50 – […]

AUTHOR RATE
Mitutoyo-SERIES 101-Outside Micrometers

Satin-chrome-finished frame, tapered (on the anvil side) for hard-to-reach places. Supplied with a setting standard (except for 0-1” models). Measuring faces: Carbide SPECIFICATIONS Inch With ratchet stop Order No. Range Graduation Accuracy 101-113 0 – 1″     .0001″   ±.0001″ 101-114 1″ – 2″ 101-119 2″ – 3″ 101-120 3″ – 4″ ±.00015″ Inch With friction […]

AUTHOR RATE
Mitutoyo-SERIES 103-Outside Micrometers

Baked-enamel-finished frame. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. Metric  With ratchet stop Order No. Range Graduation Accuracy 103-137 0 – 25mm 0.01mm     ±2µm 103-129 0.001mm 103-138 25 – 50mm 0.01mm 103-130 0.001mm 103-139-10 50 – 75mm                         […]

AUTHOR RATE
Mitutoyo-SERIES 102 — Outside Micrometers-Ratchet Thimble Micrometer

More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer. Ratchet function works both from the thimble and the speeder. Rotating the thimble/speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece. Clearly audible ratchet operation […]

AUTHOR RATE
Mitutoyo-SERIES 102-Outside Micrometers

Heat-insulated frame. Cut-away frame (behind anvil) for measuring in hard-to-reach places. A ratchet stop or a friction thimble for a constant measuring force. Measuring faces: Carbide       SPECIFICATIONS Metric Order No. Range Graduation Accuracy Flatness Parallelism Constant-force device 102-301   0 – 25mm 0.01mm ±2µm 0.6µm 2µm Ratchet stop 102-311 0.001mm ±1µm 0.3µm […]

AUTHOR RATE
Mitutoyo-SERIES 227-with Adjustable Measuring Force-ABSOLUTE Digimatic Micrometers

Digimatic micrometer dedicated to applications requiring a constant/low measuring force such as measuring wire, paper, and plastic/rubber parts. Ratchet mechanism in the thimble applies constant force to workpiece. Compact and easy to handle. Measuring force is adjustable (in steps) to suit various kinds of workpiece. High-accuracy measurement can be performed even by unskilled operators due to […]

AUTHOR RATE
Mitutoyo-SERIES 293-IP54 ABSOLUTE Digimatic Micrometers-Quickmike

The Quickmike provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly. Set the origin only once. The absolute linear scale maintains the origin throughout the life of battery, meaning no more zero setting (presetting) or overspeed error. Measuring faces: Carbide Supplied with a Ratchet […]

293-582
AUTHOR RATE
Mitutoyo-SERIES 293-Digimatic outside micrometers

Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system. (Refer to page A-3 for details.) Constant-force device: ratchet stop Interface Input Tools are available that enable the conversion of measurement data to keyboard signals that are then directly input to cells in off-the-shelf spreadsheet software such as […]

AUTHOR RATE
Mitutoyo-SERIES 293 — with Dust/Water Protection Conforming to IP65 Level -Coolant Proof Micrometers

World’s highest performing micrometer overall. Extended battery life of approximately 2.4 years. Ergonomic anti-slip frame cover and front panel for more comfortable hand-held measurements. Ratchet thimble provides better operability for one-handed operation. Oil-resistant material used for all plastic parts. Models equipped with a Digimatic output port can form part of a statistical process control or […]

293-140
AUTHOR RATE
Mitutoyo-SERIES 293 — IP65 Micrometer with 2mm/rev Spindle Feed-QuantuMike

Advanced pioneering technology has created the next generation of micrometer, the most revolutionary advance in micrometer technology since James Watt invented the instrument. Faster measurement is achieved by using a coarser thread which feeds the spindle by 2mm per revolution of the thimble. This increase in thread lead has been made possible thanks to new high precision threadcutting […]

293-100
AUTHOR RATE
Mitutoyo – SERIES 293 – High-Accuracy Digimatic Micrometer

Enabling 0.1μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a hand-held tool. The High-Accuracy Digimatic Micrometer utilizes Mitutoyo’s innovative 0.1μm resolution ABS (absolute) rotary sensor*1 and high-accuracy screw machining technology to reduce the instrumental error to ±0.5μm, delivering higher accuracy without sacrificing operability. *1. Patent pending […]

AUTHOR RATE
Mitutoyo SERIES 192 – Multi-function Type with SPC Data Output – Digimatic Height Gage

Double-column structure ensures high measuring accuracy. Ergonomic base fits comfortably in the hand. Bidirectional touch-trigger probe is available as an optional accessory. Character height of the LCD display has been increased (10mm to 11mm) and a high- contrast LCD display unit adopted, so that the readability is improved. Inclined handle improves slider ergonomics. Allows integration into statistical […]

AUTHOR RATE
MULTIMAR – MEASURING ELEMENTS

MULTIMAR 844 TA SHOULDER ANVILS With cylindrical mounting shaft to attach into the mounting attachments 844 Tma / 844 Tmi Flat; for external diameters Made of hardened steel Technical data Order no. Mounting shaft diameter in mm 4500050 5 mm Applications For measuring narrow collars such as centering shoulders and other similar measuring tasks MULTIMAR […]

AUTHOR RATE
MULTIMAR – MEASURING ARMS, STOPS, MOUNTING ATTACHMENTS

MULTIMAR 844 TMI MOUNTING ATTACHEMENT For outside (844 Tma) and inside diameters (844 Tmi) Stainless steel Lateral mm scale for easy positioning and adjustment of measuring limit stops Reversible measuring arms on measuring arm holders to increase the measuring range With ø 5 mm mounting bore for inserting interchangeable 844 Ta, 844 Ti, 844 Tb, […]

AUTHOR RATE
MULTIMAR 25 EBA MEASURING TIPS FOR DRILL HOLE INTERVALS

With cylindrical holding shaft for fixing in 844 Tma / 844 Tmi mounting attachments Made of hardened steel The collar Ø D is ground precisely to dimension, the Ø D is set as the PRESET value for absolute measurements Technical data Order no. Dimensions d in mm Dimension D 4119010 1.5 mm 20 mm 4119011 […]

AUTHOR RATE
MULTIMAR 844 T UNIVERSAL MEASURING INSTRUMENT

For easy adaptation to individual measuring tasks, optional accessories include: – Interchangeable measuring arms – Contact blocks – Stop elements The movable measuring arm carrier is mounted on a high precision ball bearing guide for reduced play and friction – Results in high measuring sensitivity, accuracy and free movement Stable support elements for repeatable measurements […]

AUTHOR RATE
MULTIMAR 25 EWR DIGITAL UNIVERSAL CALIPERS

For easy adaptation to individual measuring tasks, optional accessories include: – Interchangeable measuring arms – Contact blocks – Stop elements The digital display is always in the operator’s line of vision due to the patented mounting fixture of the measuring elements provided on the upper and lower longitudinal face of the arm holders Application range […]

AUTHOR RATE
MARAMETER 844 Z2 MEASURING HEAD

Maximum wear resistance due to carbide ball anvils Constant measuring force due to built-in spring, eliminating user influence Anvils, measuring heads, holder, spacer (intermediate piece) and depth extensions form a very comprehensive modular system which can rapidly be converted to measure further gear sizes When ordering please state the required ball diameter Technical data Order […]

AUTHOR RATE
MARAMETER 844 NB SELF-CENTERING DIAL BORE GAGE

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball Transmission lever system transfers movement of movable anvil to indicating instrument The broad centering bridge ensures automatic centering in the bore Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel Highly resistant […]

AUTHOR RATE
MARAMETER 844 NH SELF-CENTRING DIAL BORE GAGE

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball Transmission lever system transfers movement of movable anvil to indicating instrument The broad centering bridge ensures automatic centering in the bore Resistant to temperature bacause the shank and transfer rod are made of heat resistant Invar steel Highly resistant […]

AUTHOR RATE
MARAMETER 844 K SELF-CENTRING DIAL BORE GAGE

Maximum wear resistance due to hard chrome plating Constant measuring force as a result of built-in spring, eliminating user influence Highly versatile – Each gage covers a broad range – Quickly and easily adjustable to any size and type of measuring application (within the limits) Extensive modular system is composed of measuring probe, holder, depth extensions, […]

AUTHOR RATE
MICROMAR 44 AK / 844 AG / 44 EWG – COMPONENTS

MICROMAR 44 AK MEASURING HEAD Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure the bottom of a bore From 40 mm all measuring heads are made from aluminium to reduce […]

AUTHOR RATE
MICROMAR 844 A / 844 AS – SELF-CENTERING MEASURING PISTOLS

MICROMAR 844 A SELF-CENTERING INSIDE MEASURING PISTOL Threaded connection for changing the measuring head Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure the bottom of a bore From 40 mm […]

AUTHOR RATE
MICROMAR 44 EWR – SELF-CENTERING DIGITAL INSIDE MICROMETERS

MICROMAR 44 EWR DIGITAL SELF-CENTERING INSIDE MICROMETER Threaded connection for changing the measuring head Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure the bottom of a bore From 40 mm […]

AUTHOR RATE
MICROMAR 44 A / 44 AS – SELF-CENTERING INSIDE MICROMETERS

MICROMAR 44 AS SELF-CENTERING INSIDE MICROMETER SET Operating and display units with satin chrome finish Stainless spindle is hardened throughout and ground Rapid drive with integrated ratchet Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils […]

AUTHOR RATE
MARAMETER 49P – GAGE FOR EXTERNAL MEASUREMENT

MARAMETER 49P-2M GAGE FOR EXTERNAL MEASUREMENT Generous clearance on jaws reaches over non-measured part protrusions for easy access to areas where thickness must meet critical dimensional specs Retraction lever is conveniently located for one hand operation 0.02 mm or 0.1 mm / .01“, .001“, or 1/64“ grads. available Continuous reading dials with revolution counters normally […]

AUTHOR RATE
MARAMETER 838 EA ELECTRONIC GAGE FOR EXTERNAL MEASUREMENT

High contrast analog and digital LCD Tolerance displayed with 2 LEDs             Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Length of fixed measuring contact […]

AUTHOR RATE
MARAMETER 838 TI GAGE FOR INTERNAL MEASUREMENT

Contact points made of carbide Absolute measuring instrument Easy-to-read tolerance markers Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Groove depth Groove width Length of fixed measuring contact 4495580 838 […]

AUTHOR RATE
MARAMETER 838 EI ELECTRONIC GAGE FOR INTERNAL MEASUREMENT

High contrast analog and digital LCD Tolerance displayed with 2 LEDs               Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Groove depth Groove width […]

AUTHOR RATE
MARAMETER 57B – THICKNESS GAGE FOR MEASURING WALL THICKNESS OF WIRE INSULATION

MARAMETER 57B-13M PORTABLE THICKNESS GAGES Using the basic design of the Model 57B-13 (Model 57B-13M — Metric) gage, the lower contact is PT-103, 1.10 mm / .043” diameter rod, mounted horizontally Upper contact is a flat chisel contact , in line with the rod By slipping tubular parts onto the lower contact, the gage can […]

AUTHOR RATE
MARAMETER 57B – THICKNESS GAGE WITH CONSTANT MEASURING FORCE

MARAMETER 57B-15M PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter 283 g / 10 oz. dead weight load for constant gaging pressure 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower […]

AUTHOR RATE
MARAMETER 57B – THICKNESS GAGE

MARAMETER PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements Furnished with a lift lever so work can be easily placed between the contacts Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials 4.75 mm/ .187“ diameter radiused upper contact normally provided […]

AUTHOR RATE
MARAMETER 26P – PORTABLE THICKNESS GAGES

MARAMETER 26P-7M PORTABLE THICKNESS GAGES Push down movement Molded body fits shape of hand Built-in indicator Gage is normally open for easy part entry Push down button to close the contacts Rugged and compact for portable use 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range mm Throat […]

AUTHOR RATE
MARAMETER 22P-20 PORTABLE THICKNESS GAGES

Indicator built into gage frame for maximum ruggedness Lift lever for one hand operation Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range inches Graduation value inch Probe_path_inch Size of measuring […]

AUTHOR RATE
MARAMETER XLI-22P-20 PORTABLE THICKNESS GAGES

Indicator built into gage frame for maximum ruggedness Lift lever for one hand operation Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth mm Probe_path_inch […]

AUTHOR RATE
MARAMETER 838 AB PORTABLE THICKNESS GAGES

Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth mm Resolution (mm) Resolution (in) Resolution mm/inch Graduation value mm Measuring surface diameter Measuring face Measurement surface radius 4495140 838 […]

AUTHOR RATE
MARAMETER 838 B PORTABLE THICKNESS GAGES

Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Convenient heat insulated handle, open at one end Versions with a throat depth of 200 mm have a removable stand Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth […]

AUTHOR RATE
MARAMETER 838 A PORTABLE THICKNESS GAGES

Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Convenient heat insulated handle, open at one end Versions with a throat depth of 200 mm have a removable stand Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth […]

AUTHOR RATE
MARAMETER 853 INDICATING THREAD SNAP GAGE

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Anvil spindle adjustable with thumbscrew via worm and rack, for mounting interchangeable support yokes Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Anvil spindle can easily be […]

AUTHOR RATE
MARAMETER 852 INDICATING THREAD SNAP GAGE

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Adjustable center stop for automatic alignment Anvil spindle can easily be fine adjusted Constant measuring force as a result […]

AUTHOR RATE
MARAMETER 852 TSZ INDICATING BENCH SNAP GAGE

Rugged steel frame can be inclined up to 45° from the sturdy base Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Height adjustable stop Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Technical data […]

AUTHOR RATE
MARAMETER 1000P – INDICATING SNAP GAGE

MARAMETER 1000P-6 INDICATING SNAP GAGE Flat lower anvil (reference) adjustable over a broad range Radiused upper anvil (sensitive) spring loaded to counter balance the weight of the gage Indicator can be rotated to read from front or rear of the gage Anvils are tungsten carbide for long life Technical data Order no. Product type Application […]

AUTHOR RATE
MARAMETER A301P-7 INDICATING SNAP GAGE

Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment All Series 300P snap gages are fully adjustable with positive position locking at any point within the rang 0.50 mm / .020“ movement of sensitive contact Snap gages available over a wide range of sizes, styles, […]

AUTHOR RATE
MARAMETER 300P – INDICATING SNAP GAGE

MARAMETER 300P-7 INDICATING SNAP GAGE Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment All Series 300P snap gages are fully adjustable with positive position locking at any point within the range 0,50 mm / .020“ movement of sensitive contact Snap gages available over a […]

AUTHOR RATE
MARAMETER 840 E INDICATING SNAP GAGE

Extremely accurate due to the straight transfer of spindle movement to the inductive measuring system according to the Abbe principle Universally applicable and extremely versatile – Each instrument spans a broad measuring range – Any dimension and fit can be very quickly and easily adjusted Constant measuring force as a result of built-in spring, eliminating […]

AUTHOR RATE
MARAMETER 840 FS INDICATING SNAP GAGE

Rugged, forged steel frame with heat insulators Both spindles are made of hardened stainless steel and mounted in long guideways Carbide tipped measuring faces slightly chamfered at the front to facilitate positioning Projects over width of frame for measurement of narrow registers or when measuring directly at shoulders Adjustable centering stop for surface centering Straight […]

AUTHOR RATE
MARAMETER 840 FM INDICATING SNAP GAGE

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil spindle made of hardened stainless steel; with extending carbide-tipped measuring jaws Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Maximum wear resistance […]

AUTHOR RATE
MARAMETER 840 FG INDICATING SNAP GAGE

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil spindle have an M 2.5 connection thread, thus enabling the use of interchangeable anvils that are also used in dial indicators and dial comparators Anvil spindle can easily be fine adjusted Constant measuring […]

AUTHOR RATE
MARAMETER 840 FH INDICATING SNAP GAGE

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring and anvil spindle have precision tapered bores for mounting interchangeable anvils (with accessory 40 He) Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Maximum wear […]

AUTHOR RATE
MARAMETER 840 FC INDICATING SNAP GAGE

Longer service life due to the ceramic measuring faces Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil spindle are both made of hardened stainless steel, ceramic measuring faces Adjustable centering stop for surface centering Anvil spindle can easily be fine adjusted […]

AUTHOR RATE
MARAMETER 840 F INDICATING SNAP GAGE

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil are made of hardened stainless steel with carbide tipped measuring faces Adjustable centering stop for surface centering Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, […]

AUTHOR RATE
MAXΜM III – PROBE

MILLIMESS MAXΜM III DIGITAL PROBE Maxum transducers are available as replacement parts – refer to part price list for part numbers and pricing Maxum III remote indicating units are sold without digital transducer Any digital transducer may be used with a Maxum III remote indicating unit For alternate cable lengths, extension cables or special indicator […]

AUTHOR RATE
MILLIMESS MAXΜM III DISPLAY UNIT

Large, high contrast digital, analog and fan display for better readability while testing flatness and concentricity as well as for searching the reversal point in bores Interchangeable dials Inductive absolute measuring system Metal cast housing with robust buttons Technical data Order no. Product type Measuring range mm Standard IP protection category 2033001 Maxµm III Depending […]

AUTHOR RATE
MAXΜM III – INDUCTIVE DIGITAL COMPARATOR

MILLIMESS MAXΜM III INDUCTIVE DIGITAL COMPARATOR Large, high contrast digital, analog and fan display for better readability while testing flatness and concentricity as well as for searching the reversal point in bores Interchangeable dials Inductive absolute measuring system Metal cast housing with robust buttons Technical data Order no. Product type Measuring range mm Measuring range […]

AUTHOR RATE
ΜMAXΜM II – INDUCTIVE DIGITAL COMPARATOR

MILLIMESS ΜMAXΜM II INDUCTIVE DIGITAL COMPARATOR Inductive absolute measuring system Large, high contrast display with numerical and scale display Control and display unit rotatable through 270° Zero point setting is retained even after switching off the dial indicator Technical data Order no. Product type Measuring range mm Measuring range inch Measuring range 1 _beginning_ mm […]

AUTHOR RATE
MILLIMESS 2001 INDUCTIVE DIGITAL COMPARATOR

High contrast LCD Analog display with 4 mm pointer ensures better visual recognition, ideal when checking concentricity or flatness as well as searching for the reversal point when measuring bores Operating and display unit (bezel) can be rotated through 280° Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is […]

AUTHOR RATE
MILLIMESS 2000 INDUCTIVE DIGITAL COMPARATOR

High contrast LCD Analog display with 4 mm pointer ensures better visual recognition, ideal when checking concentricity or flatness as well as searching for the reversal point when measuring bores Operating and display unit (bezel) can be rotated through 280° Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is […]

AUTHOR RATE
MILLIMESS 1150 NT MECHANICAL DIAL COMPARATOR WITH LIMIT CONTACTS

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide for minimal hysteresis Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are ensured by […]

AUTHOR RATE
MILLIMESS 1110 NT MECHANICAL DIAL COMPARATOR WITH LIMIT CONTACTS

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide for minimal hysteresis Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are ensured by […]

AUTHOR RATE
MILLIMESS 1002 Z MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions […]

AUTHOR RATE
MILLIMESS 1010 MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions […]

AUTHOR RATE
MILLIMESS 1003 MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide for minimal hysteresis Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are […]

AUTHOR RATE
MILLIMESS 1000 B MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide for minimal hysteresis Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are […]

AUTHOR RATE
MILLIMESS 1002 MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide for minimal hysteresis Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are […]

AUTHOR RATE
MARCATOR – WATERPROOF DIAL INDICATORS

MARCATOR WC7I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATORS WITH LIMITED MEASURING RANGE

MARCATOR C1RN-40 DIAL INDICATOR Nomatter how far out of tolerance a part may be, the needle of a one revolution indicator will always stay in the red, non-read zone — no passing zero again — no reading errors. No limited contact travel Shockproof “Following Movement” Always keeps the hand within a single revolution Alternate contact […]

AUTHOR RATE
MARCATOR – PERPENDICULAR DIAL INDICATORS

MARCATOR W8I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – LONG-RANGE INDICATORS

MARCATOR 28IQN DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 4

MARCATOR E7I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 3

MARCATOR D6K-RC DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 2

MARCATOR DIAL INDICATOR Outstanding quality due to a well thought out design, use of high quality materials, and the precision engineered mechanism’s guarantee The concentric “Speed Read“ pointer (on 1.0“ and .500“ models) allows easy and safe reading of this dial indicator Spindle and stem are made of resistant stainless steel Supplied with: lug back […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 1

MARCATOR B6Q-RC DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR, ANSI/AGD GROUP 0

MARCATOR A1/2Q DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR

MARCATOR – DIAL INDICATOR, MM MARCATOR 810 AU PRECISION DIAL INDICATOR High contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in mm Error […]

AUTHOR RATE
MARCATOR 803 SW PRECISION DIAL INDICATOR

High contrast dial face Adjustable tolerance markers Chrome plated housing Precision gears and pinions Hermetically sealed upper protective measuring spindle cap, bezel and transparent dial cover; sealed with O-rings Measuring spindle sealed with rubber sleeve, thus preventing contamination by liquids and impurities Technical data Order no. Product type Measuring span in mm Graduation value mm […]

AUTHOR RATE
MARCATOR 803 SB PRECISION DIAL INDICATOR

High contrast dial face Adjustable tolerance markers Chrome plated housing Hermetically sealed protective measuring spindle cap Limited measuring range for error free readings Large overtravel (ca. 9 mm) for easier insertion of test items in measuring devices Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type […]

AUTHOR RATE
MARCATOR – LARGE DIAL INDICATOR

MARCATOR 810 AG LARGE DIAL INDICATOR Large, high contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in mm Error limit measuring range µm […]

AUTHOR RATE
MARCATOR 803 A / 803 S / 805 A – SMALL DIAL INDICATORS

MARCATOR – SMALL DIAL INDICATOR, MM MARCATOR 805 A SMALL PRECISION DIAL INDICATORS High contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in […]

AUTHOR RATE
MARCATOR 1087 BRI – DIGITAL INDICATOR

MARCATOR 1087 BRI DIGITAL INDICATOR Integrated wireless transmitter High-contrast LCD display Operating and display unit (bezel) can be rotated through 280° Lifter protection cap on the measuring spindle Clamping shaft and measuring pin made of hardened stainless steel Immediate measurements due to the Reference System             Technical data Order no. […]

AUTHOR RATE
MARCATOR 1087 BR DIGITAL INDICATOR

High contrast LCD Operating and display unit (bezel) can be rotated through 280° Immediate measurements due to the Reference System Mounting shank and measuring spindle are both made of hardened stainless steel Protection cap on the end of measuring spindle           Technical data Order no. Product type Measuring span in mm […]

AUTHOR RATE
MARCATOR 1087 RI DIGITAL INDICATOR

            Technical data Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Graduation value mm Graduation value inch Range of analog display mm Range of analog display inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits 4337663 1087 […]

AUTHOR RATE
MARCATOR 1087 ZR DIGITAL INDICATOR

High contrast LCD Operating and display unit (bezel) can be rotated through 280° Immediate measurements due to the Reference System Lifter protection cap on the measuring spindle Mounting shank and measuring spindle are both made of hardened stainless steel               Technical data Order no. Product type Measuring span in […]

AUTHOR RATE
MARCATOR 1086 RI / 1086 WRI – DIGITAL INDICATOR, INTEGRATED WIRELESS

MARCATOR 1086 RI DIGITAL INDICATOR Integrated wireless transmitter High contrast LCD Operating and display unit (bezel) can be rotated through 280° Mounting shank and measuring spindle are both made of hardened stainless steel Immediate measurements due to the Reference System             Technical data Order no. Product type Measuring span in […]

AUTHOR RATE
MARCATOR 1086 R / 1086 WR – DIGITAL INDICATOR

MARCATOR 1086 ZR DIGITAL INDICATOR High contrast LCD Operating and display unit (bezel) can be rotated through 280° Lifter protection cap on the measuring spindle Mounting shank and measuring spindle are both made of hardened stainless steel Immediate measurements due to the Reference System           Technical Data Order no. Product type […]

AUTHOR RATE
MARCATOR 1075 R DIGITAL INDICATOR

High contrast LCD Hermetically sealed protective measuring spindle cap Mounting shank and measuring spindle are both made of hardened stainless steel             Technical Data Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Standard Measuring force (N) IP protection category Height of […]

AUTHOR RATE
MARTEST – 3D TOUCH PROBES

MARTEST 802 EW DIGITAL 3D TOUCH PROBE Excellent readability thanks to combined display: – bar graph for dynamic path information – digital display for exact readings Can be controlled independently of a machine tool Large working range in all axes (X, Y, Z) prevents damage to the stylus by contacting errors Compact metal housing and […]

AUTHOR RATE
MARTEST 800 EWL DIGITAL TEST INDICATOR

Inductive measuring system Battery life approx. 2 years Operating unit is protected against coolants and lubricants, protection class IP65 Combined analog and digital display Operating and display unit (bezel) can be rotated through 360° Satin chrome finished housing with 3 dovetail guideways Shockproof Movement bearings are jeweled Automatic matching to sensing direction Anti-magnetic Double lever […]

AUTHOR RATE
MARTEST – TEST INDICATOR, HORIZONTAL MODEL

MARTEST – TEST INDICATOR, HORIZONTAL MODEL, MM MARTEST 800 H TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof measuring mechanism Anti-magnetic model Automatic adjustment to the […]

AUTHOR RATE
MARTEST – TEST INDICATOR, VERTICAL MODEL

MARTEST – TEST INDICATOR, VERTICAL MODEL, MM MARTEST 800 VGM TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof measuring mechanism Anti-magnetic model Automatic adjustment to the […]

AUTHOR RATE
MARTEST – TEST INDICATOR, STANDARD MODEL

MARTEST – TEST INDICATOR, STANDARD MODEL, MM MARTEST – TEST INDICATOR, STANDARD MODEL, 0.01 MM MARTEST 800 SR TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof […]

AUTHOR RATE
MICROMAR 46 EWR DIGITAL MICROMETER HEAD

High contrast analog display Rapid drive with integrated ratchet Immediate measurements due to the Reference System Digimatic Opto RS232C USB Battery life approx. 2 years IP 52 end cap (in case the rapid drive is not required) instruction manual battery case 8.5mm             Technical Data Order no. Measuring range mm […]

AUTHOR RATE
MICROMAR 46 / 46 H – MICROMETER HEAD

MICROMAR 46 MICROMETER HEAD Operating and display units with satin chrome finish Stainless spindle is hardened throughout and ground Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Spindle diameter Spindle thread pitch_mm 4183021 0 – 6.5 0,01 3 µm 3.5 mm 0.5 mm 4183023 0 – 50 0,01 5 µm […]

AUTHOR RATE
MICROMAR 44 CB INSIDE MICROMETER WITH REDUCED MEASURING FACES

Operating and display units with satin chrome finish Rigid, lightweight tubular construction Stainless spindle is hardened throughout and ground Locking device Carbide tipped spherical measuring faces Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range Protection sleeves have a satin chrome finish […]

AUTHOR RATE
MICROMAR 44 CZ INSIDE MICROMETER

Operating and display units with satin chrome finish Measuring head and end piece with mounting bore for interchangeable anvils Rigid, lightweight tubular construction Stainless spindle is hardened throughout and ground Locking device Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range Protection […]

AUTHOR RATE
MICROMAR 44 CMS 4 INSIDE MICROMETER SET

Operating and display units with satin chrome finish Rigid, lightweight tubular construction Stainless spindle is hardened throughout and ground Locking device Carbide tipped spherical measuring faces Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range Protection sleeves have a satin chrome finish […]

AUTHOR RATE
MICROMAR 44 F INSIDE MICROMETER

Operating and display units with satin chrome finish Rigid, lightweight tubular construction Stainless spindle is hardened throughout and ground Measuring faces spherically lapped, one measuring face adjustable Measuring range of 100-125 mm with heat insulators and a locking device case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Spindle thread […]

AUTHOR RATE
MICROMAR 40 W MICROMETER

Operating and display units with satin chrome finish Spindle and anvil made of hardened steel, carbide tipped Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight Heat insulators Ratchet is integrated in the thimble Locking device 4 interchangeable anvils, adjustable instruction manual setting values case Technical […]

AUTHOR RATE
MICROMAR 40 AG MICROMETER

Operating and display units with satin chrome finish Spindle and anvil made of hardened steel, carbide tipped Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight Heat insulators Ratchet is integrated in the thimble Locking device instruction manual setting value case Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 AS MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting values 5″ / 7″ case Technical Data Order no. Measuring range inches Graduation value inch Spindle diameter Micrometer pitch (inches) 4134960 0 […]

AUTHOR RATE
MICROMAR 40 A MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (from measuring range 1-2″) case Technical data Order no. Measuring range inches Graduation value inch Error limit inches Spindle diameter Micrometer […]

AUTHOR RATE
MICROMAR 40 SA MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting values 125 mm / 175 mm case Technical Data Order no. Measuring range mm Graduation value mm Spindle diameter Spindle thread pitch_mm […]

AUTHOR RATE
MICROMAR 40 A MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device setting standard (measuring range of 25-50 mm) instruction manual case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Spindle diameter […]

AUTHOR RATE
MICROMAR 40 TS – PRECISION BENCH MICROMETER

MICROMAR 40 TS PRECISION BENCH MICROMETER Operating and display units with satin chrome finish Rugged steel frame, can be inclined up to 45° from the sturdy base Retraction of the movable anvil ensures maximum wear resistance Height adjustable stop Constant measuring force Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped […]

AUTHOR RATE
MICROMAR 40 T MICROMETER WITH INTEGRATED DIAL COMPARATOR

Operating and display units with satin chrome finish Retraction of the movable anvil ensures maximum wear resistance Constant measuring force Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Locking device instruction manual case Technical Data Order no. Measuring range mm Error limit µm Parallel error in µm Flatness in µm […]

AUTHOR RATE
MICROMAR – MICROMETER WITH INTEGRATED DIAL COMPARATOR

MICROMAR 40 F MICROMETER WITH INTEGRATED DIAL COMPARATOR Satin chrome finished operating and display units Dial Comparator is integrated in frame Adjustable tolerance markers Chrome plated steel frame, heat insulated Retraction of the moveable anvil ensures maximum wear resistance Spindle and anvil are carbide tipped Spindle is hardened through-out and ground, stainless Locking device Constant […]

AUTHOR RATE
MICROMAR 40 SM MICROMETER

Operating and display units with satin chrome finish Maximum stability Stainless spindle is hardened throughout and ground Disc-type anvils are hardened and lapped Chrome plated steel frame, heat insulated Rapid drive with integrated ratchet Locking device instruction manual case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Parallel error in […]

AUTHOR RATE
MICROMAR 40 AW MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device Sliding spindle instruction manual case Technical Data Order no. Measuring range inches Graduation value inch Error limit inches Micrometer pitch (inches) Measuring force (N) 4134950 […]

AUTHOR RATE
MICROMAR 40 AW MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device Sliding spindle instruction manual case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Parallel error in µm Flatness in µm […]

AUTHOR RATE
MICROMAR 40 Z THREAD MICROMETER

Scales have a satin chrome finish Rugged steel frame, heat insulated Spindle is hardened throughout, ground and provided with a locking device Adjustable anvil Spindle and anvil both have a mounting bore to accommodate interchangeable anvils Flat end surface of the anvil shank rests on a hardened steel ball at the bottom of the mounting […]

AUTHOR RATE
MICROMAR 40 EWV DIGITAL MICROMETER

High contrast analog display Sliding spindle Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Chrome plated steel frame, heat insulated With mounting shank for anvils dia. = 3,5mm Digimatic Opto RS232C USB Battery life approx. 2 years IP 52 instruction manual battery […]

AUTHOR RATE
MICROMAR 40 AR MICROMETER

Measuring surfaces: spherical anvil, planar spindle Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring range mm Graduation value […]

AUTHOR RATE
MICROMAR 40 EWR-R DIGITAL MICROMETER

Measuring surfaces: spherical anvil, planar spindle High contrast analog display Stainless spindle is hardened throughout and ground Rapid drive Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of 25-50 mm) case 8.5 mm             Technical […]

AUTHOR RATE
MICROMAR 40 AS – MICROMETERFOR MEASURING RECESSES, GROOVES, ETC.

MICROMAR 40 AS MICROMETER With blade-type measuring surfaces Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device Sliding spindle instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 EWR-S DIGITAL MICROMETER

With blade-type measuring surfaces Sliding spindle High contrast analog display Stainless spindle is hardened throughout and ground Rapid drive Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 54 instruction manual battery setting standard (measuring range of 25-50 mm) case         Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 AB – MICROMETERFOR MEASURING GROOVES, SPLINE SHAFTS, RECESSES, ETC.

MICROMAR 40 AB MICROMETER Reduced measuring surfaces Ø 3 mm Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 AR MICROMETER

Measuring surfaces: spherical anvil, planar spindle Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (from measuring range 1-2″) case Technical Data Order no. Measuring range inches Graduation value inch […]

AUTHOR RATE
MICROMAR 40 EWR-B DIGITAL MICROMETER

Reduced measuring surfaces Ø 3 mm High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of […]

AUTHOR RATE
MICROMAR 40 EWR-K DIGITAL MICROMETER

Measuring surfaces: Anvil with narrow web, pointed spindle High contrast analog display Stainless spindle is hardened throughout and ground Rapid drive Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 65 battery instruction manual case Height of Digits 8.5mm           Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 EWRI DIGITAL MICROMETER SET

High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated ntegrated wireless Battery life approx. 2 years (approx. 0.5 in wireless mode) IP 65 instruction mnual battery setting values case Height of Digits 10 mm […]

AUTHOR RATE
MICROMAR 40 EWR DIGITAL MICROMETER

High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of 25-50 mm) case Height of Digits 10 mm .   […]

AUTHOR RATE
MICROMAR 40 EWRI DIGITAL MICROMETER

High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated Integrated wireless Battery life approx. 2 years (approx. 0.5 in wireless mode) IP 65 instruction manual battery setting standard (measuring range of 25-50 mm) case […]

AUTHOR RATE
MICROMAR 40 ER DIGITAL MICROMETER

High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble IP 40 instruction manual battery case Height of Digits 10 mm       Technical Data Order no. Measuring range mm Measuring range inches Resolution mm/inch Error limit µm Spindle […]

AUTHOR RATE
MICROMAR 40 EWS DIGITAL MICROMETER

Sliding spindle High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated Digimatic Opto RS232C USB IP 52 battery instruction manual case Height of Digit 8.5mm             Technical Data Order […]

AUTHOR RATE
MICROMAR 40 EWR – DIGITAL OUTSIDE MICROMETER, IP 65

MICROMAR 40 EWR DIGITAL MICROMETER High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated Digimatic Opto RS232C USB Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of 25-50 […]

AUTHOR RATE
MARCAL 31 EW DIGITAL LINEAR MACHINE SCALE

Control panel and display unit can be rotated for horizontal or vertical installation High contrast analog display Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale Dirt wipers are integrated in the slide USB Opto RS232C IP 54 drive-type device instruction manual battery Battery life approx. 3 years […]

AUTHOR RATE
MARAMETER 75P – DEPTH GAGE

MARAMETER 75-P30 – DEPTH GAGE MARAMETER 75P-30 INDICATING DEPTH GAGE Rectangular, flat base and radiused contact point Supplied with contact point for measuring depths from the base as a reference Contact points for other depths are available upon request   Technical data Order no. Product type Measuring range inches Measuring bridge width inch Beam width […]

AUTHOR RATE
MARAMETER 75B – DEPTH GAGE

MARAMETER 75B-1 Available with dial indicator (75B-1 Models) or Maxμm®III and μMaxμm®II digital electronic indicators (EMD-75B and XLI-75B Models) 89 x 102 mm / 3.50 x 4“ hardened, ground work surface provides excellent reference surface Four #10-32 tapped holes provided for mounting part location fixturing Indicator vertically adjustable over 32 mm / 1.25“ Two contact […]

AUTHOR RATE
MARAMETER 65P – INDICATING DEPTH GAGE WITH NEEDLE CONTACT AND V-SHAPED BASE

MARAMETER 65P-40 INDICATING DEPTH GAGE WITH NEEDLE CONTACT AND V-SHAPED BASE V-shaped base and needle contact Movement is Push-Down style Technical Data Order no. Product type Measuring range inches Graduation value inch 2051075 65P-40 0 – .075″ .0005″   MARAMETER 65P-40M INDICATING DEPTH GAGE WITH NEEDLE CONTACT AND V-SHAPED BASE V-shaped base and needle contact […]

AUTHOR RATE
MARAMETER 837 DEPTH GAGE

Large measuring bridge hardened and chrome plated surface Plan grinded Measuring surface Holder for dial indicators with Ø 8 mm shank Technical data Order no. Product type Beam width Length of beam Mounting hole for indicator 4494010 837 16 mm 80 mm 8 mm 4494011 837 16 mm 100 mm 8 mm 4494012 837 20 […]

AUTHOR RATE
MICROMAR 45 T DEPTH MICROMETER

Operating and display units with satin chrome finish Stainless spindle is hardened throughout and ground Rapid drive with integrated ratchet extensions 25 mm and 50 mm case Technical data Order no. Measuring range mm Graduation value mm Error limit µm Notes error limit Spindle diameter Spindle thread pitch_mm 4180000 0 – 100 0,01 5 µm […]

AUTHOR RATE
MARCAL 30 N / 30 NH / 30 ND – DEPTH GAGES, VERNIER

Vernier and main scale have a satin chrome finish for glare free reading Locking screw below Hardened measuring pin Measuring surfaces made of steel Interchangeable beams case Technical data Order no. Measuring range mm Readings mm Error limit (mm) Standard 4127200/td> 0 – 80 0.05 mm 0.05 mm DIN 862 4127300 0 – 150 0.05 […]

AUTHOR RATE
MARCAL 30 EWRI-N DIGITAL DEPTH GAGE

High contrast analog display Locking screw above Lapped guideway Measuring surfaces made of steel Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide Integrated wireless IP 67 […]

AUTHOR RATE
MARCAL 30 EWRI-D DIGITAL DEPTH GAGE

High contrast analog display Locking screw above Lapped guideway Measuring surfaces made of steel Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide Integrated wireless IP 67 […]

AUTHOR RATE
MARCAL 30 EWR DIGITAL DEPTH GAGE

High contrast analog display Locking screw above Lapped guideway Measuring surfaces made of steel Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic […]

AUTHOR RATE
MARCAL 30 EWRI DIGITAL DEPTH GAGE

High contrast analog display Locking screw above Lapped guideway Measuring surfaces made of steel Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide Integrated wireless IP 67 […]

AUTHOR RATE
MARCAL 16 U DIAL CALIPER

Large, high contrast dial face Satin chrome finished line scale Locking screw above Measuring surfaces made of steel Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function case Technical data Order no. Measuring range mm Measuring range inches Graduation value mm Graduation value inch Error limit (mm) Error […]

AUTHOR RATE
MARCAL 18 DN WORKSHOP CALIPERS

With fine adjustment Measuring blades for outside measurements Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Rounded measuring blades for inside measurements Measuring surfaces made of steel Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale case Technical data Order […]

AUTHOR RATE
MARCAL 18 NA WORKSHOP CALIPERS

To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV) Vernier and main scale have a satin chrome finish for glare free reading Parallax free reading Locking screw above Prisma guideway for a more smooth and even movement Measuring surfaces made […]

AUTHOR RATE
MARCAL 18 DN WORKSHOP CALIPERS

Measuring blades for outside measurements Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Rounded measuring blades for inside measurements Measuring surfaces made of steel Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale up to 1000 mm delivered with a […]

AUTHOR RATE
MARCAL 16 DN CALIPER WITH ANALOG DISPLAY

Vernier and main scale have a satin chrome finish for glare free reading Thumb clamp Measuring surfaces made of steel Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Raised guideway for the protection of the scale thread table case   Technical data Order no. Measuring range mm […]

AUTHOR RATE
MARCAL 18 N – WORKSHOP CALIPERS, VERNIER

MARCAL 18 N WORKSHOP CALIPERS Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Rounded measuring blades for inside measurements Measuring surfaces made of steel Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale up to 1000 mm delivered with a […]

AUTHOR RATE
MARCAL 16 N CALIPER WITH ANALOG DISPLAY

Vernier and main scale have a satin chrome finish for glare free reading Locking screw below Measuring surfaces made of steel Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function thread table case   Technical data Order no. Measuring range mm Measuring range inches Readings mm Vernier value […]

AUTHOR RATE
MARCAL 16 GN – CALIPER WITH ANALOG DISPLAY, 0.02 MM / .001″, LOCKING SCREW ABOVE

MARCAL 16 GN CALIPER WITH ANALOG DISPLAY Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Measuring surfaces made of steel Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Raised guideway for the protection of the scale thread table case […]

AUTHOR RATE
MARCAL 16 FN CALIPER WITH ANALOG DISPLAY

Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Measuring surfaces made of steel Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Raised guideway for the protection of the scale thread table case       Order no. Measuring range […]

AUTHOR RATE
MARCAL 16 EWR-SM DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 16 EWR-SI DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 battery instruction manual […]

AUTHOR RATE
MARCAL 16 EWR-SA DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 batteryins truction manual […]

AUTHOR RATE
MARCAL 16 EWR-S DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 16 EWR-RW DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 battery instruction manual […]

AUTHOR RATE
MARCAL 16 EWR-NA DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 16 EWR-LI DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic […]

AUTHOR RATE
MARCAL 16 EWR-H DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 16 EWR-C DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 16 EWR-BA DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 battery instruction manual […]

AUTHOR RATE
MARCAL 16 EWR-AR DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 16 EWR-AI DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 Battery Instruction manual […]

AUTHOR RATE
MARCAL 16 EWR-AA DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB Opto RS232C Digimatic IP 67 Battery Instruction manual […]

AUTHOR RATE
MARCAL 18 EWR-V DIGITAL UNIVERSAL CALIPER

High contrast analog display Locking screw above Immediate measurements due to the Reference System Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide Slide and beam made of hardened stainless steel Measuring faces for outside measurement Thread M2.5 measuring jaws to accommodate measuring anvils for internal and external measurements USB […]

AUTHOR RATE
MARCAL 16 EWR-V DIGITAL UNIVERSAL CALIPER

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide USB […]

AUTHOR RATE
MARCAL 18 ESA DIGITAL WORKSHOP CALIPER

High contrast analog display Locking screw above Rounded measuring blades for inside measurements Prisma guide ways for a more smooth and even movement Measuring surfaces made of steel Measuring blades for outside measurements To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating […]

AUTHOR RATE
MARCAL 18 EWR – DIGITAL WORKSHOP CALIPER, IP 65, DATA INTERFACE

Digital workshop caliper, IP 65, Data interface, with blades Measuring blades for outside measurements High contrast analog display Locking screw above Rounded measuring blades for inside measurements Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants […]

AUTHOR RATE
MARCAL 16 EWR DIGITAL CALIPER & DATA INTERFACE

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide none […]

AUTHOR RATE
MARCAL 16 ER DIGITAL CALIPER

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Dirt wipers are integrated in the slide USB Opto RS232C Digimatic none Instruction manual Battery […]

AUTHOR RATE
MARCAL 16 ER DIGITAL CALIPER

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Dirt wipers are integrated in the slide Height of digits 11 mm     Order […]

AUTHOR RATE
MARCAL 16 EWRI DIGITAL CALIPER

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide Integrated […]

AUTHOR RATEUSERS RATE (0)
DIGITAL CALIPER CODE – 1112

Resolutions: 0.01mm/0.0005* Buttons : zero, mm/inch, on/off, ABS, data preset Battery  SR44 or LR44 Data Output Meet DIN862 Optional accessory: data output system     Code Range Accuracy L a b c d 1112-150 0-150mm/0-6″ ±0.03mm 236 21 16 16 40 1112-200 0-200mm/0-8″ ±0.03mm 286 24 19 16 50 1112-300 0-300mm/0-12″ ±0.03mm 400 25 20.5 […]

AUTHOR RATEUSERS RATE (0)
BACK CODE – 7330

  Check the PDF

AUTHOR RATEUSERS RATE (0)
PRECISION BORE GAGE CODE – 2825

Optional accessory: setting ring (code 6312)     Check the PDF

AUTHOR RATEUSERS RATE (0)
INTERNAL MICROMETER WITH INTERCHANGEABLE ANVILS CODE – 3226

Graduation: 0.01mm Optional accessory: ball tips (code 7391) V-shaped and cone-shaped anvils(code 7321), zero block for V-shaped and cone-shaped anvils(code 3226-SP)     Check the PDF

AUTHOR RATEUSERS RATE (0)
TUBULAR INSIDE MICROMETER CODE – 3229

Graduation 0.01mm Carbide measuring faces     Check the PDF

AUTHOR RATEUSERS RATE (0)
TUBULAR INSIDE MICROMETER CODE – 3224

Graduation 0.01mm Accuracy:(3+n+L/50)μm n=number of rods L=maximum measuring length(mm) Travel of micrometer head 50mm Carbide measuring faces     Check the PDF

AUTHOR RATEUSERS RATE (0)
TUBULAR INSIDE MICROMETER CODE – 3225

Graduation 0.01mm Accuracy:(3+n+L/50)μm n=number of rods L=maximum measuring length(mm) Travel of micrometer head 25mm Supplied with setting standards Carbide measuring faces     Check The PDF

AUTHOR RATEUSERS RATE (0)
THREE POINTS INTERNAL MICROMETER

6-12mm:graduation 0.001mm 12-300mm: graduation 0.005mm Ratchet stop Optional accessory:setting rings (code 6312)     check the pdf

AUTHOR RATEUSERS RATE (0)
DIGITAL THREE POINTS INTERNAL MICROMETER

Resolution 0.001mm/0.00005″ IP54 dust/waterproof Buttons:on/off, set,mm/inch,ABS/INC Data output LR44 battery,automatic power off Ratchet stop Optional accessary:data output cable(code 7306-30, 7302-SPC2A, 7305-SPC3), setting ring(code 6312) Check The PDF

AUTHOR RATEUSERS RATE (0)
Baker DATA TRANSFER SYSTEM

Data Acquisition & SPC Software INTRODUCTION The world today is moving toward Statistical process control techniques at a lightning pace. It is likely that in the near future, the use of statistical process control is mandated in the automobile industry. In order to keep its customers at par to international requirements, Baker Gauges has developed […]

AUTHOR RATEUSERS RATE (0)
BAKER DIGITAL HEIGHT GAUGE

FEATURES: Robustly constructed, stainless steel column with clearly marked scale graduation A clear multifunction digital LCD display runs smoothly on an analogue vertical scale Fine adjustment with lock provided for ease of setting For easy and precise maneuverability, the base has a specially designed thumb grip Carbide tipped scriber Inch / Metric capability Functions consist […]

AUTHOR RATEUSERS RATE (0)
BAKER MICROMETER HEAD

Micrometer Head – Plain Holding Diameter FEATURES: Spindle made from stainless steel for rust prevention Measuring face: carbide tipped, precision ground & micro lapped An in-built ratchet in the thimble Sharp laser marking for better visibility & durability     Measuring Range mm Reading mm Type Measuring Range inch Reading inch Type 0-25 0.01 MMA25-HP […]

AUTHOR RATEUSERS RATE (0)
BAKER DEPTH MICROMETER

Depth Micrometer – 0-25mm FEATURES: Base – hardened, ground & lapped Spindle made from stainless steel for rust prevention Measuring face: spindle, carbide tipped An in-built in ratchet in the thimble Zero setting once done cannot be easily tampered Sharp laser marking for better visibility & durability Robust design withstands toughest workshop conditions     […]

AUTHOR RATEUSERS RATE (0)
BAKER SETTING GAUGE FOR EXTERNAL MICROMETER

FEATURES: Hardened, ground & lapped measuring faces Flat type measuring faces Measuring faces flatness 0.3 µm     Metric Length (L) mm Tolerence µm I mm Diameter ( Ød) mm Diameter ( ØD) mm 25 ± 1.5 20 7 11 50 ± 2.0 40 7 11 75 ± 2.5 40 7 11 100 ± 3.0 […]

AUTHOR RATEUSERS RATE (0)
BAKER DISC MICROMETER – ROTATING TYPE

Disc Micrometer Rotating Type FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust design […]

AUTHOR RATEUSERS RATE (0)
BAKER POINT MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring Faces – 15° & 30° hardened steel points having radius 0.3 mm approximately An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion […]

AUTHOR RATEUSERS RATE (0)
BAKER SPLINE MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: carbide tipped available in two types Ø2 x 5 mm & Ø3 x 8 mm Zero setting once done cannot be easily tampered with An in-built ratchet in the thimble Sharp laser marking for better visibility & durability Heat insulating grip plates cover the […]

AUTHOR RATEUSERS RATE (0)
BAKER TUBE TYPE MICROMETER

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel available in two types: T1 – one end spherical T2 – both ends spherical An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover […]

AUTHOR RATEUSERS RATE (0)
BAKER BLADE MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust design withstands toughest workshop conditions […]

AUTHOR RATEUSERS RATE (0)
BAKER DIGITAL MICROMETERS

FEATURES: Protection level IP65 against dust & water (coolant proof) Stainless steel spindle to avoid rust Carbide measuring faces mm / inch conversion Auto power off SR44/LR44 battery Ball attachment free of cost Absolute & incremental measuring mode Easy operations with 2 buttons Each micrometer is supplied with calibration certificate stating actual values Supplied in […]

Baker Gauges Micrometer
AUTHOR RATEUSERS RATE (0)
Baker Gauges Micrometer

Mechanical External Micrometer: Range 0-200 mm / 0-8″ FEATURES: Specifications : IS, DIN, ANSI & JIS Spindle made from stainless steel for rust prevention Measuring faces: carbide tipped, precision ground & micro lapped An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & […]

AUTHOR RATEUSERS RATE (0)
BAKER DIGITAL VERNIER CALIPER

SDN Series FEATURES: Every gauge carries a calibration certificate giving actual values Robust, Hardened and Ground stainless steel jaws and beam Accuracy as per DIN 862 Attractive shape and elegant design complimented by uncompromising performance 9.6 mm tall, high contrast Liquid Crystal Display significantly augments visibility and minimizes user fatigue All three ranges of calipers […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL VERNIER CALIPER

Dial Vernier Caliper – DC Series FEATURES: Every gauge carries a calibration certificate giving actual values Checks OD, ID, step and depth Robust, hardened and ground stainless steel jaws and beam With 0.02 mm Least Count Accuracy as per DIN 862 Clear, easy to read graduated dial with adjustable bezel Shock Proof movement Supplied in […]

AUTHOR RATEUSERS RATE (0)
BAKER MECHANICAL VERNIER CALIPER

Vernier Calipers VCF (with fine adjustment) FEATURES: Every gauge carries a calibration certificate giving actual values With 0.02 mm / 0.001” Least Count Measures OD, ID, Step and Depth Accuracy as per DIN 862 Robust, Hardened and Ground stainless steel jaws and beam Supplied in a sleek plastic box     Type Reading Range VCF10 […]

AUTHOR RATEUSERS RATE (0)
BAKER SKINFOLD CALIPER

Human Body Fat Measurement FEATURES: The Harpenden Skinfold Caliper is a precision instrument designed for use in the performance of Skinfold thickness measurements (from which estimates of body fat are derived) The use of this instrument has been well established and documented over the past 40 years Designed in 1958 in collaboration with D. J. […]

AUTHOR RATEUSERS RATE (0)
BAKER UNIVERSAL GAUGE

The Bowers Universal Gauge’s ingenious modular format enables it to be quickly configured to suit almost any measuring challenge. Whether measuring internally or externally, the Universal’s clever constant pressure device ensures accuracy and consistency of reading. The gauge’s findings are displayed on its built in clear digital readout. The unique modular construction of the Bowers […]

AUTHOR RATEUSERS RATE (0)
BAKER TYRE TREAD DEPTH GAUGE

A Gauge developed specifically to monitor compliance with safety requirements for minimum trade depth of automobile tyres. Additionally, it is useful for gauging general tyre wear in the range of 0-8 mm. FEATURES: Every gauge carries a calibration certificate giving actual values The gauge gives accurate readings to 0.1mm / 0.004Inch A ‘telltale’ maximum reading […]

AUTHOR RATEUSERS RATE (0)
BAKER CRANKSHAFT WEB DEFLECTION GAUGE

Excessive web deflection is dangerous for the engine. The cause may be faulty or damaged crankshaft, damaged bearing, poor bearing alignment, excessive bearing clearance or slackness, faulty flanging to transmission, flywheel or Vee Belt pulley, etc. FEATURES: Every gauge carries a calibration certificate giving actual values Crankshaft Gauge measures the Web deflection of a crankshaft […]

AUTHOR RATEUSERS RATE (0)
BAKER BALL DIAMETER GAUGE

FEATURES: Every gauge carries a calibration certificate giving actual values Gauge measures ball diameter quickly Minimum skill required Inspector needs to just place the ball over the circular cup & the direct reading of ball diameter is shown Available in variety of sizes     Type Range (mm) Reading (mm) BD01 1-10 0.01 BD02 10-12 […]

AUTHOR RATEUSERS RATE (0)
BAKER OUTER DIAMETER GAUGE

FEATURES: Every gauge carries a calibration certificate giving actual values Gauge measures OD of circular parts quickly Inspector needs to just place the gauge over circular periphery and the direct reading of OD is shown on circular scale OD of stacked pipes can be easily measured at site in as is condition It is the […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL SNAP GAUGE

FEATURES: Designed for quick GO/NOT-GO gauging of diameters of cylindrical parts either inprocess or post process Measuring spindle and anvil spindle are manufactured out of graded steel Spindles are hardened and ground including screw threads Carbide ground and lapped tip of measuring faces ensures maximum wear resistance For quick entry, chamfer provided on front edges […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL BORE GAUGE

Dial Bore Gauge Range: 10 – 18mm FEATURES: Every gauge carries a calibration certificate giving actual values Measures small bores from 10 mm to 18 mm High wear resistance due to carbide-tipped fixed and moving anvils Wide bridge ensures automatic centering in the bore Self-centralizing feature of this bore gauge ensures that measurement can be […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL THICKNESS GAUGES

Throat Depth: 30 – 200 mm FEATURES: Every gauge carries a calibration certificate giving actual values For quick measurement of thickness of sheets, paper, leather etc In series K130, K138/L and K142, K145, K150 measurement pressure is independent of the user, resulting in accurate readings of thickness K138 ‘Push Down Type’ thickness gauge is particularly […]

AUTHOR RATEUSERS RATE (0)
BAKER UNIVERSAL TEST SET

FEATURES: Every gauge carries a calibration certificate giving actual values Consists of back Plunger dial Gauge, ‘G’ clamp, universal clamp, swinging arm assembly, tool post holder, holding rod, tommy bar and anvil Swinging arm assembly enables the back plunger dial gauge to be used for internal work up to a depth of 40 mm similar […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL DEPTH GAUGE

FEATURES: Every gauge carries a calibration certificate giving actual values Suitable for quick and easy measurements of depths. Base with 80 mm length: hardened and ground to a high degree of flatness Supplied with a set of extension rods Supplied with Tungsten Carbide contact point for longer life     Metric Bezel Dia. Type Reading […]

AUTHOR RATEUSERS RATE (0)
BAKER DIAL GAUGE ACCESSORIES

DIAL GAUGE ACCESSORIES DIAL GAUGE CONTACT POINTS DIAL GAUGE CONTACT POINTS (AGD) DIAL GAUGE BACK LEVER TYPE DIAL GAUGE ACCESSORIES Check the PDF

AUTHOR RATEUSERS RATE (0)
BAKER BACK PLUNGER DIAL GAUGE

MODEL 38 BACK PLUNGER DIAL GAUGE FEATURES: An unique face reading dial gauge with sensing plunger at right angles to the dial Every gauge carries a calibration certificate giving actual values Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Suitable for mounting […]

AUTHOR RATEUSERS RATE (0)
BAKER LEVER DIALS

MODEL 29/38 LEVER DIAL GAUGES FEATURES: Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certificate giving actual values Auto reversal mechanism Fitted with jewels and Swiss miniature ball bearings for smoother operation Robust and highly sensitive gauge suitable for workshop use Metric Gauges conform to IS 11498 and for the European market to […]

AUTHOR RATEUSERS RATE (0)
BAKER DIGITAL PLUNGER DIAL GAUGE

VALUE LINE SERIES FEATURES: Strong construction Large Digits for better viewing Display Resolution 0.01 mm & 0.0005 Inch Zero setting With Calibration certificate Useful functions : mm / Inch Preset Reference Manual / Auto power off     CODE V1 V2 V3 Reading 0.001 mm 0.001 mm 0.001 mm Reading 0.0005 Inch 0.0005 Inch 0.0005 […]

AUTHOR RATEUSERS RATE (0)
Baker Mechanical Plunger Dial Gauges

MODEL 56 MECHANICAL DIAL GAUGES Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certification giving actual values Hardened stem for trouble free clamping Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Supplied with tolerance pointers Aesthetically appealing protective top […]

AUTHOR RATE
MODULAR HOLDERS

ACCESSORIES Check the PDF   TOOLS Check the PDF

AUTHOR RATE
BASES

ACCESSORIES Check the PDF   TOOLS Check the PDF

AUTHOR RATE
SETS & INDICATORS

TOOLS Check the PDF

AUTHOR RATE
SPECIALTY HOLDERS

TOOLS Check the PDF

AUTHOR RATE
PH HOLDERS FAB

TOOLS Check the PDF

AUTHOR RATEUSERS RATE (0)
PH HOLDERS FAT

TOOLS Check the PDF

AUTHOR RATE
ARTICULATED HOLDERS FAB

TOOLS Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR CENTERING HOLDER CODE – 6291

Center cylinders or holes on machine tools   Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR UNIVERSAL HOLDER CODE – 6297

Set the indicators at the desired attitude to the workpiece   Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR HOLDER CODE – 6296

Supplied with fixing spanner   Check the PDF

AUTHOR RATEUSERS RATE (0)
STYLI FOR DIAL TEST INDICATORS CODE -6284

  Code For dial test indicator Material of contact point L D 6284-1 2380-08, 2398-08 2381-08, 2399-08 steel 13.5 SØ3 6284-3 carbide 13.5 SØ2 6284-4 ruby 13.5 SØ2 6284-8 carbide 13.5 SØ3 6284-21 2380-02 2381-02 steel 12.5 SØ1 6284-22 carbide 12.5 SØ2 6284-23 carbide 12.5 SØ3 6284-44 2880-02 2880-02R 2895-08 2897-02 2898-08 carbide 11.7 SØ0.4 […]

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR HOLDER CODE – 6293

    Code Stem section Stem length (L)   6293 1 9x9mm 100mm   6293-6 9x9mm 50mm   6293-2 Ø8mm 115mm Check the PDF

AUTHOR RATEUSERS RATE (0)
EXTENSION ROD

    Code Material L   6282-2001 steel 10   6282-2002 steel 15   6282-2003 steel 20   6282-2004 steel 25   6282-2005 steel 30   6282-2006 steel 35   6282-2007 steel 40   6282-2008 steel 45   6282-2009 steel 50   6282-2010 steel 55 […]

AUTHOR RATEUSERS RATE (0)
ROLLER POINT

    Code Material of measuring face   6282-1901 steel Check the PDF

AUTHOR RATEUSERS RATE (0)
BLADE POINT

  Code Material of measuring face D W   6282-1801 steel 0.4 2   6282-1802 steel 0.6 2   6282-1803 steel 1 4 Check the PDF

AUTHOR RATEUSERS RATE (0)
KNIFE EDGE POINT

    Code Material of measuring face   6282-1001 steel Check the PDF

AUTHOR RATEUSERS RATE (0)
NEEDLE POINT

    Code Material of measuring face ØD L   6282-1701 steel 0.45 3   6282-1702 steel 0.45 5   6282-1703 carbide 1 3   6282-1704 carbide 1 5   6282-1705 carbide 1 8   6282-1706 carbide 1 10   6282-1707 carbide 1 20   6282-1708 carbide […]

AUTHOR RATEUSERS RATE (0)
CONICAL POINT

    Code Material of measuring face   6282-0601 steel   6282-0701 steel   6282-0801 steel   6282-0901 steel Check the PDF

AUTHOR RATEUSERS RATE (0)
BALL POINT

    Code Material of measuring face L (mm)   6282-0101  carbide 7.3   6282-0103  ceramic 7.3   6282-0104  carbide 8.3   6282-0106  carbide 12.1   6282-0107  carbide 14   6282-0108  carbide 15   6282-0109 ceramic 15   6282-0110  carbide […]

AUTHOR RATEUSERS RATE (0)
SHELL TYPE POINT

    Code Material of measuring face L (mm)   6282-0202 steel 5   6282-0203 steel 10   6282-0205  steel 15   6282-0207  steel 20   6282-0208  steel 25   6282-0210 steel 30 Check the PDF

AUTHOR RATEUSERS RATE (0)
FLAT POINT

    Code Material of measuring face L (mm)   6282-1101 steel 8   6282-1102 steel 10   Code Material of measuring face ØD(mm)   6282-1201 steel 10   6282-1202 steel 15   6282-1203 steel 20   6282-1204 steel 25   6282-1205 steel 30   Code Material of […]

AUTHOR RATEUSERS RATE (0)
SPHERICAL POINT

    Code Material of measuring face   6282-0401 steel Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL LEVEL CODE – 4910

With transverse and longitudinal vials Used as level and protractor Aluminum frame Magnetic bottom The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced Buttons: ON/OFF, absolute and incremental measurement, keep the reading, buzzer alarm, unit (mm/m, %, in/ft) conversion, backlight The display flips over when the […]

AUTHOR RATEUSERS RATE (0)
MINI LEVEL CODE – 4908

No need to set zero before use With mounting holes (for M5 screw)   Code Length Sensitivity 4908-100 100mm 0.1mm/m(=0.0057°) Check the PDF

AUTHOR RATEUSERS RATE (0)
SHORT LEVEL CODE – 4907

No need to set zero before use Suitable for small spaces like crankshaft Longitudinal and transverse V-grooves on bottom for shafts (shafts dia. 19.3~115.9mm) With transverse vial   Code Length Sensitivity 4907-90 90mm 0.1mm/m(=0.0057°) Check the PDF

AUTHOR RATEUSERS RATE (0)
BLOCK LEVEL CODE – 4903

V-groove on bottom for shafts (shafts dia. 15~70mm) With transverse vial Supplied with adjusting wrench   Code Length (L) Sensitivity B C 4903-150A 150mm 0.02mm/m(=0.001°) 40 45 4903-200A 200mm 0.02mm/m(=0.001°) 42 47 4903-150A 300mm 0.02mm/m(=0.001°) 45 50 Check the PDF

AUTHOR RATEUSERS RATE (0)
BLOCK LEVEL CODE – 4905

No need to set zero before use V-groove on bottom for shafts (shafts dia. 19.3~115.9mm) With longitudinal vial   Code Size (L) Sensitivity 4905-160 160mm 0.02mm/m(=0.001°) 4905-200 200mm 0.02mm/m(=0.001°) 4905-300 300mm 0.02mm/m(=0.001°) 4905-500 500mm 0.02mm/m(=0.001°) Check the PDF

AUTHOR RATEUSERS RATE (0)
FRAME LEVEL CODE – 4906

No need to set zero before use Three V-grooves for shafts (shafts dia. 19.3~115.9mm) With longitudinal vial     Code Size (LxL) Sensitivity 4906-150 150x150mm 0.02mm/m(=0.001°) 4906-200 200x200mm 0.02mm/m(=0.001°) 4906-300 300x300mm 0.02mm/m(=0.001°) Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL LEVEL AND PROTRACTOR

DIGITAL LEVEL AND PROTRACTOR  CODE – 2173 Aluminum frame Magnetic bottom with V-groove for shafts Zero setting can be made on any plain surfaces Buttons: ON/OFF, ZERO, HOLD (keep the reading) CR2032 battery Automatic power off   Code Range Resolution Accuracy 2173-360 0-360 (90°x4) 0.1° (= 1.745 mm/m) 0° & 90°: ±0.1°; others: ° and […]

AUTHOR RATEUSERS RATE (0)
DIGITAL LEVEL CODE – ISE-2DT

Color LCD, touch panel X-Y axis measurement Set the tolerance and the display is shown in different colors Check the PDF

AUTHOR RATEUSERS RATE (0)
COMBINATION SQUARE SET CODE – 2278

Center head: To locate center of cylinder with diameter (Ød): 30 – 100mm Accuracy: ±0.15mm Protractor head: To set the blade at desired angle to an edge of a workpiece, and can be used to measure angles Range: 0-180° Accuracy: ±7min. Square head: To set the blade at 90° or 45° to an edge of […]

AUTHOR RATEUSERS RATE (0)
BEVEL PROTRACTOR

UNIVERSAL PROTRACTOR CODE – 2372 Parallax-free reading Made of stainless steel Optional accessory: clamp (code2372-CLAMP), suitable for height gages 1156, 1351 and 1250   Code Range Graduation Accuracy 2372-360 0 – 360° 5′ ±5′ Check the PDF   DIAL PROTRACTOR CODE – 2373 Made of stainless steel Optional accessory: clamp (code2372-CLAMP), suitable for height gages […]

AUTHOR RATEUSERS RATE (0)
DEGREE PROTRACTOR

PROTRACTOR CODE – 4780 Made of stainless steel Satin chrome plated scale With clamping screw   Code  Size (AxB) Range  Graduation Accuracy 4780-85 85x150mm 0 – 180° 1° ±0.3° Check the PDF   PROTRACTOR CODE – 4781 Made of stainless steel Satin chrome plated scale With clamping screw   Code  Size Range  Graduation Accuracy 4781-85 […]

AUTHOR RATEUSERS RATE (0)
DIGITAL PROTRACTOR

DIGITAL PROTRACTOR CODE – 2171 Buttons: ON/OFF, HOLD (keep the reading), ZERO, ABS (absolute and incremental measurement) Fix the locking screw at 4 positions for different measuring ranges: 0°~225°, -225°~0°, -45°~180°, -180°~45° Remove the locking screw for 360° range With level vial Battery CR2032 Automatic power off   Code Size (L) Range Resolution Accuracy 2171-250 […]

AUTHOR RATEUSERS RATE (0)
INDIVIDUAL STEEL GAGE BLOCK CODE – 4101

Made of alloy steel Meet ISO3650 Supplied with manufacturer inspection certificate   Size Code 0.5mm 4101-XD5 0.991mm 4101-XD991 0.992mm 4101-XD992 0.993mm 4101-XD993 0.994mm 4101-XD994 0.995mm 4101-XD995 0.996mm 4101-XD996 0.997mm 4101-XD997 0.998mm 4101-XD998 0.999mm 4101-XD999 1mm 4101-X1 1.0005mm 4101-X1D0005 1.001mm 4101-X1D001 1.002mm 4101-X1D002 1.003mm 4101-X1D003 1.004mm 4101-X1D004 1.005mm 4101-X1D005 1.006mm 4101-X1D006 1.007mm 4101-X1D007 1.008mm 4101-X1D008 1.009mm […]

AUTHOR RATEUSERS RATE (0)
STEEL GAGE BLOCK SET CODE – 4100

Made of alloy steel Meet ISO3650 Supplied with manufacturer inspection certificate   Blocks per set Gage blocks included in set code Size(mm) Step(mm) Quantity(mm) Grade 0 Grade 1 Grade 2 122 1.0005 1 4100-122 4100-1122 4100-2122 1.0001-1.009 0.001 9 1.01-1.49 0.01 49 1.6-1.9 0.1 4 0.5-24.5 0.5 49 30-100 10 8 25-75 50 2 112 […]

AUTHOR RATEUSERS RATE (0)
CERAMIC GAGE BLOCK SET CODE – 4105

Made of ceramic, extremely wear resistance and corrosion resistance, excellent dimension stability Meet ISO3650 Supplied with manufacturer inspection certificate   Blocks per set Gage blocks included in set code Size(mm) Step(mm) Quantity(mm) Grade 0 Grade 1 Grade 2 112 1.0005 1 4100-112 4100-1112 4100-2112 1.0001-1.009 0.001 9 1.01-1.49 0.01 49 0.5-24.5 0.05 49 25-100 25 […]

AUTHOR RATEUSERS RATE (0)
HEIGHT SCRIBER CODE – 6990

Grooved bottom for cylinder Two pins to be set against the edge of surface plate Check the PDF

AUTHOR RATEUSERS RATE (0)
SCRIBER CALIPER CODE – 7203

Made of stainless steel Satin chrome plated reading surface Hardened scriber tips   Code Range Graduation Accuracy 7203-300A 51-300mm 0.1mm ±0.1mm Check the PDF

AUTHOR RATEUSERS RATE (0)
T-SHAPE MARKING GAGE CODE – 1275

Made of stainless steel Satin chrome plated reading surface   Code Range Graduation Accuracy 1275-150A 0-150mm 0.05mm ±0.05mm Check the PDF

AUTHOR RATEUSERS RATE (0)
MARKING GAGE CODE – 7120

Made of carbon steel Satin chrome plated   Code Range Graduation Accuracy L W 7120-200A 0 – 200mm 0.1mm ±0.1mm 250 40 7120-250A 0 – 250mm 0.1mm ±0.1mm 300 40 7120-300A 0 – 300mm 0.1mm ±0.1mm 350 40 Check the PDF

AUTHOR RATEUSERS RATE (0)
CENTER MARKING GAGE CODE – 7205

Marking the center of round plates and shafts Made of stainless steel Satin chrome plated   Code Size(AxB) Diameter of shafts (Ød) Accuracy C L 7205-100 100X70mm 4 – 90mm ±0.15mm 12 153 7205-150 150x130mm 4 – 190mm ±0.15mm 15 245 7205-200 200x150mm 6 – 220mm ±0.15mm 15 310 Check the PDF

AUTHOR RATEUSERS RATE (0)
TAPER GAGE

TAPER GAGE CODE – 4630 For quick measurement of gap width Stain chrome plated reading surface Made of stainless steel   Code Range Graduation Accuracy L a b 4630-3 0.4 – 6mm 0.05mm ±0.04mm  164  12.5  6.5 4630-1 0.5 – 10mm 0.05mm ±0.07mm 220 10 10.5 4630-2 0.5 – 15mm 0.1mm ±0.08mm 184  12.5 16.5 […]

AUTHOR RATEUSERS RATE (0)
STEEL RULE

STEEL RULE CODE – 7110 Graduation: 0.5mm, 1mm, 1/64″, 1/16″ Semi-flexible rules Made of stainless steel Non-glare surface   Code Range Accuracy L W H Remark 7110-150 150mm/6″ ±0.08mm 170 18 1.0 graduation on front and back 7110-200 200mm/8″ ±0.08mm 220 18 1.0 graduation on front and back 7110-300 300mm/12″ ±0.11mm 330 25 1.0 graduation […]

AUTHOR RATEUSERS RATE (0)
RADIUS GAGE SET

RADIUS GAGE CODE – 4801   Code Range Radius of leaves included (mm) Quantity of leaves (internal + external ) Accuracy 4801-17 1 – 7mm 1, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 2.75, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 17+17 ±0.03mm 4801-16 7.5 – 15mm 7.5, 8, 8.5, 9, 9.5, 10, 10.5, […]

AUTHOR RATEUSERS RATE (0)
CHAMFER GAGE CODE – 1267

Measure 45º chamfer dimension Graduation 0.02mm Made of stainless steel Satin chrome plated reading surface   Code Range Accuracy 1267-6 0-6mm ±0.06mm Check the PDF

AUTHOR RATEUSERS RATE (0)
ANGLE GAGE

ANGLE GAGE  CODE – 4806   Code Range Angle of leaves included Quantity of leaves Accuracy 4806-20 1° – 45° 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 12 , 14 , 16°, 18°, 20°, 25°, 30°, 35°, 40°, 45° 20 ±30′ Check […]

AUTHOR RATEUSERS RATE (0)
CENTER GAGE CODE – 4810

To check and set screw cutting tools, and check the angle and pitch of screw thread Angle accuracy: ±30min.   Code Thread type Angle (α) Graduation 4810-601 METRIC 60° 60° 0.5mm and 1mm 4810-602 UNIFIED 60° 60° 14ths and 20ths on front side, 24ths and 32ths on back side 4810-55 WHITWORTH 55° 55° 14ths and […]

AUTHOR RATEUSERS RATE (0)
THREAD PITCH GAGE

PITCH GAGE CODE – 4820 Check the pitch of screw thread Accuracy: ±0.07mm Metric 60° screw Code Range Pitch of leaves included Quantity of leaves 4820-122 0.4 – 7.0mm 0.4, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm 22 4820-124 0.25 – 7.0mm […]

AUTHOR RATEUSERS RATE (0)
FEELER GAGE TAPE CODE – 4621

Used as shims to accurately set spacing Made of hardened alloy steel Length 5m Width 13mm   Code Thickness (T) Accuracy 4621-02 0.02mm ±4µm 4621-03 0.03mm ±4µm 4621-04 0.04mm ±4µm 4621-04 0.05mm ±4µm 4621-06 0.06mm ±4µm 4621-07 0.07mm ±5µm 4621-08 0.08mm ±5µm 4621-09 0.09mm ±5µm 4621-10 0.10mm ±5µm 4621-12 0.12mm ±5µm 4621-15 0.15mm ±6µm 4621-18 […]

AUTHOR RATEUSERS RATE (0)
FEELER GAGE STOCK CODE – 4622

Used as shims to accurately set spacing Made of hardened alloy steel Length 300mm Width 13mm 10pcs/set   Code Thickness (T) Accuracy 4622-02 0.02mm ±3µm 4622-03 0.03mm ±3µm 4622-04 0.04mm ±3µm 4622-05 0.05mm ±3µm 4622-06 0.06mm ±3µm 4622-07 0.07mm ±4µm 4622-08 0.08mm ±4µm 4622-09 0.09mm ±4µm 4622-10 0.10mm ±4µm 4622-12 0.12mm ±5µm 4622-15 0.15mm ±5µm […]

AUTHOR RATEUSERS RATE (0)
FEELER GAGE SET

FEELER GAGE CODE – 4601 Made of hardened alloy steel Meet DIN2275 Accuracy: ±(3+T/80) µm, ‘T’ is the thickness of leaves in µm   Code Range Thickness of leaves included (mm) Quantity of leaves 4601-25 0.04 – 1.00mm 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, […]

AUTHOR RATEUSERS RATE (0)
LINEAR SCALE

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero set, mm/in, data set Battery SR44 or LR44 Made of stainless steel Supplied with bracket to be mounted on the back check the PDF.

AUTHOR RATEUSERS RATE (0)
DIGITAL VERTICAL SCALE CODE – 7102

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero set, mm/in, data set Battery SR44 or LR44 Made of stainless steel Supplied with bracket to be mounted on the back   Code Range Accuracy B C D E F L(mm) 7102-100 100mm ±0.02mm 4 20 6 24 40 245 7102-150 150mm ±0.03mm 4 20 6 24 40 296 7102-200 […]

AUTHOR RATEUSERS RATE (0)
DIGITAL HORIZONTAL SCALE CODE – 7101

type A Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power Battery CR2032 USB data output Made of stainless steel Supplied with bracket to be mounted on the back Optional accessory: data output system type B Resolution: 0.01mm/0.0005″ Button function: on/off, zero, mm/inch, ABS, data preset Absolute […]

AUTHOR RATEUSERS RATE (0)
PIPE WELDING GAGE CODE – 4841

Made of stainless steel   Code Measurement Range Graduation Accuracy 4841-1 internal misalignment 0 – 30mm 1mm ±0.5mm fit-up gap 0.7 – 4mm 0.1mm ±0.1mm Check the PDF

AUTHOR RATEUSERS RATE (0)
PIPE WELDING GAGE CODE – 4839

Made of stainless steel   Code Measurement Range Graduation Accuracy 4839-1 bevel on end preparation 37.5° — ±1° pipe wall thickness 0 – 45mm (0 – 1-3/4″) 1mm (1/16″) ±0.5mm internal misalignment 0 – 35mm (0 – 1-3/8″) 1mm (1/32″) ±0.5mm fit-up gap 1.6mm, 2.4mm — ±0.1mm crown height 0 – 35mm (0 – 1-3/8″) […]

AUTHOR RATEUSERS RATE (0)
WELDING GAUGE CODE – 4835

Adjustable scale to compensate pointer wear Made of stainless steel   Code Measurement Range Graduation Accuracy 4835-1 crown height 0 – 25mm (0 – 1″) 1mm (1/16″) ±0.5mm fillet weld leg height 0 – 25mm (0 – 1″) 1mm (1/16″) ±0.5mm misalignment (high-low) 0 – 25mm (0 – 1″) 1mm (1/16″) ±0.5mm undercut depth 0 […]

AUTHOR RATEUSERS RATE (0)
WELDING GAUGE CODE – 4838

Made of stainless steel   Code Measurement Range Graduation Accuracy 4838-1 crown height 0 – 10mm 1mm ±0.5mm leg height 0 – 14mm 1mm ±0.5mm undercut depth 0 – 5mm 0.05mm ±0.05mm throat size 0 – 13mm 1mm ±0.5mm weld length 0 – 40mm 1mm ±1mm angle 90° – 150° 5° ±1° gap 0.5 – […]

AUTHOR RATEUSERS RATE (0)
WELDING GAUGE CODE – 6832

Made of stainless steel Stain chrome plated surface   Code Measurement Range Graduation Accuracy 4830 leg length 0 – 10mm 0.1mm ±0.1mm leg height 0 – 20mm 1mm ±0.5mm crown height 0 – 10mm 0.1mm ±0.1mm throat size 0 – 10mm 0.1mm ±0.1mm angle 0° – 60° 5° ±1° gap 1 – 3.5mm 0.5mm ±0.5mm […]

AUTHOR RATEUSERS RATE (0)
WELDING GAUGE CODE – 4834

Pointer can be locked for later reference Made of stainless steel   Code Measurement Range Graduation Accuracy 4830 undercut depth 0 – 6mm 0.5mm ±0.5mm crown height 0 – 6mm 0.5mm ±0.5mm porosity size comparison 1.5mm, 3mm — ±0.2mm amount of porosity per 25mm 25mm 1mm — Check the PDF

AUTHOR RATEUSERS RATE (0)
FILLET WELD GAGE CODE – 4836

Measure concave and convex weld sizes 7 blades are included Made of stainless steel   crown height 0 – 8mm0.1mm±0.1mm Code Size Accuracy 4836-1 3mm , 4mm , 5mm , 6mm , 8mm , 9mm , 10mm , 11mm, 12mm, 14mm, 16mm, 19mm, 22mm, 25mm ±0.5mm 4836-2 1/8″ 3.2mm 3/16″ 4.8mm 1/4″ (6.4mm) 5/16″ 7.9mm 3/8″ (9.5mm), […]

AUTHOR RATEUSERS RATE (0)
FILLET WELD GAGE CODE – 4832

Made of stainless steel Sizes marked on both faces   Code Throat size (mm) Leg length (mm) Accuracy 4832-1 4, 5, 6, 7, 8, 9, 10, 12 4, 6, 7.5, 10, 12, 14, 16, 18 ±0.5mm Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL WELDING GAGE CODE – 4831

Buttons: zero, mm/inch, on/off Battery SR44 or LR44 Made of stainless steel   Code Measurement Range Graduation Accuracy 4830 crown height 0 – 7mm 0.01mm/0.0005″ ±0.03mm fillet weld throat size 0 – 20mm 0.01mm/0.0005″ ±0.1mm angle 60°, 70°, 80°, 90° — ±1° Check the PDF

AUTHOR RATEUSERS RATE (0)
WELDING GAUGE CODE – 4830

Made of stainless steel Stain chrome plated reading surface   Code Measurement Range Graduation Accuracy 4830 crown height 0 – 8mm 0.1mm ±0.1mm fillet weld throat size 0 – 20mm 0.1mm ±0.3mm angle 60°, 70°, 80°, 90° — ±1° Check the PDF

AUTHOR RATEUSERS RATE (0)
CRANKSHAFT TESTER CODE – 2841

To test crankshaft deflection The balance block is mounted on the back of dial indicator to keep the dial indicator facing up   Code range Dial indicator range Graduation Extension rods Accuracy 2841-300 60-300mm 3mm 0.01mm 16mm, 32mm, 64mm, 128mm ±0.016mm 2841-500 60-500mm ±0.03mm ±0.03mm 16mm, 32mm, 64mm, 96mm, 128mm, 192mm ±0.016mm Check the PDF

AUTHOR RATEUSERS RATE (0)
STEP AND GAP GAGE CODE – 2168

Measure step height and gap width Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power Battery CR2032 Data output Made of stainless steel Supplied with zero setting block Optional accessory: data output system   Code range Accuracy 2168-12 0-12.7mm/0-0.5″ ±0.03mm Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL SNAP GAGE

DIGITAL SNAP GAGE CODE – 2163 Resolution: 0.01mm/0.0005″ Accuracy: ±0.04mm For thickness and tube wall thickness measurement   Code Thickness range Tube all thickness range 2163-25 0-25mm/0-1″ 0-2mm/0.08″ Check the PDF   DIGITAL SNAP GAGE CODE – 2166   Code Range Resolution Accuracy 2166-12 0-12mm/0-0.5″ 0.01mm/0.0005″ ±0.03mm   Check the PDF   DIGITAL SNAP GAGE […]

AUTHOR RATEUSERS RATE (0)
DIAL SNAP GAGE CODE – 3334

Go/No-Go judgement for mass production Dial indicator: range ±0.04mm, graduation 0.001mm, accuracy 0.001mm IP54 dust/waterproof Measuring force: 5-10N Carbide measuring faces Supplied with setting standards (except 0-25mm)   Code Range L D 3334-25 0-25mm 28.5 25 3334-50 25-50mm 53.5 35 3334-75 50-75mm 78.5 47.5 3334-100 75-100mm 103.5 60 Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL SNAP GAGE CODE – 2184

For quick Go/No-Go judgment of diameter of cylinders and shafts Anvil retracting stroke: 3mm Measuring force: 6-9N Carbide measuring faces Optional accessory: dial indicators (graduation 0.01mm), digital indicators (resolution 0.01mm/0.0005″)   Code Range A B 2184-25W 0-25mm 34 18 2184-50W 0-50mm 62 32 2184-100W 50-100mm 112 62 2184-150W 100-150mm 162 85 2184-200W 150-200mm 212 110 […]

AUTHOR RATEUSERS RATE (0)
DIAL SNAP GAGE CODE – 2185

For quick Go/No-Go judgment of diameter of cylinders and shafts Anvil retracting stroke: 3mm Measuring force: 6-9N Carbide measuring faces Front edges of anvils are chamfered for easy workpiece insertion Optional accessory: dial indicators (graduation 0.01mm), digital indicators (resolution 0.01mm/0.0005″)   Code Range A B 2185-25W 0-25mm 42 20 2185-50W 25-50mm 69 32.5 2185-75W 50-75mm […]

AUTHOR RATEUSERS RATE (0)
DIAL SNAP GAGE CODE – 3336

Quick Go/No-Go judgement for mass production Carbide measuring faces Adjustable platform height Optional accessory: dial comparator (code 2881-01)   Code Range Diameter of measuring faces d) 3336-25 0-25mm 8 3336-50 25-50mm 8 3336-100 50-100mm 15 Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL SNAP GAGE CODE – 3335

Quick Go/No-Go measurement for mass production Anvil retracting stroke: 2.5mm Dial indicator: measuring range ±0.07mm, graduation 1µm, accuracy 1µm Constant measuring force over the whole range: 8.5N Carbide measuring faces IP54 dust/waterproof Zero position of dial indicator is adjustable and can be locked (supplied with locking wrench) Adjustable platform height   Code Range L a […]

AUTHOR RATEUSERS RATE (0)
DIAL THICKNESS GAGE

THICKNESS GAGE CODE – 2361   Code Range Graduation Accuracy 2361-10 0-10mm 0.1mm ±0.05mm Check the PDF   THICKNESS GAGE CODE – 2363 Stainless steel spindle tip and anvil   Code Range Graduation Accuracy 2363-10 0-10mm 0.01mm ±0.02mm Check the PDF   THICKNESS GAGE CODE – 2862   Code Range Graduation Accuracy L L1 2862-101 […]

AUTHOR RATEUSERS RATE (0)
TUBE THICKNESS GAUGE CODE – 2367

Measure tube wall thickness   Code Range Graduation Accuracy 2367-10A 0-10mm 0.01mm ±0.02mm Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL THICKNESS GAGE

THICKNESS GAGE CODE – 2861 Ceramic spindle tip and anvil   Code Range Graduation Accuracy 2861-10 0-10mm 0.01mm ±0.02mm Check the PDF   THICKNESS GAGE CODE – 2364   Code Range Graduation Accuracy Type 2364-10 0-10mm 0.01mm ±0.02mm A 2364-10B 0-10mm 0.01mm ±0.02mm B Check the PDF THICKNESS GAGE CODE – 2365   Code Range […]

AUTHOR RATEUSERS RATE (0)
DIGITAL THICKNESS GAUGE

DIGITAL THICKNESS GAGE CODE – 2871 Ceramic spindle tip and anvil Buttons: on/off, zero, mm/inch Battery CR2032, automatic power off Data output Optional accessory: data output system   Code Range Resolution Accuracy 2871-10 0-10mm/0-0.4″ 0.01mm/0.0005″ ±0.02mm 2871-101 0-10mm/0-0.4″ 0.001mm/0.00005″ ±0.005mm Check the PDF   DIGITAL THICKNESS GAGE CODE – 2867 Ceramic spindle tip and anvil […]

AUTHOR RATEUSERS RATE (0)
DIGITAL EXTERNAL CALIPER GAGE CODE – 2132

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system   Code Range Resolution Accuracy L(mm) 2132-20 0-20mm/0-0.8″ 0.01mm/0.0005″ ±0.04mm 60 2132-40 20-40mm/0.8-1.6″ 0.01mm/0.0005″ […]

AUTHOR RATEUSERS RATE (0)
EXTERNAL DIAL CALIPER GAGE CODE – 2332

  Code Range Graduation Accuracy L(mm) 2332-20 0-20mm 0.01mm ±0.04mm 60 2332-40 20-40mm 0.01mm ±0.04mm 60 2332-60 40-60mm 0.01mm ±0.04mm 55 2332-80 60-80mm 0.01mm ±0.04mm 55 2332-100 80-100mm 0.01mm ±0.04mm 55 Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL INTERNAL CALIPER GAGE CODE -2151

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system   Code Range Resolution Accuracy L A D 2151-35 15-35mm/0.6-1.4″ 0.01mm/0.0005″ ±0.04mm 50 3 […]

AUTHOR RATEUSERS RATE (0)
INTERNAL DIAL CALIPER GAGE CODE – 2321

    Code Range Graduation Accuracy L A D 2321-35 15-35mm 0.01mm ±0.04mm 50 3 Ø3 2321-AL35 15-35mm 0.01mm ±0.04mm 200 3 Ø3 2321-55 35-55mm 0.01mm ±0.04mm 80 6 Ø3 2321-AL55 35-55mm 0.01mm ±0.04mm 250 8 Ø3 2321-75 55-75mm 0.01mm ±0.04mm 90 8 Ø3 2321-AL75 55-75mm 0.01mm ±0.04mm 250 8 Ø3 2151-95 75-95mm 0.01mm ±0.04mm […]

AUTHOR RATEUSERS RATE (0)
MAGNETIC STAND FOR UNEVEN SURFACE CODE – 6215

For digital/dial indicators and dial test indicators With fine adjustment       Code Magnetic force Applicable holding stem 6215-60 60kgf Ø8mm, Ø4mm, 3/8″ DIA. Check the PDF

AUTHOR RATEUSERS RATE (0)
FLEX ARM MAGNETIC STAND CODE – 6207

For dial indicators       Code Magnetic force Applicable holding stem 6207-80A 80kgf Ø8mm, Ø4mm, 3/8″ DIA. Check the PDF

AUTHOR RATEUSERS RATE (0)
MAGNETIC STAND CODE – 6200

For digital/dial indicators and dial test indicators     Code Magnetic force Applicable holding stem Remark 6200-60 60kgf Ø8mm, Ø4mm, 3/8″ DIA. without fine adjustment 6201-60 60kgf Ø8mm, Ø4mm, 3/8″ DIA. with fine adjustment 6202-80 80kgf Ø8mm, Ø4mm, 3/8″ DIA. with fine adjustment 6202-100 100kgf Ø8mm, Ø4mm, 3/8″ DIA. with fine adjustment   Check the […]

AUTHOR RATEUSERS RATE (0)
MINI MAGNETIC STAND CODE – 6211

For dial test indicators With dovetail groove     Code Magnetic force Applicable holding stem 6211-10 10kgf Ø6mm, Ø8mm Check the PDF

AUTHOR RATEUSERS RATE (0)
MINI MAGNETIC STAND CODE – 6224

For dial indicators With fine adjustment and dovetail groove     Code Magnetic force Applicable holding stem 6224 40 40kgf Ø8mm Check the PDF

AUTHOR RATEUSERS RATE (0)
UNIVERSAL MAGNETIC STAND CODE – 6210

For digital/dial indicators and dial test indicators   Code Magnetic force Applicable holding stem Remark 6210-81 80kgf Ø8mm with fine adjustment and dovetail groove 6210-80 80kgf Ø8mm with fine adjustment and dovetail groove 6210-100 100kgf Ø8mm with fine adjustment and dovetail groove Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR CENTERING HOLDER CODE – 6295

Center cylinders or holes on machine tools Can be used with dial test indicators Check the PDF

AUTHOR RATEUSERS RATE (0)
INDICATOR CENTERING HOLDER CODE – 6294 1A

Center cylinders or holes on machine tools Can be used with dial test indicators or dial indicators Check the PDF

AUTHOR RATEUSERS RATE (0)
ROUND BODY DIAL TEST INDICATOR CODE – 2391

Jeweled bearing Carbide contact point Adjustable two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2391-08* 0.8mm 0.01mm 13µm 3μm 0-40-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
SIDE TYPE DIAL TEST INDICATOR CODE – 2898

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2898-08* 0.8mm 0.01mm 13µm 3μm 0-40-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
LONG STYLI DIAL TEST INDICATOR CODE – 2896

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2896-05* 0.5mm 0.01mm 13μm 3μm 0-25-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
BACK PLUNGER TYPE DIAL TEST INDICATOR CODE – 2398

Jeweled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2398-08* 0.8mm 0.01mm 13µm  3µm 0-40-0 *Supplied with manufacturer inspection certificate traceable to NIST USA Check the PDF

AUTHOR RATEUSERS RATE (0)
BACK PLUNGER LONG STYLI DIAL TEST INDICATOR CODE – 2899

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2899-05* 0.5mm 0.01mm 13μm 3μm 0-25-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR CODE – 2380

Jeweled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading A L mm 2380-08* 0.8mm 0.01mm 13µm 3µm 0-40-0 Ø30 13.5 2381-08* 0.8mm 0.01mm 13µm 3µm 0-40-0 Ø37 13.5 2380-02* 0.2mm 0.002mm 6µm […]

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL TEST INDICATOR CODE – 2897

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2897-0* 0.2mm 0.001mm 4µm 2µm 0-100-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL TEST INDICATOR CODE – 2880

Ceramic bearing Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading Remark 2880-02* 0.2mm  0.002mm 4µm 2µm 0-100-0 anti magnetic carbide contact point 2880-02R* 0.2mm 0.002mm 4µm 2µm 0-100-0 ruby contact point *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION COMPACT DIAL INDICATOR CODE – 2884

Eliminate the possibility of reading errors due to miscounting Shockproof Free stroke: 4mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2884-08* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 lug back 2884-08F* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 flat back *Supplied with […]

AUTHOR RATEUSERS RATE (0)
COMPACT DIAL INDICATOR CODE – 2311

Jeweled bearing Supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark B D 2311-3* 3mm 0.01mm 14µm 3µm 0.5mm 0-50 lug back 46 10.5 2311-5* 5mm 0.01mm 16µm 3µm 0.5mm 0-50 lug back 48 12.5 2311-3F* 3mm 0.01mm 14µm 3µm 0.5mm […]

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION DIAL INDICATOR CODE – 2882

Eliminate the possibility of reading errors due to miscounting Shockproof Free stroke: 7mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2882-08* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 lug back 2882-08F* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 flat back *Supplied with […]

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION PRECISION DIAL INDICATOR CODE – 2885

Eliminate the possibility of reading errors due to miscounting Shockproof Jeweled bearing Free stroke: 4.5mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131), lifting lever(code 6289-150)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2885-008* 0.08mm 0.001mm 3µm 1.5µm 1mm 40-0-40 lug back 2885-008F* 0.08mm 00.001mm 3µm 1.5µm 1mm […]

AUTHOR RATEUSERS RATE (0)
DIAL INDICATOR CODE – 2309

Shockproof Jeweled bearing Supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Type Accuracy Hysteresis Range/rev Dial reading Remark 2309-30* 30mm 0.01mm A 35µm 7µm 1mm 0-100 lug back 2309-30F* 30mm 0.01mm A 35µm 7µm 1mm 0-100 flat back 2309-50* 50mm 0.01mm A 40µm 8µm 1mm 0-100 […]

AUTHOR RATEUSERS RATE (0)
WATER INDICATOR CODE – 2324

IP54 dust/waterproof Jeweled bearing   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading/td> Remark 2324-10* 10mm 0.01mm 17µm 3µm 1mm 0-100 lug back 2324-10F* 10mm 0.01mm 17µm 3µm 1mm 0-100 lug back *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
SHOCKPROOF DIAL INDICATOR CODE – 2314

Shockproof Jeweled bearing Supplied with limit pointers and bezel clamp Optional accessory: backs (page 132), contact points (page 128~131) *Supplied with manufacturer calibration certificate   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading/td> Remark 2314-3A* 3mm 0.01mm 14µm 3µm 1mm 0-100 lug back 2314-5A* 5mm 0.01mm 16µm 3µm 1mm 0-100 lug back 2314-10A* 10mm 0.01mm […]

AUTHOR RATEUSERS RATE (0)
DIAL INDICATOR CODE – 2308

Jeweled bearing Supplied with limit pointers and bezel clamp Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy/td> Hysteresis Range/rev Dial reading/td> Remark 2308-3A* 3mm 0.01mm 14µm 3µm 1mm 0-100 lug back 2308-5A* 5mm 0.01mm 16µm 3µm 1mm 0-100 lug back 2308-10A* 10mm 0.01mm 17µm 3µm 1mm 0-100 lug back […]

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL INDICATOR CODE – 2313

Graduation: 0.001mm Jeweled bearing Supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Accuracy Hysteresis Range/rev Dial reading Remark A B C D 2313-1A* 1mm 5µm 2µm 0.2mm 0-100-0 lug back 45 62.5 19.5 15 2313-2A* 2mm 8µm 2.5µm 0.2mm 0-100-0 lug back 45 62.5 19.5 15 2313-1FA* […]

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL INDICATOR CODE – 2830

Shockproof Jeweled bearing With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2830-1* 1mm 0.001mm 4µm 2µm 0.2mm 0-100-0 lug back 2830-1F* 1mm 0.001mm 4µm 2µm 0.2mm 0-100-0 flat back *Supplied with manufacturer inspection certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR FOR BORE GAGES CODE – 2108

Specially designed for bore gages The minimum value tracking function can find the diameter automatically Read the diameter directly, after imputing the size of setting ring Reading in digit and analog Display can be rotated by 320º Button function: minimum value tracking, calibration, data preset, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR WITH LIFTING LEVER CODE – 2109

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data Output Optional accessory: data output system, backs (page 132), contact points (page 128~131)   Code Range Resolution Accuracy Hysteresis Remark […]

AUTHOR RATEUSERS RATE (0)
WATERPROOF DIGITAL INDICATOR CODE : 2115

Dust/waterproof Button function: on/off, zero, mm/inch CR2032 battery, automatic power off Data output Optional accessory: data output system(code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 125), contact points (page 121~124)   Resolution 0.001mm/0.0005″ Code Range Dust/waterproof Accuracy Hysteresis Remark 2115-101* 12.7mm/0.5″ IP65 5µm 2µm lug back 2115-251* 25.4mm/1″ IP54 5µm 3µm lug back 2115-501* 50.8mm/2″ IP54 6µm […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR CODE : 2104

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system (code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 125), contact points (page 121~124)   Resolution 0.01mm/0.0005″ […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR CODE 2103

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system (code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 125), contact points (page 121~124)   Resolution 0.001mm/0.0005″ […]

AUTHOR RATE
Long Handle Code 7351

Brand : Insize

AUTHOR RATE
Bore Gage Code 2827

Brand : Insize

AUTHOR RATE
Bore Gage Code 2322

Brand : Insize

AUTHOR RATE
Large Micrometer Head Code 6388

Brand : Insize
