INSIZE MICROMETER HEAD (CODE – 6387)

Code:

▪Meet DIN863-2
▪Graduation 0.01mm
▪Accuracy : 3μm

Click to Expand

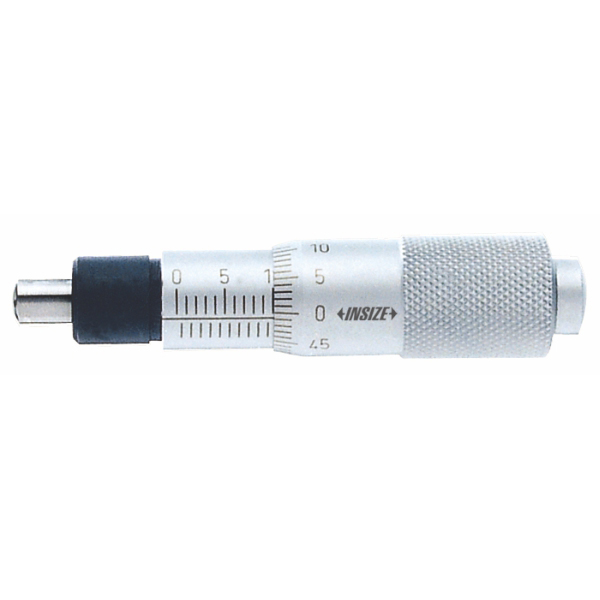

INSIZE MICROMETER HEAD (CODE – 6387)

Product Overview

The INSIZE Micrometer Head (Code – 6387 series) is a precision measuring instrument designed to meet DIN863-2 standards. It features a graduation of 0.01mm and an accuracy of 3µm, available across multiple model variants with options for flat or spherical spindle tips and plain or clamp nut stems.

Key Features & Capabilities

Meets DIN863-2 standard
Graduation: 0.01mm
Accuracy: 3µm
Available with flat (carbide) or spherical (SR5) spindle tips
Choice of plain stem or stem with clamp nut

Technical Specifications

Code	Range	Stem	Spindle tip	Accuracy
6387-15	0-15mm	with clamp nut	flat (carbide)	3µm
6387-15W	0-15mm	plain	flat (carbide)	3µm
6387-15S	0-15mm	with clamp nut	spherical (SR5)	3µm

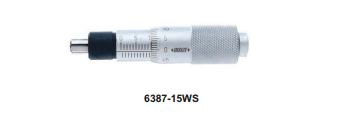

6387-15WS	0-15mm	plain	spherical (SR5)	3µm
