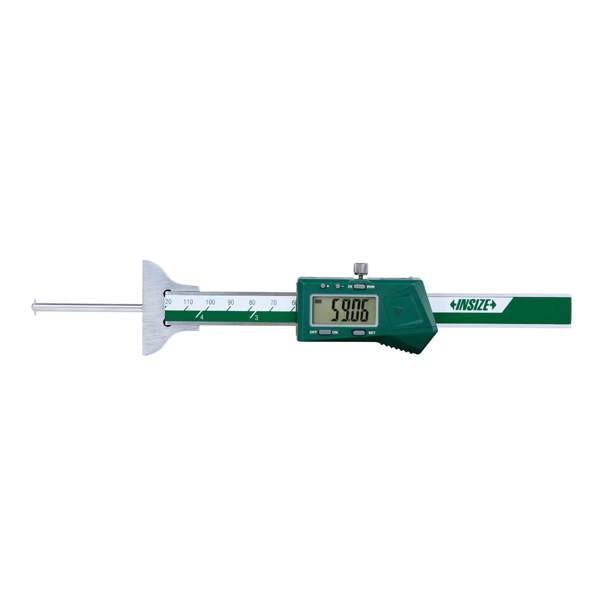

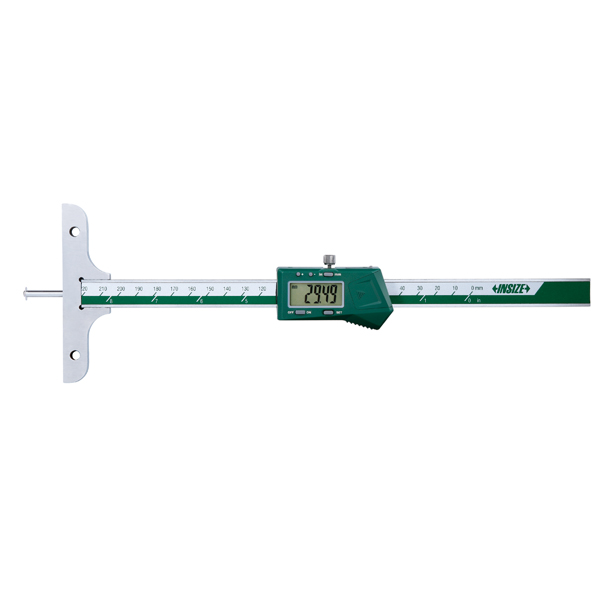

INSIZE DIGITAL DEPTH GAGES WITH ROUND DEPTH BAR (CODE -1148)

Non waterproof Resolution: 0.01mm/0.0005" Supplied with three interchangeable points (flat, spherical, disk) Buttons: on/off, set, mm/inch, preset (+, -) Automatic power off, move the digital unit to turn on power Battery CR2032 Made of stainless steel Optional accessory: extension base (code 6141, for 1148-120 and 1148-200)

With data interface

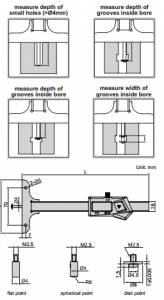

Code Range* Accuracy L (mm) d (mm) Remark
1148-110S 0-100mm/0-4″ ±0.02mm 200 45
1148-100 0-100mm/0-4″ ±0.02mm 200 85

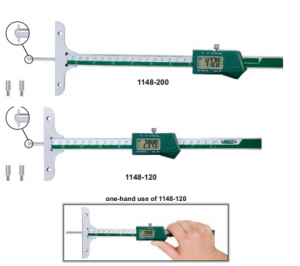

1148-120 0-120mm/0-4.7″ ±0.03mm 300 101 one-hand use, with mounting  holes for extension base
1148-200 0-200mm/0-8″ ±0.03mm 300 101 with mounting holes for extension base
1148-300 0-300mm/0-12″ ±0.04mm 400 101 with mounting holes for extension base

Built-in wireless (receiver code 7315-2/3/6/7/8/9 is required)

Code Range* Accuracy L (mm) d (mm) Remark
1148-110SWL 0-100mm/0-4″ ±0.02mm 200 45
1148-100WL 0-100mm/0-4″ ±0.02mm 200 85
1148-120WL 0-120mm/0-4.7″ ±0.03mm 300 101 one-hand use, with mounting  holes for extension base
1148-200WL 0-200mm/0-8″ ±0.03mm 300 101 with mounting holes for extension base
1148-300WL 0-300mm/0-12″ ±0.04mm 400 101 with mounting holes for extension base

*When disk points are used, the range is reduced by 10mm

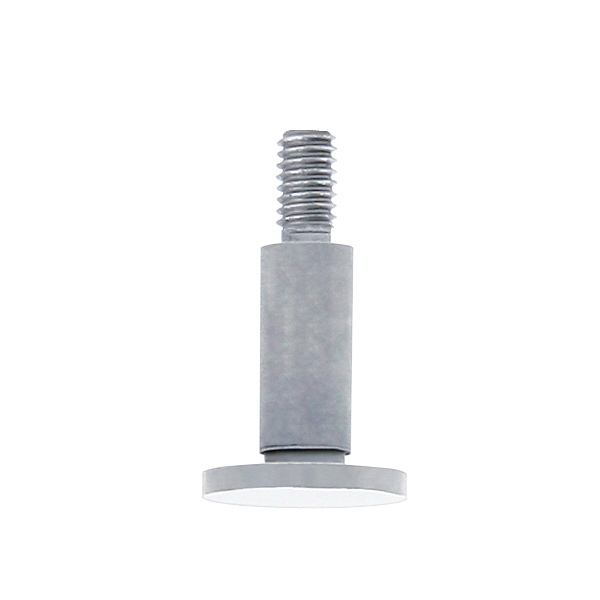

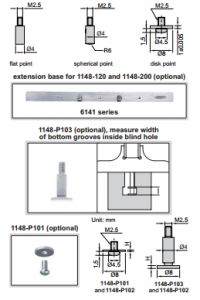

Optional Disk Point

Code Description H Remark

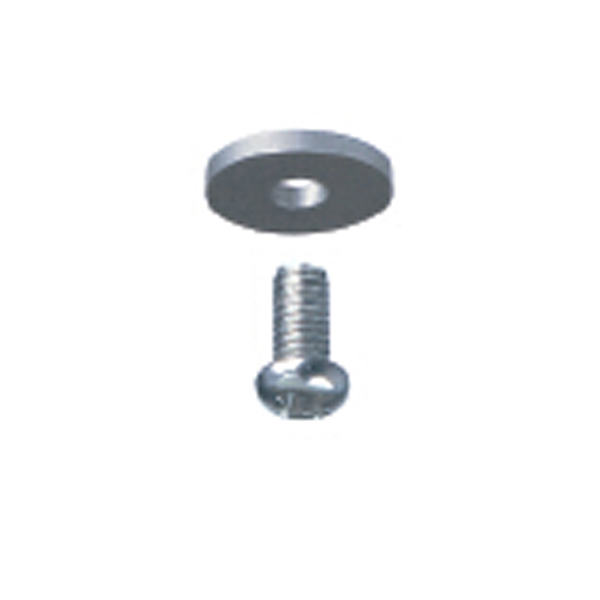

1148-P101 0.5mm disk point 0.5±0.005mm for narrow grooves
1148-P102 0.7mm disk point 0.7±0.005mm for narrow grooves
1148-P103 1mm disk point 1±0.005mm for grooves inside blind hole
1148-P104 0.5mm disk point 0.5±0.005mm for grooves inside blind hole



  • Non waterproof
  • Resolution: 0.01mm/0.0005″
  • Supplied with three interchangeable points (flat, spherical, disk)
  • Buttons: on/off, set, mm/inch, preset (+, -)
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Made of stainless steel
  • Optional accessory: extension base (code 6141, for 1148-120 and 1148-200)
