Noga DG61003 & MG61003 Holders

NOGA DG61003 AND NOGA MG61003

DG Holder – Noga DG61003 New Fine adjustment on Top with universal swivel clamp. Unique central locking mechanism with Noga designed spring loaded bearing.Noga DG61003 Dial gauge holder is 3 dimensional. Most powerful on/off magnetic base. Instant fixation in any position. Fast and easy to set up gauges into required position. Black finished Arms. Clamp

DG Holder – Noga DG61003

New Fine adjustment on Top with universal swivel clamp.

Unique central locking mechanism with Noga designed spring loaded bearing.Noga DG61003
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Clamp Holds:	6mm, 8mm, 3/8″and dovetail
Bottom thread:	Ext. M8
Weight:	1.35 Kg
Bottom Arm:	110mm
Total Length:	282mm
Magnet Force:	800 N
Magnet Width:	50mm
Magnet Length:	60mm
Magnet Height:	55mm

Noga DG61003

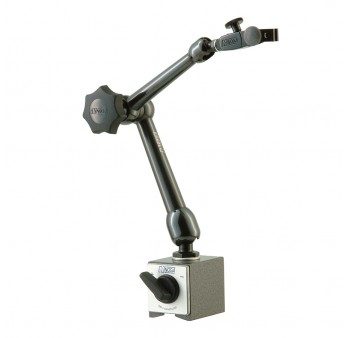

MG Holder – MG61003

New Fine adjustment on Top with universal swivel clamp.

Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Clamp Holds:	6mm, 8mm, 3/8″and dovetail
Bottom thread:	Ext. M8
Weight:	1.90 Kg
Bottom Arm:	133mm
Top Arm:	113mm
Total Length:	317mm
Magnet Force:	800 N
Magnet Width:	50mm
Magnet Length:	60mm
Magnet Height:	55mm
