Eight different magnets ranging from the world’s smallest switchable on/off (320N) to a large magnetic base (1300N), a 350N vacuum base and 5 clamps are offered for our customers’ choice.
|
All measurements are in mm unless otherwise mentioned.
|
|||||||
|

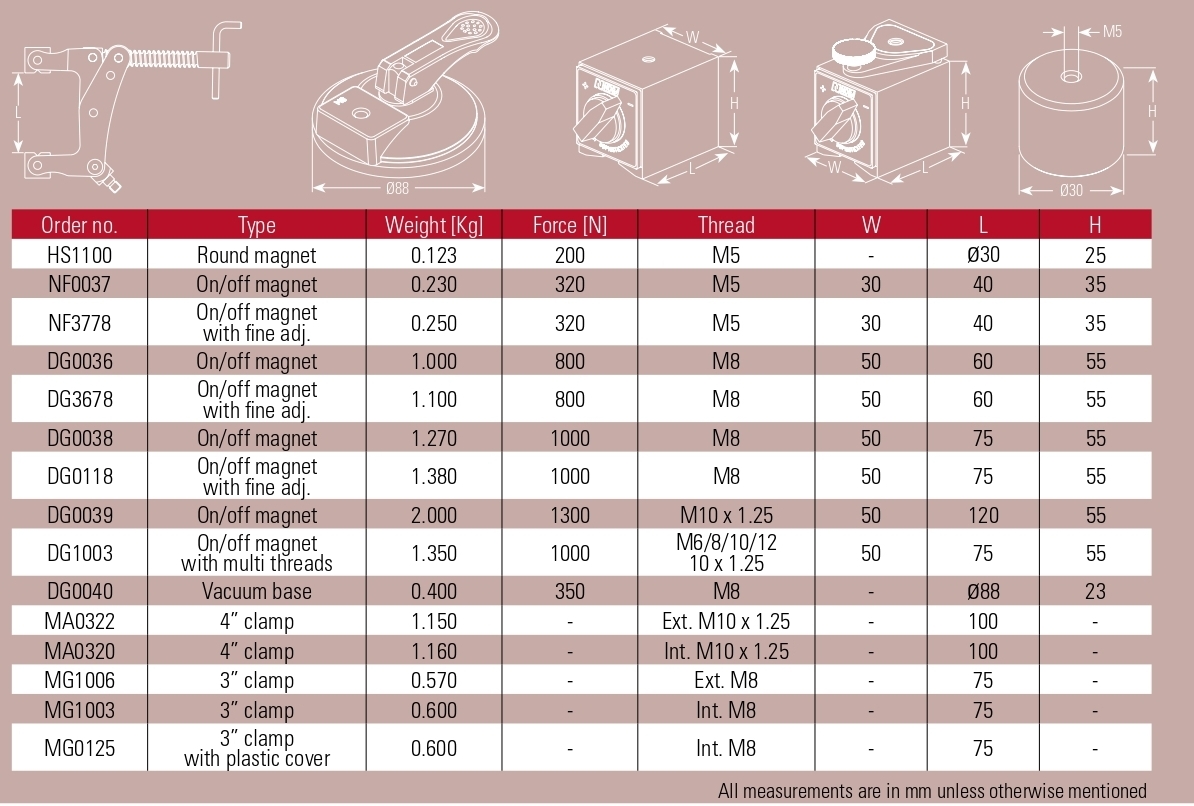

Order no.
|
Type
|
Weight [Kg]
|
Force [N]
|
Thread
|
W
|
L
|
H
|
|
NF0037
|
On/off magnet
|
0.230
|
320
|
M5
|
30
|
40
|
35
|
|
NF3778
|
On/off magnet
with fine adj. |
0.250
|
320
|
M5
|
30
|
40
|
35
|
|
DG0036
|
On/off magnet
|
1.000
|
800
|
M8
|
50
|
60
|
55
|
|
DG3678
|
On/off magnet
with fine adj. |
1.100
|
800
|
M8
|
50
|
60
|
55
|
|
DG0038
|
On/off magnet
|
1.270
|
1000
|
M8
|
50
|
75
|
55
|
|
DG0118
|
On/off magnet
with fine adj. |
1.380
|
1000
|
M8
|
50
|
75
|
55
|
|
DG0039
|
On/off magnet
|
2.000
|
1300
|
M10 x 1.25
|
50
|
120
|
55
|
|
DG1003
|
On/off magnet
multi thread |
1.350
|
1000
|
M6/8/10/12
10 x 1.25 |
50
|
75
|
55
|
|
DG0040
|
Vacuum base
|
0.400
|
350
|
M8
|
–
|
ø 92
|
–
|
|
MA0322
|
4” clamp
|
1.150
|
–
|
Ext. M10 x 1.25
|
–
|
100
|
–
|
|
MA0320
|
4” clamp
|
1.160
|
–
|
Int. M10 x 1.25
|
–
|
100
|
–
|
|
MG1006
|
3” clamp
|
0.570
|
–
|
Ext. M8
|
–
|
75
|
–
|
|
MG1003
|
3” clamp
|
0.600
|
–
|
Int. M8
|
75
|
–
|
|
|
MG0125
|
3” clamp
with plastic cover 75 |
0.600
|
–
|
Int. M8
|
–
|
75
|
–
|
