The NOGA Centering Holders are precision tools designed to hold and align dial indicators or test indicators for accurate centering of workpieces on machines. They enable quick and reliable positioning of indicators in spindles, chucks, or collets, ensuring precise alignment during setup.
Function: Used to mount indicators directly into machine spindles for centering tasks.
Design: Rigid and well-balanced construction to minimize vibration and error.
Compatibility: Fits most standard collets, chucks, and spindle tapers.
Accuracy: Provides fast, repeatable, and precise centering of workpieces.
Applications: Ideal for lathes, milling machines, and other precision setups.
|

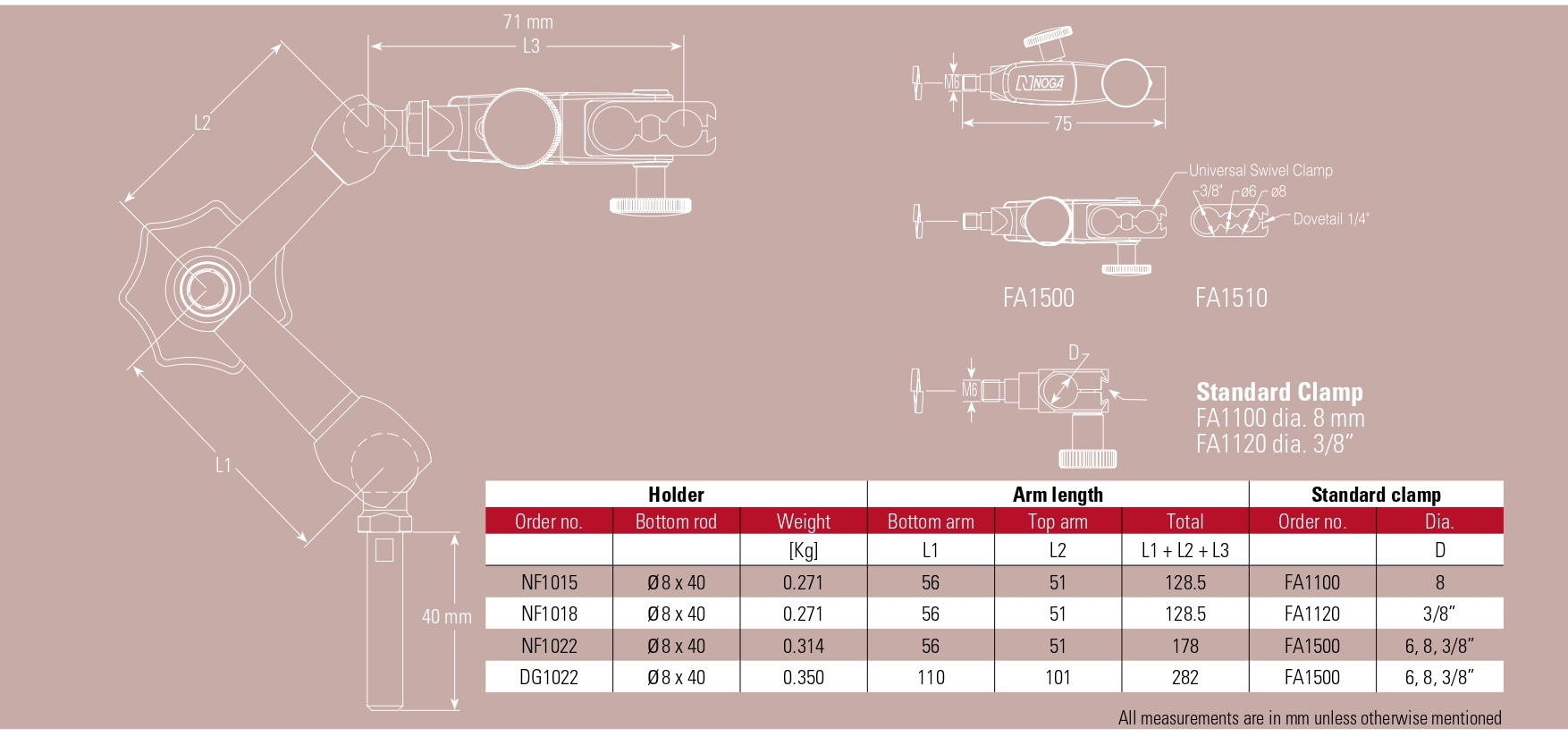

Order no. |
Holder | Arm Length | Standard Clamp | ||||
|---|---|---|---|---|---|---|---|
| Bottom Thread | Weight [Kg] | Bottom Arm L1 | Top Arm L2 | Total L1 + L2 + L3 | Order no. | D | |
| NF1015 | Ø8 x 40 | 0.271 | 56 | 51 | 128.5 | FA1100 | 8 |
| NF1018 | Ø8 x 40 | 0.271 | 56 | 51 | 128.5 | FA1120 | 3/8″ |
| NF1022 | Ø8 x 40 | 0.314 | 56 | 51 | 178 | FA1500 | 6,8,3/8″ |

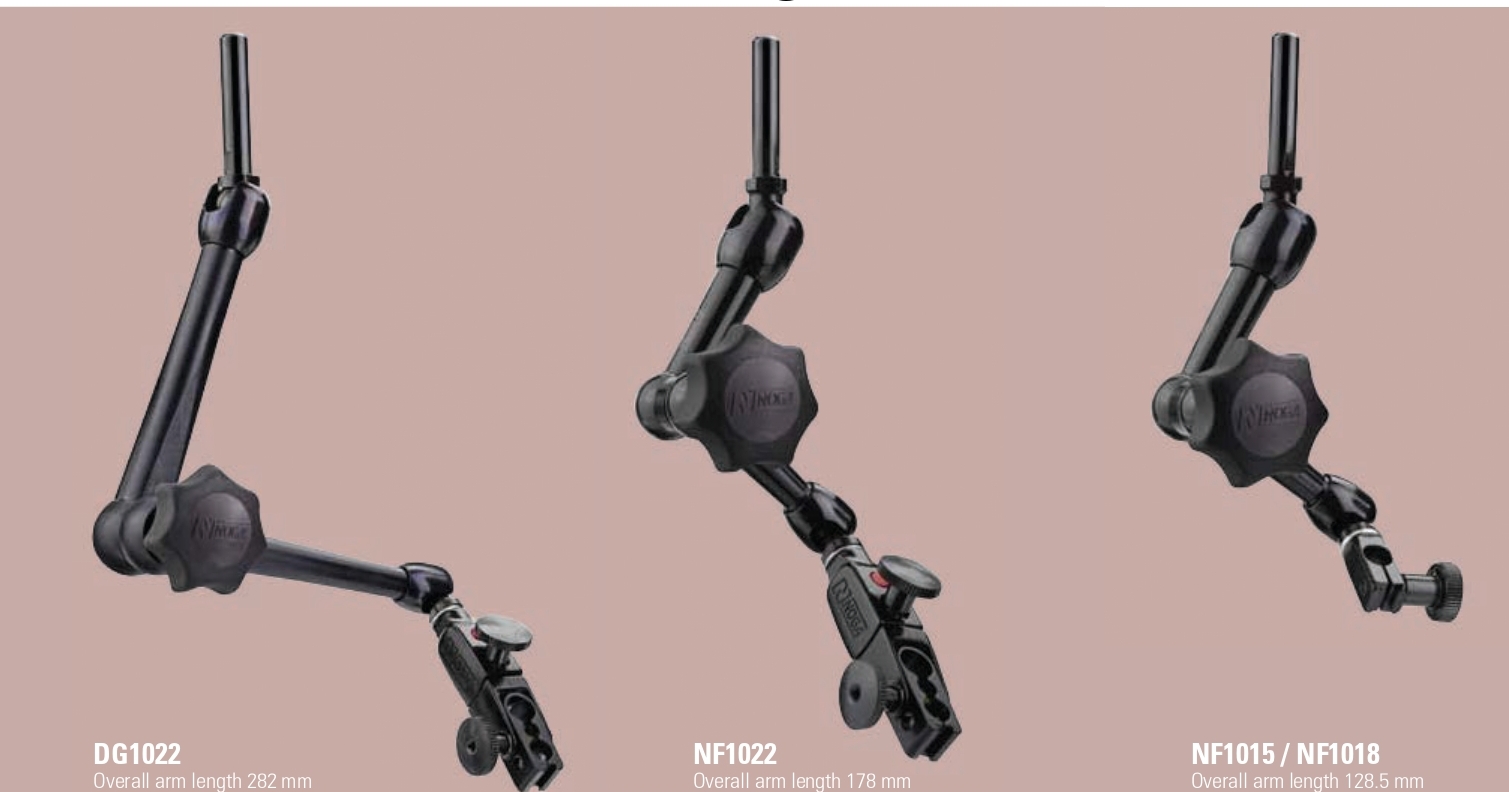

Centering NF holder 8mm – NF1015
– Used for centering of workpieces.
– Central locking mechanism with spring loaded bearing.
– Centering rod Ø 8mm x 40mm.
– Black finished arms.
Centering NF holder 3/8″ – NF1018
– Used for centering of workpieces.
– Central locking mechanism with spring-loaded bearing.
– Centering rod Ø 8mm x 40mm.
– Black finished arms.
Centering NF holder universal – NF1022
– Used for centering of workpieces.
– Central locking mechanism with spring-loaded bearing.
– Centering rod Ø 8mm x 40mm.
– Black finished arms.
Centering DG holder universal – DG1022
– Used for centering of workpieces.
– Central locking mechanism with spring-loaded bearing.
– Centering rod Ø 8mm x 40mm.
– Black finished arms.
