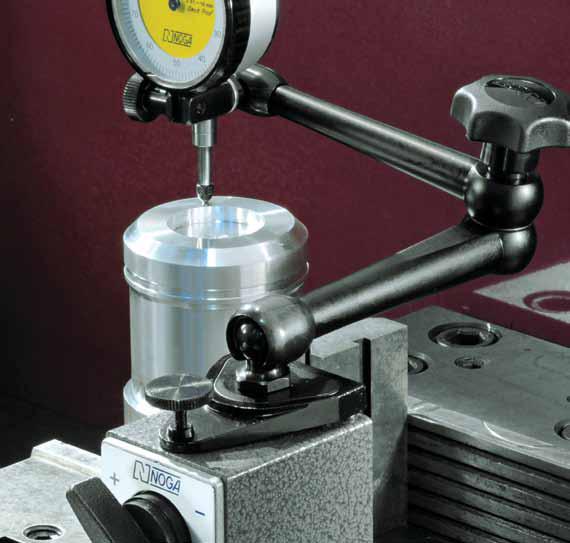

The NOGA Universal Fine Adjustment Base (FAB) is a high-precision magnetic base equipped with a fine adjustment mechanism. It is designed to hold dial indicators, test indicators, and other measuring instruments firmly in place while allowing micrometric adjustments for exact positioning. The strong magnetic base ensures rigid clamping on ferrous surfaces, while the fine adjustment feature guarantees accuracy and repeatability during inspection or machining setups.
Base: Powerful on/off magnetic base for secure mounting
Adjustment: Built-in fine adjustment screw for micrometric positioning
Design: Universal swivel arms for flexible positioning
Application: Ideal for use with dial indicators, test indicators, and gauges
| Holder | Weight [Kg] | Standard Clamp | Arm Length | Magnet | |||||
|---|---|---|---|---|---|---|---|---|---|
| D | Bottom Arm L1 | Top Thread L2 | Total L1 + L2 + L3 | Force [N] | Dimension L | Dimension W | Dimension H | ||
| NF10403 | 0.52 | 8 | 56 | 51 | 128.5 | 320 | 40 | 30 | 35 |
| NF10433 | 0.52 | 3/8″ | 56 | 51 | 128.5 | 320 | 40 | 30 | 35 |
| DG10503 | 1.4 | 8 | 110 | 101 | 232.5 | 800 | 60 | 50 | 55 |
| DG10533 | 1.4 | 3/8″ | 110 | 101 | 232.5 | 800 | 60 | 50 | 55 |
| MG10503 | 1.9 | 8 | 133 | 113 | 267.5 | 800 | 60 | 50 | 55 |
| MG10533 | 1.9 | 3/8″ | 133 | 113 | 267.5 | 800 | 60 | 50 | 55 |
The NOGA Universal Fine Adjustment Base (FAB) is commonly used in:
Machine shops & CNC setups – for precise indicator positioning on workpieces.
Inspection departments – in dimensional measurement and quality control tasks.
Surface plates & tooling setups – for alignment and calibration.
Maintenance & calibration work – wherever fine adjustment of measuring tools is required.
