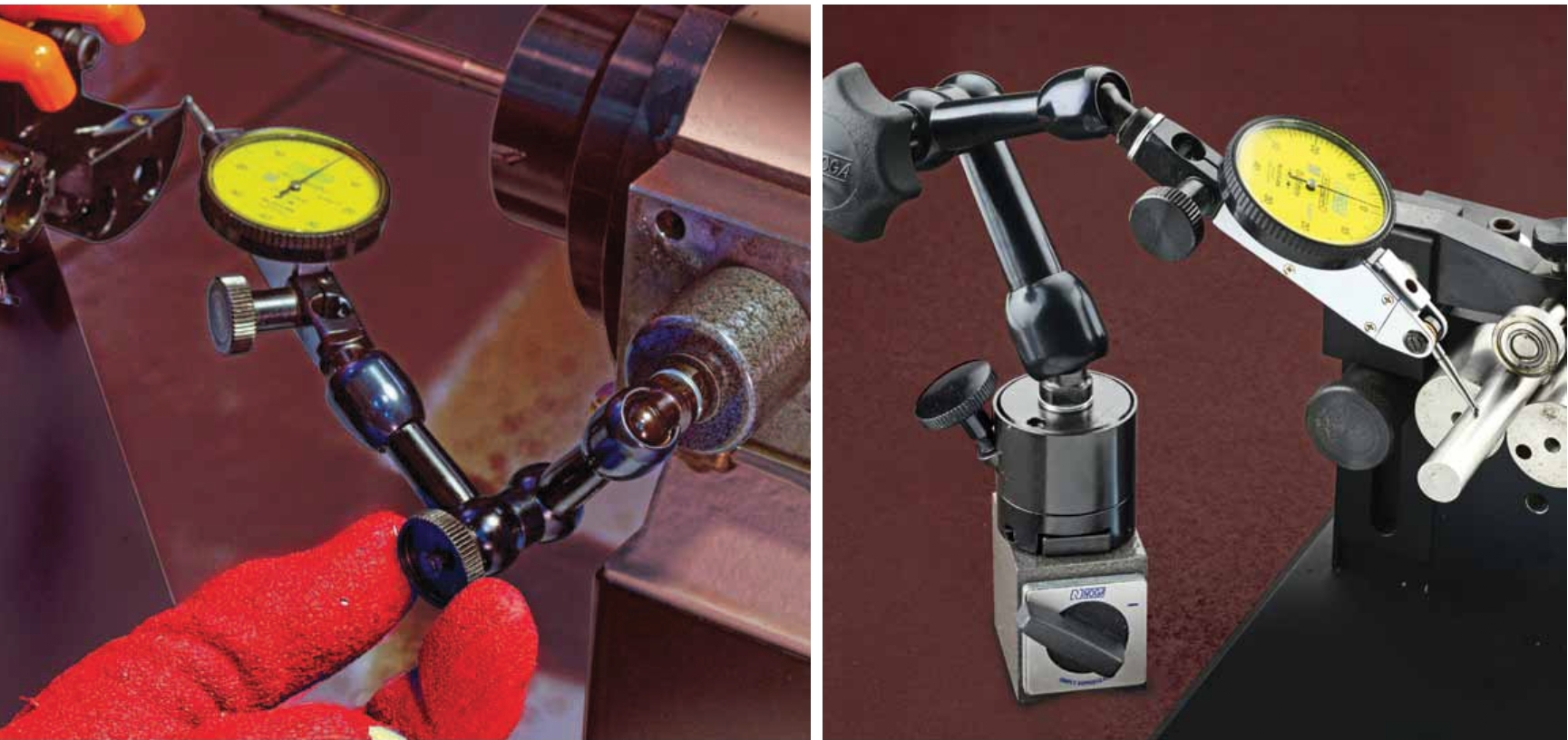

The NOGA Universal Mini Holders are compact and versatile holding devices designed for precise positioning of small measuring instruments such as dial indicators and test indicators. Despite their small size, they provide strong clamping force and high stability, making them ideal for delicate measurement tasks in limited spaces.
Compact Design: Lightweight and easy to handle, perfect for confined areas.
Universal Joints: Allow flexible positioning at multiple angles.
Strong Grip: Firmly holds indicators for accurate readings.
Durable Build: Made from high-quality materials for long service life.
Applications: Suitable for small-scale machining, inspection, and calibration work.

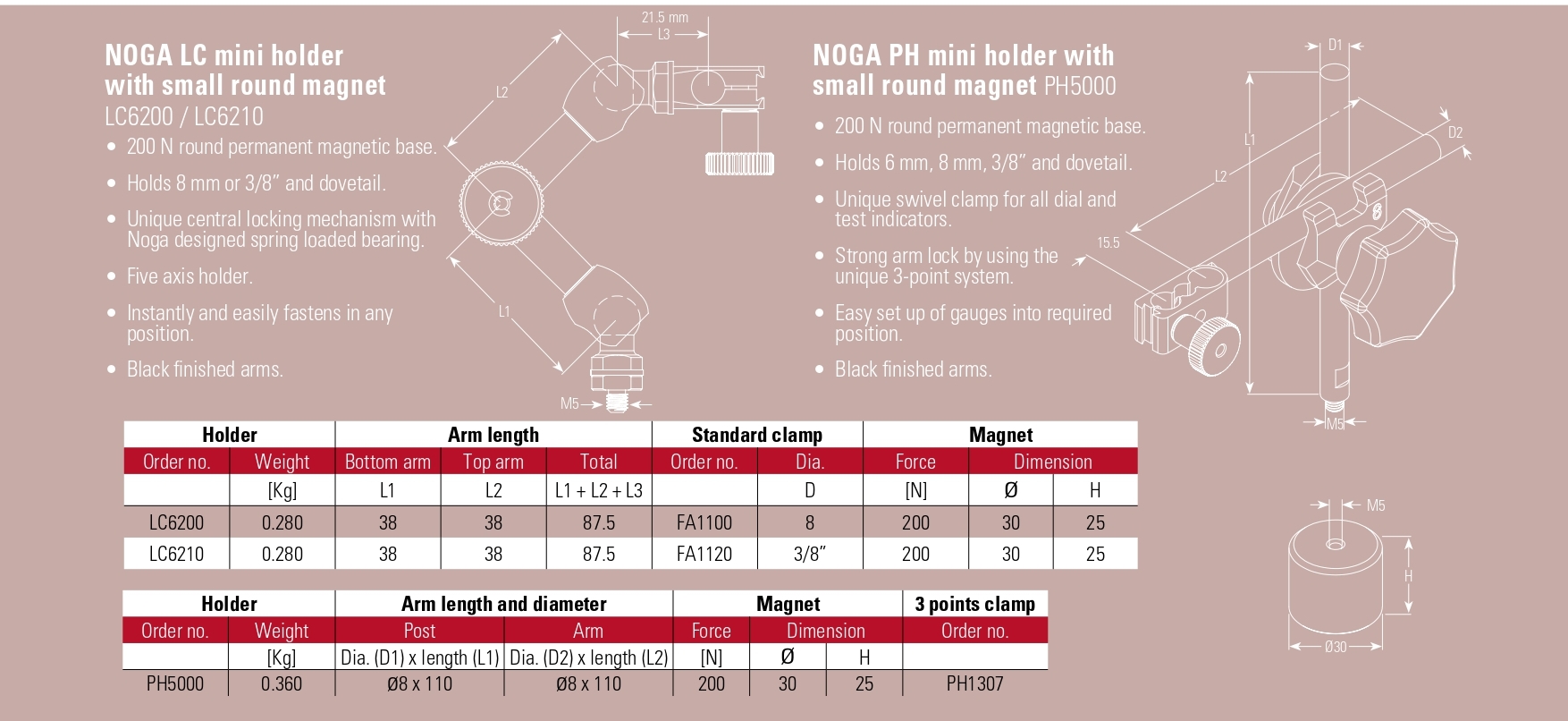

| HOLDER | ARM LENGTH | STANDRAD CLAMP | ARM LENGTH | ||||||
|---|---|---|---|---|---|---|---|---|---|
| ORDER NO. | WEIGHT | BOTTOM ARM | TOP ARM | TOTAL | ORDER NO. | DIA. | FORCE | DIMENSION | |
| (KG) | L1 | L2 | L1 + L2 + L3 | D | (N) | ∅ | H | ||
| LC6200 | 0.280 | 38 | 38 | 87.5 | FA1100 | 8 | 200 | 30 | 25 |
| LC6210 | 0.280 | 38 | 38 | 87.5 | FA1120 | 38/” | 200 | 30 | 25 |
| HOLDER | ARM LENGTH AND DIAMETER | MAGNET | 3 POINS CLAMP | ||||
|---|---|---|---|---|---|---|---|
| ORDER NO. | WEIGHT | POST | ARM | FORCE | DIMENSION | ORDER NO. | |
| (KG) | DIA. (D1) x LENGTH (L1) | DIA. (D2) x LENGTH (L2) | (N) | ∅ | H | ||
| PH5000 | 0.360 | ∅8 x 110 | ∅8 x 110 | 200 | 30 | 25 | PH1307 |

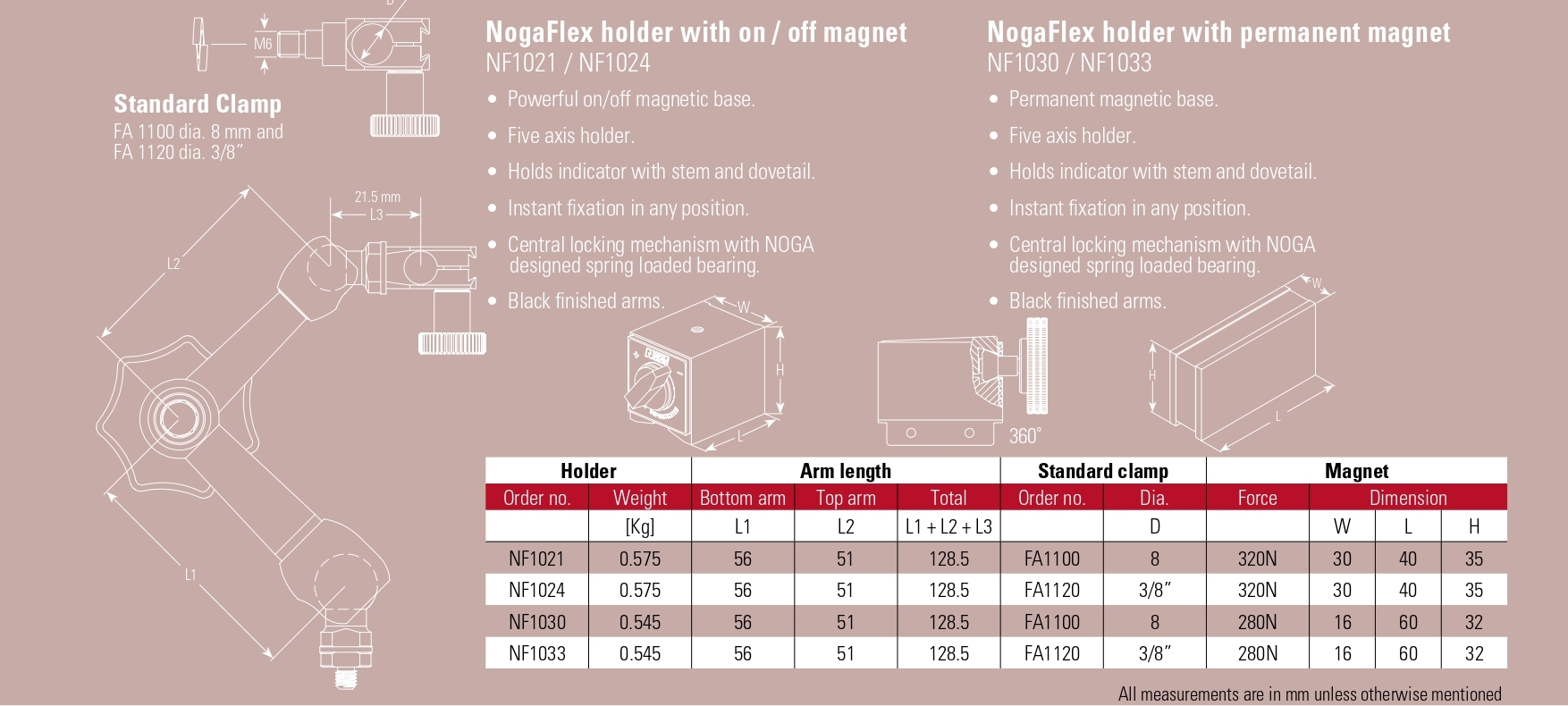

| HOLDER | ARM LENGTH | STANDRAD CLAMP | MAGNET | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ORDER NO. | WEIGHT | BOTTOM ARM | TOP ARM | TOTAL | ORDER NO. | DIA. | FORCE | DIMENSION | ||
| (KG)L1L2L1 + L2 + L3 D(N)WLH |
||||||||||
| NF1021 | 0.575 | 56 | 51 | 128.5 | FA1100 | 8 | 320 | 30 | 40 | 35 |
| NF1024 | 0.575 | 56 | 51 | 128.5 | FA1120 | 3/8″ | 320 | 30 | 40 | 35 |
| NF1030 | 0.545 | 56 | 51 | 128.5 | FA1100 | 8 | 280 | 16 | 60 | 32 |
| NF1033 | 0.545 | 56 | 51 | 128.5 | FA1120 | 3/8″ | 280 | 16 | 60 | 32 |

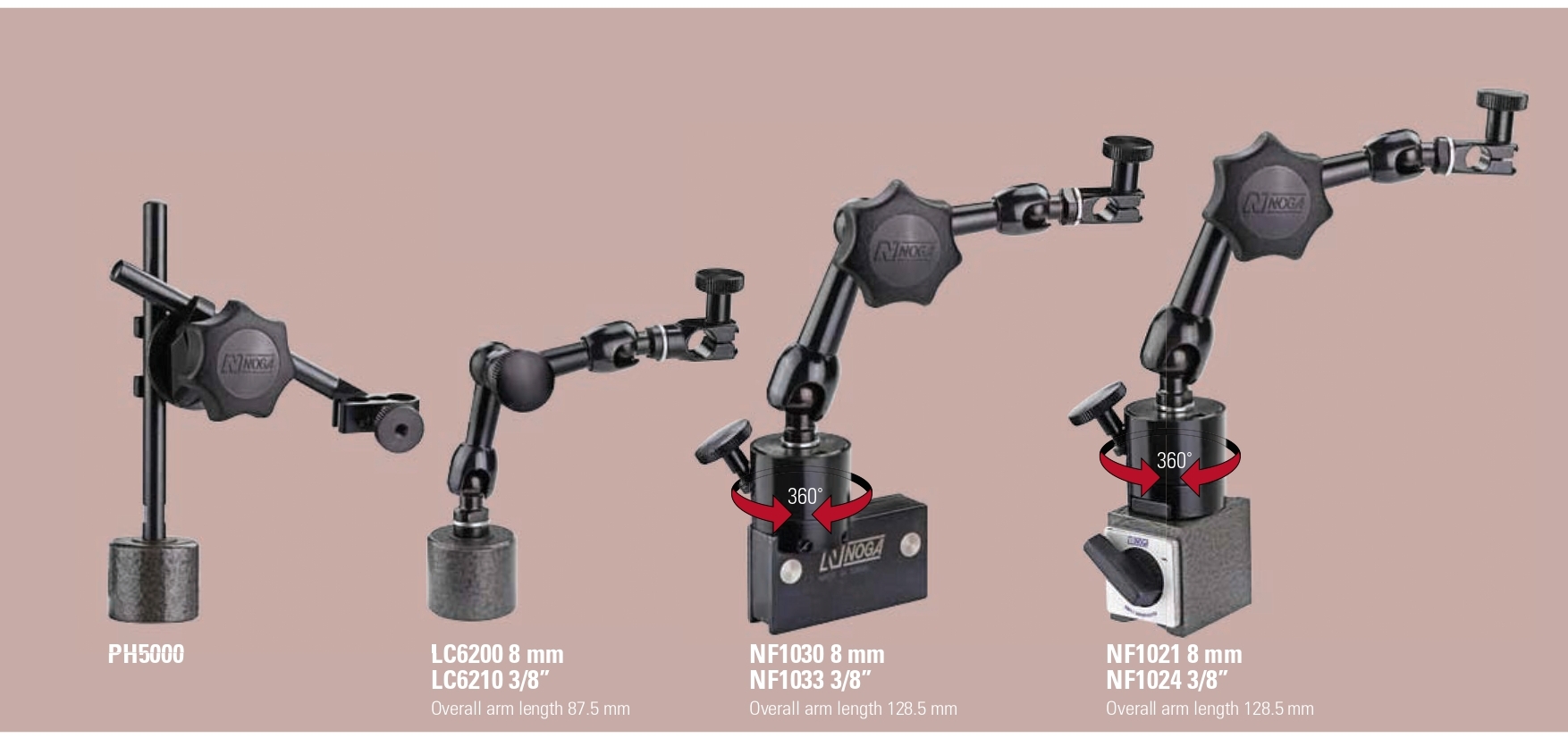

PH Mini Holder – PH5000
– 20kg (44lbs) round permanent magnetic base.
– Universal Swivel Clamp for all dial and test indicators.
– Strong arm lock by using the unique 3-point system.
– Easy to set up gauges into required position- Black finished arms.
LC Mini Holder – LC6210
– 20kg (44lbs) round permanent magnetic base.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five axis holder.
– Instantly fastens in any position.
– Easy set up into the required position.
– Black finished arms.
LC Mini Holder – LC6200
LC MINI Holder w/Mag 30 – 8mm clamp
360° NF holder 8mm – NF1021
– On/Off switchable magnet. 5 axis Holder.
– 360° fine adjustments at base.
– Central locking mechanism with NOGA designed spring loaded bearing.
– Black finished arms.
NF holder 3/8 360° – NF1024
– On/Off switchable magnet. 5 axis Holder.
– Patented 360° fine adjustments at base.
– Central locking mechanism with NOGA designed spring loaded bearing.
– Black finished arms.
360° NF holder 8mm permanent – NF1030
– Permanent magnet. 5 axis Holder.
– 360° fine adjustments at base.
– Central locking mechanism with NOGA designed spring loaded bearing.
– Black finished arms.
360° NF holder 3/8″ permanent – NF1033
– Permanent magnet. 5 axis Holder.
– 360° fine adjustments at base.
– Central locking mechanism with NOGA designed spring loaded bearing.
– Black finished arms.
