NF Holder no base – NF60103

Articulated Holders

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

Zinc Cast fine adjustment (FA1500)
NF Arms (NF60003)
M5/M5 adaptor (AD6050)
Spare Knob (DG0160)

NF Holder with Double Fine Adjustment

Articulated Holders-NF6160

New Double Fine Adjustment:
Top: universal swivel clamp.
Bottom: Unique single direction.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Five axis holder.
Powerful on/off magnetic base 32 Kg. (70lbs)
Instant fastens in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

* indicator is not included

Includes:

Zinc Cast fine adjustment (FA1500)
NF Arms (NF60003)
On/Off magnet with fine adj. (NF3778)

MG Holder with Double Fine Adjustment

Articulated Holders-MG6161

New Double Fine Adjustment:
Top: universal swivel clamp.
Bottom: Unique single direction.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Five axis holder.
Powerful on/off magnetic base 80 Kg. (176lbs)
Instant fastens in any position.
Fast and easy to set up gauges into required position.
Black finished Arms

* indicator is not included

Includes:

Zinc Cast fine adjustment (FA1500)
MG Arms (MG60003)
On/Off magnet with fine adj. (DG3678)

NF Holder – NF61003

Articulated Holders-NF61003
New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

Zinc Cast fine adjustment (FA1500)
NF Arms (NF60003)
M5/M5 adaptor (AD6050)
On/Off magnet (NF0037)
Spare Knob (DG0160)

DG Holder – DG6160

Articulated Holders-DG6160
New Fine adjustment on Top with universal swivel clamp.

and Unique single direction Fine adjustment at base.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

*Indicator is not included

Includes:

DG Arms (DG60003)
Zinc Cast fine adjustment (FA1500)
On/Off magnet with fine adj. (DG3678)

DG Holder no base – DG60103
Articulated Holders-DG60103

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

DG Arms (DG60003)
Zinc Cast fine adjustment (FA1500)
M6/M8 adaptor (AD6080)
Spare Knob (DG0160)

DG Articulated Holders – DG61003
DG61003

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

DG Arms (DG60003)
Zinc Cast fine adjustment (FA1500)
M6/M8 adaptor (AD6080)
On/Off magnet (DG0036)
Spare Knob (DG0160)

DG Articulated Holders no base – DG60103
MG61003

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

Zinc Cast fine adjustment (FA1500)
MG Arms (MG60003)
On/Off magnet (DG0036)
M8/M8 adaptor (AD8080)
Spare Knob (MG1620)

MG Articulated Holders no base – MG60103
MG60103

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

Zinc Cast fine adjustment (FA1500)
MG Arms (MG60003)
On/Off magnet (DG0036)
M8/M8 adaptor (AD8080)
Spare Knob (MG1620)

MA Articulated Holders – MA61003
MA61003

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

MA Arms (MA60003)
Zinc Cast fine adjustment (FA1500)
M8/M10x1.25 adaptor (AD1080)
On/Off magnet (DG0039)
M8/M10x1.25 adaptor (AD1000)
3/8″/M10x1.25 adaptor (AD1030)
Spare Knob (MA0100)

MA Articulated Holders no base – MA60103
MA60103

New Fine adjustment on Top with universal swivel clamp.

Holds 6mm, 8mm,3/8″,dovetail and back lug.
Unique central locking mechanism with Noga designed spring loaded bearing.
Dial gauge holder is 3 dimensional.
Most powerful on/off magnetic base.
Instant fixation in any position.
Fast and easy to set up gauges into required position.
Black finished Arms.

Includes:

MA Arms (MA60003)
Zinc Cast fine adjustment (FA1500)
M8/M10x1.25 adaptor (AD1080)
M8/M10x1.25 adaptor (AD1000)
3/8″/M10x1.25 adaptor (AD1030)
Spare Knob (MA0100)

Check the PDF

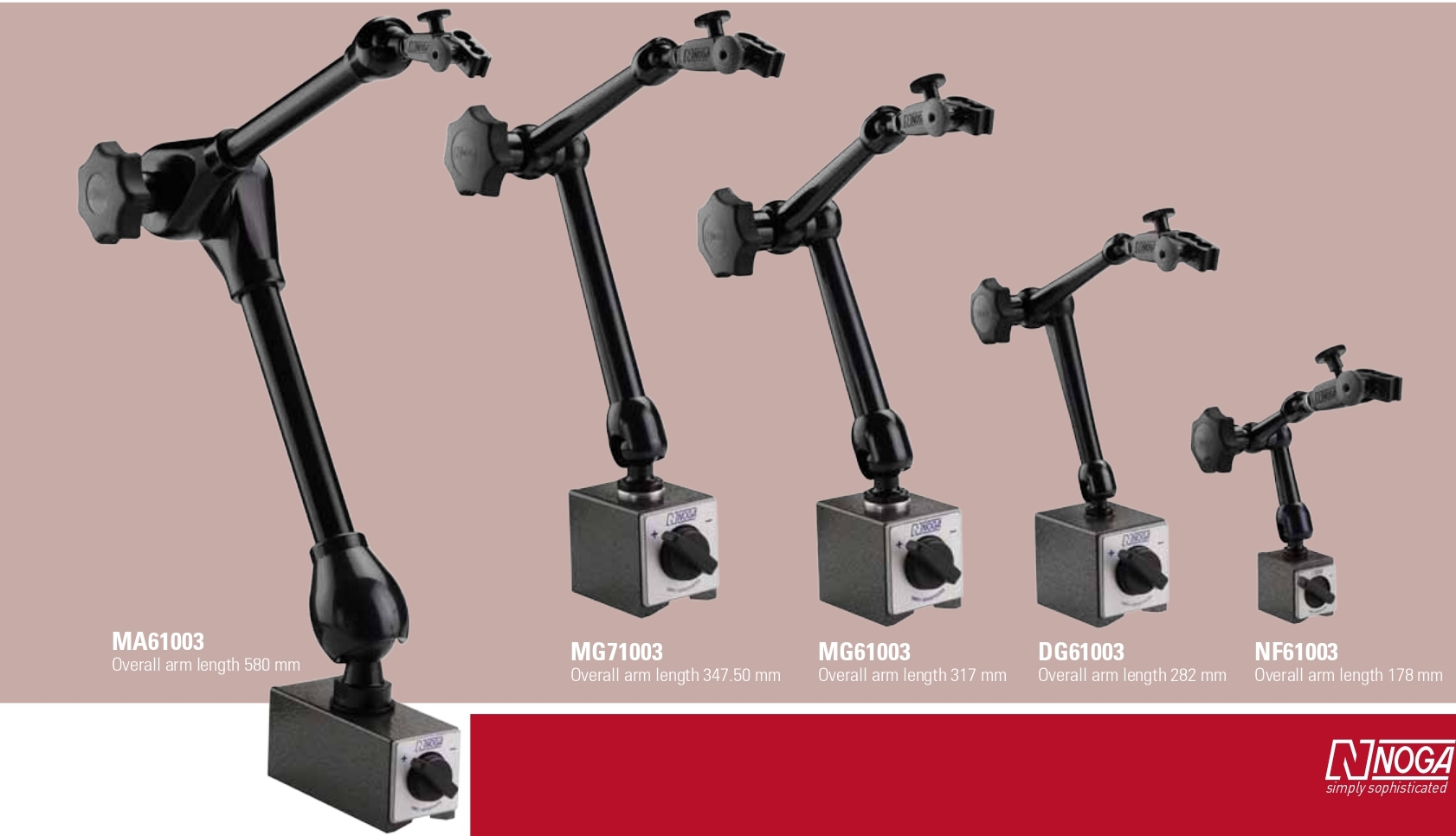

NOGA articulated holders with fine adjustment on top

Due to its stability and ease of use, NOGA articulated holder has
become the industry most wanted.
• New fine adjustment on top with universal swivel clamp.
• Holds 6mm, 8mm, 3/8″, dovetail and back lug.
• Central locking mechanism with NOGA designed spring loaded
bearing.
• Five axis holder.
• Powerful on/off magnetic base.
• Instant fixation in any position.
• Fast and easy to set up gauges into required position.
• Black finished arms.

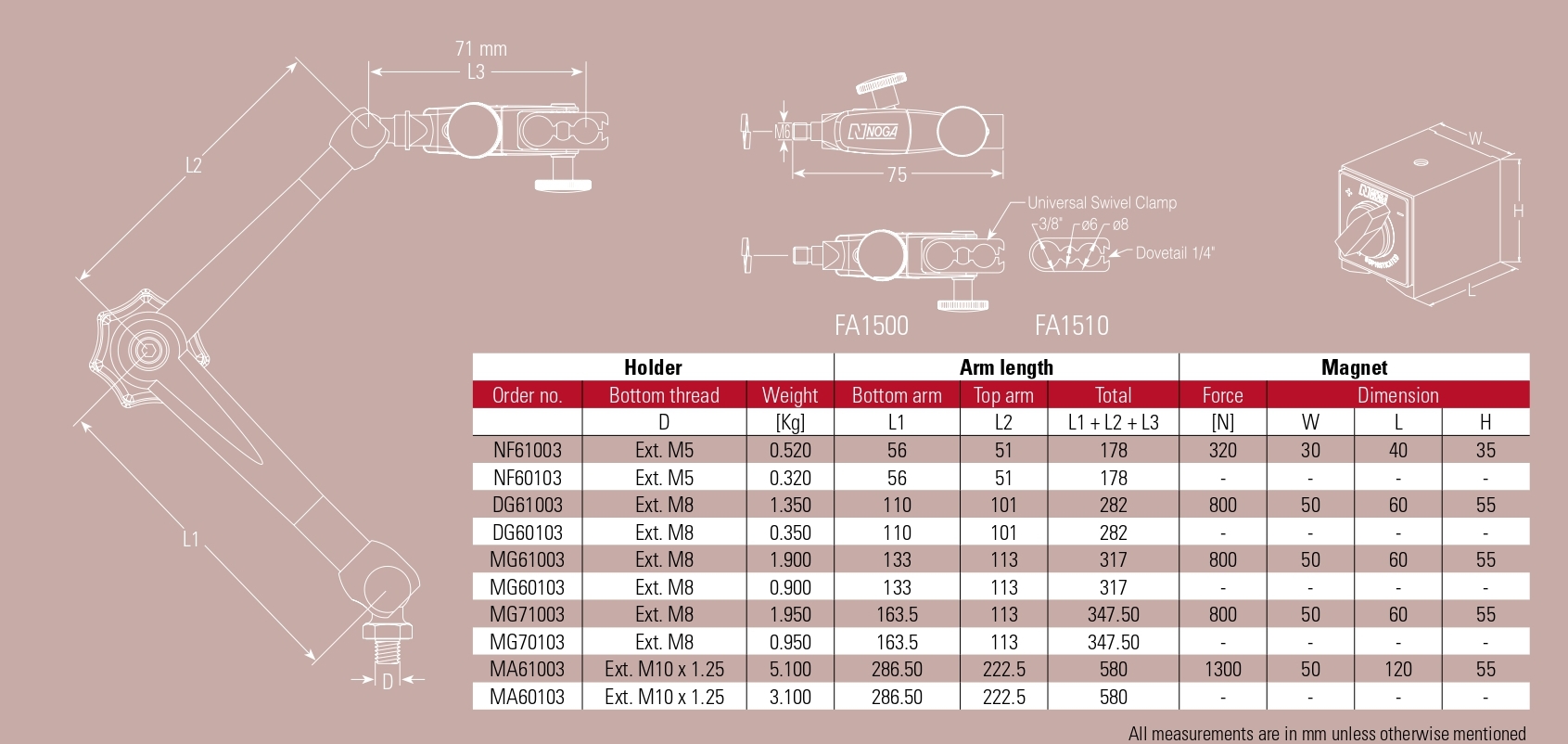

All measurements are in mm unless otherwise mentioned.
Holder			Arm Length			Magnet
Order no.	Bottom thread	Weight	Bottom arm	Top arm	Total	Force	Dimension
	D	[Kg]	L1	L2	L1 + L2 + L3	[N]	W	L	H
NF61003	Ext. M5	0.520	56	51	178	320	30	40	35
NF60103	Ext. M5	0.320	56	51	178	–	–	–	–
DG61003	Ext. M8	1.350	110	101	282	800	50	60	55
DG60103	Ext. M8	0.340	110	101	282	–	–	–	–
MG61003	Ext. M8	1.900	133	113	317	800	50	60	55
MG60103	Ext. M8	0.900	133	113	317	–	–	–	–
MA61003	Ext. M10 x 1.25	5.100	326	242	637	1300	50	120	55
MA60103	Ext. M10 x 1.25	3.100	326	242	637	–	–	–	–
