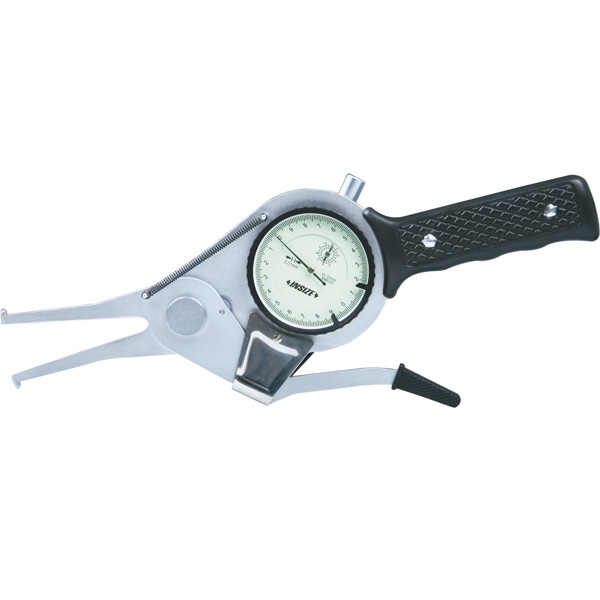

2321 2321_01



Code Range Graduation Accuracy L A D
2321-35 15-35mm 0.01mm ±0.04mm 50 3 Ø3
2321-AL35 15-35mm 0.01mm ±0.04mm 200 3 Ø3
2321-55 35-55mm 0.01mm ±0.04mm 80 6 Ø3
2321-AL55 35-55mm 0.01mm ±0.04mm 250 8 Ø3
2321-75 55-75mm 0.01mm ±0.04mm 90 8 Ø3
2321-AL75 55-75mm 0.01mm ±0.04mm 250 8 Ø3
2151-95 75-95mm 0.01mm ±0.04mm 100 8 Ø3
2321-115 95-115mm 0.01mm ±0.04mm 120 10 Ø3.2
2321-135 115-135mm 0.01mm ±0.04mm 120 10 Ø3.2



Check the PDF
