NOGA MODULAR HOLDERS

Code:

▪NOGA Modular holders.
▪Six different sizes of articulated arms are offered for a wide range of applications.
▪Choose the arms that fit your needs.
▪A range of accessories are shown in category.
▪Custom-made arms and accessories are available upon request.Minimum quantity 500 pcs.

Click to Expand

NOGA MODULAR HOLDERS

Product Overview

The NOGA Modular Holders series consists of six different sizes of articulated arms designed for a wide range of industrial applications. Engineered for precision positioning, these modular arms provide versatile mounting solutions across multiple models ranging from the compact LC6100 to the heavy-duty MA60003. Custom-made arms and accessories are available upon request for minimum quantities of 500 pieces.

Key Features & Capabilities

Articulated Design: Six distinct sizes of modular arms tailored to fit diverse operational requirements.

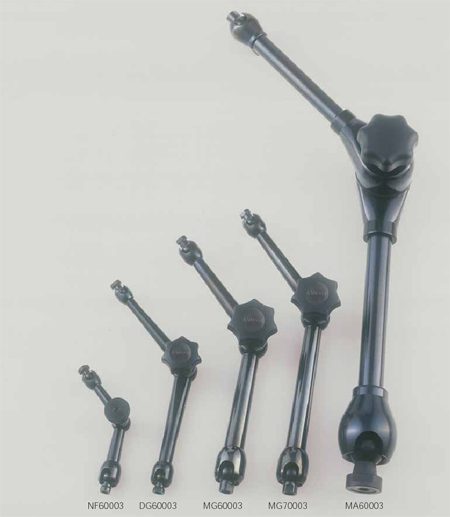

Model Range: Includes LC6100, NF60003, DG60003, MG60003, MG70003, and MA60003.
Lightweight Option: LC6100 recognized as the smallest and lightest arm in the market with an overall length of 76 mm and a weight of 0.121 kg.
Customization: Custom-made arms and accessories available upon request (Minimum quantity: 500 pcs).

Technical Specifications

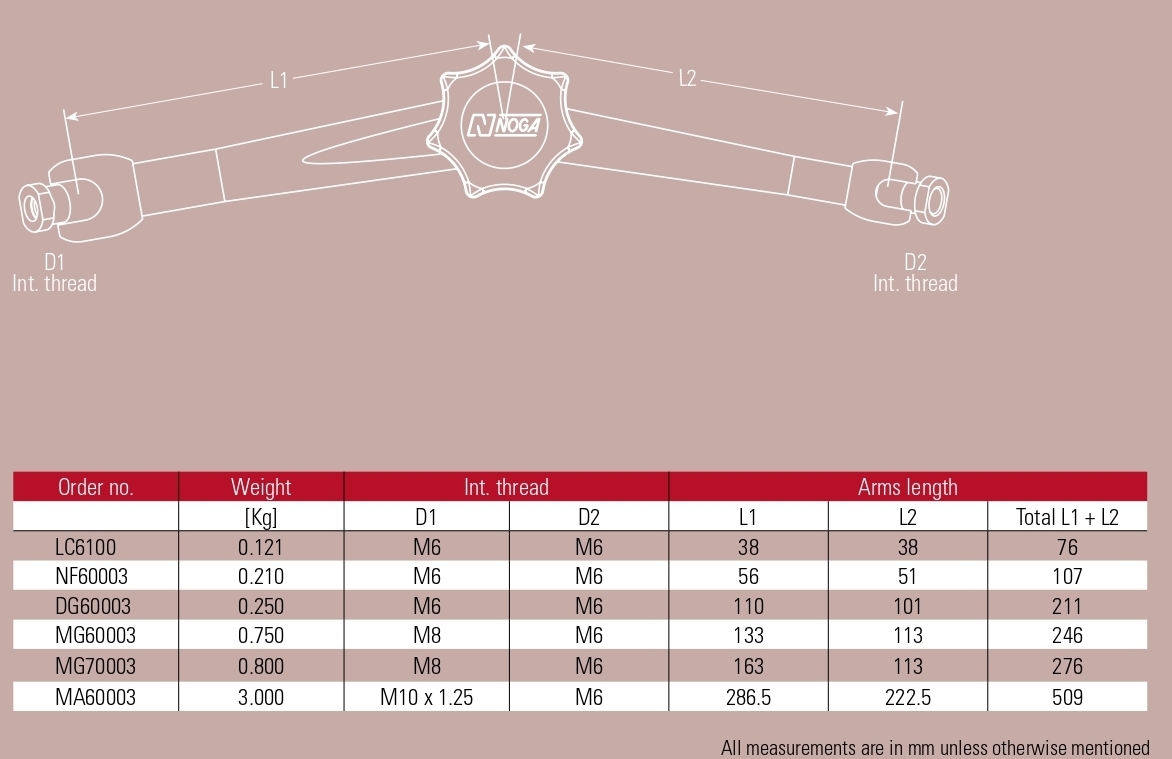

Order No.	Weight [Kg]	Internal Thread D1	Internal Thread D2	Arm Length L1 (mm)	Arm Length L2 (mm)	Total Length L1 + L2 (mm)
LC6100	0.121	M6	M6	38	38	76
NF60003	0.210	M6	M6	56	51	107
DG60003	0.250	M6	M6	110	101	211
MG60003	0.750	M8	M6	133	113	246
MG70003	0.800	M8	M6	163	113	276
MA60003	3.000	M10 x 1.25	M6	286.5	222.5	509
