LUTHRA GRANITE COMPARATOR STAND

Name: LUTHRA GRANITE COMPARATOR STAND
Brand: Luthra
SKU: LGS – 1

Code:

Granite Comparator Stand are made of black granite and are precision lapped to grade – 0 accuracy. Heavy duty vertical post and adjustable gauging bracket for maximum stability and durability.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

LUTHRA GRANITE COMPARATOR STAND

Product Overview

The Luthra Granite Comparator Stand (Models LGS-1 through LGS-30) is a high-precision metrology instrument designed for comparison measurement of size using a dial indicator. Manufactured from selected black granite, these stands provide a reliable, corrosion-resistant, and non-magnetic base ideal for precision inspection environments. Each comparator stand comes with a calibration certificate from a well-equipped NABL accredited calibration laboratory.

(Note: Dial indicators are not included with the models.)

Key Features & Capabilities

Made from selected black granite with precision lapped finish for high accuracy
Heavy-duty vertical column and gauging bracket
Accepts all electronic and standard gauges
Corrosion-resistant and non-magnetic base
Calibration certificate provided with each unit
Base size, gauging bracket, and vertical column can be customized

Technical Specifications

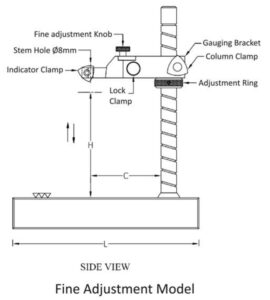

Model	Base Size (mm)	Base Type	Flatness (Microns $\mu m$)	Gauging Bracket	Measuring Height (H) (mm)	Cross Arm (C) (mm)	Column Dia (mm)	Net Weight (Kgs)

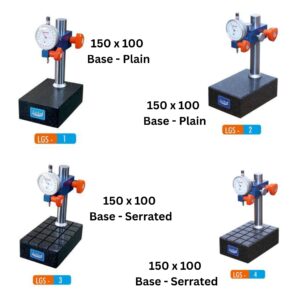

LGS – 1	150 x 100	Plain	3.0	Centre	100	55	25	4.00
LGS – 2	150 x 100	Plain	3.0	Fine Adjustment	100	55	25	4.00
LGS – 3	150 x 100	Serrated	3.0	Centre	100	55	25	4.00
LGS – 4	150 x 100	Serrated	3.0	Fine Adjustment	100	55	25	4.00

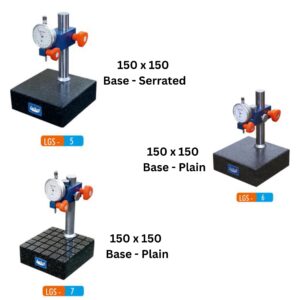

LGS – 5	150 x 150	Plain	3.0	Centre	100	55	25	4.00
LGS – 6	150 x 150	Plain	3.0	Fine Adjustment	100	55	25	4.00
LGS – 7	150 x 150	Serrated	3.0	Fine Adjustment	100	55	25	4.00

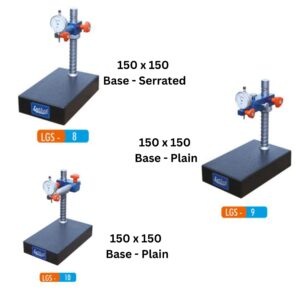

LGS – 8	250 x 150	Plain	3.0	Centre	150	85	25	8.00
LGS – 9	250 x 150	Plain	3.0	Fine Adjustment	150	85	25	8.50
LGS – 10	250 x 150	Plain	3.0	Eccentric	150	100	25	9.00

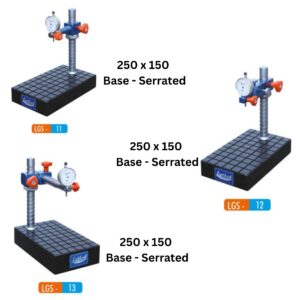

LGS – 11	250 x 150	Serrated	3.0	Centre	150	85	25	8.00
LGS – 12	250 x 150	Serrated	3.0	Fine Adjustment	150	85	25	8.50
LGS – 13	250 x 150	Serrated	3.0	Eccentric	150	100	25	9.00

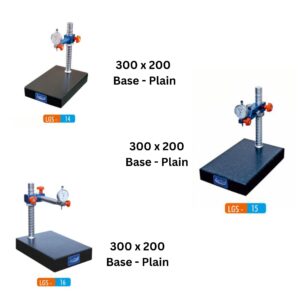

LGS – 14	300 x 200	Plain	3.5	Centre	200	115	28	12.00
LGS – 15	300 x 200	Plain	3.5	Fine Adjustment	200	110	28	12.50
LGS – 16	300 x 200	Plain	3.5	Eccentric	200	200	28	13.00

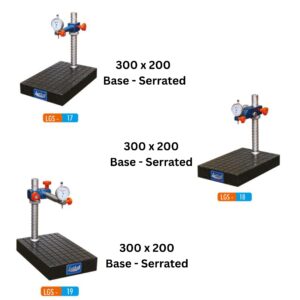

LGS – 17	300 x 200	Serrated	3.5	Centre	200	115	28	12.00
LGS – 18	300 x 200	Serrated	3.5	Fine Adjustment	200	110	28	12.50
LGS – 19	300 x 200	Serrated	3.5	Eccentric	200	200	28	13.00

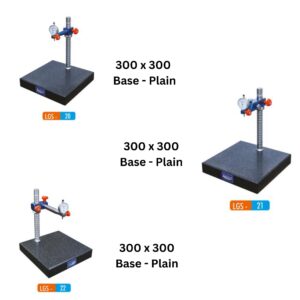

LGS – 20	300 x 300	Plain	4.0	Centre	250	115	28	17.50
LGS – 21	300 x 300	Plain	4.0	Fine Adjustment	250	110	28	18.00
LGS – 22	300 x 300	Plain	4.0	Eccentric	250	200	28	18.50

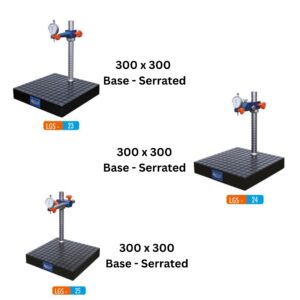

LGS – 23	300 x 300	Serrated	4.0	Centre	250	115	28	17.50
LGS – 24	300 x 300	Serrated	4.0	Fine Adjustment	250	110	28	18.00
LGS – 25	300 x 300	Serrated	4.0	Eccentric	250	200	28	18.50

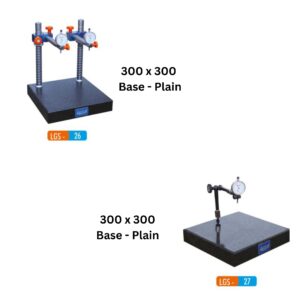

LGS – 26	300 x 300	Plain	4.0	Double Eccentric	250	200	28	22.00
LGS – 27	300 x 300	Plain	4.0	Universal Arm	250	200	28	16.00

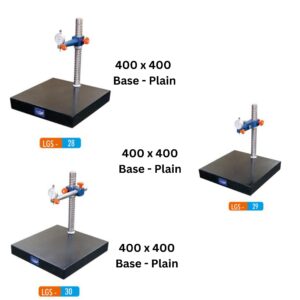

LGS – 28	400 x 400	Plain	4.5	Centre	300	150	35	35.00
LGS – 29	400 x 400	Plain	4.5	Fine Adjustment	300	150	35	35.00
LGS – 30	400 x 400	Plain	4.5	Eccentric	300	250	35	35.00
