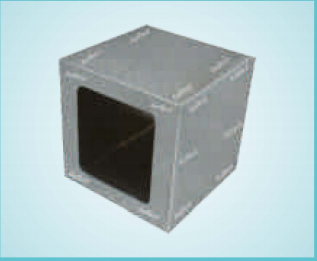

cast iron cubes

Cast Iron Cubes that are manufactured using qualitative closed grain cast iron selected strictly as per IS 210:1993. The materials procured for designing these cast iron cube confirms to Grade FG-220. Our range of cast iron cubes are used as precision height blocks in standard room, machine shops for setting up machining operations with the

Specifications:

Size in (mm)	Accuracy in microns
Size in (mm)	Flatness of working faces	Squareness of working faces	Parallelism of opposite working faces
100 X 100 X 100	5	10	12
150 X 150 X 150	8	13	15
200 X 200 X 200	8	15	18
250 X 250 X 250	8	15	18
300 X 300 X 300	10	18	20
500 X 500 X 500	14	25	30

Some of its salient features are:

Castings are stress relieved either by natural aging or by artificial seasoning
The cast iron cubes are hand scrapped for surface finish of Grade-1 accuracy
Widely used with all the six working faces of the cast iron cube that are Flat, Parallel and Perpendicular to each other

Cast Iron Cubes that are manufactured using qualitative closed grain cast iron selected strictly as per IS 210:1993. The materials procured for designing these cast iron cube confirms to Grade FG-220. Our range of cast iron cubes are used as precision height blocks in standard room, machine shops for setting up machining operations with the help of height gauges as riser blocks to accomplish marking and inspection purposes. These are supplied with calibration certificate traceable to National Physical Laboratory (NPL, Govt. of India) New Delhi. We provide matched pairs on extra cost that are used as parallel and height blocks.
