AUTHOR RATEUSERS RATE (0)
PLAIN ANGLE PLATE

Plain Angle Plate We manufacture a wide range of Plain Angle Plate, which are largely used in various industries for clamping and holding work in vertical position. These plain angle plates are also used as a vertical reference for inspection and tooling purposes such as shaping, planning, milling, grinding, drilling etc. All six working faces […]

AUTHOR RATEUSERS RATE (0)
MASTER CYLINDERS

Master Cylinders Master Cylinders squares, used on surface plates, provide one of the most reliable 90° reference standards available in the industry today. Work may be placed against the periphery and sighted for checking squareness, right angle by comparison method. Master cylindrical squares are also used for checking the squareness of the vertical axis to […]

AUTHOR RATEUSERS RATE (0)
MANDREL

Taper Mandrel Taper Mandrel is also called as inspection mandrels and are used for checking the alignment of machine spindle axis. These taper mandrels are made of hardened and stabilised steel. Mandrels are provided with properly ground and lapped centres for easy usage and accuracy. In morse tapers, the Taper mandrel are self holding in […]

AUTHOR RATEUSERS RATE (0)
SINE BAR

Used for Precision measurement, setting of angles. Made from high quality alloy steel. Accuracy for Squareness, Flatness & Parallelism is within 0.005mm. upto 200mm & 0.010 mm upto 350mm Centre distance between rollers is within ±0.003mm Hardness-60±2Rc&Tempered Top surface is provided with magnet Accuracy as per IS Standards IS 5359-1987. Magnetic Sine Bar is also […]

AUTHOR RATEUSERS RATE (0)
SINE VICE

Used for Precision measurement, setting of angles, I Right angle grinding & light machining. • Made from high quality alloy steel. Accuracy for Squareness, Flatness & Parallelism within± 0.005mm. Angular accuracy within± 5 seconds. Centre distance between rollers is within ±0.005mm . Hardness-60±3Rc. Made from Stainless steel.   Cat No. Size C.D (mm) Opening (mm) […]

AUTHOR RATEUSERS RATE (0)
PRECISION GRINDING VICE

Used for holding the jobs, spark erosion operation, right angle grinding & Light machining. Made from high quality alloy steel. Accuracy for Square ness, Flatness & Parallelism within ±0.005mm. Jaw pressure on work piece is forward & downward for repeatable positioning & maximum holding power. All sides can be used as reference. Hardness – 60 […]

AUTHOR RATEUSERS RATE (0)
BEVELLED EDGE TRY SQUARE (IS : 2103 – 1980)

Used for checking Squareness & straightness. • Made from single piece high quality tool steel. Inner & outer edges of blade are bevelled at 60!! angle. Beveled edge provides an excellent visual line contact with the workpiece. • Hardness 60 ± 2 Re. A groove on the inner corner of the stock, aids in the clearance […]

AUTHOR RATEUSERS RATE (0)
V BLOCK WITH CLAMP

Used for Grinding, light Milling, o,UUng  & Inspection of Round & Square Jobs. AccuracyasperlS-2949-1974. Hardness 60±2 Re. Supplied in perfect matched pair. End face grinding, square with sides can be possible. Two 900 11V 11 angle for different capacities. Special sizes can also be manufactured. Supplied with Clamp. Also available to suite your specification.     Cat […]

AUTHOR RATE
MAGNETIC V BLOCKS

Used for Grinding, light Milling, Drilling & Inspection of Round & Square Jobs. Accuracy for Flatness, Squareness and Parallelism within 0.005mm upto 150mml & 0.010 mm for 200 mm L of 11V 11 block The Bigger V angle & bottom holding surface are equipped with hardened strips for wear resistance. Uniform and strong magnetic pull […]

AUTHOR RATEUSERS RATE (0)
SLOTTED ANGLE PLATE

Slotted Angle Plate, which are largely used in various industries for clamping and holding work in vertical position. These slotted angle plates are also used as a vertical reference for inspection and tooling purposes such as shaping, planning, milling, grinding, drilling etc. All 6 working faces of our angle plates are hand scrapped to desired […]

AUTHOR RATEUSERS RATE (0)
BOX ANGLE PLATES

Box Angle Plates. These are basically used for clamping work for tooling, shaping and milling, wherein, job can be fixed on one of its faces and are rotated in 5 positions without the need of repositioning or disturbing accuracy. Our range of box angle plates is used in diverse engineering industries where all the parameters […]

AUTHOR RATEUSERS RATE (0)
CAST IRON CUBES

Cast Iron Cubes that are manufactured using qualitative closed grain cast iron selected strictly as per IS 210:1993. The materials procured for designing these cast iron cubes confirms to Grade FG-220. Our range of cast iron cubes are used as precision height blocks in standard room, machine shops for setting up machining operations with the […]

AUTHOR RATEUSERS RATE (0)
CAST IRON RIGHT ANGLE

Cast Iron Right Angle are widely used in various industries as a vertical reference for inspection purposes of components and for checking squareness. Cast iron right angles has bottom and the adjacent square face finished flat and square to each other as well as the two adjacent narrow sides finished flat and square to other […]

AUTHOR RATEUSERS RATE (0)
GRANITE SQUARE (TRIANGULAR)

Triangular Granite is made of selected black granite. These triangular shaped granite squares are ideal for checking X, Y and Z axes of machine bases or parts. They are very rigid and stable. The two face master angle has two narrow perpendicular edges finished flat and square. Specifications: Size (mm) Accuracy (um) 300 X 200 X […]

AUTHOR RATEUSERS RATE (0)
CAST IRON COMPARATOR STAND

Cast Iron Comparator Stand are made of closed grain graded casting and are hand scrapped to achieve accuracy of grade – 1. Rigid and sturdy base. Serrated and Plain anvil face are hardened and ground finish. These have high wear resistance. Adjustable support arm of dial indicator. Specifications: Model No. Reference Surface mm Measuring Height […]

AUTHOR RATEUSERS RATE (0)
GRANITE BLOCK MASTER (SQUARE)

Master Square with master block are made from selected black granite stone. Master squares are ideal for insp ecting the X, Y and Z axes of machine tools. Our Square granite master block are very stable and rigid, providing the ultimate in squareness references. Our Granite square have 5 finished faces (1 large face and […]

AUTHOR RATEUSERS RATE (0)

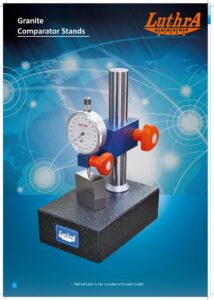

GRANITE COMPARATOR STAND

Granite Comparator Stand are made of black granite and are precision lapped to grade – 0 accuracy. Heavy duty vertical post and adjustable gauging bracket for maximum stability and durability. Specifications Model No. Reference Surface mm Measuring Height mm Throat Depth mm Post Diameter mm Gaging Bracket L-1 150 X 100 100 65 25 Plain […]

AUTHOR RATEUSERS RATE (0)
PRISMATIC (TRIANGULAR) STRAIGHT EDGES

Prismatic Straight Triangular Edges that are used for checking angle and flatness of machine tools dovetailed guide ways, fixtures and slides. Triangular straight edge, two faces are scrapped and angle between the scrapped faces (30 or 45 or 60 Degree) is accurately processed. The third side is painted and recessed for weight reduction in the bigger […]

AUTHOR RATEUSERS RATE (0)
CAST IRON STRAIGHT EDGES

Cast Iron Straight Edges are widely used for erection, commissioning and leveling purpose. I- section straight edges is used to check the surface flatness of large precision area such as surface tables and machine tables etc. Cast iron straight edges are also used for blue matching during hand scrapping operations .I-section straight edges have wide and […]

AUTHOR RATEUSERS RATE (0)
PARALLEL

Steel Parallel are made from high quality steel. These steel parallels are available in hardened and precision ground finish. Standard sizes and accuracy of Luthra Steel Parallel As per IS-4241:1967, Grade 1: Sizes(mm) LxBxH      Accuracy in Microns um Straightness                Parallelism 100 X 10 X 5 +/-1.25   […]

AUTHOR RATEUSERS RATE (0)
GRANITE STRAIGHT EDGES

Granite Straight Edges are produced from black granite. These granite straight edges are used for setting up machine bases by using spirit and electronic level and reference surface. Both the narrow working faces of granite straight edges are parallel and straight as per standards. Standard sizes and accuracy of granite straight edge as per Grade-1: […]

AUTHOR RATEUSERS RATE (0)
LIGHT WEIGHT ALUMINUM STRAIGHT EDGES

Aluminium straight edges are widely used in industries where along with accuracy weight is also important factor. Light Weight Aluminum Straight Edges feature of these aluminium straight edges make them easy to use especially when using longer straight edges this is undoubtedly of great significance. These straight edges are made of aluminium section with steel […]

AUTHOR RATEUSERS RATE (0)
TOOL MAKERS KNIFE EDGE STRAIGHT EDGES

Knife Tool Maker Edges. These knife edges are manufactured from 100 mm to 500 mm length as per IS 3512:1966. Intended for very accurate work, these have one working edge, which is bevelled and very slightly rounded off. The working edge is finished either by grinding or lapping. We make use of high grade alloy […]

AUTHOR RATEUSERS RATE (0)
ENGINEERS STEEL STRAIGHT EDGES

Engineers Straight Steel Edges. These are widely used for checking straightness and marking purposes. Steel straight edges are made using high quality steel and are available in hardened and unhardened form. Our steel straight edges are hand scrapped or lapped to achieve the desired accuracy as per standards. Light in weight, design of these straight […]

AUTHOR RATEUSERS RATE (0)
GRANITE LAPPING PLATES

We provide Granite Lapping Plates that are used for accurate hand lapping of material such as nylon, plastics, ceramics and other non ferrous material. These are available in Square and Rectangular sizes and are made up of black granite. Each of the plates has 3 mm wide and 3 mm deep serrations on working surface equally […]

AUTHOR RATEUSERS RATE (0)
CAST IRON LAPPING PLATES

We provide qualitative Cast Iron Lapping Plates that are used for accurate hand lapping of various materials like nylon, plastics, ceramics and other non ferrous material. These cast iron lapping plates are available in round and rectangular sizes and have 3 mm wide and 3 mm deep serrations on working surface equally spaced at 25 […]

AUTHOR RATEUSERS RATE (0)
SURFACE PLATE WITH BENCH CENTRE

Surface Plate with Bench Center is the dual combination of surface plate and bench center, this combined feature make them extremely useful inspection equipment in engineering industry.   Size of Plate mm Centre Distance mm Centre Height mm 750 X 600 400 125 1000 X 630 600 160 1000 X 1000 600 200 1000 X 1600 […]

AUTHOR RATEUSERS RATE (0)
UNIVERSAL BENCH CENTRE (Grade 1)

           Centre Distance  mm       Centre Height  mm Accuracy in Micron (um) 300 160 10

AUTHOR RATEUSERS RATE (0)
MINI BENCH CENTRE (GRANITE BASE)

Mini Bench Centre Granite Base is made of black granite base which is naturally seasoned and provide better finish and accuracy. T-slot made of steel is fixed within granite base on which two cast iron heads are mounted, both the heads can be moved to the desired positions depending upon the size of component to […]

AUTHOR RATEUSERS RATE (0)
VERTICAL BENCH CENTRE

Vertical Bench Center is ideal, accurate and quick method for inspecting radial run out of camshafts, crankshafts, cylindrical shafts. Gear teeth run out can also be inspected by using mandrel, arbor or directly to the Center. Vertical bench Center is ideally suited in machine shops , tool rooms and standard rooms for checking various other […]

AUTHOR RATEUSERS RATE (0)
MINI BENCH CENTRE (CAST IRON BASE)

Mini Bench Centre with Cast Iron Base are specially designed for checking concentrically, parallelism and true rotations of components having smaller dimensions. These mini bench centres are cast iron based and are widely used in industries manufacturing smaller CNC turned automobiles parts, watch spares and microscopic parts etc. where higher accuracies are required. Standard size […]

AUTHOR RATEUSERS RATE (0)
CAST IRON BENCH CENTRE

We are offering a qualitative range of Cast Iron Bench Center that are accurate, precise and offer quick method for inspecting radial run out of camshafts, crankshafts and cylindrical shafts etc. Manufactured as per IS: 5980-1978, these cast iron bench centers are utilized in machine shops, tool rooms and standard rooms for checking various parameters […]

AUTHOR RATEUSERS RATE (0)
CAST IRON SURFACE PLATES

We offer a qualitative range of precision Cast Iron Surface Plate. These cast iron surface plates provide an accurate reference or datum plane for precision gauging, marking, inspection and tooling setup. Cast iron surface plate are made of good quality close grain cast iron as per IS-210:1993 confirming to grade FG-220. The meticulous manufacturing processes […]

AUTHOR RATEUSERS RATE (0)
GRANITE SURFACE PLATES

Granite Surface Plate which are manufactured using natural black granite stone, quarried from earth in its natural form. These precision granite surface plates are precision lapped to high standards of flatness to achieve accuracy and are used as bases for mounting sophisticated mechanical, electronic and optical gauging systems. Our quality inspectors and engineers put a […]
