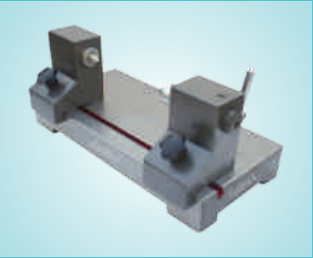

MINI BENCH CENTER (CAST IRON BASE)

Mini Bench Center with Cast Iron Base are specially designed for checking concentrically, parallelism and true rotations of components having smaller dimensions. These mini bench centers are cast iron based and are widely used in industries manufacturing smaller CNC turned automobiles parts, watch spares and microscopic parts etc. where higher accuracies are required. Standard size

Mini Bench Center with Cast Iron Base are specially designed for checking concentrically, parallelism and true rotations of components having smaller dimensions. These mini bench centers are cast iron based and are widely used in industries manufacturing smaller CNC turned automobiles parts, watch spares and microscopic parts etc. where higher accuracies are required.

Standard size and accuracy of Luthra Mini Bench Center as per IS : 5980-1978, Grade 1

Sizes mm	Centre Distance mm	Centre Height mm	Accuracy in (um)
150 X 75	150	75	10

Some silent features of mini bench center:

The base of bench centers and its heads are artificially stress relieved as precaution against distortion
One of the center is spring loaded to ensure uniform pressure while holding and easy loading and unloading of work piece without disturbing the accuracy.
Centers are made from high carbon steel hardened and ground finish, having morse taper MT-1 and are replaceable.
Both heads are adjustable to the required positions, easy and quick setting of the required distance between the centers.
Our range of Bench centers are supplied with computerised calibration certificate traceable to National Physical Laboratory (NPL, Govt of India) New Delhi.
