- Measuring faces: Carbide (115-101: only the spindle is carbide tipped.)

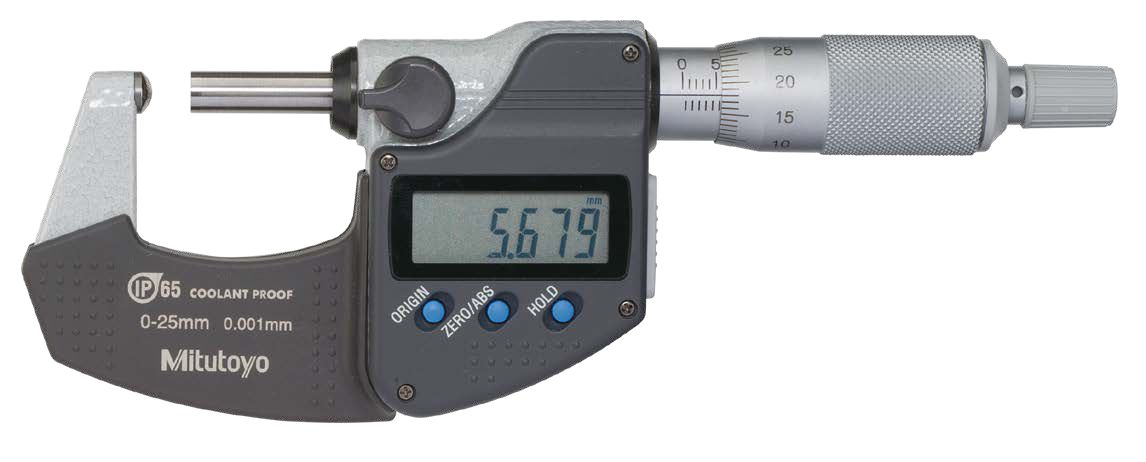

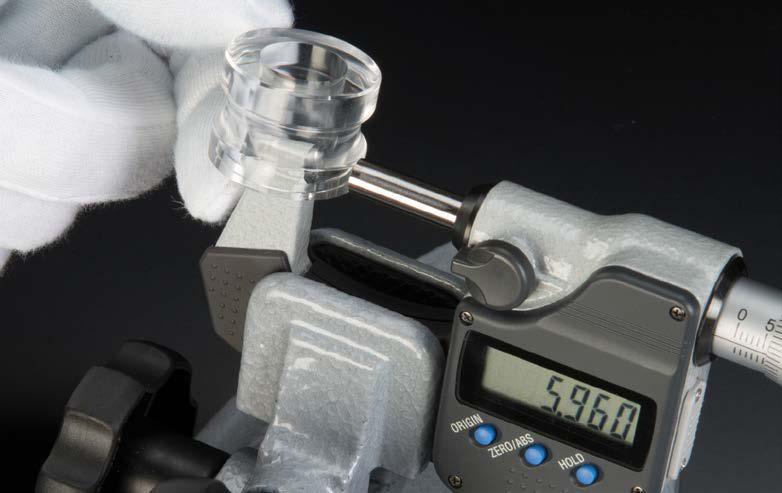

- series 395: IP65 digital spherical-flat anvil type micrometer.
- Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range | Resolution | Accuracy* | 0D |
|---|---|---|---|---|
| Digimatic (LCD) | ||||
| 395-251-30 | 0 – 25mm |
0.001mm |
±2µm |
015 |
| 395-252-30 | 25 – 50mm | |||
| 395-253-30 | 50 – 75mm | 019 | ||
| 395-254-30 | 75 – 100mm | ±3µm | 020 | |
* Excluding quantizing error
Inch/Metric
| Order No. | Range | Resolution | Accuracy* | 0D |
|---|---|---|---|---|
| Digimatic (LCD) |
0.59″ |
|||
| 395-351-30 | 0 – 1″ |
.00005″/ 0.001mm |
±.0001″ |
|
| 395-352-30 | 1″ – 2″ | |||
| 395-353-30 | 2″ – 3″ | 0.75″ | ||
| 395-354-30 | 3″ – 4″ | ±.00015″ | 0.79″ | |
* Excluding quantizing error
Metric
| Order No. | Range | Graduation | Accuracy | 0D |
|---|---|---|---|---|
| Analog | ||||
| 115-101 | 0 – 15mm |
0.01mm |
±3µm |
05.5 |
| 115-115 | 0 – 25mm | 010 | ||
| 115-116 | 25 – 50mm | 011 | ||
| 115-117 | 50 – 75mm | 017 | ||
| 115-118 | 75 – 100mm | ±4µm | 018 | |
| Mechanical counter model | ||||
| 295-115 | 0 – 25mm | ±3µm | 010 | |
Inch
| Order No. | Range | Graduation | Accuracy | 0D |
|---|---|---|---|---|
| Analog | ||||
| 115-153 | 0 – 1″ | .0001″ | ±.00015″ | 0.40″ |
| Mechanical counter model | ||||
| 295-153 | 0 – 1″ | .0001″ | ±.00015″ | 0.40″ |
DIMENSIONS
IP Codes (series 395)
Level 6: Dust-proof.
No ingress of dust allowed.
Level 5: Protected against water jets.
Water projected in jets against the enclosure
from any direction shall have no harmful effects.
Technical Data
Flatness: 0.6μm/ .000024” (series 115 & 295)
0.3μm/ .000012” (series 395)
Battery for series 395
SR44 (1 pc), 938882, for initial operational checks
(standard accessory)
Battery life: Approx. 2.4 years under normal use (for series 395)
Length standard: Electromagnetic rotary sensor (for series 395)
Standard accessories: Reference bar, 1 pc
(except for measuring range 0-15mm/0-25mm (0-1″) models)
Spanner (200168), 1 pc (for series 115-101)
Spanner (301336), 1 pc (for models other than series 115-101)
Optional accessories
Connecting cables for series 395
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
Connecting cables for U-WAVE-T
02AZD790B 160mm
For foot switch: 02AZE140B
Refer to page B-68 for details.
