LUTHRA CAST IRON COMPARATOR STAND

Name: LUTHRA CAST IRON COMPARATOR STAND
Brand: Luthra
SKU: LCS-1

Code:

Cast Iron Comparator Stand are made of closed grain graded casting and are hand scrapped to achieve accuracy of grade – 1. Rigid and sturdy base. Serrated and Plain anvil face are hardened and ground finish. These have high wear resistance. Adjustable support arm of dial indicator.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

LUTHRA CAST IRON COMPARATOR STAND

Product Overview

The Luthra Cast Iron Comparator Stand is engineered for high-precision comparison measurement of sizes using a dial indicator. Manufactured from selected quality close grain graded casting (FG 220 grade) that is further processed to achieve the finest accuracy, this robust instrument is versatile, reliable, and designed for rigorous metrology and inspection applications. Each unit is backed by a calibration certificate from a well-equipped NABL accredited calibration laboratory.

Key Features & Capabilities

Material & Construction: Cast iron anvil made of FG 220 grade with a hardness of 180–220 BHN, precision ground for superior flatness and wear resistance. Selected models feature high-quality alloy steel hardened and ground anvils with a hardness within 55–58 HRC.
Heavy-Duty Design: Features a heavy-duty vertical column and gauging bracket designed for rigidity and stability during measurement.
Gauge Compatibility: Accepts all electronic and standard gauges with an 8mm stem hole.

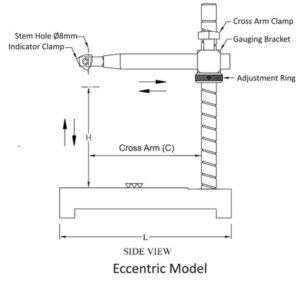

Adjustment Options: Available in various gauging bracket configurations including Centre, Fine Adjustment, Eccentric, and Double Eccentric.
Documentation: Supplied with a calibration certificate with each comparator stand.

Technical Specifications

Model	Anvil Size (mm)	Anvil Type	Flatness (Microns)	Gauging Bracket	Measuring Height (H) (mm)	Cross Arm (C) (mm)	Column Dia Ø (mm)	Net Weight (Kgs)

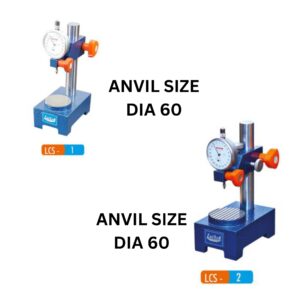

LCS-1	DIA 60	Hardened	3.0	Centre	100	55	25	3.50
LCS-2	DIA 60	Hardened & Serrated	3.0	Fine Adj.	100	55	25	4.00

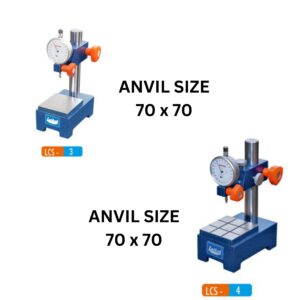

LCS-3	70 x 70	Hardened	3.0	Centre	100	55	25	3.50
LCS-4	70 x 70	Hardened & Serrated	3.0	Fine Adjustment	100	55	25	4.00

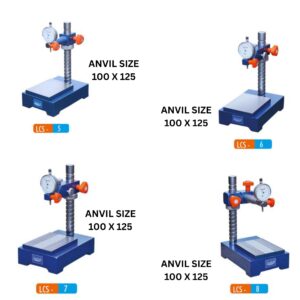

LCS-5	100 x 125	Hardened	5.0	Centre	150	85	25	6.50
LCS-6	100 x 125	Hardened	5.0	Fine Adjustment	150	85	25	7.00
LCS-7	100 x 125	Hardened & Serrated	5.0	Fine Adjustment	150	85	25	7.00
LCS-8	100 x 125	Hardened & Serrated	5.0	Eccentric	150	100	25	7.50

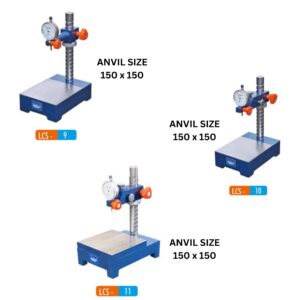

LCS-9	150 x 150	Cast Iron	5.0	Centre	150	85	25	8.00
LCS-10	150 x 150	Cast Iron	5.0	Fine Adjustment	150	85	25	8.50
LCS-11	150 x 150	Hardened & Serrated	5.0	Fine Adjustment	150	85	25	9.50

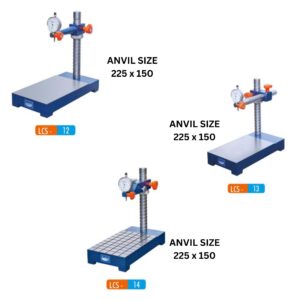

LCS-12	225 x 150	Cast Iron	6.0	Centre	200	115	28	9.50
LCS-13	225 x 150	Cast Iron	6.0	Eccentric	200	200	28	11.00
LCS-14	225 x 150	Cast Iron & Serrated	6.0	Fine Adjustment	200	110	28	10.00

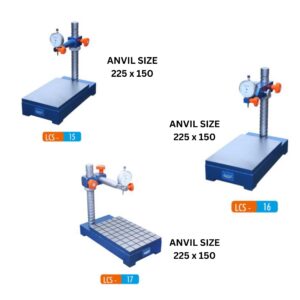

LCS-15	225 x 150	Hardened	6.0	Centre	200	115	28	12.00
LCS-16	225 x 150	Hardened	6.0	Fine Adjustment	200	110	28	12.50
LCS-17	225 x 150	Hardened & Serrated	6.0	Eccentric	200	200	28	13.00

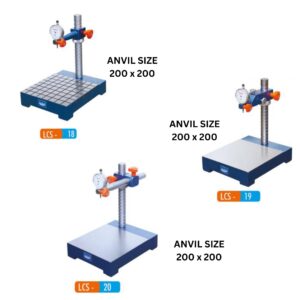

LCS-18	200 x 200	Cast Iron & Serrated	6.0	Centre	200	115	28	13.50
LCS-19	200 x 200	Cast Iron	6.5	Fine Adjustment	200	115	28	14.00
LCS-20	200 x 200	Cast Iron	6.5	Eccentric	200	110	28	14.50

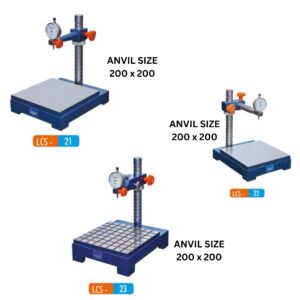

LCS-21	200 x 200	Hardened	6.5	Centre	200	115	28	15.00
LCS-22	200 x 200	Hardened	6.5	Eccentric	200	200	28	16.00
LCS-23	200 x 200	Hardened & Serrated	6.5	Fine Adjustment	200	110	28	15.00
LCS-24	300 x 200	Hardened & Serrated	7.0	Fine Adjustment	250	150	28	24.00
LCS-25	300 x 200	Hardened & Serrated	7.0	Eccentric	250	200	28	25.00
LCS-26	300 x 250	Hardened	7.0	Centre	250	150	28	29.00
LCS-27	300 x 250	Hardened & Serrated	7.0	Eccentric	250	150	28	30.00

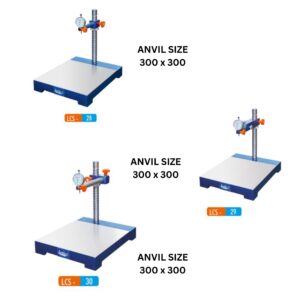

LCS-28	300 x 300	Cast Iron	7.5	Centre	250	150	28	21.50
LCS-29	300 x 300	Cast Iron	7.5	Fine Adjustment	250	150	28	22.00
LCS-30	300 x 300	Cast Iron	7.5	Eccentric	250	200	28	23.00

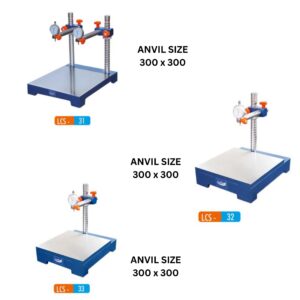

LCS-31	300 x 300	Cast Iron	7.5	Double Eccentric	250	200	28	27.00
LCS-32	300 x 300	Hardened	7.5	Fine Adjustment	250	150	28	32.00
LCS-33	300 x 300	Hardened	7.5	Eccentric	250	150	28	32.00
