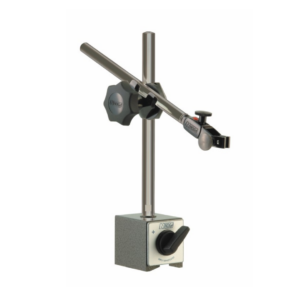

NOGA POST HOLDER FAT (FINE ADJUSTMNET TOP)

Code:

▪Due to its stability and ease of use, Noga articulated holders have become the industry most wanted.
▪New Fine adjustment on Top with universal swivel clamp.
▪Holds 6mm, 8mm,3/8″ and dovetail.
▪Unique central locking mechanism with Noga designed spring loaded bearing.
▪Dial gauge holder is 3 dimensional.
▪Most powerful on/off magnetic base.
▪Instant fixation in any position.
▪Fast and easy to set up gauges into required position.
▪Black finished Arms

Click to Expand

NOGA POST HOLDER FAT (FINE ADJUSTMENT TOP)

Product Overview

The Noga Post Holder FAT (Fine Adjustment Top) series consists of economical, 3-dimensional dial gauge and indicator holders featuring a fine adjustment mechanism located on the top with a universal swivel clamp. Designed for precision positioning in machining and metrology applications, these holders utilize a strong arm lock driven by a 3-point clamping system and powerful on/off magnetic bases (on complete units).

Key Features & Capabilities

Fine Adjustment Mechanism: Located on the top of the holder with a universal swivel clamp for precise gauge alignment.
Universal Clamping Capacity: Holds 6mm, 8mm, 3/8", and dovetail fittings.
3-Point Clamp: Strong arm lock using a unique 3-point clamping system.
Magnetic Base: Powerful on/off magnetic base (included on standard models; excluded on "w/out base" models).
Arm Finish: Durable black finished arms.
Ease of Use: Fast and easy setup of gauges into required positions.

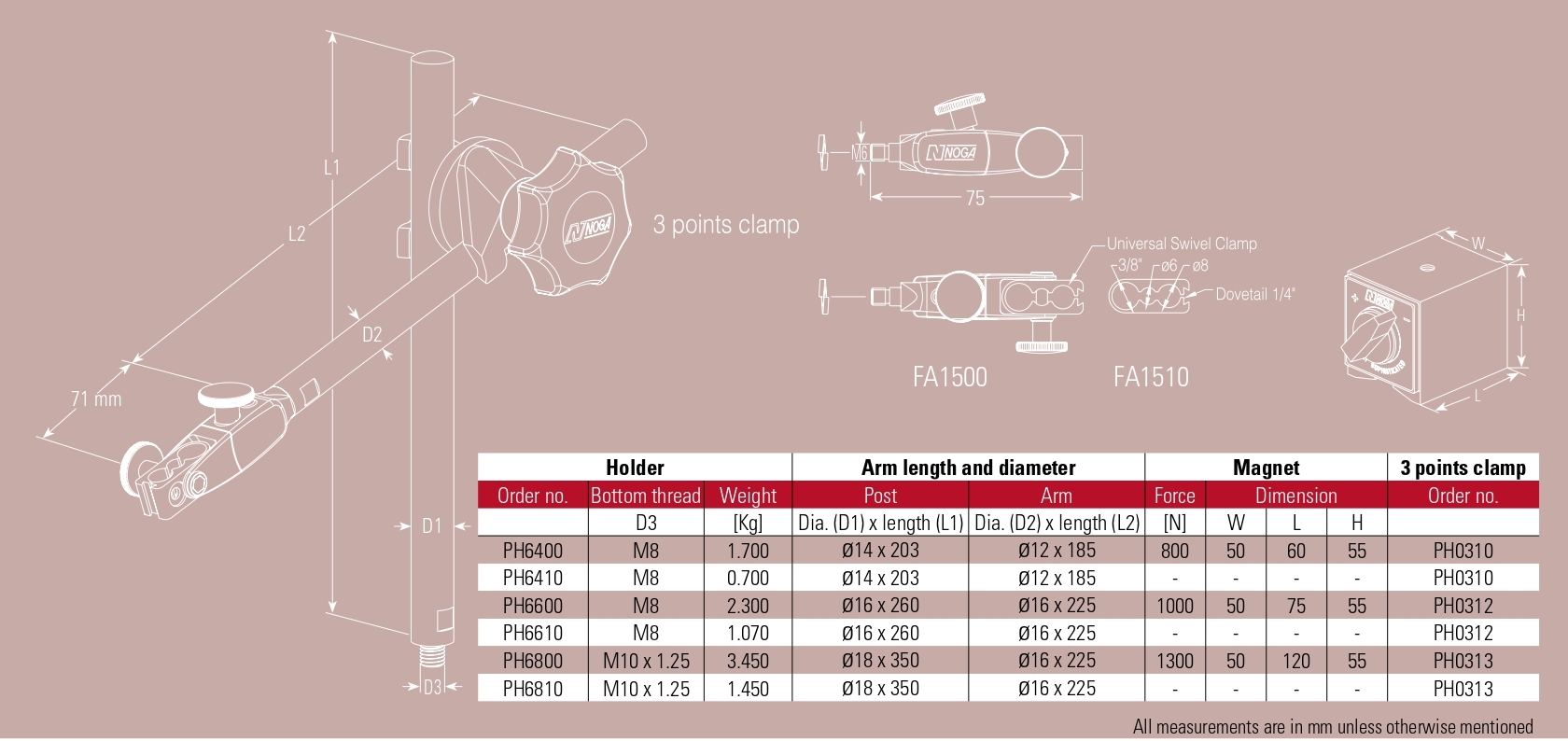

Technical Specifications

Order Model	Bottom Thread [D3]	Weight [Kg]	Post Dimensions (Dia. D1 x Length L1)	Arm Dimensions (Dia. D2 x Length L2)	Magnet Force [N]	Magnet Dimensions (W x L x H)	3 Points Clamp Order No.
PH6400	M8	1.700	$\varnothing$14 x 203 mm	$\varnothing$12 x 185 mm	800	50 x 60 x 55 mm	PH0310
PH6410	M8	0.700	$\varnothing$14 x 203 mm	$\varnothing$12 x 185 mm	—	—	PH0310
PH6600	M8	2.300	$\varnothing$16 x 260 mm	$\varnothing$16 x 225 mm	1000	50 x 75 x 55 mm	PH0312
PH6610	M8	1.070	$\varnothing$16 x 260 mm	$\varnothing$16 x 225 mm	—	—	PH0312
PH6800	M10 x 1.25	3.450	$\varnothing$18 x 350 mm	$\varnothing$16 x 225 mm	1300	50 x 120 x 55 mm	PH0313
PH6810	M10 x 1.25	1.450	$\varnothing$18 x 350 mm	$\varnothing$16 x 225 mm	—	—	PH0313
