NOGA ARTICULATED HOLDERS (FAB)

Noga has developed a unique fine adjustment mechanism which is placed on the magnetic base.
This mechanism allows the hand to rest on the base rather than on the clamp of the indicator.
Zero-setting becomes faster than with any other mechanism.
Unique single direction Fine adjustment at base.
Powerful on/off magnetic base.
Holds 8mm or 3/8″ (see catalog no.) and dovetail.
Unique central locking mechanism with Noga designed spring loaded bearing.
Five axis holder.
Instant fixation in any position.
Easy to set up into required position.
Black finished Arms.

Download Catalog

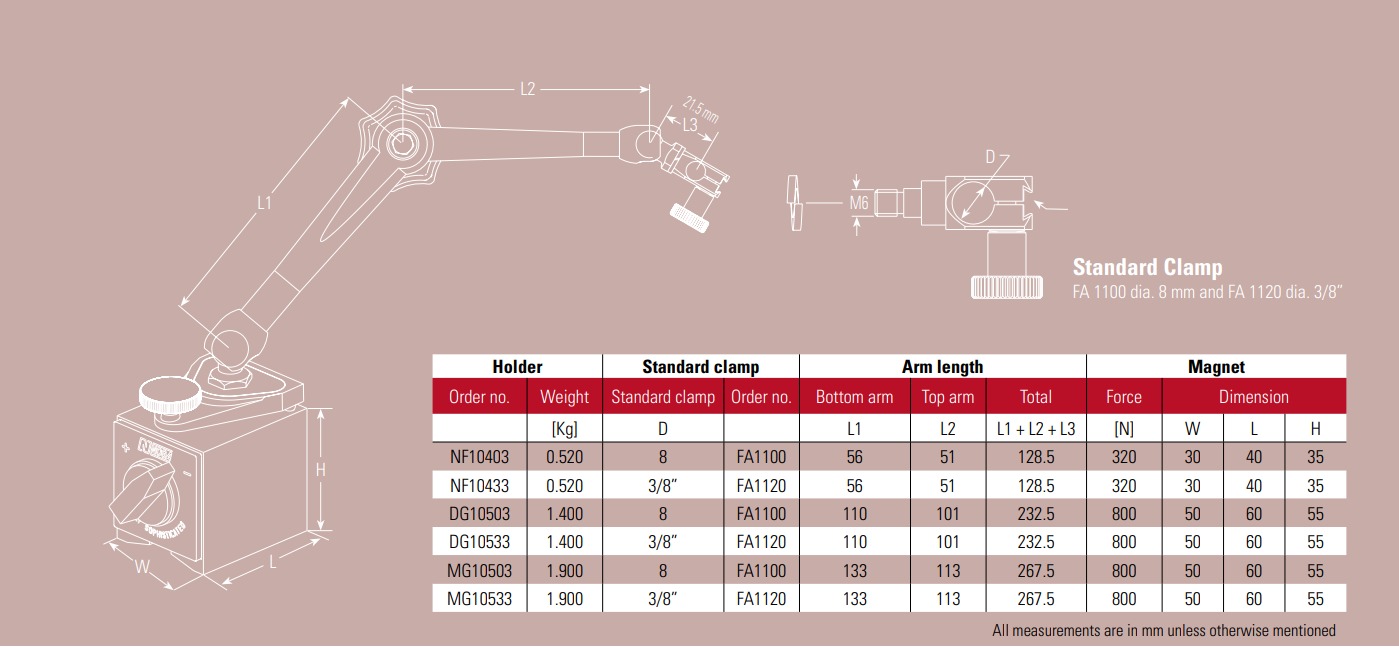

Holder		Standarad Clamp		Arm Length			Magnet
Order no.	Weight	Standarad Clamp</th	Order No	Bottom arm	Top arm	Total	Force	Dimension
	[Kg]	D		L1	L2	L1 + L2 + L3	[N]	W	L	H
NF10403	0.520	8	FA1100	56	51	128.5	320	30	40	35
NF10433	0.520	3/8”	FA1120	56	51	128.5	320	30	40	35
DG10503	1.400	8	FA1100	110	101	232.5	800	50	60	55
DG10533	1.400	3/8”	FA1120	110	101	232.5	800	50	60	55
MG10503	1.900	8	FA1100	133	113	267.5	800	50	60	55
MG10533	1.900	3/8”	FA1120	133	113	267.5	800	50	60	55

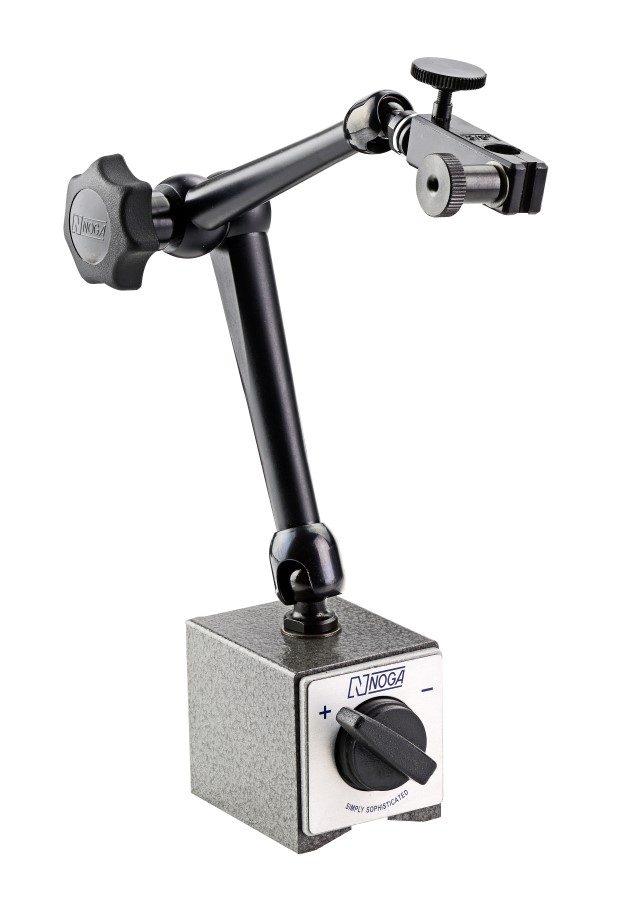

MG Holder European standard – MG10503

Unique single direction Fine adjustment at base.
– Powerful on/off magnetic base.
– Holds 8mm and dovetail.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five axis holder.
– Instant fixation in any position.
– Easy to set up into required position.
– Black finished Arms.

Weight: 1.90 Kg
Clamp Holds: 8mm and Dovetail
Clamp Order P/N: FA1100
Bottom Arm: 133mm
Top Arm: 113mm
Total Length: 267.5mm
Magnet Force: 800 N
Magnet Width: 50mm
Magnet Length: 60mm
Magnet Height: 55mm

MG Holder USA standard – MG10533

Unique single direction Fine adjustment at base.
– Powerful on/off magnetic base.
– Holds 3/8″ and dovetail.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five axis holder.
– Instant fixation in any position.
– Easy to set up into required position.
– Black finished Arms.

Weight: 1.90 Kg
Clamp Holds: 3/8″ and Dovetail
Clamp Order P/N: FA1120
Bottom Arm: 133mm
Top Arm: 113mm
Total Length: 267.5mm
Magnet Force: 800 N
Magnet Width: 50mm
Magnet Length: 60mm
Magnet Height: 55mm

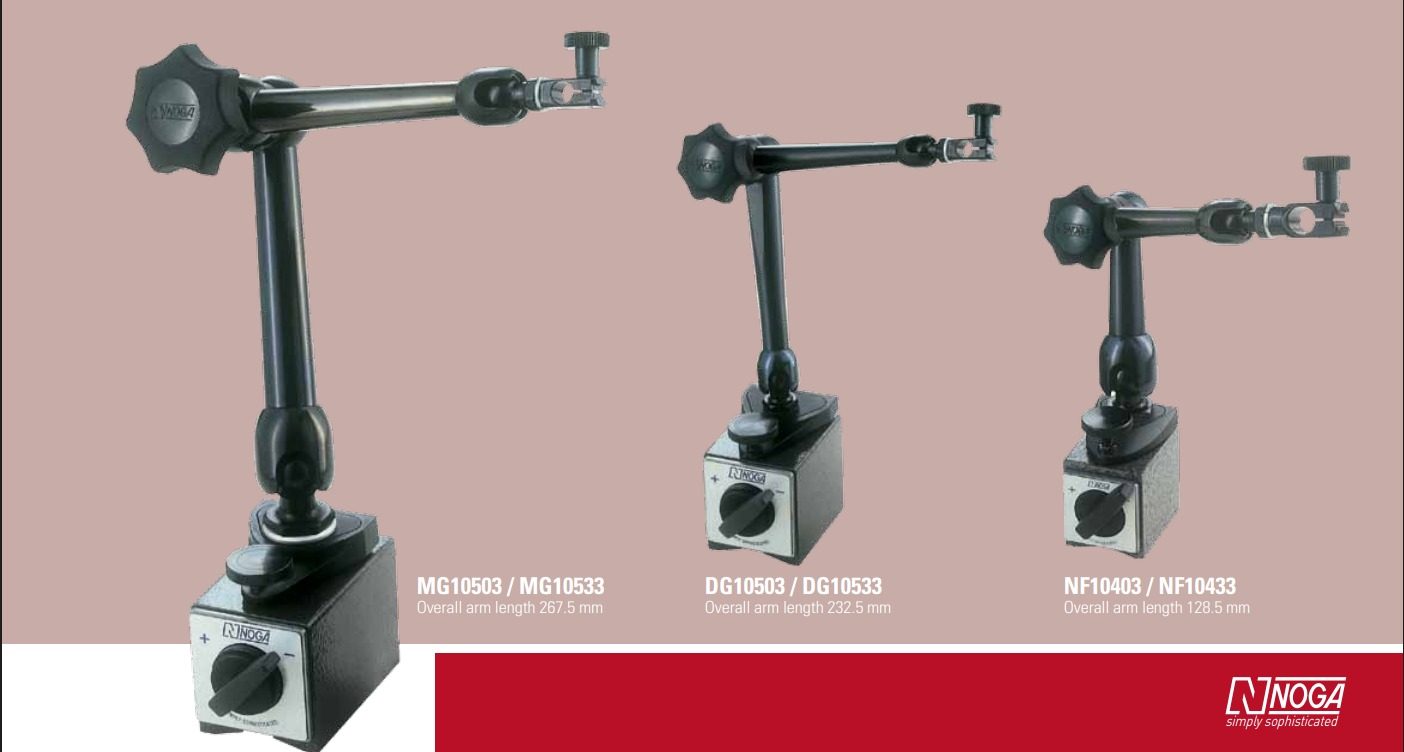

DG Holder European standard – DG10503

Weight: 1.40 Kg
Holds: 8mm and Dovetail
Clamp Order P/N: FA1100
Bottom Arm: 110mm
Top Arm: 101mm
Total Length: 232.5mm
Magnet Force: 800 N
Magnet Width: 50mm
Magnet Length: 60mm
Magnet Height: 55mm

DG Holder USA standard – DG10533

Weight: 1.40 Kg
Clamp Holds: 3/8″ and Dovetail
Clamp Order P/N: FA1120
Bottom Arm: 110mm
Top Arm: 101mm
Total Length: 232.5mm
Magnet Force: 800 N
Magnet Width: 50mm
Magnet Length: 60mm
Magnet Height: 55mm

NF Holder European standard – NF10403

Weight: 0.52 Kg
Clamp Holds: 8mm and Dovetail
Clamp Order P/N: FA1100
Bottom Arm: 56 mm
Top Arm: 51 mm
Total Length: 128.5 mm
Magnet Force: 320 N
Magnet Width: 30 mm
Magnet Length: 40 mm
Magnet Height: 35

NF Holder USA standard – NF10433

Weight: 0.52 Kg
Clamp Holds: 3/8″ and Dovetail
Clamp Order P/N: FA1120
Bottom Arm: 56 mm
Top Arm: 51 mm
Total Length: 128.5 mm
Magnet Force: 320 N
Magnet Width: 30 mm
Magnet Length: 40 mm
Magnet Height: 35 mm
