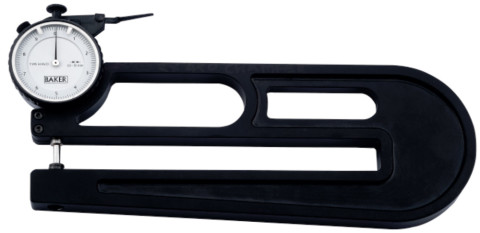

Throat Depth: 30 – 200 mm
FEATURES:
  • Every gauge carries a calibration certificate giving actual values
  • For quick measurement of thickness of sheets, paper, leather etc
  • In series K130, K138/L and K142, K145, K150 measurement pressure is independent of the user, resulting in accurate readings of thickness

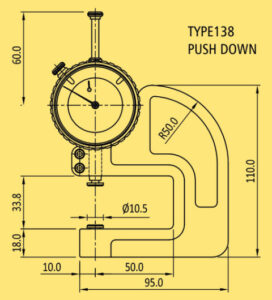

  • K138 ‘Push Down Type’ thickness gauge is particularly useful where fine measurement is not required – for example plywood
  • Well-balanced frames and handgrips coupled with lightweight make these gauges easy to use for measurement
  • Supplied with Ø10 mm flat anvil as standard. Can also be supplied with Ø20 mm flat anvil on request
throat-depth_-30-200-mm_04 throat-depth_-30-200-mm_05 throat-depth_-30-200-mm_06
throat-depth_-30-200-mm_07 throat-depth_-30-200-mm_08 throat-depth_-30-200-mm_09
dial-thickness-gauges_01 dial-thickness-gauges_02 dial-thickness-gauges_03
throat-depth_-30-200-mm_10 throat-depth_-30-200-mm_11 throat-depth_-30-200-mm_12



Metric
Bezel Dia. Type Reading Range Graduation Throat Depth

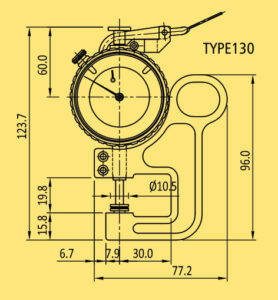

56mm K130/0 0.1mm 10mm 0-10 30mm
56mm K130/3 0.01mm 10mm 0-100 30mm
56mm K130/6 0.002mm 2mm 0-20 30mm
56mm K130/7 0.002mm 5mm 0-20 30mm
56mm K138/0 0.1mm 25mm 0-10 50mm
56mm K138/0L 0.1mm 25mm 0-10 50mm
56mm K138/3 0.01mm 25mm 0-100 50mm
56mm K138/3L 0.01mm 25mm 0-100 50mm

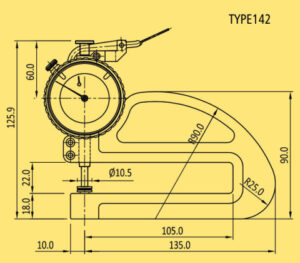

56mm K142/0 0.1mm 10mm 0-10 100mm
56mm K142/3 0.01mm 10mm 0-100 100mm
56mm K145/0 0.1mm 10mm 0-10 200mm
56mm K145/3 0.01mm 10mm 0-100 200mm
56mm K150/0 0.1mm 25mm 0-10 200mm
56mm K150/3 0.01mm 25mm 0-100 200mm



Inch
Bezel Dia. Type Reading Range Graduation Throat Depth
2 1/4″ K130/1 0.001″ 0.5″ 0-100 1.2″
2 1/4″ K130/8 0.0001″ 0.05″ 0-100 1.2″
2 1/4″ K130/9 0.0001″ 0.2″ 0-100 1.2″
2 1/4″ K138/1 0.001″ 1.0″ 0-100 2″
2 1/4″ K138/1L 0.001″ 1.0″ 0-100 2″
2 1/4″ K142/1 0.001″ 0.5″ 0-100 4″
2 1/4″ K145/1 0.001″ 0.5″ 0-100 8″
2 1/4″ K150/1 0.001″ 1.0″ 0-100 8″



Digital
Bezel Dia. Type Reading Range Throat Depth
56mm K130/D 0.001mm/0.00005″ 12.5mm/0.5″ 30mm
56mm K138/D 0.001mm/0.00005″ 25mm/1″ 50mm
56mm K142/D 0.001mm/0.00005″ 12.5mm/0.5″ 100mm
56mm K145/D 0.001mm/0.00005″ 12.5mm/0.5″ 200mm
56mm K150/D 0.001mm/0.00005″ 25mm/1″ 200mm



Check the PDF
