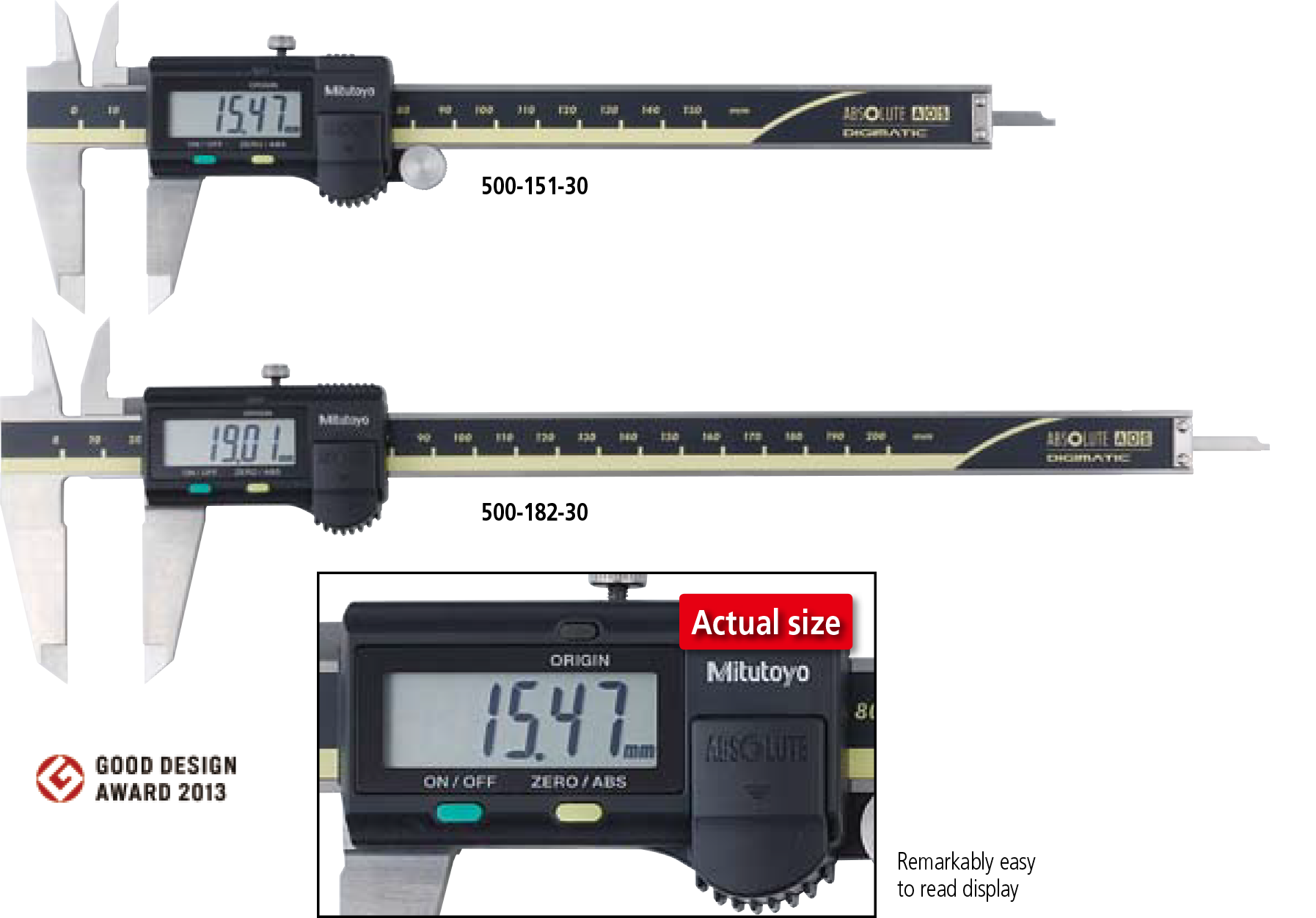

MITUTOYO SERIES 500 ABSOLUTE DIGIMATIC LONG CALIPER WITH EXCLUSIVE ABSOLUTE ENCODER TECHNOLOGY

Code:500-150-30500-180-30500-151-30500-154-30500-155-30500-158-30500-181-30500-152-30500-156-30500-157-30500-182-30500-153-30500-161-30500-162-30500-184-30500-201-30500-203-30500-205-30500-233-30500-234-30500-235-30500-236-30500-170-30500-195-30500-171-30500-174-30500-175-30500-178-30500-196-30500-159-30500-160-30500-191-30500-202-30500-172-30500-176-30500-177-30500-197-30500-163-30500-164-30500-204-30500-173-30500-167-30500-168-30500-193-30500-165-30500-166-30... ▾ (+99)

Code:

▪This is a standard digial caliper. The digital display can reduce human error by preventing incorrect reading of measuremnet results.
▪Incorporates Mitutoyo Absolute measurement system. No need to reset the origin after switching on. Elements overspeed errors.
▪Carbide-tipped jaws calipers are optimal for rough finished parts, castings, grinding stones, etc.
▪SPC data output models can be integrated into statistical process control and measurement systems

Click to Expand

MITUTOYO SERIES 500 ABSOLUTE DIGIMATIC LONG CALIPER WITH EXCLUSIVE ABSOLUTE ENCODER TECHNOLOGY

Product Overview

The Mitutoyo Series 500 Absolute Digimatic Caliper features exclusive Absolute Encoder Technology, designed to eliminate the need to reset the origin after powering on and prevent overspeed errors. This standard digital caliper is engineered to reduce human error through clear digital measurement readouts. Carbide-tipped jaw variants are optimal for measuring rough-finished parts, castings, and grinding stones. Models equipped with SPC data output allow seamless integration into statistical process control and measurement systems.

Key Features & Capabilities

Absolute Measurement System: Retains the origin setting even when powered off; no need to reset the origin after switching on, and eliminates overspeed measurement errors.
Incremental Measurement: Allows the displayed value to be set to zero at any position for comparative measurements.
Low-Voltage Alert: Displays a "B" warning mark when battery voltage is low, allowing timely battery replacement before measurement becomes impossible.
Data Output: Selected models feature an output port for transferring measurement data to SPC systems.
Carbide-Tipped Jaws (Specific Models): Optimized for rough-finished parts, castings, and grinding stones.

Technical Specifications

Metric Specifications Table

Code No.	Range (mm)	Resolution (mm)	Maximum Permissible Error (mm)* $E_{MPE}$	Maximum Permissible Error (mm)* $S_{MPE}$	Measurement Data Output Port	Mass (g)	Depth Bar	Fine Adjustment	Remarks
500-150-30	0 - 100	0.01	±0.02	±0.04	✓	143	ø1.9 mm rod	with thumb roller	—
500-180-30	0 - 100	0.01	±0.02	±0.04	—	143	ø1.9 mm rod	—	—

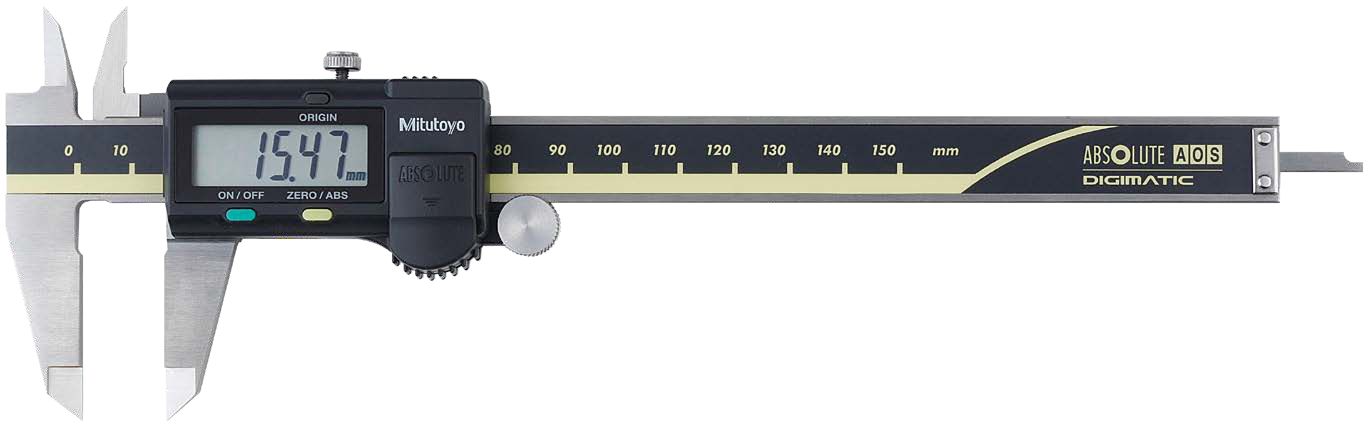

500-151-30	0 - 150	0.01	±0.02	±0.04	✓	168	Blade	with thumb roller	—
500-154-30	0 - 150	0.01	±0.02	±0.04	✓	168	Blade	with thumb roller	Carbide-tipped jaws for outside measurement
500-155-30	0 - 150	0.01	±0.02	±0.04	✓	168	Blade	with thumb roller	Carbide-tipped jaws for outside and inside measurement
500-158-30	0 - 150	0.01	±0.02	±0.04	✓	168	ø1.9 mm rod	with thumb roller	—
500-181-30	0 - 150	0.01	±0.02	±0.04	—	168	Blade	—	—

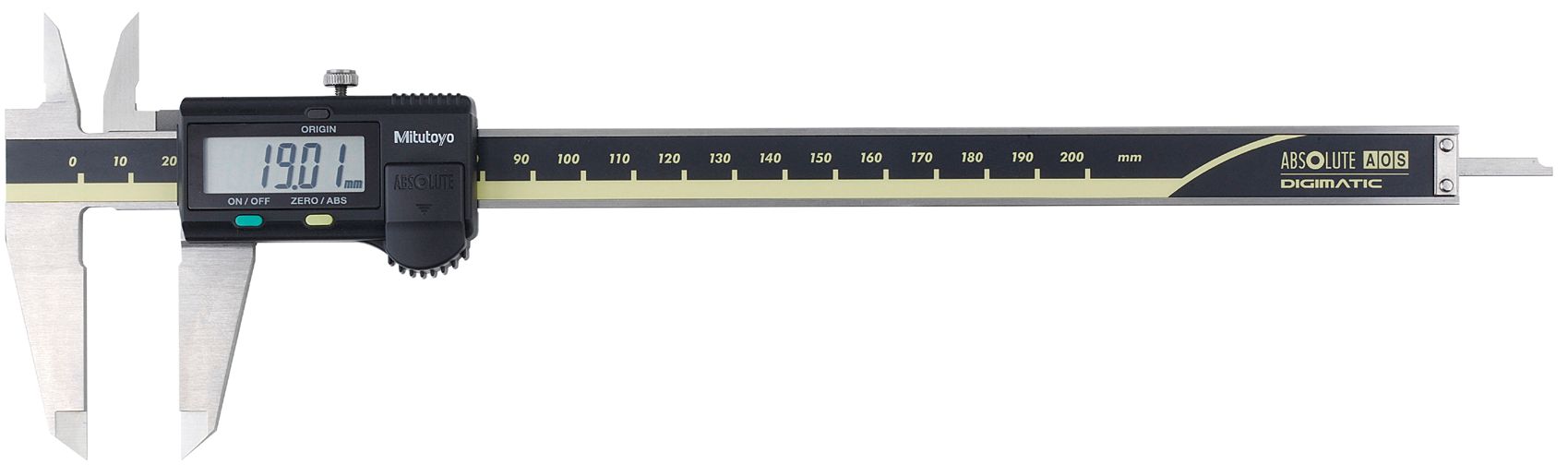

500-152-30	0 - 200	0.01	±0.02	±0.04	✓	198	Blade	with thumb roller	—
500-156-30	0 - 200	0.01	±0.02	±0.04	✓	198	Blade	with thumb roller	Carbide-tipped jaws for outside measurement
500-157-30	0 - 200	0.01	±0.02	±0.04	✓	198	Blade	with thumb roller	Carbide-tipped jaws for outside and inside measurement
500-182-30	0 - 200	0.01	±0.02	±0.04	—	198	Blade	—	—

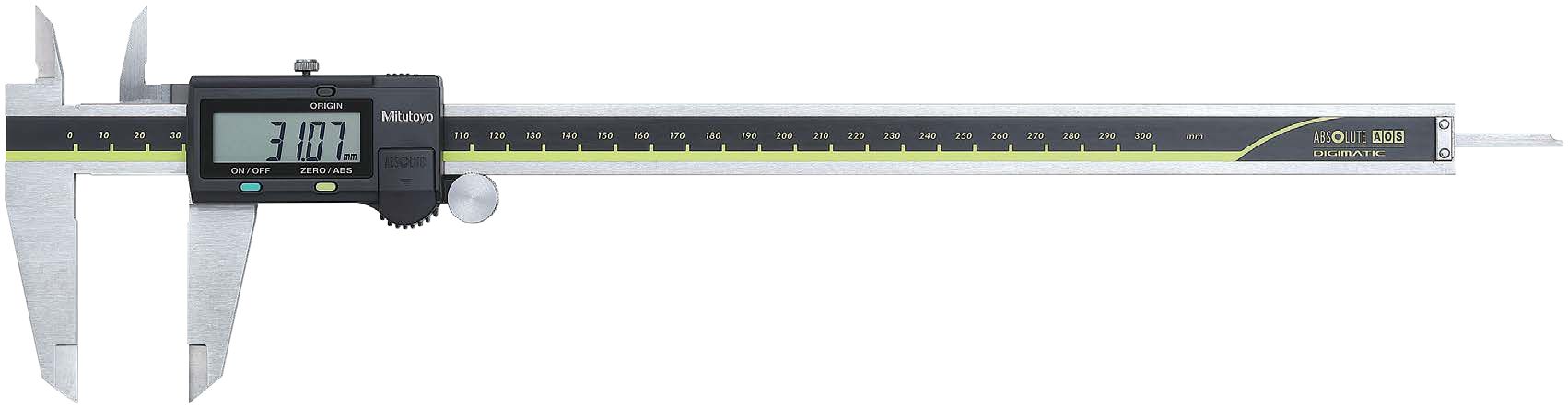

500-153-30	0 - 300	0.01	±0.03	±0.05	✓	350	Blade	with thumb roller	—
500-161-30	0 - 150	0.01	±0.02	±0.04	✓	168	Blade	—	—
500-162-30	0 - 200	0.01	±0.02	±0.04	✓	198	Blade	—	—
500-184-30	0 - 150	0.01	—	—	—	168	ø1.9 mm rod	—	—
500-201-30	0 - 100	0.01	—	—	—	143	Blade	—	—
500-203-30	0 - 150	0.01	—	—	—	168	ø1.9 mm rod	—	—
500-205-30	0 - 300	0.01	±0.03	±0.05	—	345	Blade	—	—
500-233-30	0 - 150	0.01	±0.02	±0.04	✓	168	Blade	—	Carbide-tipped jaws for outside measurement
500-234-30	0 - 150	0.01	±0.02	±0.04	✓	168	Blade	—	Carbide-tipped jaws for outside and inside measurement
500-235-30	0 - 200	0.01	±0.02	±0.04	✓	198	Blade	—	Carbide-tipped jaws for outside measurement
500-236-30	0 - 200	0.01	±0.02	±0.04	✓	198	Blade	—	Carbide-tipped jaws for outside and inside measurement

Note: The Partial Surface Contact Error ($E_{MPE}$) and Shift Error ($S_{MPE}$) are terms defined by ISO 13385-1:2019.

General Technical Parameters

Power Source: SR44 battery (1 pc.), Code No. 938882 included as standard (for operational checks)
Position Detection Method: ABSOLUTE electromagnetic induction linear encoder
Battery Life: Approx. 5 years under normal use
Response Speed: Unlimited
