DIGITAL INSIDE POINT CALIPERS (CODE – 1121)

Measure groove diameter Resolutions : 0.01mm/0.005" Buttons : Type A on/off, set, mm/inch, preset(+,-)                  Type B on/off, zero, mm/inch Automatic power off, move the digital until  to turn on power Battery CR2032 Data Output Made of stainless steel Optional accessory : data stop

Present (no need to add the width of jaws on the reading), with data interface

Code Range Type Accuracy L (mm) a (mm) b (mm) c (mm) d (mm) D (mm)
1121-150A 24-150mm/0.94-6″ A ±0.04mm 250 5 12 16 28 Ø2
1121-1501 35-150mm/1.38-6″ A ±0.05mm 250 6 17.5 16 60 Ø2
1121-200A 25-200mm/0.98-8″ A ±0.04mm 310 5 12.5 16 37 Ø2
1121-2001 40-200mm/1.57-8″ A ±0.05mm 310 7 20 16 70 Ø3
1121-300A 30-300mm/1.18-12″ A ±0.07mm 410 5 15 16 50 Ø2
1121-3001 50-300mm/1.97-12″ A ±0.07mm 410 8 25 16 77 Ø3
1121-500A 40-500mm/1.57-20″ A ±0.07mm 680 5 20 24 90 Ø3
1121-5001 60-500mm/2.36-20″ A ±0.08mm 680 10 30 24 120 Ø3
1121-5002 80-500mm/3.15-20″ A ±0.08mm 680 16 40 24 150 Ø3

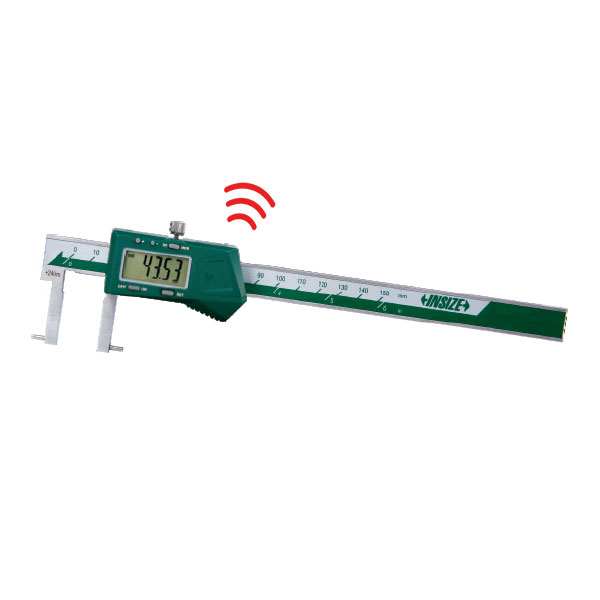

Present (no need to add the width of jaws on the reading), built-in wireless (receiver code 7315-2/3/6/7/8/9 is required)

Code Range Type Accuracy L (mm) a (mm) b (mm) c (mm) d (mm) D (mm)
1121-150AWL 24-150mm/0.94-6″ A ±0.04mm 250 5 12 16 28 Ø2
1121-1501WL 35-150mm/1.38-6″ A ±0.05mm 250 6 17.5 16 60 Ø2
1121-200AWL 25-200mm/0.98-8″ A ±0.04mm 310 5 12.5 16 37 Ø2
1121-2001WL 40-200mm/1.57-8″ A ±0.05mm 310 7 20 16 70 Ø3
1121-300AWL 30-300mm/1.18-12″ A ±0.07mm 410 5 15 16 50 Ø2
1121-3001AWL 50-300mm/1.97-12″ A ±0.07mm 410 8 25 16 77 Ø3
1121-500AWL 40-500mm/1.57-20″ A ±0.07mm 680 5 20 24 90 Ø3
1121-5001WL 60-500mm/2.36-20″ A ±0.08mm 680 10 30 24 120 Ø3
1121-5002WL 80-500mm/3.15-20″ A ±0.08mm 680 16 40 24 150 Ø3

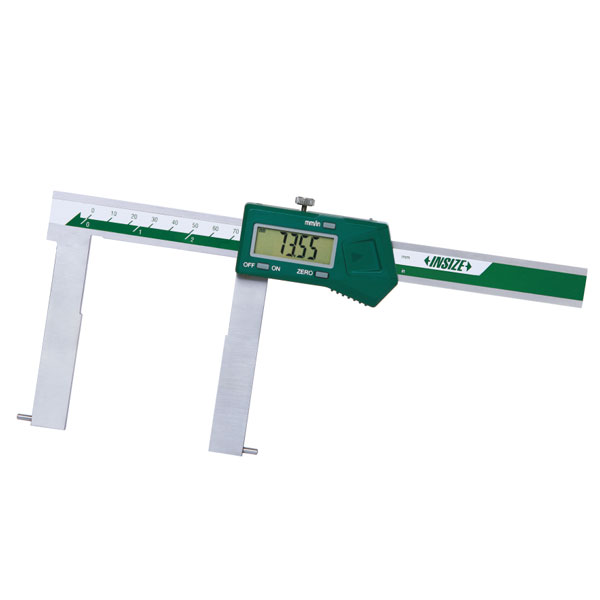

No Present (eed to add the width of jaws on the reading)

Code Range Type Accuracy L (mm) a (mm) b (mm) c (mm) d (mm) D (mm)
1121-150B 50-150mm/1.97-6″ B ±0.06mm 270 8 25 20 90 Ø3
1121-200B 60-200mm/2.36-8″ B ±0.06mm 320 10 30 20 100 Ø3
1121-300B 60-300mm/2.36-12″ B ±0.07mm 420 10 30 20 110 Ø3

  • Measure groove diameter
  • Resolutions : 0.01mm/0.005″
  • Buttons : Type A on/off, set, mm/inch, preset(+,-)
    Type B on/off, zero, mm/inch
  • Automatic power off, move the digital until  to turn on power
  • Battery CR2032
  • Data Output
  • Made of stainless steel
  • Optional accessory : data stop
