• Features Memory Pointer for Easy Reading
  • Ideal for Torque Measuring or Quality Inspections



DB-S Dial indicating torque wrench features main pointer and red memory pointer

dial indicating torque wrench-db12n4-s dial indicating torque wrench-db100n-s
dial indicating torque wrench-dbe700n-s dial indicating torque wrench-memory-pointer
DB-S features main pointer and red   memory pointer



Select proper model
according to unit of measure as following color code :
S.I. =     Metric =     American =

Accuracy +/-3% of indicated value

Model Torque Range Square Drive Dimensions [mm] Weight approx. Optional
Min.-Max. Graduation Carrying Case
S.I. Metric American S.I. Metric American S.I. Metric American mm in L L’ B D b e h R d L1 L0 kg
DB1.5N4-S 15DB4-S DB13I-2AS N.m
0.2-1.5
kgf.cm
2-15
in.lbs
0-13
N.m
0.02
kgf.cm
0.2
in.lbs
0.2
6.3 1/4 170 205 77.2 69 7.5 26.5 34 14 19 N/A 95 0.4 N/A
DB3N4-S 30DB4-S DB26I-2AS 0.3-3 3-30 0-26 0.05 0.5 0.5
DB6N4-S 60DB4-S DB40I-2AS 0.6-6 6-60 0-40 0.1 1 0.5
DB12N4-S 120DB4-S DB75I-2AS 1-12 10-120 0-75 0.2 2 1
New Model New Model New Model 3-25 30-230 0-150 0.5 5 2 200 245
DB25N-1/4-S 230DB3-1/4-S DB150I-2AS
DB25N-S 230DB3-S DB150I-3AS 3-25 30-230 0-150 0.5 5 2 9.53 3/8 200 245 11 29.5 40.5 18.5 30.6 110
DB50N-S 450DB3-S DB300I-3AS 5-50 50-450 0-300 5 240 320 32 140 0.6 #846
New Model New Model DB600I-3AS 10-100 100-900 0-600 1 10 10 310 400
DB100N-3/8-S 900DB3-3/8-S
DB100N-S 900DB3-S DB600I-4AS 12.7 1/2 14 43.5 21.5 31.3 180 0.7
DB25F-3AS ft.lbs
0-25
ft.lbs
0.5
9.53 3/8
DB50F-3AS 0-50
DB50F-4AS 12.7 1/2
DB200N-S 1800DB3-S DB100F-4AS 20-200 200-1800 0-100 2 20 1 410 500 14 33.2 47.2 35.4 230 1 #847
New Model New Model 30-280 kgf.m
3-28
5 kgf.m
0.5
600 690 20.5 31.6 52.1 300 1.65
DB280N-1/2-S 2800DB3-1/2-S
DB280N-S 2800DB3-S 30-280 kgf.m
3-28
5 kgf.m
0.5
19.05 3/4
DB175F-4AS 0-175 2 12.7 1/2                 N/A
DB420N-S 4200DB2-S DB250F-6AS 40-420 4-42 0-250 5 0.5 5 19.05 3/4 800 890 91 81 20.5 32.6 53.1 18 34 300 2.5
DBE560N-S 5600DBE2-S DB350F-6AS 50-560 5-56 0-350 5 1000 1100 38.6 59.1 21 732 420 4
DBE700N-S 7000DBE2-S DB500F-6AS 70-700 7-70 0-500 10 1 10 150 1260 42.5 63 22.5 38 803.5 500 5.5
DBE850N-S 8500DBE2-S 100-850 10-85 25.4 1 1250 1360 26.5 37.4 63.9 25 805 6.1
DBE1000N-S 10000DBE2-S DB800F-8AS 100-1000 10-100 0-800 10 1350 1490 32.5 59 6.4
DBE1400N-S 14000DBE2-S DB1000F-8AS 200-1400 20-140 0-1000 20 2 10 1600 1740 41.5 68 30 34 730 8.6
DBE2100N-S 21000DBE2-S DB1500F-8AS 200-2100 20-210 0-1500 20 2000 2140 27.5 44.8 72.3 32.5 12.8
DBE2800N-S 28000DBE2-S DB2000F-12AS 300-2800 30-280 0-2000 50 5 20 38.1 1-1/2 2240 2380 42 57.5 99.5 722.5 16.8
DBR4500N-S 45000DBR-S DB3000F-12AS 500-4500 50-450 0-3000 50 1200 1285 128 91 97 138 60 882.5 24.5
DBR6000N-S 60000DBR-S 600-6000 60-600 44.45 1500 1585 46 142 N/A 25.5



NOTE
  1. DBR Models are available upon request.
  2. DB4 Models have new smaller style handle to help avoid overtorquing on
    low torque ranges.

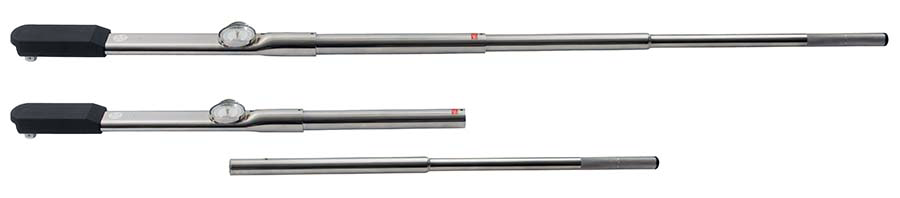

  3. DBE Models have extension handles.
  4. Item maybe purchased through authorized local dealers and through Amazon.com (Through Amazon.com we can only validate and control items sold via “seller” Tohnichi America. Click model name above)
  5. New Models will be available to order as of May 20, 2012 with an estimated 4-6wks lead time.
