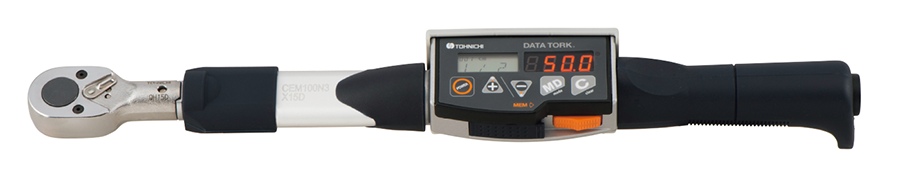

Specialized Version of CEM3 Data Tork for Quality Inspection Torque Routes
Main Features
1. Programmable digital torque wrench allows to enter data relating to the tightening or measuring process:
- Product Name
- Location of Fastener
- Number of Fasteners
- Torque Limits for each Fastener
- Sequence of Testing
2. Creates a “Task List” that is uploaded to the wrench.
Display on the wrench guides user through testing or tightening process.
Judgment alert by buzzer and red/green light
3. Exports data to Excel File.
Programmable digital torque wrench saves torque value with product and fastener information along with time and date of application.
Model | Torque Range | Hand force at Max. Torque | Dimensions [mm] | Weight approx | Standard Accessories (included) | ||||||||||
Min.-Max. | Resolution (1 digit) | ||||||||||||||
S.I. | Metric | American | S.I. | Metric | American | S.I. | Metric | American | N | L | L’ | kg | Ratchet Head | Sq Dr. Size | Additional Items |
CEM10N3X8D-P | CEM10N3X8D-P-M | CEM10N3X8D-P-I | N.m 2-10 |
kgf.cm 20-100 |
in.lbs 20-90 |
N.m 0.01 |
kgf.cm 0.1 |
in.lbs 0.1 |
48.1 | 208 | 212 | 0.46 | QH8D | 1/4 | Battery pack BP-5, Battery Charger, Application software (CD-ROM) |
CEM20N3X10D-P | CEM20N3X10D-P-M | CEM20N3X10D-P-I | 4-20 | 40-200 | 36-180 | 0.02 | 0.2 | 0.2 | 92.2 | 217 | 214 | 0.47 | QH10D | 3/8 | |
CEM50N3X12D-P | CEM50N3X12D-P-M | CEM50N3X12D-P-I | 10-50 | 100-500 | 100-450 | 0.05 | 0.5 | 0.5 | 196.9 | 254 | 282 | 0.58 | QH12D | ||
CEM100N3X15D-P | CEM100N3X15D-P-M | CEM100N3X15D-P-I | 20-100 | 200-1000 | 200-900 | 0.1 | 1 | 1 | 275.5 | 363 | 384 | 0.63 | QH15D | 1/2 | |
CEM200N3X19D-P | CEM200N3X19D-P-M | CEM200N3X19D-P-F | 40-200 | 400-2000 | ft.lbs 30-150 |
0.2 | 2 | ft.lbs 0.2 |
428.3 | 467 | 475 | 0.78 | QH19D | ||
CEM360N3X22D-P | CEM360N3X22D-P-M | CEM360N3X33D-P-F | 72-360 | 720-3600 | 52-260 | 0.4 | 4 | 0.4 | 498.6 | 722 | 713 | 1.13 | QH22D | 3/4 | |
CEM500N3X22D-P | CEM500N3X22D-P-M | CEM500N3X22D-P-F | 100-500 | kgf.m 10-50 |
72-360 | 0.5 | kgf.m 0.05 |
0.5 | 549.5 | 910 | 949 | 4.0 | |||
CEM850N3X32D-P | CEM850N3X32D-P-M | CEM850N3X32D-P-F | 170-850 | 17-85 | 124-620 | 1 | 0.1 | 1 | 608 | 1398 | 1387 | 5.14 | QH32D | 1″ |
NOTE
- CEM3-P Models are not available in global units of measure (-G). You need to select correct model for only one unit of measure.
- Metric model is named ”
-M”, e.g. CEM10N3X8D-P-M for 20-100kgf.cm - American models are named “-I” or “-F”, e.g. CEM20N3X10D-P-I
for 36-180 in.lbs, CEM360N3X22D-P-F for 52-260 ft.lbs - We recommend a demonstration prior to purchase to insure tool will work with your particular application. Contact Tohnichi or your local Tohnichi dealer to arrange a demonstration.
- Cable required and sold separately #584 USB cable
Common Specifications
DISPLAY (Torque Value) | 7 Segments LED 4 lines* |
(Counter) | 14 segments LCD 3 lines* |
DIGITAL HEIGHT (Torque Value) | 10.16mm* |
(Counter) | 7mm* |
NUMBER OF DATA MEMORY | Up to 3000 Data |
BASIC FUNCTIONS | Peak Hold |
Peak Data Memory | |
Run Mode | |
Auto Memory & Resetting | |
Auto Zero Setting | |
Auto Off (3 min) | |
Over Torque Alarm | |
Clock | |
COMMUNICATION FUNCTIONS | RS232C (2400-19200 bps) |
Serial output corresponding to a USB connector | |
BATTERY LIFE INDICATOR | Available |
POWER SUPPLY | Ni-MH rechargeable battery |
CONTINUOUS USE | Approx. 30hrs (Power Saving Mode) |
RECHARGING TIME | Approx. 3.5 hrs |
COMMUNICATION MODE SWITCH | Key Operation |
