CDB-S INTERCHANGEBLE HEAD DIAL INDICATING TORQUE WRENCH

CDB-S INTERCHANGEBLE HEAD DIAL INDICATING TORQUE WRENCH

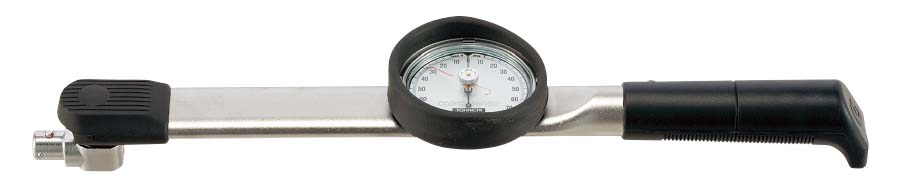

Dial indicating torque wrench Interchangeable Head Version of DB-S Memory Pointer for Easy Torque Reading Dial indicating torque wrench is ideal for Torque Measuring and Quality Inspections. Permanently Attached Adapter Allows for Use of Different Styles of Tohnichi Heads (Sold Separately) Model CDB14N4X8D-S with smaller handle for low torque applications Scale plate with black main

Select proper model according
to unit of measure as following color code :

S.I. =

Metric =

American =

Accuracy
±3%

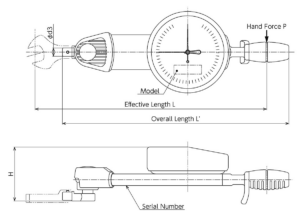

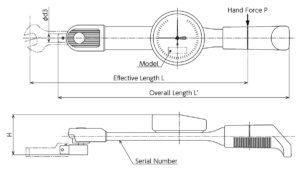

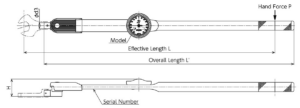

Model			Torque Range						Hand Force at Max Torque Range	Dimensions [mm]				Weight approx	Interchangeable Head Size
Model			Min.-Max.			Graduation			Hand Force at Max Torque Range	Dimensions [mm]				Weight approx
S.I.	Metric	American	S.I.	Metric	American	S.I.	Metric	American	N	L	L’	H	d3	kg
CDB7N4X 8D-S	70CDB4-S	70CDB-A-S	N.m 0.7-7	kgf.cm 7-70	in.lbs 6-60	N.m 0.1	kgf.cm 1	in.lbs 1	30.4	230	215	51	8	0.42	8D
CDB14N4 X 8D-S	140CDB4-S	140CDB-A-S	2-14	20-140	20-120	0.2	2	2	60.9	230	215	51	8	0.42	8D
CDB25N X 10D-S	250CDB-S	250CDB-A-S	3-25	30-250	25-220	0.5	5	5	96.2	260	255	57	10	0.48	10D
CDB50N X 12D-S	500CDB-S	500CDB-A-S	5-50	50-250	40-430	0.5	5	5	161.3	310	330	57	10	0.53	12D
CDB100N X 15D-S	1000CDB-S	1000CDB-A-S	10-100	100-1000	ft.lbs 7-70	1	10	ft.lbs 1	256.4	390	415	69	12	0.76	15D
CDB200N X 19D-S	2000CDB-S	2000CDB-A-S	20-200	200-2000	14-140	2	20	2	388.3	515	525	57.5	15	1	19D
CDB300N X 22D-S	3000CDB-S	3000CDB-A-S	30-300	kgf.m 3-30	20-220	5	kgf.m 0.5	5	413.8	725	720	63.1	19	1.65	22D
CDB420N X 22D-S	4200CDB-S	4200CDB-A-S	40-420	4-42	30-300	5	kgf.m 0.5	5	454.1	925	920	64.4	22	2.7	22D

1. Overall length does not include interchangeable
2. PH type interchangeable head is not available for this model.

Dial indicating torque wrench Interchangeable Head Version of DB-S
Memory Pointer for Easy Torque Reading
Dial indicating torque wrench is ideal for Torque Measuring and Quality Inspections.
Permanently Attached Adapter Allows for Use of Different Styles of Tohnichi Heads (Sold Separately)
