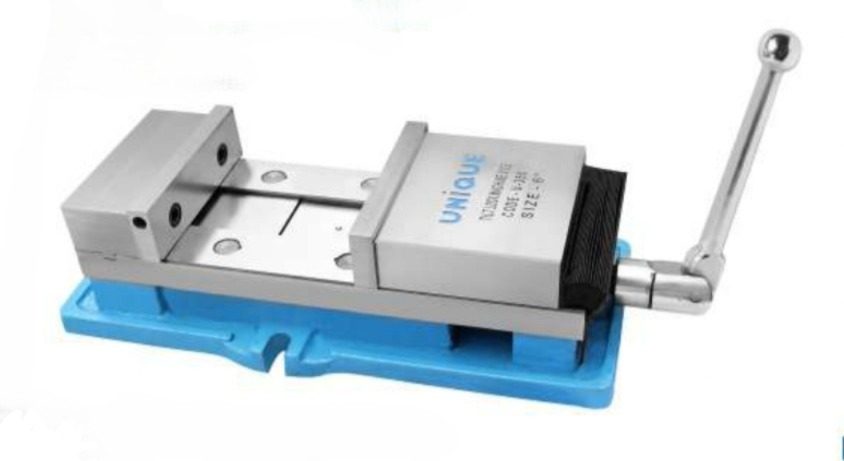

UNIQUE TILT LOCK MACHINE VISE – CODE U350
- High quality FCD 60 vise body, with flame hardened guideways for better wear resistance.
- Hardened Jaw Plates.
- Anti lift hammer less vise.
- Fitted with thrust bearing for smooth movement.

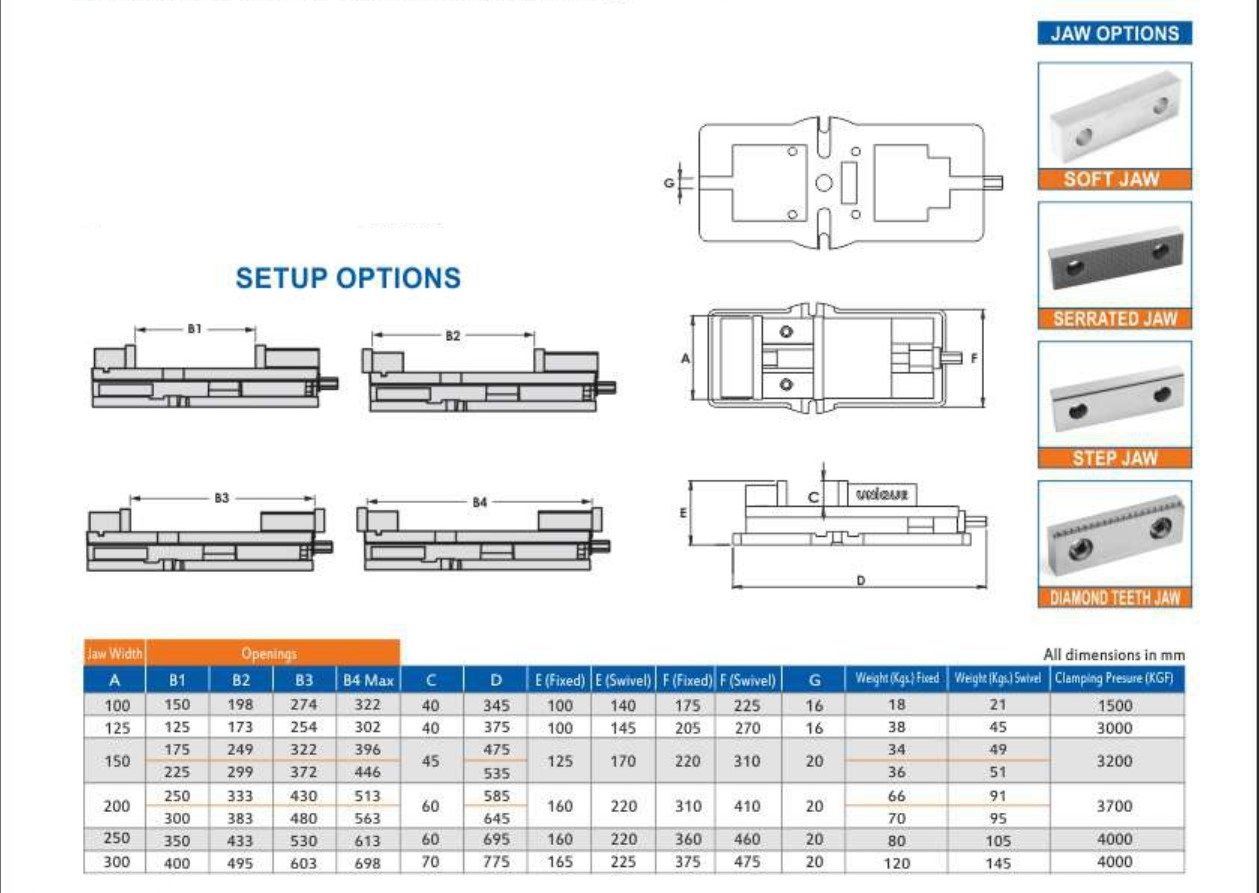

- 4 Possible configurations, (as shown in the SETUP OPTIONS).
- Chip clearance holes, no dead pockets.
- Supplied with stopper for fast production.
- Accuracy in squareness + 0.02 / 100 mm.
-
-
-
| JAW WIDTH |
OPENINGS |
|
|
|
|
|
|
|
|
|
|
| A |
B1 |
B2 |
B3 |
B4 MAX |
C |
D |
E (Fixed) |
E (Swivel) |
F (Fixed) |
F (Swivel) |
G |
WEIGHT(kgs) Fixed |
WEIGHT(kgs) Swivel |
CLAMPING PRESSURE (KGF) |
| 100 |
150 |
198 |
274 |
322 |
40 |
345 |
100 |
140 |
175 |
225 |
16 |
18 |
21 |
1500 |
| 125 |
125 |
173 |
254 |
302 |
40 |
375 |
100 |
145 |
205 |
270 |
16 |
38 |
45 |
3000 |
| 150 |
175 |
249 |
322 |
396 |
45 |
475 |
125 |
170 |
220 |
310 |
20 |
34 |
49 |
3200 |
| 225 |
299 |
372 |
446 |
535 |
36 |
51 |
| 200 |
250 |
333 |
430 |
513 |
60 |
585 |
160 |
220 |
310 |
410 |
20 |
66 |
91 |
3700 |
| 300 |
383 |
480 |
563 |
645 |
70 |
95 |
| 250 |
350 |
433 |
530 |
613 |
60 |
695 |
160 |
220 |
360 |
460 |
20 |
80 |
105 |
4000 |
| 300 |
400 |
495 |
603 |
698 |
70 |
775 |
165 |
225 |
375 |
475 |
20 |
120 |
145 |
4000 |
Features
- Rigid Material Vise Body of Ductile Iron.
- Fitted with Thrust Bearing for Smooth Movement.
- Unique Tilt Lock Vices can with stand heavy jobs.
- Top & Bottom of vice bed, bottom & both sides of jaws & all jaw mounting surfaces are precision ground.
- By reversing the jaw plates the jaws are raised & can be fitted to both ends of the fixed jaws & the moveable jaws.
- The four different positions of jaw plates pair are available for more gripping area.
- Coolant through on vise body and swivel base.
- Chip clearance holes …….. no dead pockets.
- Swivel handle allows the screw head revolved on machine table.
- The vice can be disassembled and repaired by regrinding.
- Supplied with Stopper for Fast Production.
