UNIQUE UNIVERSAL SHAPER VISE – CODE U311

  • Heavy duty shaper vice sturdy constructed from close grain casting for use on shaper machines, planners & other heavy duty machines permitting wider application for taller work pieces.
  • It is designed to permit maximum opening jaws to hold heavy & taller jobs.
  • High tensile steel square thread screw.
  • The jaws are made of special steels. These are precisely ground & serrated to ensure firm grips on heavy jobs.

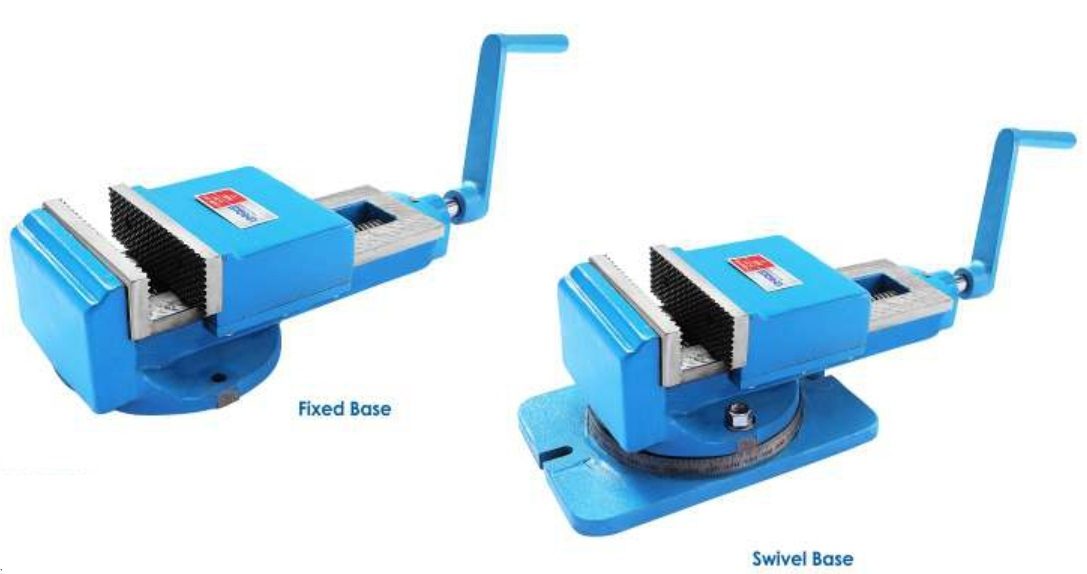

  • Swivel base is indexed to 360º, when required to use as stationery vice, the base can be removed.
  • Crank Handle is made of unbreakable steel, provided with a spring loaded mechanism providing positive grip.

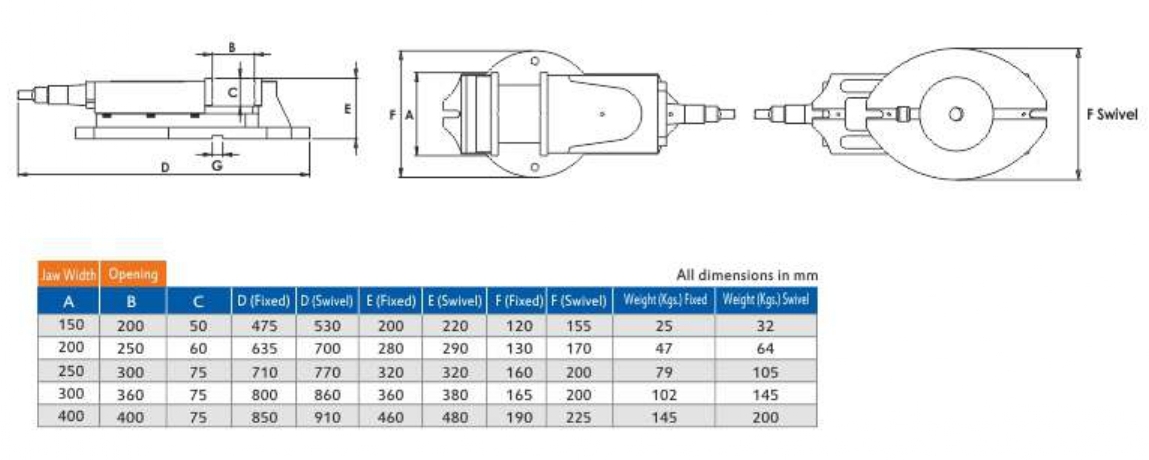

JAW WIDTH OPENINGS
A B C D (Fixed) D (Swivel) E (Fixed) E (Swivel) F (Fixed) F (Swivel) WEIGHT(kgs) Fixed WEIGHT(kgs) Swivel
150 200 50 475 530 200 220 120 155 25 32
200 250 60 635 700 280 290 130 170 47 64
250 300 75 710 770 320 320 160 200 79 105
300 360 75 800 860 360 380 165 200 102 145
400 400 75 850 910 460 480 190 225 145 200

Features

  • Heavy duty shaper vise sturdy constructed from close grain casting for use on shaper machines, planners & other heavy duty machines permitting wider application for taller work pieces.
  • It is designed to permit large clamping ranges, to hold heavy & taller jobs.
  • High tensile steel, Square thread screw.
  • The jaws are made of special steels. These are precisely ground & serrated to ensure firm grips on heavy jobs.
  • Swivel base is indexed to 360°, when required to use as stationary vise, the base can be removed.
  • Crank Handle is made of unbreakable steel, provided with a spring loaded mechanism providing positive grip.
