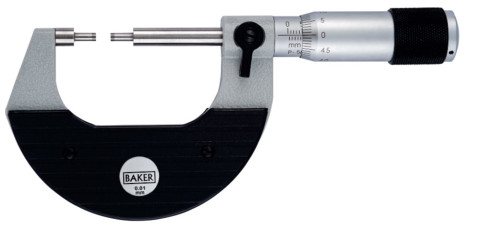

FEATURES SPLINE MICROMETERS
  • Spindle of Spline Micrometers made from stainless steel for rust prevention
  • Measuring faces: carbide tipped available in two types Ø2 x 5 mm & Ø3 x 8 mm
  • Zero setting once done cannot be easily tampered with
  • An in-built ratchet in the thimble
  • Sharp laser marking for better visibility & durability
  • Heat insulating grip plates cover the entire handling portion of the micrometer frame
  • Robust design withstands toughest workshop conditions

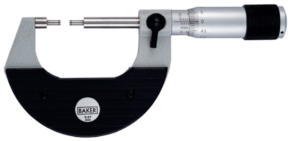

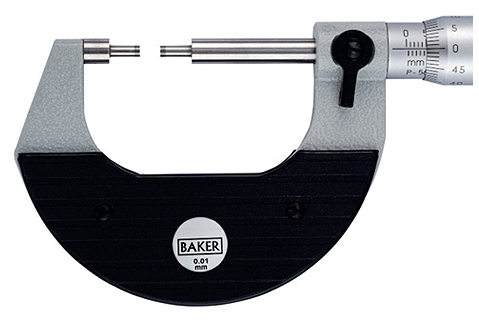

  spline micrometers-special-external-micrometer-spline_02 spline micrometers-special-external-micrometer-spline_03



Measuring Range mm Reading mm Type A mm B mm C mm D mm E mm Measuring Range inch Reading inch Type

0-25 0.01 MMA25-S2 7.1 57.5 30.5 2 5 0-1″ 0.001″ INA1-S2
0-25 0.01 MMA25-S3 7.1 57.5 30.5 3 8 0-1″ 0.001″ INA1-S3
25-50 0.01 MMA50-S3 8 83 45 3 8 1-2″ 0.001″ INA2-S3
50-75 0.01 MMA75-S3 8 108 58 3 8 2-3″ 0.001″ INA3-S3
75-100 0.01 MMA100-S3 8 133 67.5 3 8 3-4″ 0.001″ INA4-S3



Check the PDF
