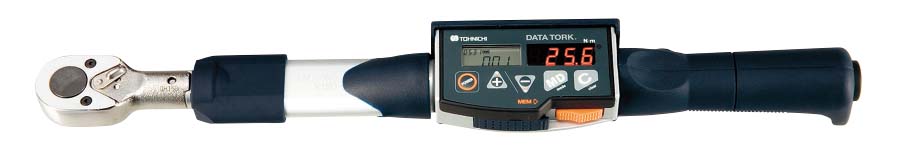

SMALL RANGE DIGITAL TORQUE WRENCH – IST-WP

Small range digital torque wrench clockwise and counter-clockwise operation Unit:N.m, in.lb, ft.lb, kg.cm Peak and track working mode Target torque value can be set , with audible and visible alarm: -Green LED light on and buzzer sounds when target torque value is 90%~100% of target torque – Red LED light on and buzzer sounds when

Download PDF

Code		IST-WP6	IST-WP12	IST-WP20
Range		1.2~6N.m	2.4~12N.m	4~20N.m
Accuracy	clockwise	±3%	±3%	±3%
Accuracy	counter-clockwise	±4%	±4%	±4%
Resolution		0.001N.m	0.01N.m	0.01N.m
Square driver(L)		1/4″	1/4″	1/4″
Power supply			1XAAA battery
Length		260mm	260mm	260mm
Weight		430g	430g	430g

Check the PDF

Small range digital torque wrench clockwise and counter-clockwise operation
Unit:N.m, in.lb, ft.lb, kg.cm
Peak and track working mode
Target torque value can be set , with audible and visible alarm:
-Green LED light on and buzzer sounds when target torque value is
90%~100% of target torque
– Red LED light on and buzzer sounds when target torque value is
reached
Power off automatically in 5 minutes without any operations
Non-slip grip handle
Small range digital torque wrench with overload record
(once the torque reaches 110% of the maximum range)
