TOHNICHI QL-MH RATCHET HEAD TYPE ADJUSTABLE TORQUE WRENCH WITH METAL

TOHNICHI QL-MH RATCHET HEAD TYPE ADJUSTABLE TORQUE WRENCH WITH METAL

Basic adjustable click style with resin grip
Torque value easily set with external scale and knob

Download Catalog

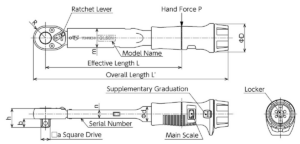

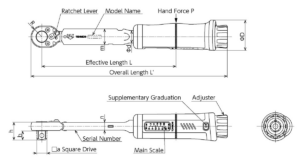

S.I. Model	Torque Range [N.m]		Metric Model	Torque Range [kgf.cm/kgf.m]		American Model	Torque Range [Ibf.in]		Overall Length [mm]	Square Drive [mm]	Weight [kg]
S.I. Model	Min.-Max.	Grad.	Metric Model	Min.-Max.	Grad.	American Model	Min.-Max.	Grad.	Overall Length [mm]	Square Drive [mm]	Weight [kg]
QL	N.m.	N.m.		kgf.cm	kgf.cm		lbf.in	lbf.in
QL2N	0.4-2.0	0.02	20QL	4-20	0.2	QL15I-2A	3-15	0.01	194	6.35	0.27
QL5N	1-5	0.05	50QL	10-50	0.5	QL30I-2A	6-30	0.2	194	6.35	0.27
QL10N	2-10	0.01	100QL	20-100	1	QL50I-2A	10-50	0.5	219	6.35	0.29
QL15N	3-15	0.01	150QL	30-150	1	QL100I-2A	20-100	0.5	219	6.35	0.29
QL25N5-1/4	5-25	0.2	225QL5-1/4	50-250	2.5	QL200I-2A	50-200	2.5	237	6.35	0.33
QL25N5	5-25	0.2	225QL5	50-250	2.5	QL200I-3A	50-200	2.5	237	9.53	0.33

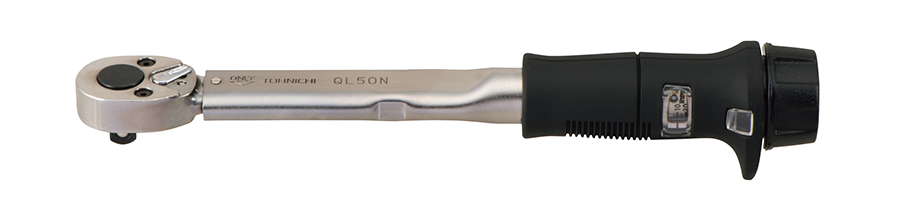

QL50N	10-50	0.5	450QLS3	100-500	5	QL400I-3A	100-400	5	260	9.53	0.45
	–	–	–	–	–	QL750I-3A	150-750	10	335	9.53	0.69
							lbf.in	lbf.in	335	9.53	0.69
QL100N4-3/8	20-100	1	900QL4-3/8	200-1000	10	QL75F-3A	15-75	1	335	9.53	0.69
QL100N4	20-100	1	900QL4	200-1000	10	–	–	2	335	9.53	0.69

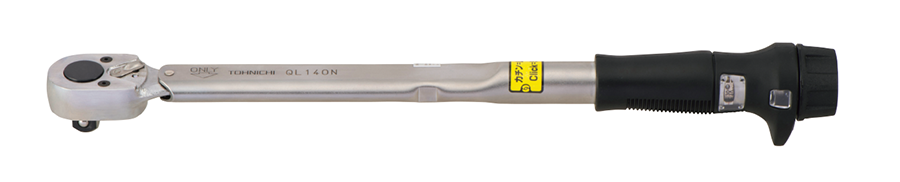

QL140N	30-140	1	1400QL3	300-1400	10	QL100F-4A	30-100	2	400	12.7	0.88

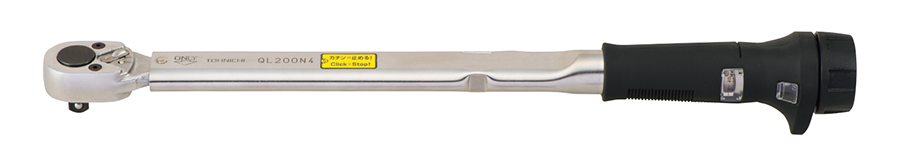

Q6200N4	40-200	2	1800QL4	400-2000	20	QL150F-4A	30-150	2	490	12.7	1.4
QL280N-1/2	40-280	2	2800QL3-1/2	kgf.m 4-28	kgf.m 0.2	QL200F-4A	30-200	2	695	12.7	2
QL280N	40-280	2	2800QL3	kgf.m 4-28	kgf.m 0.2	–	–	2	695	19.05	2
QL420N	60-420	2	4200QL2	6-42	kgf.m 0.2	QL300F-6A	60-300	2	995	19.05	3.4

QLE2	N.m.			kgf.m	kgf.m		lbf.ft	lbf.ft

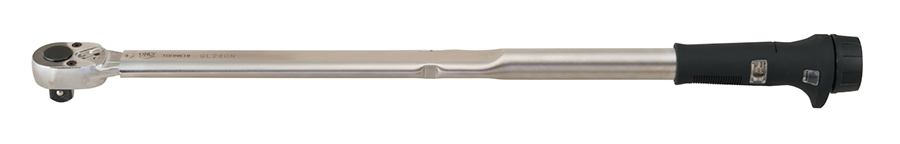

QLE550N2	100-550	5	5500QLE2	10-55	0.5	QLE400F-6A	100-400	5	1189	19.05	4.3
QLE750N2	150-750	5	7500QLE2	15-75	0.5	QLE600F-6A	150-600	5	1342	19.05	5.6
QLE1000N2	200-1000	5	10000QLE2	20-100	0.5	QLE700F-6A	200-700	5	1515	25.4	7.7
QLE1400N2	300-1400	10	14000QLE2	30-140	1	QLE1000F-6A	300-1000	10	1787	25.4	11.1
QLE2100N2	500-2100	10	21000QLE2	50-120	1	QLE1500F-6A	500-1500	10	1895	25.4	14.6
QLE2800N2	800-2800	20	28000QLE2	80-280	2	QLE2000F-6A	600-2000	20	2405	38.1	23.7

Note:

QL2N-QL25n5 are yellow/black resin grips. QL50N-QL280N are black resign grips.
QL420N and QLE550N2-QLE2800N2 are knurled handles.
QLE2800N2 has 25.4mm sqaure drive, use a thriugh-hole socket.

Application

For various tightening operations. Applications from 0.4 to 2800 N･m.

Features

Basic shape of a torque wrench for tightening operations
A clear “click” sound signals tightening completion upon reaching the set torque.
The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.
Torque setting is easy to adjust by knob and scale.
With QLE550N2 to QLE2800N2 models, the built-in torque adjustment handle makes torque changes easy even without a special-purpose tool.
QL2N to QL25N5 models have a resin grip with a large, clear built-in scale.
QL50N to QL280N models have a resin grip, while the QL420N has a knurled metal handle.

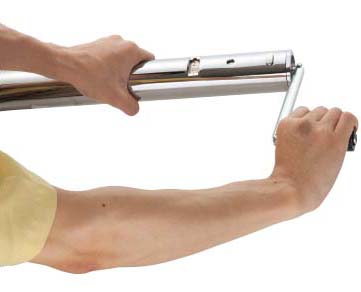

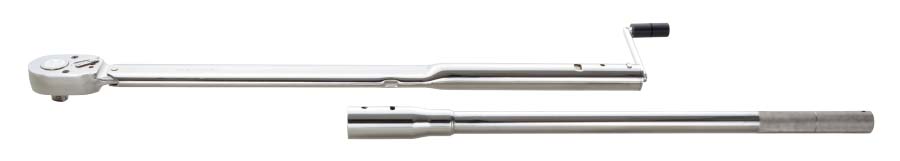

QLE550N2 to QLE2800N2 models have an extension handle that separates from the body for compact storage.
Except for some products, the QL/QLE2 series are compliant with ISO 6789:2017 starting January 2022. For more information, see the technical data “Initiatives for ISO 6789:2017” at the bottom of the screen.
