BAKER BLADE MICROMETERS

Code:

BLADE MICROMETERS Spindle of Blade Micrometers made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

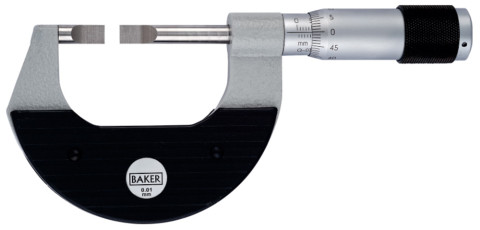

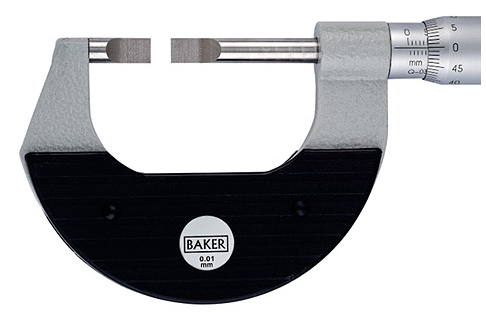

BAKER BLADE MICROMETERS

Product Overview

The Baker Blade Micrometer series is precision-engineered for industrial measurement applications. Featuring a robust design built to withstand demanding workshop conditions, these micrometers incorporate specialized blade measuring faces and an in-built ratchet in the thimble for consistent measuring force.

Key Features & Capabilities

Spindle constructed from stainless steel for enhanced rust prevention
Hardened steel measuring faces
In-built ratchet integrated into the thimble
Tamper-resistant secure zero-setting mechanism
Sharp laser markings for improved visibility and long-term durability
Heat-insulating grip plates covering the entire handling portion of the micrometer frame
Robust construction designed to withstand tough workshop environments

Technical Specifications

Measuring Range (mm)	Graduation / Reading (mm)	Model / Type Code
0-25	0.01	MMC25-B / MMC25-BA
25-50	0.01	MMC50-B / MMC50-BA
50-75	0.01	MMC75-B / MMC75-BA
75-100	0.01	MMC100-B / MMC100-BA
100-125	0.01	MMC125-B
125-150	0.01	MMC150-B
150-175	0.01	MMC175-B
175-200	0.01	MMC200-B

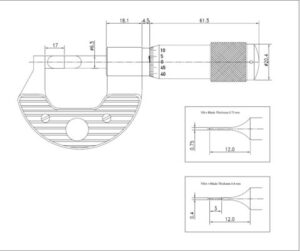

(Note: Blade thickness is 0.75 mm for standard 'B' types and 0.40 mm for 'BA' types. Measuring range covers 100 to 200 mm, with carbide measuring faces available on request).
