BAKER API (OIL) THREAD GAUGES

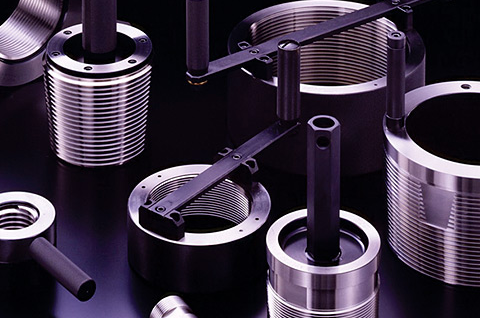

API (Oil) Thread Gauges FEATURES: Light construction Longer operating life Manufacturing to the highest Japanese quality standards Best Raw materials from Japan used Easy to use: The handle is standard-equipped on all products Upon request, a Hook Ring can be mounted on larger diameter ring gauges for better work ability API SPEC.5B (Cashing & Tubing)

Download PDF

API (Oil) Thread Gauges

FEATURES:

Light construction
Longer operating life
Manufacturing to the highest Japanese quality standards
Best Raw materials from Japan used
Easy to use: The handle is standard-equipped on all products
Upon request, a Hook Ring can be mounted on larger diameter ring gauges for better work ability

api-oil-thread-gauges_01

API SPEC.5B (Cashing & Tubing)

LI

Line Pipe Thread Gauges
Thread angle 60°

Size	T.P.I.	Taper
⅛	27	1 : 16
¼	18	1 : 16
⅜	18	1 : 16
½	14	1 : 16
¾	14	1 : 16
1	11½	1 : 16
1¼	11½	1 : 16
1½	11½	1 : 16
2	11½	1 : 16
2½	8	1 : 16
3	8	1 : 16
3½	8	1 : 16
4	8	1 : 16
5	8	1 : 16
6	8	1 : 16
8	8	1 : 16
10	8	1 : 16
12	8	1 : 16
14D	8	1 : 16
16D	8	1 : 16
18D	8	1 : 16
20D	8	1 : 16

CSG

Casing Round Thread Gauges
Thread angle 60°

Size	T.P.I.	Taper
4 ½	*8	1 : 16
5	*8	1 : 16
5 ½	*8	1 : 16
6	*8	1 : 16
7	*8	1 : 16
7 ⅝	*8	1 : 16
8 ⅝	*8	1 : 16
9 ⅝	*8	1 : 16
10 ¾	8	1 : 16
11 ¾	8	1 : 16
13 ⅜	8	1 : 16
16	8	1 : 16
18 ⅝	8	1 : 16
20	*8	1 : 16

BUTTRESS CSG

Buttress Casing Thread Gauges
Thread angle 3° x 10°

Size	T.P.I.	Taper
4 ½	5	1 : 16
5	5	1 : 16
5 ½	5	1 : 16
6 ⅝	5	1 : 16
7	5	1 : 16
7 ⅝	5	1 : 16
8 ⅝	5	1 : 16
9 ⅝	5	1 : 16
10 ¾	5	1 : 16
11 ¾	5	1 : 16
13 ⅜	5	1 : 16
16	5	1 : 12
18 ⅝	5	1 : 12
20	5	1 : 12
