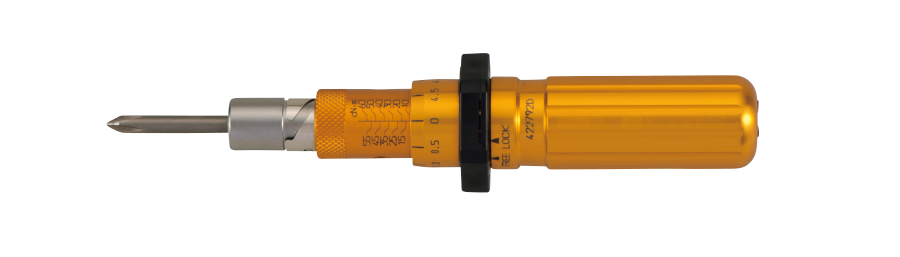

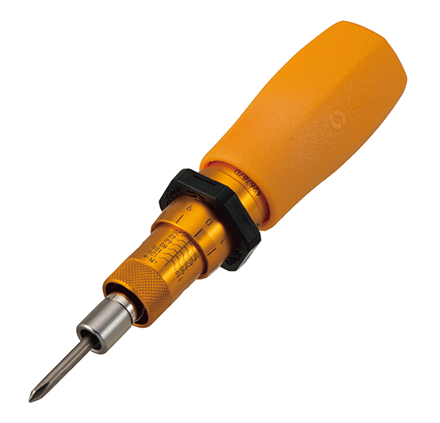

TOHNICHI RTD ROTARY SLIP ADJUSTABLE TORQUE SCREWDRIVER

Code:

▪Ratcheting mechanism prevents over torque.
▪Torque value easily set with external scale.

Click to Expand

TOHNICHI RTD ROTARY SLIP ADJUSTABLE TORQUE SCREWDRIVER

Product Overview

The Tohnichi RTD series is a rotary slip-type adjustable torque screwdriver designed for precision tightening applications. The tool features an integrated ratcheting mechanism that prevents over-torque, ensuring consistent tightening performance. Torque values are easily set using an external scale, providing efficient operation for assembly processes.

Key Features & Capabilities

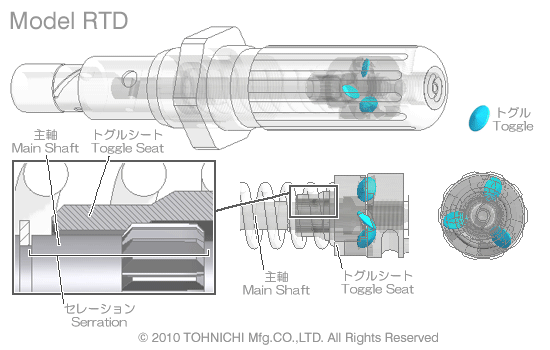

Over-Torque Prevention: Equipped with a reliable ratcheting mechanism that prevents the application of torque beyond the set value.
Adjustable Torque: Torque settings are easily adjusted via an external scale.
Precision: Accuracy of ±3%.
RoHS Compliant: Manufactured in accordance with RoHS environmental standards.

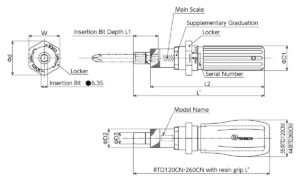

Technical Specifications

Parameter	Specification
Model	RTD15CN
Torque Range (cN·m)	2 - 15
Graduation (cN·m)	0.1
Metric Model	1.5RTD
Torque Range (kgf·cm)	0.2 - 1.5
Graduation (kgf·cm)	0.01
American Model	RTD1.3I
Torque Range (lbf·in)	0.2 - 1.3
Graduation (lbf·in)	0.01
Overall Length (mm)	100
Weight (g)	50
Accuracy	±3%
