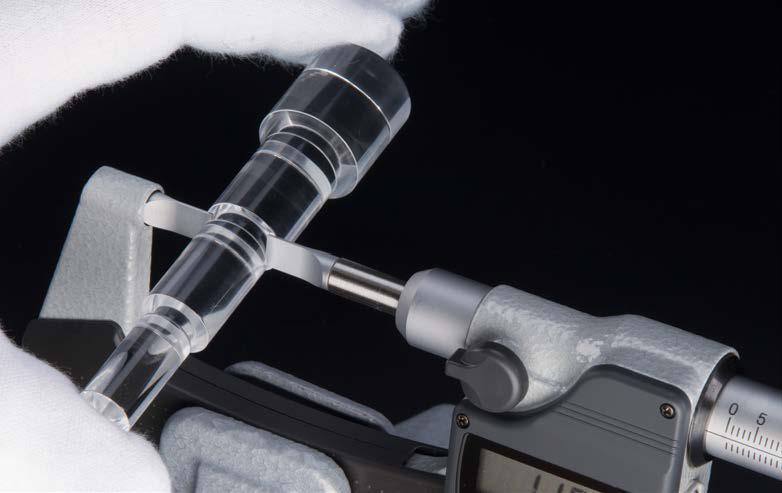

- The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features.
- Carbide-tipped measuring faces are also available
- Non-rotating spindle type.
- Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range | Resolution | Accuracy* | Remark |
|---|---|---|---|---|
| Digimatic (LCD) | ||||
| 422-230-30 | 0 – 25mm |
0.001mm |
±3µm |
Type A |
| 422-231-30 | 25 – 50mm | |||
| 422-232-30 | 50 – 75mm | |||
| 422-233-30 | 75 – 100mm | ±4µm | ||
| 422-260-30 | 0 – 25mm |
±3µm |
Type B | |
| 422-261-30 | 25 – 50mm | |||
| 422-270-30 | 0 – 25mm | Type C | ||
| 422-271-30 | Type D | |||
* Excluding quantizing error
Inch/Metric
| Order No. | Range | Resolution | Accuracy* | Remark |
|---|---|---|---|---|
| Digimatic (LCD) | ||||
| 422-330-30 | 0 -1″ |
.0005″/ 0.001mm |
±.00015″ |
Type A |
| 422-331-30 | 1″ -2″ | |||
| 422-332-30 | 2″ -3″ | |||
| 422-333-30 | 3″ -4″ | ±.0002″ | ||
| 422-360-30 | 0 -1″ |
±.00015″ |
Type B |
|
| 422-361-30 | 1″ -2″ | |||
| 422-370-30 |
0 -1″ |
Type C | ||
| 422-371-30 | Type D | |||
* Excluding quantizing error
Metric Quickmike type
| Order No. | Range | Resolution | Accuracy* | Remark |
|---|---|---|---|---|
| Digimatic (LCD) | ||||
| 422-411 | 0 – 30mm | 0.001mm | ±3µm | Type A |
| 422-412 | 25 – 55mm | |||
* Excluding quantizing error
Inch/Metric Quickmike type
| Order No. | Range | Resolution | Accuracy* | Remark |
|---|---|---|---|---|
| Digimatic (LCD) | ||||
|
422-421 |
0 – 1.2″ |
.00005″/ 0.001mm |
±.00015″ |
Type A |
* Excluding quantizing error
Metric
| Order No. | Range | Graduation | Accuracy | Remark |
|---|---|---|---|---|
| Analog | ||||
| 122-101 | 0 – 25mm |
0.01mm |
±3µm |
Type A |
| 122-102 | 25 – 50mm | |||
| 122-103 | 50 – 75mm | |||
| 122-104 | 75 – 100mm |
±4µm |
||
| 122-105 | 100 – 125mm | |||
| 122-106 | 125 – 150mm | |||
| 122-107 | 150 – 175mm |
±5µm |
||
| 122-108 | 175 – 200mm | |||
| 122-109 | 200 – 225mm | |||
| 122-110 | 225 – 250mm |
±6µm |
||
| 122-115 | 250 – 275mm | |||
| 122-116 | 275 – 300mm | |||
| 122-111 | 0 – 25mm | 0.01mm | ±3µm | Type B |
| 122-112 | 25 – 50mm | |||
| Analog (With carbide tip) |
0.01mm |
±3µm |
Type C |
|
| 122-161 | 0 – 25mm | |||
| 122-162 | 25 – 50mm | |||
| 122-141 | 0 – 25mm | 0.01mm | Type D | |
| 122-142 | 25 – 50mm | |||
Notes: 1) A heat shield is provided with Digimatic models and 422-230-30 as standard.
Inch
| Order No. | Range | Graduation | Accuracy | Remark |
|---|---|---|---|---|
| Analog | ||||
| 122-125 | 0 – 1″ |
.0001″ |
±.00015″ |
Type A |
| 122-126 | 1″ – 2″ | |||
| 122-127 | 2″ – 3″ | |||
| 122-128 | 3″ – 4″ | ±.0002″ | ||
| 122-135 | 0 – 1″ | ±.00015″ | Type B | |
| 122-151 | Type D | |||

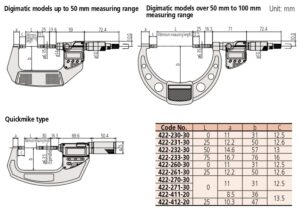

DIMENSIONS
| Order No. | L | a | b | c |
| 422-230-30 | 0 | 11 | 31 | 12.5 |
| 422-231-30 | 25 | 12.2 | 50 | 12.6 |
| 422-232-30 | 50 | 14.6 | 57 | 13 |
| 422-233-30 | 75 | 16.7 | 76 | 16 |
| 422-260-30 | 0 | 11 | 31 | 12.5 |
| 422-261-30 | 25 | 12.2 | 50 | 12.6 |
| 422-270-30 | 0 | 11 | 31 | 12.5 |
| 422-271-30 | 0 | |||
| 122-101 | 0 | 7.8 | 32 | 15 |
| 122-102 | 25 | 12.2 | 49 | 14.5 |
| 122-103 | 50 | 14.6 | 60 | |
| 122-104 | 75 | 17 | 79 | 17.5 |
| 122-105 | 100 | 19 | 94 | 17.9 |
| 122-106 | 125 | 20 | 106 | 18.3 |
| 122-107 | 150 | 19 | 118 | 18.5 |
| 122-108 | 175 | 17 | 130 | 18.9 |
| 122-109 | 200 |
18 |
143 | 17.7 |
| 122-110 | 225 | 156 |
18.7 |
|
| 122-115 | 250 | 169 | ||
| 112-116 | 275 | 181 | ||
| 422-411 | 0 | 8.5 | 36 | 13.5 |
| 422-412 | 25 | 10.3 | 47 |
Technical Data
Parallelism 3μm for models up to 75mm .00015” for models up to 3” (3+R/100)μm for models over 75mm .0002” for models over 3” R = max. range (mm) fraction rounded up
Type and Dimensions
Battery for series 422
SR44 (1 pc), 938882, for initial operational checks
(standard accessory)
Battery life: Approx. 2.4 years under normal use
(for series 422-2XX, 3XX)
Approx. 1 year under normal use
(for series 422-4XX)
Length standard: Electromagnetic rotary sensor
(for series 422-2XX, 3XX)
Electrostatic capacity absolute sensor
(for series 422-4XX)
Standard accessories: Reference bar, 1 pc
(except for measuring range 0-25mm/0-30mm (0-1″/0-1.2″) models)
Spanner (301336), 1 pc (for series 122-1XX, 422-2XX, 3XX)
Optional accessories
Connecting cables for digital models
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
Connecting cables for U-WAVE-T (digital models)
02AZD790B (160mm)
For foot switch: 02AZE140B
Connecting cables for Quickmike type
1m: 937387
2m: 965013
USB Input Tool Direct
USB-ITN-E (2m): 06ADV380E
Connecting cables for U-WAVE-T (Quickmike type)
02AZD790E 160mm
For foot switch: 02AZE140E
Refer to page B-68 for details.
Quickmike
Provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features
to be measured quickly.
Deviation between the Anvil and Spindle in the Vertical Direction
