AUTHOR RATE

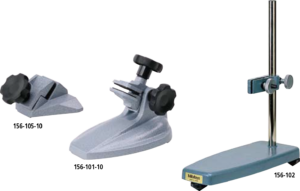

Mitutoyo-SERIES 156-Micrometer Stands

Designed to allow benchtop use of hand micrometers or other gages which have frames suitable for gripping by the clamp. SPECIFICATIONS Order No. Micrometer ranges Remarks 156-101-10 Up to 100mm (4″)* Adjustable angle type 156-105-10 0-25mm (0-1″), 25-50mm (1″-2″) Fixed angle type 156-102 125-300mm (5″-12″) Vertical type 156-103 300-1000mm (12″-40″) Vertical type * Items that cannot […]

AUTHOR RATE
Mitutoyo-SERIES 157-Optical Parallels

Designed to inspect parallelism and flatness of measuring faces of micrometers. For details, refer to “Quick Guide to Precision Measuring Instruments”. Each set consists of 4 sizes to aid in testing parallelism at various angular positions of the micrometer spindle.   SPECIFICATIONS Metric Order No. Range of micrometer to be checked Sizes of parallels included in set Diameter […]

AUTHOR RATE

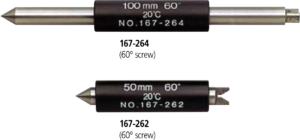

Mitutoyo-SERIES 167-Setting Standards for Screw Thread Micrometers

Used for accurately setting screw thread micrometers at the start or end of the measuring range. Metric Order No. Length Accuracy Metric (unified) 8 = 60° 167-261 25mm ±4µm 167-262 50mm ±5µm 167-263 75mm ±6µm 167-264 100mm ±7µm 167-265 125mm ±8µm 167-266 150mm ±9µm 167-267 175mm ±10µm 167-268 200mm ±11µm 167-269 225mm ±12µm 167-270 250mm […]

AUTHOR RATE
Mitutoyo-SERIES 167-Setting Standards for Outside Micrometers

Used for adjusting the reference point of the outside micrometer. SPECIFICATIONS and DIMENSIONS Metric Order No. Length  (L) Tolerance   Diameter  (D) 167-101 25mm ±1.5µm 18   6.35mm 167-102 50mm ±2.0µm 40 167-103 75mm ±2.5µm Inch Order No. Length  (L) Tolerance   Diameter  (D) 167-141 1″ ±.00005″ 18   .25″ 167-142 2″ ±.0001″ 40 167-143 […]

AUTHOR RATE
Mitutoyo-SERIES 146-Groove Micrometers

Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Two-directional ratchet stop. For ID and OD (except for 0 – 25mm) measurement, a master gage is required for adjusting the reference point. SPECIFICATIONS Metric Order No. Range Outside Range Inside Graduation Accuracy Flange Rotating spindle 146-121 0 – 25mm […]

AUTHOR RATE
Mitutoyo-SERIES 523-Snap Meters

Suited to the measurement of massproduced parts. Various types of indicator can be selected according to the measurement application. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Anvil movement Measuring force* Mass 523-141 0 – 25mm   2mm   5 – 10N 710g 523-142 25 – 50mm 810g 523-143 50 – 75mm 920g 523-144 75 – […]

AUTHOR RATE
Mitutoyo-SERIES 523-Dial Snap Meters

Suited to the measurement of massproduced parts. Designed for measurement using a stand: realizes stable measurement. Greatly improved accuracy: indication error and graduation of 1μm. Water-proof to protection level IP54. Hard-coated crystal: enhanced oil and scratch resistance. Indicator scale is large and easy-to-read. Easily settable adjustable limit markers for GO/±NG testing. Equipped with an elevating workpiece […]

AUTHOR RATE
Mitutoyo-SERIES 510-Indicating Micrometers

Suited to the measurement of low-volume manufactured parts. Easy to use when operating one-handed due to retractable anvil. In the 25mm measuring range, the model lineup offers a choice of left or right positioning of the anvil-retraction button. Greatly improved accuracy: indication error and graduation of 1μm. Water-proof to protection level IP54. Hard-coated crystal: enhanced oil and […]

AUTHOR RATE
Mitutoyo-SERIES 113-Limit Micrometers

Dual-spindle design enables use as a GO/±NG gage by setting upper and lower limits. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Graduation Accuracy Flatness Parallelism 113-102 0 – 25mm 0.01mm ±3µm 0.6µm 3µm 113-103 25 – 50mm Technical Data Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models) Spanner (200877), 1 […]

AUTHOR RATE

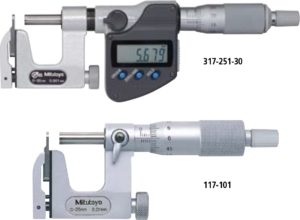

Mitutoyo-Series 317, 117 — Interchangeable Anvil Type-”Uni-Mike”

Measures tubing thickness, shoulderedge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil). IP65 water/dust protection (series 317). Equipped with Ratchet Stop for constant  measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 317-251-30 0 – 25mm 0.001mm ±4µm 317-252-30 25 – 50mm * Excluding quantizing error Inch/Metric Order No. […]

AUTHOR RATE
Mitutoyo-Series 342,112,142-Crimp Height Micrometers

Measures the height of crimp contacts. Equipped with Ratchet Stop for constant measuring force. IP65 water/dust protection (digital model). Model 342-451 is the Quickmike type, which provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 342-271-30 0 […]

AUTHOR RATE

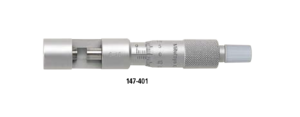

Mitutoyo-Series 147-Wire Micrometers

Designed for measuring wire thickness. Measurable wire dia.: 10mm or less Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Accuracy 147-401 0 – 10mm 0.01mm ±3µm Inch Order No. Range Graduation Accuracy 147-402 0 – .4″ .0001″ ±.00015″ DIMENSIONS Technical Data Flatness: 0.6μm/.000024” Parallelism: 1.3μm/.00005” Standard […]

AUTHOR RATE
Mitutoyo-SERIES 147-Hub Micrometers

Measures hub thickness and shoulders inside a bore. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Accuracy 147-301 0 – 25mm   0.01mm   ±2µm 147-302 25 – 50mm 147-303 50 – 75mm 147-304 75 – 100mm ±3µm Inch Order No. Range Graduation Accuracy 147-351 0 – […]

AUTHOR RATE

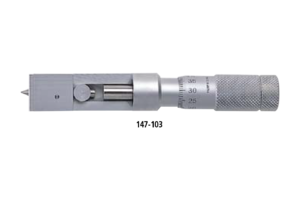

Mitutoyo-SERIES 147-Can Seam Micrometers

 Measures the width, height, and depth of can seams. SPECIFICATIONS Metric Order No. Range Graduation Accuracy Remarks 147-103   0 – 13mm   0.01mm   ±3µm for steel cans 147-105 for aluminum cans 147-202 for spray cans Inch Order No. Range Graduation Accuracy Remarks 147-104   0 – .5″   .001″   ±.00015″ for steel […]

AUTHOR RATE

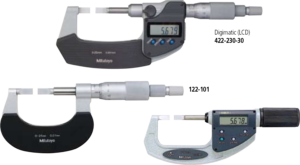

Mitutoyo-SERIES 422, 122 – Non-Rotating Spindle Type-Blade Micrometers

The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features. Carbide-tipped measuring faces are also available Non-rotating spindle type. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remark Digimatic  (LCD) 422-230-30 0 – 25mm       0.001mm   ±3µm   […]

AUTHOR RATE

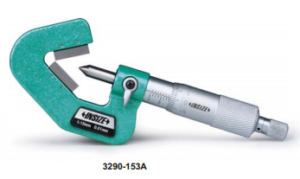

Mitutoyo-SERIES 314, 114-3 Flutes and 5 Flutes-V-Anvil Micrometers

Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes. Measures pitch diameter: refer to “Quick Guide to Precision Measuring Instruments” on page B-73. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric For 3-flute cutting tools Order No. Range Resolution Accuracy* […]

AUTHOR RATE

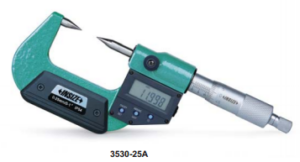

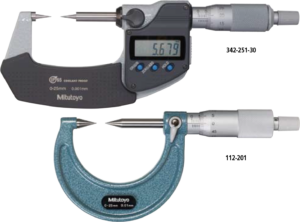

Mitutoyo-SERIES 342, 142, 112-Point Micrometers

Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features. The measuring points (carbide tipped) have approximately 0.3mm radius. series 342: IP65 Digimatic micrometers Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Point Digimatic (LCD) (With carbide tip) 342-251-30 0 […]

AUTHOR RATE
Mitutoyo-SERIES 331, 111, 131-Spline Micrometers

The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways. IP65 water/dust protection (series 331). Measuring faces: Carbide. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remarks Digimatic  (LCD) 331-251-30 0 – 25mm       0.001mm   ±2µm   Type A 331-252-30 25 […]

AUTHOR RATE
Mitutoyo-SERIES 395, 115, 295 — Spherical and Cylindrical Anvil Type-Tube Micrometers

Spindle face: Carbide series 395: IP65 spherical and cylindrical anvil type digital micrometers Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remarks Digimatic  (LCD) 395-261-30   0 – 25mm   0.001mm   ±3µm Type A 395-262-30 Type B 395-263-30 Type C 395-264-30 Type D * Excluding quantizing error […]

AUTHOR RATE

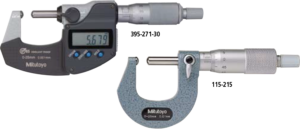

Mitutoyo-SERIES 395, 115, 295 — Spherical Anvil and Spindle Type-Tube Micrometers

Measuring faces: Carbide (115-201: only the spindle is carbide tipped.) Series 395: IP65 spherical anvil and spindle type digital micrometer. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* 0D Digimatic  (LCD) 395-271-30 0 – 25mm   0.001mm   ±2µm 015 395-272-30 25 – 50mm 395-273-30 50 – 75mm 019 […]

AUTHOR RATE

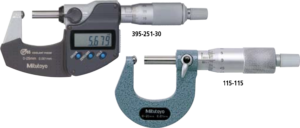

Mitutoyo-SERIES 395, 115, 295-Tube Micrometers

Measuring faces: Carbide (115-101: only the spindle is carbide tipped.) series 395: IP65 digital spherical-flat anvil  type micrometer. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* 0D Digimatic  (LCD) 395-251-30 0 – 25mm   0.001mm   ±2µm 015 395-252-30 25 – 50mm 395-253-30 50 – 75mm 019 395-254-30 75 […]

AUTHOR RATE

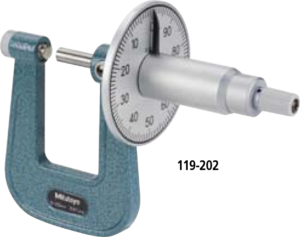

Mitutoyo-SERIES 119-Sheet Metal Micrometer

Large diameter dial model enables easy and quick measurement of sheet metal thickness. Adjustable anvil. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Order No. Range Graduation Accuracy Throat depth 119-202 0 – 25mm 0.01mm ±4µm 50mm DIMENSIONS Technical Data Standard accessories: Spanner (200168), 1 pc

AUTHOR RATE
Mitutoyo-SERIES 389, 118-Sheet Metal Micrometers

Measures thickness of sheet metal. IP65 water/dust protection (series 389). Measuring faces: Carbide Profile of measuring faces: Flat-Flat, Spherical-Flat and Spherical-Spherical. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Throat depth Measuring surfaces Digimatic  (LCD) 389-251-30   0 – 25mm       0.001mm   ±4µm   150mm […]

AUTHOR RATE
Mitutoyo-SERIES 369, 227, 169 — Non-Rotating Spindle Type-Disk Micrometers

Measures “root tangent length” of spur gears and helical gears. Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”. Non-rotating spindle type. Measurable range of gear pitch: 0.5 to 6 module (series 227: 0.4 to 3 module). Equipped with Ratchet Stop for constant measuring force. Supplied with a setting standard […]

AUTHOR RATE

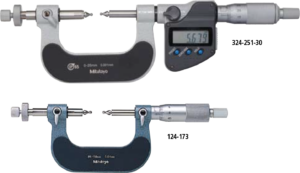

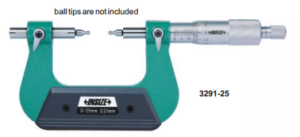

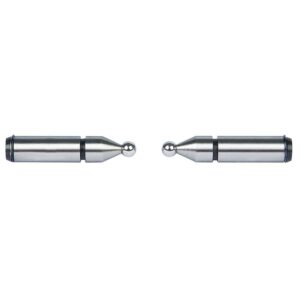

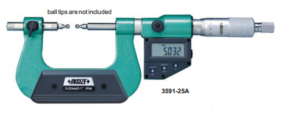

Mitutoyo-SERIES 324, 124 — Interchangeable Ball Anvil / Spindle Tip Type-Gear Tooth Micrometers

Measures over-pin diameter of gears using precision steel (or carbide) ball anvils / spindle tips. Series 324: IP65 Digimatic gear tooth micrometers. Determination of the over-pin diameter: refer to “Quick Guide to Precision Measuring Instruments”. Interchangeable ball anvils / spindle tips for various gear modules (0.5-5.25) are optional. Equipped with Ratchet Stop for constant measuring […]

AUTHOR RATE
Mitutoyo-SERIES 323, 223, 123-Disk Micrometers

Measures “root tangent length” of spur gears and helical gears. Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”. Equipped with Ratchet Stop for constant measuring force. Supplied with a setting standard (except for 0-25mm/0-1” measuring range).   SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Anvil dia. Measurable module Digimatic […]

AUTHOR RATE

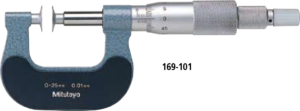

Mitutoyo-SERIES 169 – Non-Rotating Spindle Type-Paper Thickness Micrometers

• For paper thickness measurement. • Non-rotating spindle. • Equipped with Ratchet Stop for constant measuring force. (8.02±0.8N) SPECIFICATIONS Order No. Range Graduation Accuracy Flatness Parallelism 169-101 0 – 25mm 0.01mm ±4µm 1µm 3µm   Order No. Range Graduation Accuracy Flatness Parallelism 169-103 0 – 1″ .001″ ±.0002″ .00004″ .00015″ DIMENSIONS Anvil dimensions Technical Data Standard […]

AUTHOR RATE
Mitutoyo-SERIES 313-3-Wire Units

• Enables measurement of the pitch diameter of screw threads with a standard micrometer. • Determination of the pitch diameter: refer to “Quick Guide to Precision Measuring Instruments”. SPECIFICATIONS 3-Wire Units set Order No. Set Wire dia. (mm) Support spindle dia. (mm) 313-101 18 0.170 – 3.200 06.35 Order No. (One pair) (Support spindle dia.) 06.35mm […]

AUTHOR RATE

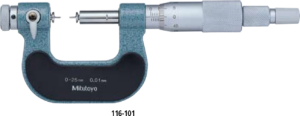

Mitutoyo-SERIES 116 – Interchangeable Anvil Type-Universal Micrometer

Non-rotating spindle type which accepts seven forms of optional interchangeable anvil / spindle tip (flat, spline, spherical, point, knife-edge, disk, and blade) for a wide range of applications. Equipped with Ratchet Stop for constant measuring force. Optional anvils / spindle tips for screw thread measurement (matching V and cone) are also available. SPECIFICATIONS Metric Order No. Range […]

AUTHOR RATE
Mitutoyo-SERIES 326, 126 – Interchangeable Anvil / Spindle Tip Type-Screw Thread Micrometers

Anvils and spindle tips are interchangeable in matching pairs to enable measurement of Metric/Unified or Whitworth threads. Direct reading of screw pitch diameter (no need for calculation) Equipped with Ratchet Stop for constant measuring force. Interchangeable anvils / spindle tips are optional. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 326-251-30 0 – 25mm   […]

AUTHOR RATE
Mitutoyo-SERIES 125-Screw Thread Micrometers

Fixed anvil type to suit 60º threads Directly indicates screw pitch diameter (no need for calculation) Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Thread to be measured (Metric/nnified) Range Graduation 125-101 0.4 – 0.5mm/64  – 48TPI     0 – 25mm           0.01mm 125-102 0.6 – […]

AUTHOR RATE
Mitutoyo-SERIES 343, 143-Caliper Type Micrometers

Effective for measuring workpiece features where access is difficult. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 343-250-30 0 – 25mm   0.001mm ±5µm 343-251-30 25 – 50mm ±6µm 343-252-30 50 – 75mm ±7µm 343-253-30 75 – 100mm ±8µm * Excluding quantizing error […]

AUTHOR RATE
Mitutoyo-SERIES 107-Indicator Type Micrometers

Designed to mount a dial indicator for direct GO/±NG judgment on mass-produced parts. Anvil retracting trigger for quick measurement. Various kinds of indicators*1 are selectable depending on the measurement type (accuracy required, measuring range, etc.). Measuring faces: Carbide Anvil stroke: 3mm SPECIFICATIONS Metric Order No. Range Accuracy 107-201 0 – 25mm   ±2µm 107-202 25 – 50mm 107-203 […]

AUTHOR RATE
MICROMAR 40 SM MICROMETER

Operating and display units with satin chrome finish Maximum stability Stainless spindle is hardened throughout and ground Disc-type anvils are hardened and lapped Chrome plated steel frame, heat insulated Rapid drive with integrated ratchet Locking device instruction manual case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Parallel error in […]

AUTHOR RATE
MICROMAR 40 AW MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device Sliding spindle instruction manual case Technical Data Order no. Measuring range inches Graduation value inch Error limit inches Micrometer pitch (inches) Measuring force (N) 4134950 […]

AUTHOR RATE
MICROMAR 40 AW MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device Sliding spindle instruction manual case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Parallel error in µm Flatness in µm […]

AUTHOR RATE
MICROMAR 40 Z THREAD MICROMETER

Scales have a satin chrome finish Rugged steel frame, heat insulated Spindle is hardened throughout, ground and provided with a locking device Adjustable anvil Spindle and anvil both have a mounting bore to accommodate interchangeable anvils Flat end surface of the anvil shank rests on a hardened steel ball at the bottom of the mounting […]

AUTHOR RATE
MICROMAR 40 EWV DIGITAL MICROMETER

High contrast analog display Sliding spindle Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Chrome plated steel frame, heat insulated With mounting shank for anvils dia. = 3,5mm Digimatic Opto RS232C USB Battery life approx. 2 years IP 52 instruction manual battery […]

AUTHOR RATE
MICROMAR 40 AR MICROMETER

Measuring surfaces: spherical anvil, planar spindle Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring range mm Graduation value […]

AUTHOR RATE
MICROMAR 40 EWR-R DIGITAL MICROMETER

Measuring surfaces: spherical anvil, planar spindle High contrast analog display Stainless spindle is hardened throughout and ground Rapid drive Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of 25-50 mm) case 8.5 mm             Technical […]

AUTHOR RATE
MICROMAR 40 AS – MICROMETERFOR MEASURING RECESSES, GROOVES, ETC.

MICROMAR 40 AS MICROMETER With blade-type measuring surfaces Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device Sliding spindle instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 EWR-S DIGITAL MICROMETER

With blade-type measuring surfaces Sliding spindle High contrast analog display Stainless spindle is hardened throughout and ground Rapid drive Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 54 instruction manual battery setting standard (measuring range of 25-50 mm) case         Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 AB – MICROMETERFOR MEASURING GROOVES, SPLINE SHAFTS, RECESSES, ETC.

MICROMAR 40 AB MICROMETER Reduced measuring surfaces Ø 3 mm Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring […]

AUTHOR RATE
MICROMAR 40 AR MICROMETER

Measuring surfaces: spherical anvil, planar spindle Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (from measuring range 1-2″) case Technical Data Order no. Measuring range inches Graduation value inch […]

AUTHOR RATE
MICROMAR 40 EWR-B DIGITAL MICROMETER

Reduced measuring surfaces Ø 3 mm High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of […]

AUTHOR RATE
MICROMAR 40 EWR-K DIGITAL MICROMETER

Measuring surfaces: Anvil with narrow web, pointed spindle High contrast analog display Stainless spindle is hardened throughout and ground Rapid drive Lacquered steel frame, heat insulated USB Digimatic Opto RS232C Battery life approx. 2 years IP 65 battery instruction manual case Height of Digits 8.5mm           Technical Data Order no. Measuring […]

AUTHOR RATEUSERS RATE (0)

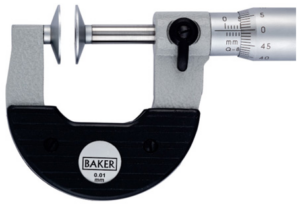

DISC MICROMETER – ROTATING TYPE

Disc Micrometer Rotating Type FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust design […]

AUTHOR RATEUSERS RATE (0)

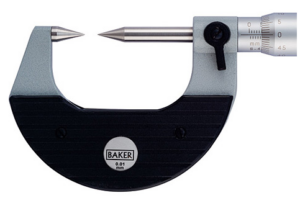

POINT MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring Faces – 15° & 30° hardened steel points having radius 0.3 mm approximately An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion […]

AUTHOR RATEUSERS RATE (0)

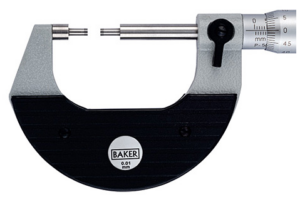

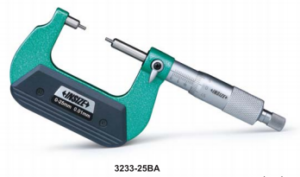

SPLINE MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: carbide tipped available in two types Ø2 x 5 mm & Ø3 x 8 mm Zero setting once done cannot be easily tampered with An in-built ratchet in the thimble Sharp laser marking for better visibility & durability Heat insulating grip plates cover the […]

AUTHOR RATEUSERS RATE (0)

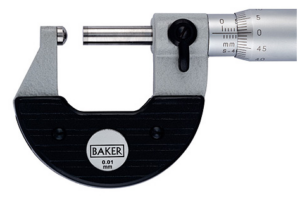

TUBE TYPE MICROMETER

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel available in two types: T1 – one end spherical T2 – both ends spherical An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover […]

AUTHOR RATEUSERS RATE (0)

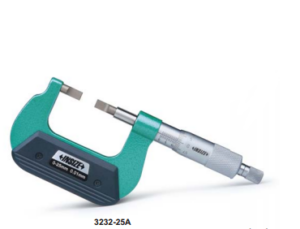

BLADE MICROMETERS

FEATURES: Spindle made from stainless steel for rust prevention Measuring faces: hardened steel An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability Heat insulating grip plates cover the entire handling portion of the micrometer frame Robust design withstands toughest workshop conditions […]
