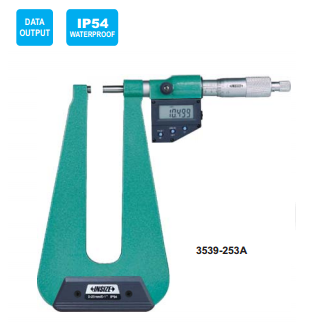

DIGITAL SHEET METAL MICROMETER CODE 3539

Name: DIGITAL SHEET METAL MICROMETER CODE 3539
Brand: INSIZE
SKU: 3539

Code:

Deep frame suitable for sheet metal, paper and plastic Resolution 0.001mm/0.00005″ IP54 dust/waterproof Button function: on/off, set, mm/inch, ABS/INC, data output Data output LR44 battery, automatic power off Ratchet stop Carbide measuring faces Optional accessory: data output cable (code 7306-30, 7302-SPC2A, 7305-SPC3) Code Range Type Accuracy b 3539-253A 0-25mm/0-1″ A 7μm 155 3539-253FA 0-25mm/0-1″ B

f in

Click to Expand

DIGITAL SHEET METAL MICROMETER CODE 3539

Product Overview

The INSIZE Digital Sheet Metal Micrometer Code 3539 features a deep frame designed for precise measurement of sheet metal, paper, and plastic. Equipped with an electronic digital readout, carbide measuring faces, and a ratchet stop, this instrument delivers dependable accuracy for professional industrial inspection and quality control applications.

Key Features & Capabilities

Deep Frame Design: Engineered specifically for measuring sheet metal, paper, and plastic components.
Digital Display & Resolution: High-precision digital readout featuring a resolution of 0.001mm / 0.00005″.
IP54 Protection: Dust and waterproof rating for reliable performance in workshop environments.
Multi-Function Controls: Includes buttons for On/Off, Set, mm/Inch conversion, ABS/INC measurement, and Data Output.
Data Output Capability: Supports data transmission via optional connecting cables.
Power Management: Powered by an LR44 battery with an automatic power-off function to preserve battery life.
Accurate Measurement: Features a consistent ratchet stop and durable carbide measuring faces.

Technical Specifications

Feature	Specification
Brand	INSIZE
Product Type	Digital Sheet Metal Micrometer
Series Code	3539
Resolution	0.001mm / 0.00005″
Protection Level	IP54 Dust/Waterproof
Measuring Faces	Carbide
Power Supply	LR44 Battery with automatic power off
Optional Accessories	Data output cables (Code 7306-30, 7302-SPC2A, 7305-SPC3)

Model Matrix & Dimensions

Code	Range	Anvil/Spindle Type	Accuracy	Throat Depth (b)
3539-253A	0-25mm / 0-1″	Type A	7µm	155 mm
3539-253FA	0-25mm / 0-1″	Type B	7µm	155 mm
3539-254FA	0-25mm / 0-1″	Type B	10µm	310 mm
3539-253SA	0-25mm / 0-1″	Type C	7µm	155 mm
