INSIZE MEASURING TIPS FOR SCREW THREAD MICROMETER (CODE – 7381)

INSIZE MEASURING TIPS FOR SCREW THREAD MICROMETER (CODE – 7381)

Product Overview

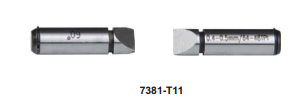

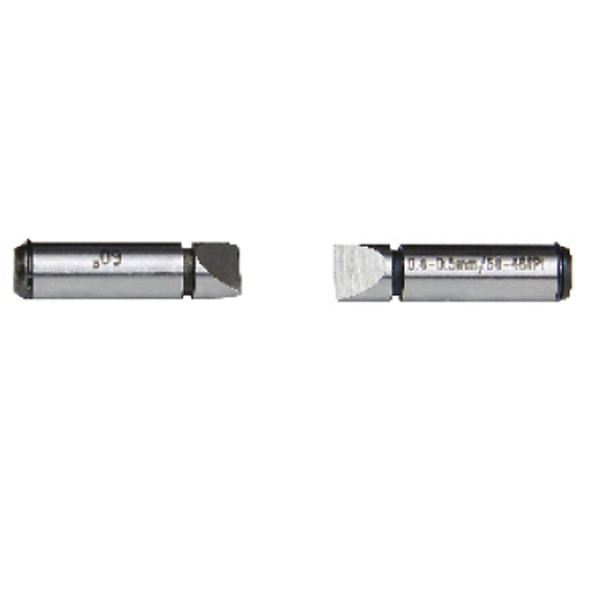

The Insize Measuring Tips for Screw Thread Micrometers (Code 7381) are precision-machined interchangeable anvils designed for measuring external screw threads. Supplied in pairs, these measuring tips are specifically engineered for compatibility with Insize 3281 and 3581 series screw thread micrometers. The series includes options for both Metric/Unified threads ($60^\circ$ thread angle) and Whitworth threads ($55^\circ$ thread angle), available in individual pitch ranges or complete sets.

Key Features & Capabilities

• Supplied in pairs for accurate two-point thread measurement.
• Designed specifically for use with Insize 3281 and 3581 series micrometers.
• Available for Metric and Unified threads ($60^\circ$ thread angle) and Whitworth threads ($55^\circ$ thread angle).
• Offered in specific pitch ranges or as complete master sets containing all individual tip pairs.

Technical Specifications

Metric and Unified Thread ($60^\circ$ Thread Angle)

Whitworth Thread ($55^\circ$ Thread Angle)
