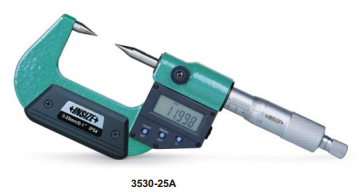

The INSIZE Digital Point Micrometer (Code 3530) is a precision measuring instrument designed for industrial measurement tasks such as checking the web thickness of drills, small grooves, and keyways. Available in multiple range variants with standard or blade-type point configurations, this tool combines a digital readout with a standard mechanical micrometer thimble for high-accuracy verification.
- Application Specificity: Engineered for measuring web thickness of drills, small grooves, and keyways.
- High Resolution: 0.001mm / 0.00005″ measurement resolution.
- Environmental Protection: IP65 dust and waterproof rating.
- Control Functions: Includes on/off, set, mm/inch switching, and data output functions.
- Power Management: Features automatic power-off functionality.
- Consistent Measuring Force: Equipped with a ratchet stop mechanism.
- Durability: Features carbide tips for extended wear resistance.
- Calibration Standards: Supplied with setting standards (applicable to ranges above 0-25mm / 0-1″).
- Data Transmission: Supports data output via optional cable or built-in wireless connectivity (depending on model variant).
Model Specification Matrix
General Technical Parameters
- Power Supply: CR2032 battery (with data interface models); built-in rechargeable lithium battery (with wireless models).
- Point Types:
- Type A: Standard point profile ($30^\circ$, $\text{SR0.3}$)
- Type B: Narrow point profile ($15^\circ$, $\text{SR0.3}$)
- Optional Accessories: Data output cable (Code 7315-31 receiver required for wired data interface models; code 7315-2/3/6/7/8/9 receivers required for built-in wireless models).
