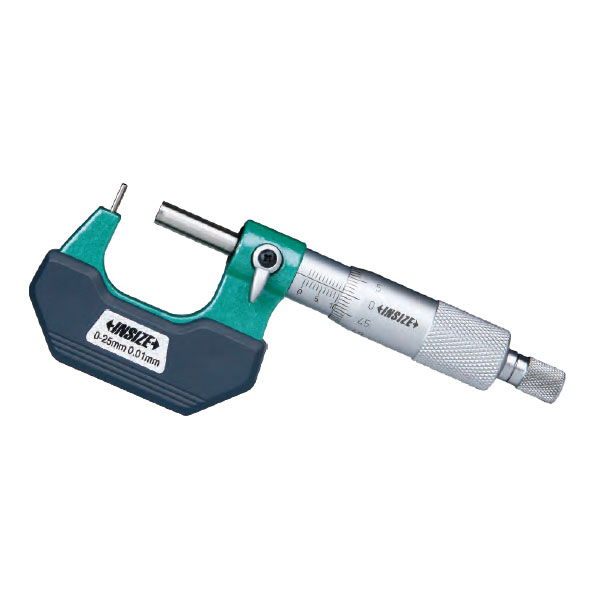

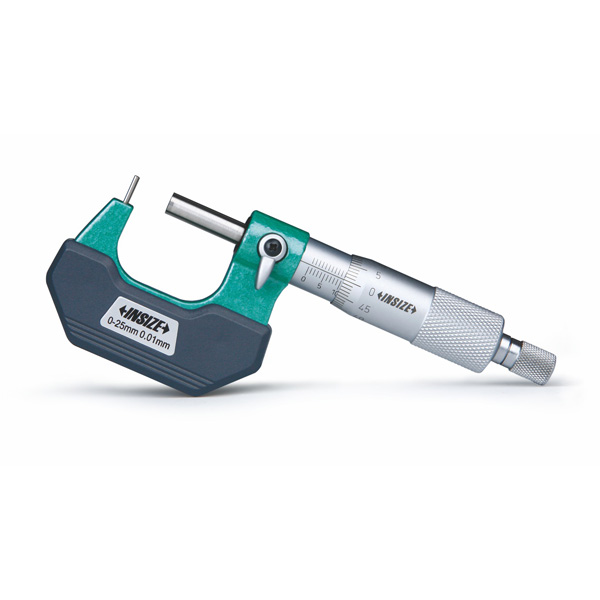

INSIZE CYLINDRICAL ANVIL TUBE MICROMETER (CODE – 3261)

Code:

▪Measure wall thickness of tubes
▪Graduation 0.01mm
▪Ratchet stop
▪Carbide spindle tip
▪Supplied with setting standards (except 0-25mm)

Click to Expand

INSIZE CYLINDRICAL ANVIL TUBE MICROMETER (CODE – 3261)

Product Overview

The INSIZE Cylindrical Anvil Tube Micrometer (Code 3261 series) is a precision measuring instrument engineered specifically for measuring the wall thickness of tubes. Available in multiple anvil types (A, B, C, D, E, and F) and measuring ranges of 0-25mm and 25-50mm, it delivers high-precision dimensional verification for industrial applications.

Key Features & Capabilities

Application: Designed for measuring the wall thickness of tubes.
Graduation: 0.01mm precision.
Ratchet Stop: Ensures consistent measuring force and repeatable readings.
Carbide Spindle Tip: Provides enhanced durability and wear resistance.
Setting Standards: Supplied with setting standards for calibration (excludes 0-25mm range models).

Technical Specifications

Code	Range	Type	Accuracy	L (mm)	b (mm)	h (mm)
3261-25A	0-25mm	A	6µm	36	25	8
3261-50A	25-50mm	A	6µm	61	32	8
3261-25BA	0-25mm	B	6µm	36	25	8
3261-50BA	25-50mm	B	6µm	61	32	15
3261-25CA	0-25mm	C	6µm	36	25	27.5
3261-50CA	25-50mm	C	6µm	61	32	36.5
3261-25DA	0-25mm	D	6µm	36	25	16
3261-50DA	25-50mm	D	6µm	61	32	26
3261-25EA	0-25mm	E	6µm	36	25	27.5
3261-50EA	25-50mm	E	6µm	61	32	35
3261-25FA	0-25mm	F	6µm	36	25	27.5
3261-50FA	25-50mm	F	6µm	61	32	35.5
